4022 593 52701/1 × 1 08.01 AX-301/501 AX-3/5 C.101 C06.fm C6 C6.7 传送，更改方向 （从右至左，从左至右） ■ AX-3 P A1 120/01 DC 000605 P A 1 120/02 AX-301 ■ AX-5 P A1 121/01 …
C6
4022 593 52701/1 × 1
C.100 AX-301/501 AX-3/5 08.01
C06.fm
Suspend Mode [Disabled]
WAKE UP EVENTS （唤醒事件）
VGA [OFF]
LPT & COM [LPT/COM]
HDD & FDD [ON]
PCI Master PCI
[OFF]
PowerOn by LAN
LAN
[Disabled]
Modem Ring Resume
Modem
[Disabled]
RTC Alarm Resume
RTC
[Disabled]
Date (of Month)
[0]
Resume Time (hh:mm:ss)
[0:0:0]
IRQs Activity Monitoring
IRQ
[Press Enter] Enter
IRQs ACTIVITY MONITORING （IRQ 活动监控）
Primary INTR INTR
[ON]
IRQ3 (COM 2)
[Enabled]
IRQ4 (COM 1)
[Enabled]
IRQ5 (LPT 2)
[Enabled]
IRQ6 (Floppy Disk) [Enabled]
IRQ7 (LPT 1)
[Enabled]
IRQ8 (RTC Alarm)RTC [Disabled]
IRQ9 (IRQ2 Redir)
[Disabled]
IRQ10 [Disabled]
IRQ11 [Disabled]
IRQ12 (PS/2 Mouse)
PS/2
[Enabled]
IRQ13
[Enabled]
IRQ14
[Enabled]
IRQ15
[Disabled]
PnP/PCI CONFIGURATIONS （PnP/PCI 配置）
Reset Configuration Data
[Disabled]
Resources Controlled By
[Auto (ESCD)] ESCD
IRQ Resources IRQ [Press Enter] Enter
DMA Resources
DMA
[Press Enter] Enter
PCI/VGA Palette Snoop
PCI/VGA
[Disabled]
Assign IRQ For VGA
VGA IRQ
[Disabled]
Assing IRQ For USB
USB IRQ
[Disabled]
POWER MANAGEMENT （电源管理）
4022 593 52701/1 × 1
08.01 AX-301/501 AX-3/5 C.101
C06.fm
C6

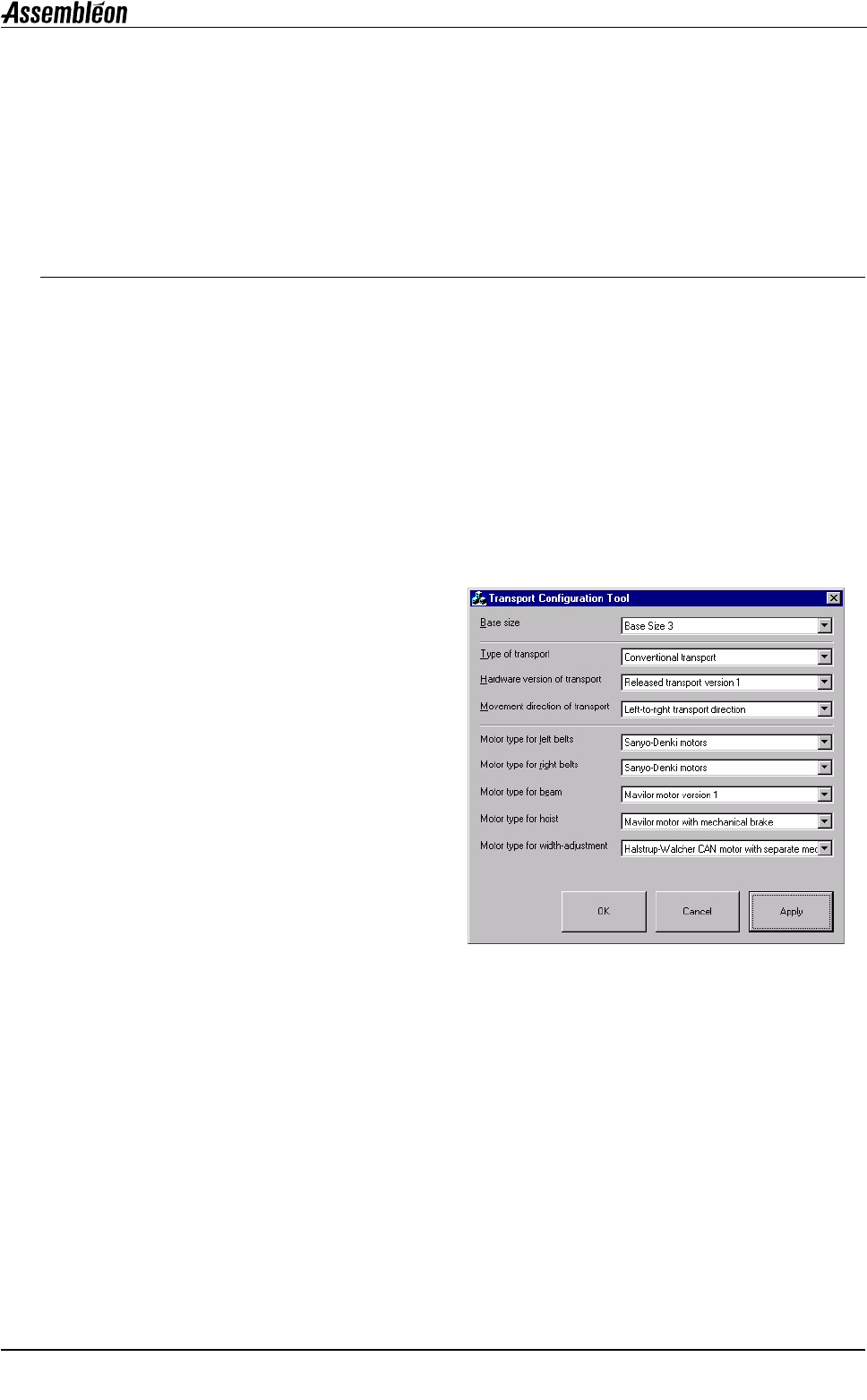

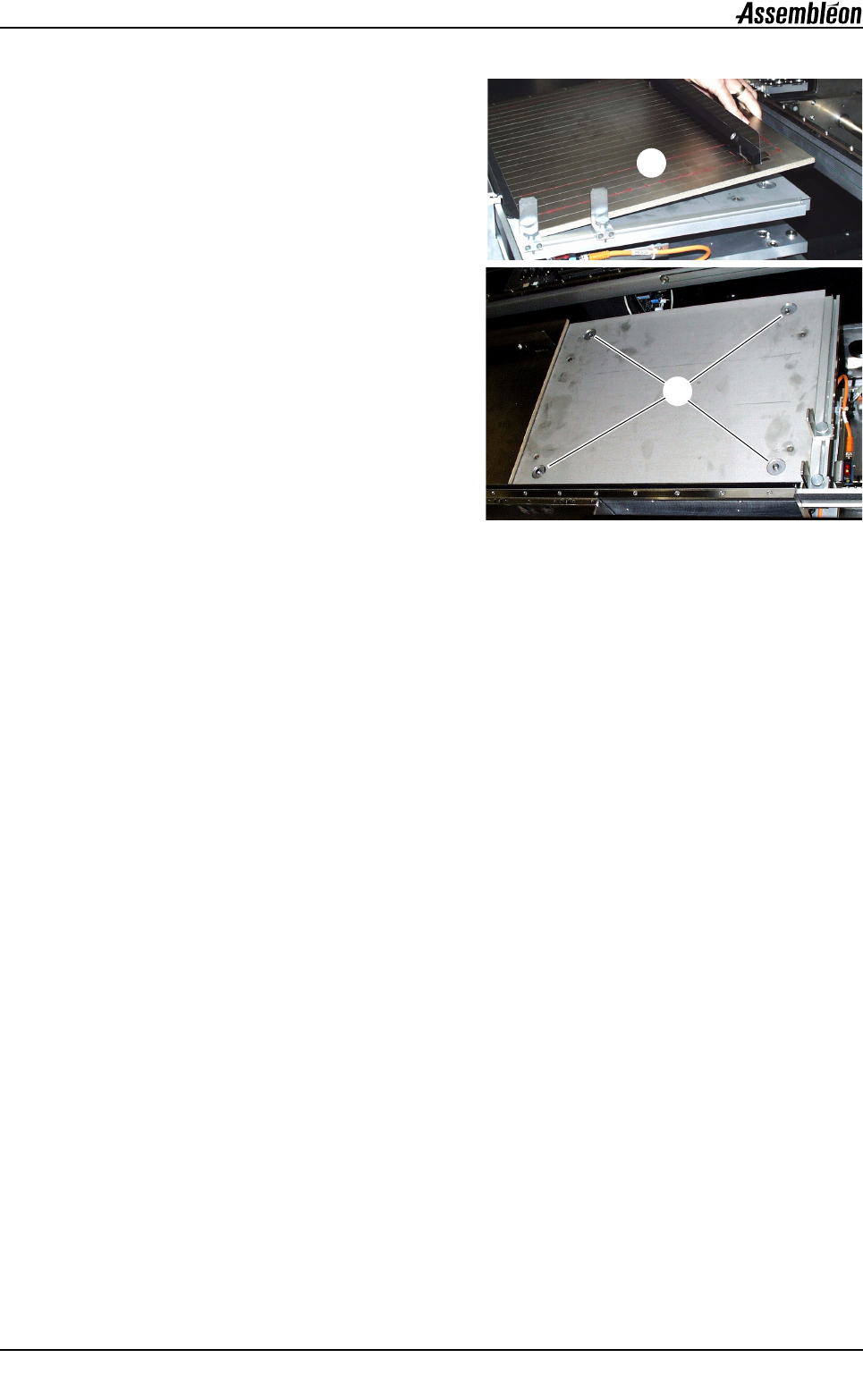

C6.7 传送，更改方向 （从右至左，从左至右）
■ AX-3PA1120/01 DC 000605 PA 1120/02 AX-301
■ AX-5PA1121/01 DC 000682 PA 1121/02 AX-501
PA PA
1. 前提
• Setup - Setup functions -
Transport
•
2. 启动传送配置工具
• superuser A5.3.1.1
• Start - Programs -
Accessories - Windows Windows
Explorer
• m:\bin
• BTCFTTransportConfigurationTool_r.exe
• Movement direction of
transport
• Apply
• OK
•
•
