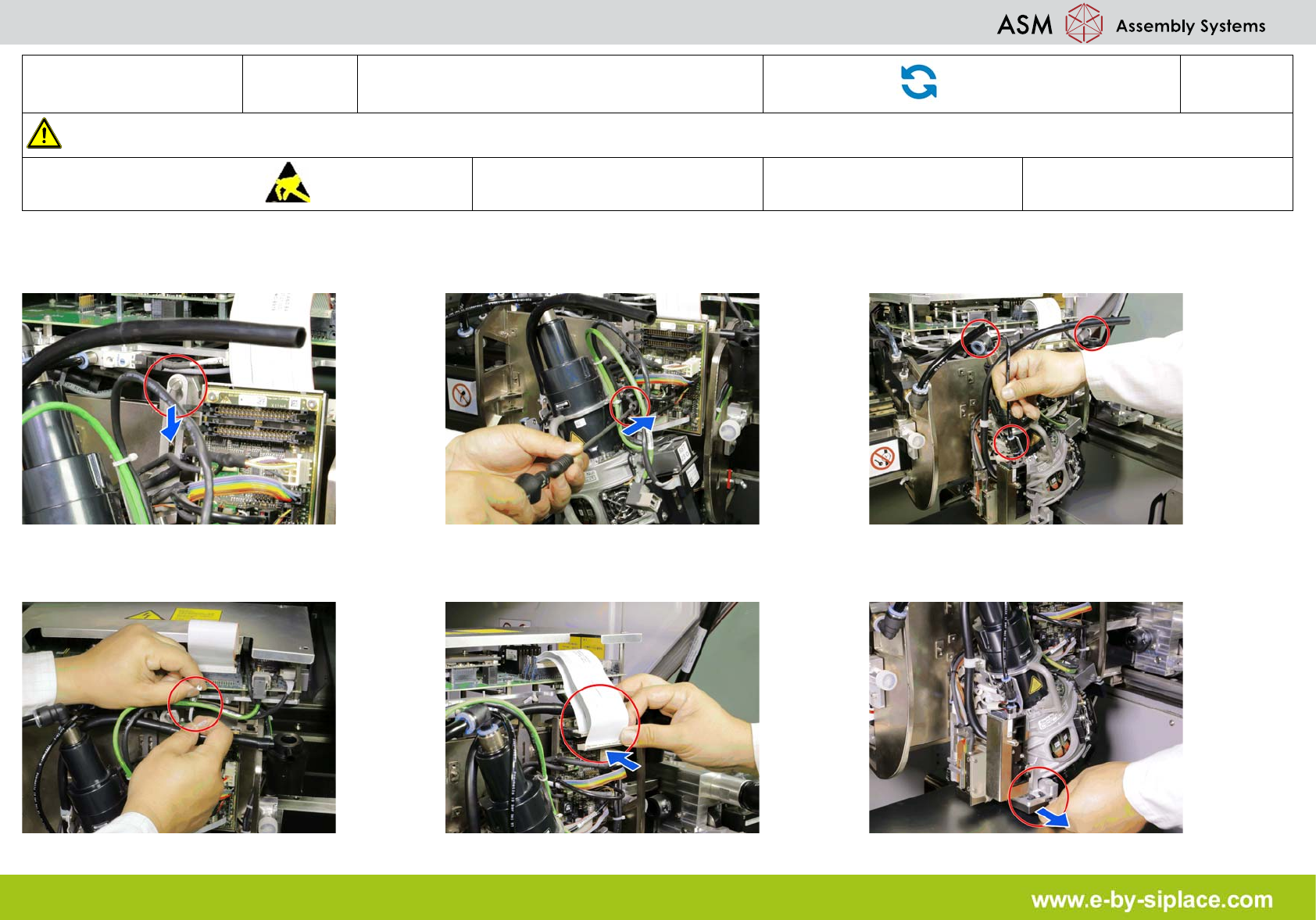

E-by SIPLACE CP14 Returning the CP14 Head

Part Exchange

1/1

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Wear Part: Consumables:

1. Carefully lift the head into of the locating

pins on the head plate.

2. Tighten all four M4 fastening screws with a

long torx key.

3. Connect the pneumatic connections from

the placement head.

4. Carefully plug in the camera cable and fix

back the cable tie.

5. Connect the flat ribbon cable from the

placement head or head adapter.

6. Remove protective cap from the compo-

nent sensor of the placement head.

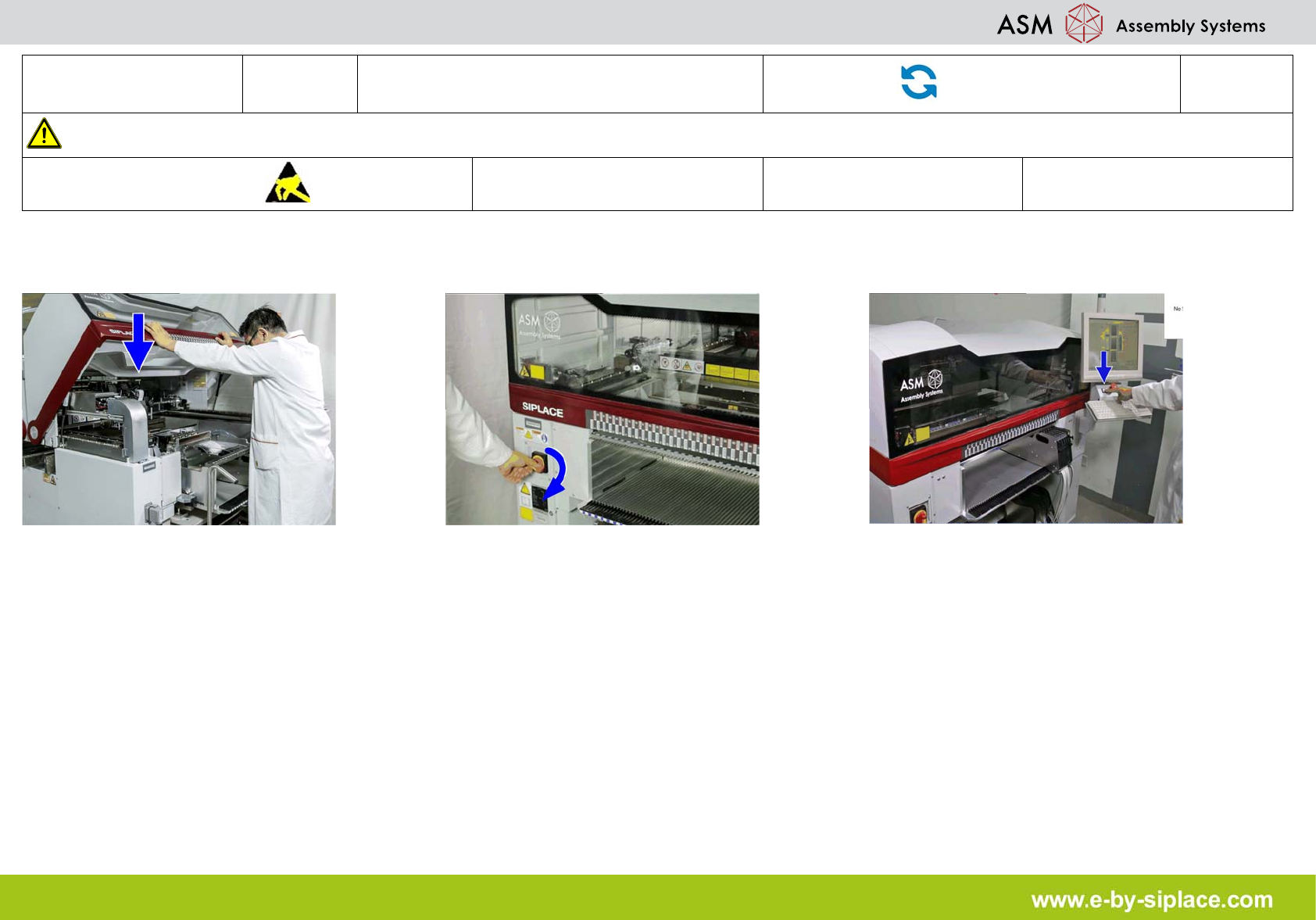

E-by SIPLACE CP14 Prepare for Production

Part Exchange

1/1

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Wear Part: Consumables:

1. Close the safety cover. 2. Switch on the machine. 3. Press start button once the machine is

ready for reference run.
