E-by SIPLACE CP14 Removing the CP14 Head Part Exchange 1/2 CAUTION! Refer to safety inst ructions in user manual before working on the machine. ESD guidelines are to be followed Tool: Wear Part: Consum ables: 1. Fit the …

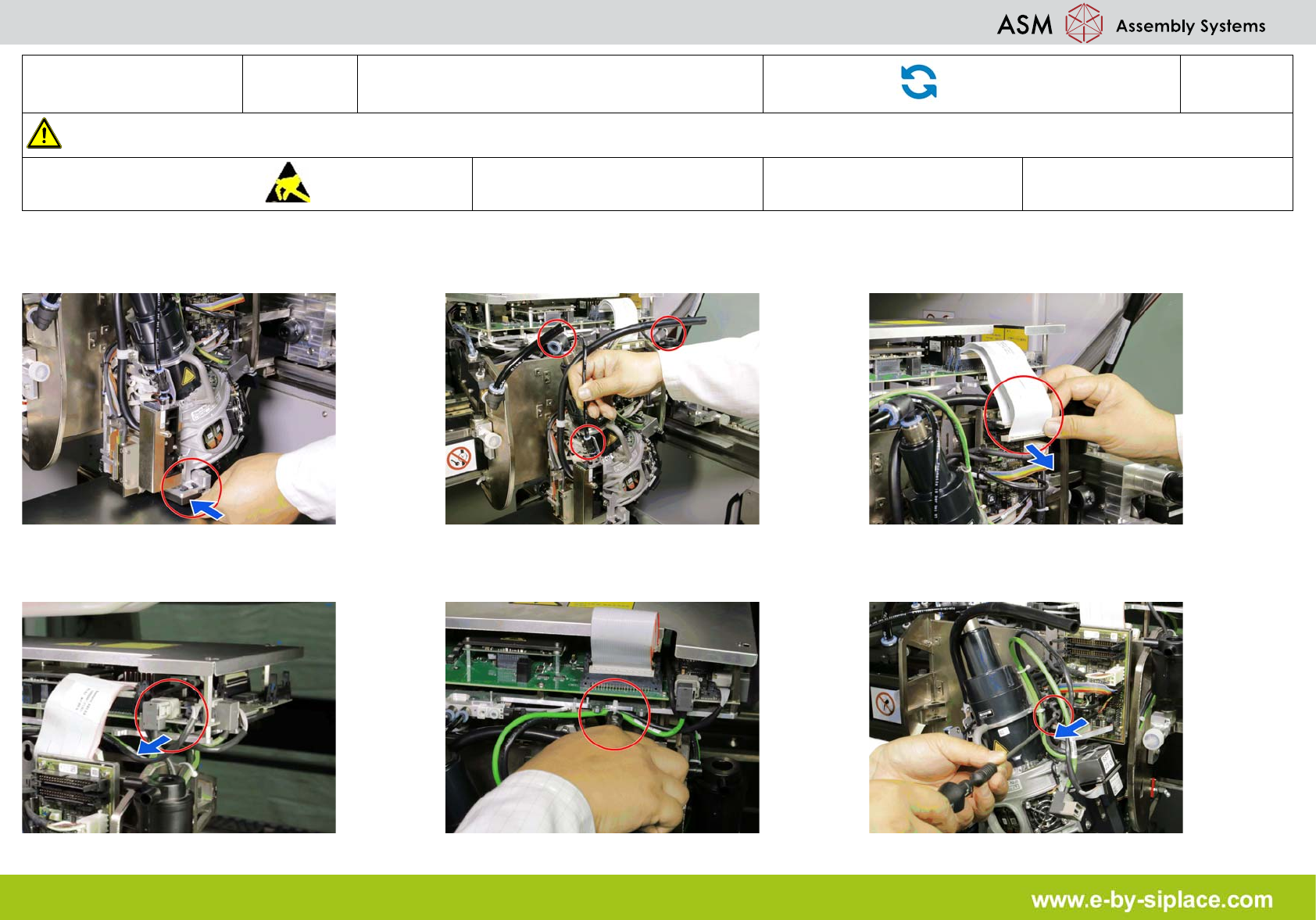

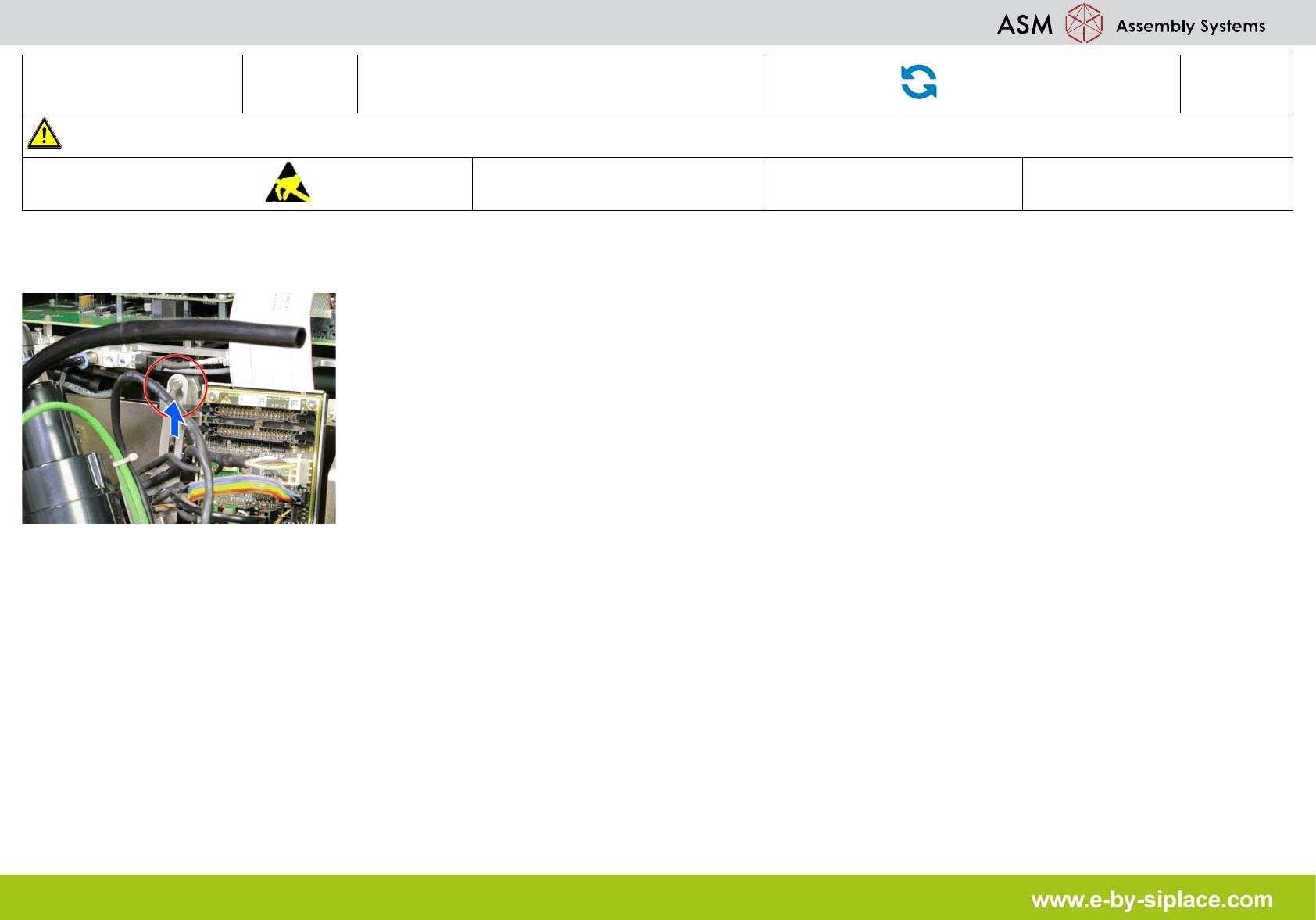

E-by SIPLACE CP14 Removing the CP14 Head

Part Exchange

1/2

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Wear Part: Consumables:

1. Fit the protective cap onto the component

sensor for the placement head.

2. Disconnect the pneumatic connections

from the placement head.

3. Disconnect the flat ribbon cable from the

placement head or head adapter.

4. Disconnect the component cable. 5. Cut away the cable tie. 6. Loosen all four M4 fastening screws with a

long torx key.

E-by SIPLACE CP14 Removing the CP14 Head

Part Exchange

2/2

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool: Wear Part: Consumables:

7. Carefully lift the head out of the locating

pins on the head plate.
