KV7_YV88X_PL - 第15页
1 6 Body ANC (SF) Nozzle KV7-090406 1 2 3 4 4 5 5 6 6 7 8 9 9 10 1 1 12 13 14 15 18 20 19 19 18 18 26 25 22 17 3 16 27 24 23 21 28 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KV7-M9601-…
3
5
Head(FNC)
Head
KV7-080402

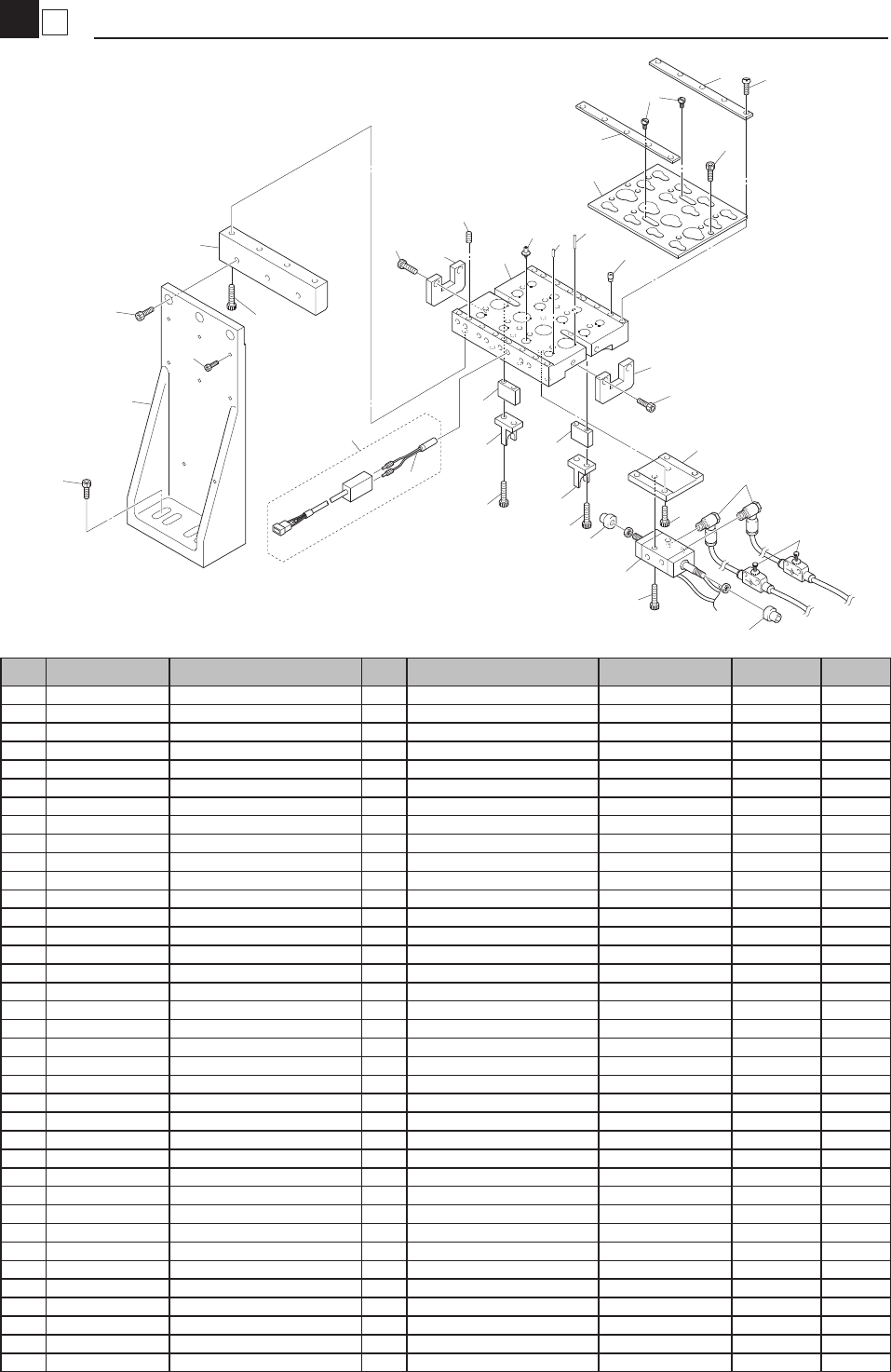

1
6
2
69
70
70
69
5
13
15
59
5
13
15
59
4
3
39
17
66
12
41
42
16
43
18
51
38
62
61
35
55
55
45
40
50
61
37
53
53
34
32
80
33
63
36
29
30
26
60
68
85
72
48
46
56
54
21
64
28
58
19
60
27
23
52
67
83
47
60
46
24
25
22
20
57
57
81
60
71
31
7
65
8
11
9
10
14
44
49
82
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M7104-00X BLOCK,GUIDE Z 2
2 KV7-M7106-00X GUIDE,Z AXIS 2
3 KV7-M7107-00X BRACKET,Z AXIS 1
4 KV7-M7108-00X BRACKET,Z AXIS 1
5 KV7-M7109-00X HOLDER,BRG.Z 2
6 KV7-M7115-00X BLOCK 1,SPRING 2
7 KV7-M7116-00X BLOCK 2,SPRING 2
8 KV7-M7117-00X GUIDE 1,SPRING 2
9 KV7-M7118-00X GUIDE 2,SPRING 2
10 KV7-M7119-00X BLOCK,PIN 2
11 KV7-M7120-00X SPRING, RETURN 2
11-1 KV7-M7120-01X SPRING,RETURN 2 (2001/1/16) M0Y0091 OK
12 KV7-M7121-00X GEAR,HEAD R 2
12-1 KV7-M7121-01X GEAR,HEAD R 2 (2003/2/4) M320004 OK
13 KV7-M7124-00X NUT,LOCK 2
14 KV7-M7126-00X PIPE,AIR 2
15 KV7-M7127-00X SET PIECE,LOCK 2
16 KV7-M7128-00X GUIDE,HOLDER 2
17 KV7-M7130-00X SPLINE,HEAD ASSY. 2
18 KV7-M7135-00X COLLAR,SHAFT 2
19 KV7-M7136-00X STOPPER,SEALING 2
20 KV7-M7137-01X BODY,NOZZLE 2
20-1 KV7-M7137-02X BODY,NOZZLE 2 (2001/6/6) M160023 OK
20-2 KV7-M7137-03X BODY,NOZZLE 2 (2001/7/10) M170055 OK
21 KV7-M7138-00X PLAG,AIR 2
22 KV7-M7141-00X SPRING,LOCATE PIN 2
23 KV7-M7142-00X SHAFT,BLOCK 2
24 KV7-M7143-00X BLOCK,NOZZLE 2
25 KV7-M7144-00X
GEAR 1,BEVEL 2
26 KV7-M7145-00X GEAR 2,BEVEL 2
27 KV7-M7146-00X BUSH,LOCATE PIN 2
28 KV7-M7147-00X PIN,LOCATE 2
29 KV7-M7148-00X COLLAR,BRG. 2
30 KV7-M7149-00X PLATE,BRG. 2
31 KV7-M7151-00X GEAR,N4 2
32 KV7-M7153-00X GEAR,N3 2
33 KV7-M7154-00X GEAR,N2 2
34 KV7-M7155-00X CUP,BALL 2
35 KV7-M7157-01X HOLDER,BRG. 2
36 KV7-M7158-00X COLLAR,BRG. 2
37 KV7-M71M6-01X SCREW,NOZZLE 2
37-1 90990-09J004 SCREW,FLAT HEAD 1 (2007/11/9) MD00082 OK
38
KV7-M7159-00X WASHER, BRG. 1
KV7-M7159-10X WASHER,BRG. 1
38-1
90990-29J001 SHIM 1 t=0.5mm (2008/1/14) MDY0057 OK
90990-29J002 SHIM 1 t=0.05mm (2008/1/14) MDY0057 OK
39 KV7-M7170-00X SPLINE,INDEX ASSY. 2
40 KV7-M7175-00X GEAR,N1 2
41 KV7-M7177-00X COLLAR,DOG N 2
42 KV7-M7178-00X PULLEY,SHAFT N 2
43 KV7-M7181-00X BRACKET,HOLDER 1
44
KV7-M7182-00X SHIM,HOLDER 1
KV7-M7182-10X SHIM,HOLDER 1
KV7-M7182-20X SHIM,HOLDER 1
44-1
KV7-M7187-00X SHIM,GUIDE 1 (2001/2/2) M110148 OK
KV7-M7187-10X SHIM,GUIDE 1 (2001/2/2) M110148 OK
KV7-M7187-20X SHIM,GUIDE 1 (2001/2/2) M110148 OK
45
KV7-M7184-00X SHIM,BRG. 1 (2001/2/2) M110148
KV7-M7184-10X SHIM,BRG. 1 (2001/2/2) M110148
45-1
90990-29J056 SHIM 1 (2008/01/18) MDY0135 OK
90990-29J057 SHIM 1 (2008/01/18) MDY0135 OK
46 KV7-M71S1-00X O-RING 14 SS-025
46-1 90200-02J025 O-RING 14 SS-025 (2001/11/27) M1X0094 OK
47 KV7-M71S2-00X O-RING 4 SS-038
47-1 90200-02J038 O-RING 4 SS-038 (2001/11/27) M1X0094 OK
48 KV7-M71S3-00X O-RING 2 SS-048
48-1 90200-02J048 O-RING 2 SS-048 (2001/11/27) M1X0094 OK
49 KV7-M71S5-00X O-RING 2 P3
49-1 KG2-M7198-01X O-RING 1-B 2 P3 (2000/7/21) M070154 OK
49-2 90200-10J030 O-RING 2 (2001/11/27) M1X0094 OK
49-3 90200-00J030 O-RING 2 (2014/07/03) MK90078 OK
50 KV7-M71S6-00X WASHER,SEAL 2
50-1 90990-36J003 WASHER,SEAL 2 (2008/04/15) ME20075 OK
51 99009-20800 CIRCLIP 2
52 KV7-M71X2-00X E-RING 2 ETW-3.2
52-1 90440-10J032 CIRCLIP 2 ETW-3.2 (2002/2/4) M220010 OK
52-2 90440-02J032 CIRCLIP 2 (2002/2/26) M220094 OK
53 KV7-M71X3-00X BALL (D1.5) 196
53-1 90947-15JA00 BALL STEEL 196 (2007/9/20) MD80070 OK
54 KV7-M71Y1-00X Y-PACKING 2
KSYA-3
54-1 90990-22J009 PACKING 2 KSYA-3 (2002/1/21) M210053 OK
55 KV7-M71Y3-00X Y-PACKING 8 KSYA-7
55-1 90990-22J010 PACKING 8 KSYA-7 (2002/1/21) M210053 OK
56 KV7-M71Y4-00X Y-PACKING 2 KSY P-11
56-1 90990-22J011 PACKING 2 KSY P-11 (2002/1/21) M210053 OK
57 KV7-M71Y5-00X Y-PACKING 4 KSYA-22
57-1 90990-22J012 PACKING 4 KSYA-22 (2002/1/21) M210053 OK
58 KV7-M71Y6-00X Y-PACKING 2 KSYA-4
58-1 90990-22J013 PACKING 2 KSYA-4 (2002/1/21) M210053 OK
59 KV7-M71T1-00X BEARING 2 79M8ADF
59-1 90990-26J001 BEARING 2 79M8ADF (2007/12/6) MDX0068 OK
60 KV7-M71T2-00X BEARING 8 WBC5-9ZZA
60-1 90990-25J013 BEARING 8 WBC5-9ZZA (2007/12/6) MDX0068 OK
61 KV7-M71T3-00X BEARING 4 WBC7-13ZZA
61-1 90990-25J012 BEARING 4 WBC7-13ZZA (2007/12/6) MDX0068 OK
62 KV7-M71T4-00X BEARING 2 6704LLF
62-1 90990-25J007 BEARING 2 6704LLF (2007/12/6) MDX0068 OK
63 KV7-M71T5-00X BEARING 2 6705LLF
63-1 90990-25J006 BEARING 2 6705LLF (2007/12/6) MDX0068 OK
64 KV7-M8148-00X O-RING S9 4
64-1 90200-01J090 O-RING 4
(2001/11/22) M1X0060 OK
65 KG7-M7122-00X RACK,Z AXIS 2
66 KH5-M7108-00X COLLAR,DOG R 2
67 91690-10004 PIN,SPRING 2
68 91690-20005 PIN,SPRING 4
68-1 91609-20005 PIN SPRING : 2X5 4 (2001/2/8) M120040 OK
69 TLR4-M5 JOINT 2
70 SL4-M5 JOINT 4
71 KV7-M71C5-00X COVER,GEAR 1
72 KV7-M71C6-00X COVER,PIN 1
80 KV7-M7152-00X IDLER GEAR ASSY 2 (2000/10/5) M000020
81 KV7-M7192-A0X PLUG ASSY 4 (2001/6/6) M160023
82 KV7-M7185-00X SHIM,CUP 1 (2001/2/2) M110148
82-1 KV7-M7185-10X SHIM,CUP 1 (2001/2/2) M110148
83 KV7-M7186-00X SHIM,BLOCK 1 (2001/2/2) M110148
83-1 KV7-M7186-10X SHIM,BLOCK 1 (2001/2/2) M110148
83-2 KV7-M7186-20X SHIM,BLOCK 1 (2007/8/31) MD80106
84 99009-17800 CIRCLIP 1 (2001/8/24) M180116
85 KV7-M711S-A0X FNC SHAFT1, SPARE 1
1
6
Body ANC (SF)
Nozzle
KV7-090406
1
2
3
4
4
5
5
6
6
7
8
9
9
10
11
12
13
14
15
18
20
19
19
18
18
26
25
22
17
3
16
27
24
23
21
28
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M9601-00X HOLDER. ANC 1
2 KV7-M9602-00X PLATE. CLAMP 1
3 KV7-M9603-00X NUT. CLAMP 2
4 KV7-M9604-00X STOPPER. CLAMP 2
5 KV7-M9605-00X SLIDE. CLAMP 2
6 KV7-M9606-00X SLIDE BLOCK 2
7 KV7-M9607-00X PLATE. CYLINDER 1
8 KV7-M9608-00X PIN. SLIDE 2
9 KV7-M9609-00X PLATE. GUIDE 2
10 KV7-M9610-00X BRACKET 1 1
11 KV7-M9611-00X BRACKET ANC. 1
11-1 KGA-M9611-00X BRACKET ANC. 1 (2001/11/26) M1X0105 SET
11-2 KGA-M8021-00X BRACKET A,SENSOR 1 (2001/10/2) M100003 OK
12 KV7-M9612-00X AIR CYLINDER ASSY. 1
13 KG7-M9608-00X NEEDLE PIN 18
13-1 90990-19J007 NEEDLE PIN 24 (2001/12/25) M1Y0079 OK
14 KM0-M9608-00X NEEDLE PIN 16
14-1 90990-19J004 NEEDLE PIN 16 (2001/12/25) M1Y0079 OK
15 KH5-M655A-A0X SENSOR,1-1 16
15-1 KH5-M655A-A1X SENSOR,1-1 16 2000/6/23 M050041 OK
16 $SL4-M5 JOINT 2
17 91317-03006 BOLT HEX. SOCKET HEAD 4
18 91317-03008 BOLT HEX. SOCKET HEAD 8
19 91317-03010 BOLT HEX. SOCKET HEAD 4
20 91317-03014 BOLT HEX. SOCKET HEAD 2
21 91317-04008 BOLT HEX. SOCKET HEAD 6
22 91317-04020 BOLT HEX. SOCKET HEAD 4
23 91317-05010 BOLT HEX. SOCKET HEAD 3
24 91317-06020 BOLT HEX.SOCKET HEAD 2 (2000/12/18) M0Y0068 OK
24-1 92A08-03003 SET,SCREW 16
25 98907-03005 SCREW BINDING HEAD 10
26 92A08-03003 SET,SCREW 16
26-1 90990-02J007 SET,SCREW 16 (2003/8/28) M380085 OK
27 $SSU4 SPEED CONTROLLER 2
28 KH5-M655A-02X FIBER 1
2
6
Body ANC (FNC)
Nozzle
KV7-090406
1
2
3
4
4
5
5
6
6
7
8
9
9
12
15
13
14
16
20
22
21
21
20
20
28
27
19
3
10
11
17
24
26
25
23
18
29
30
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M9651-00X HOLDER. ANC 1
2 KV7-M9652-00X PLATE. CLAMP 1
3 KV7-M9603-00X NUT. CLAMP 2
4 KV7-M9604-00X STOPPER. CLAMP 2
5 KV7-M9605-00X SLIDE. CLAMP 2
6 KV7-M9606-00X SLIDE BLOCK 2
7 KV7-M9607-00X PLATE. CYLINDER 1
8 KV7-M9608-00X PIN. SLIDE 2
9 KV7-M9654-00X PLATE. GUIDE 2
10 KV7-M9653-00X BRACKET 1 1
11 KV7-M9611-00X BRACKET ANC. 1
11-1 KGA-M9611-00X BRACKET ANC. 1 (2001/11/26) M1X0105 SET
11-2 KGA-M8021-00X BRACKET A,SENSOR 1 (2001/10/2) M100003 OK
12 KV7-M9612-00X AIR CYLINDER ASSY. 1
13 KV7-M9655-00X PIN. MARK 4
14 KV7-M7760-00X NOZZLE 66A 2
15 KG7-M9608-00X NEEDLE PIN 18
15-1 90990-19J007 NEEDLE PIN 18 (2001/12/25) M1Y0079 OK
16 KM0-M9608-00X NEEDLE PIN 16
16-1 90990-19J004 NEEDLE PIN 16 (2001/12/25) M1Y0079 OK
17 KH5-M655A-A0X SENSOR,1-1 16
17-1 KH5-M655A-A1X SENSOR,1-1 16 (2000/6/23) M050041 OK
18 $SL4-M5 JOINT 2
19 91317-03006 BOLT HEX. SOCKET HEAD 4
20 91317-03008 BOLT HEX. SOCKET HEAD 8
21 91317-03010 BOLT HEX. SOCKET HEAD 4
22 91317-03014 BOLT HEX. SOCKET HEAD 2
23 91317-04008 BOLT HEX. SOCKET HEAD 6
24 91317-04025 BOLT HEX. SOCKET HEAD 4
25 91317-05010 BOLT HEX. SOCKET HEAD 3
26 91317-06025 BOLT HEX.SOCKET HEAD 2
26-1 91317-06020 BOLT HEX.SOCKET HEAD 2 (2000/12/18) M0Y0068 OK
27 98907-03005 SCREW BINDING HEAD 10
28 92A08-03003 SET,SCREW 16
28-1 90990-02J007 SET,SCREW 16 (2003/8/28) M380085 OK
29 $SSU4 SPEED CONTROLLER 2
30 KH5-M655A-02X FIBER 1
