KV7_YV88X_PL - 第17页
3 6 Nozzle Selection (SF) Nozzle KV7-080402 4 5 6 7 1 2 3 8 A 6 6 e p y T A 3 6 e p y T A 2 6 e p y T A 1 6 e p y T T ype64 A T ype65A Circle Nozzle 69A 10 9 No. Part No. Part Name Q'ty Remarks Date of change Revise…
2
6
Body ANC (FNC)
Nozzle
KV7-090406
1
2
3
4
4
5
5
6
6
7
8
9
9
12
15
13
14
16
20
22
21
21
20
20
28
27
19
3
10
11
17
24
26
25
23
18
29
30
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M9651-00X HOLDER. ANC 1
2 KV7-M9652-00X PLATE. CLAMP 1
3 KV7-M9603-00X NUT. CLAMP 2
4 KV7-M9604-00X STOPPER. CLAMP 2
5 KV7-M9605-00X SLIDE. CLAMP 2
6 KV7-M9606-00X SLIDE BLOCK 2
7 KV7-M9607-00X PLATE. CYLINDER 1
8 KV7-M9608-00X PIN. SLIDE 2
9 KV7-M9654-00X PLATE. GUIDE 2
10 KV7-M9653-00X BRACKET 1 1
11 KV7-M9611-00X BRACKET ANC. 1
11-1 KGA-M9611-00X BRACKET ANC. 1 (2001/11/26) M1X0105 SET
11-2 KGA-M8021-00X BRACKET A,SENSOR 1 (2001/10/2) M100003 OK
12 KV7-M9612-00X AIR CYLINDER ASSY. 1
13 KV7-M9655-00X PIN. MARK 4
14 KV7-M7760-00X NOZZLE 66A 2
15 KG7-M9608-00X NEEDLE PIN 18
15-1 90990-19J007 NEEDLE PIN 18 (2001/12/25) M1Y0079 OK
16 KM0-M9608-00X NEEDLE PIN 16
16-1 90990-19J004 NEEDLE PIN 16 (2001/12/25) M1Y0079 OK
17 KH5-M655A-A0X SENSOR,1-1 16
17-1 KH5-M655A-A1X SENSOR,1-1 16 (2000/6/23) M050041 OK
18 $SL4-M5 JOINT 2
19 91317-03006 BOLT HEX. SOCKET HEAD 4
20 91317-03008 BOLT HEX. SOCKET HEAD 8
21 91317-03010 BOLT HEX. SOCKET HEAD 4
22 91317-03014 BOLT HEX. SOCKET HEAD 2
23 91317-04008 BOLT HEX. SOCKET HEAD 6
24 91317-04025 BOLT HEX. SOCKET HEAD 4
25 91317-05010 BOLT HEX. SOCKET HEAD 3
26 91317-06025 BOLT HEX.SOCKET HEAD 2
26-1 91317-06020 BOLT HEX.SOCKET HEAD 2 (2000/12/18) M0Y0068 OK
27 98907-03005 SCREW BINDING HEAD 10
28 92A08-03003 SET,SCREW 16
28-1 90990-02J007 SET,SCREW 16 (2003/8/28) M380085 OK
29 $SSU4 SPEED CONTROLLER 2
30 KH5-M655A-02X FIBER 1
3
6

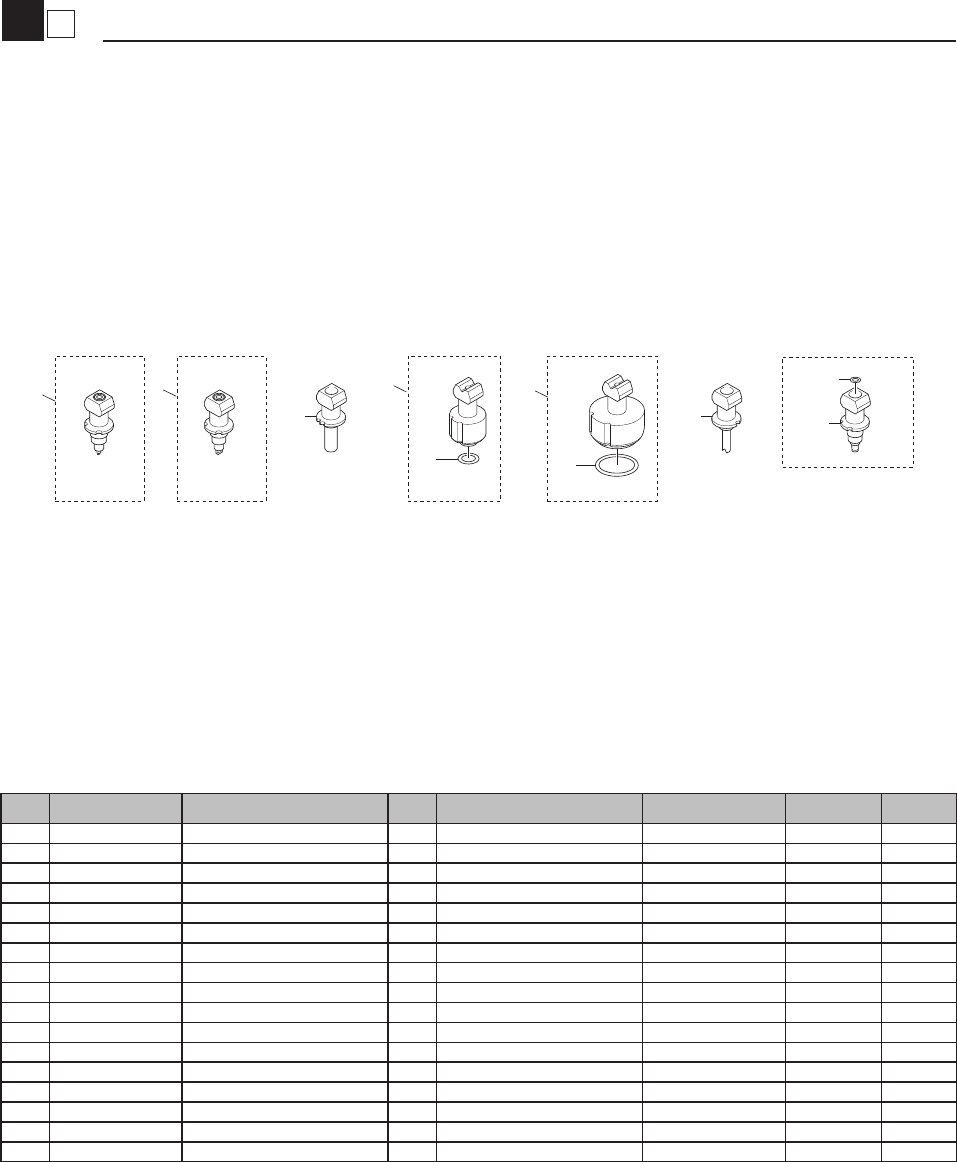

Nozzle Selection (SF)
Nozzle
KV7-080402
4
5
6
7
1 2
3
8
A66epyTA36epyTA26epyTA16epyT Type64A Type65A
Circle Nozzle 69A
10
9
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M7710-A0X NOZZLE 61A ASSY. 2 Type 61A
1-1 KV7-M7710-A1X NOZZLE 61A ASSY. 2 Type 61A (2000/4/11) M040041 OK
2 KV7-M7720-A0X NOZZLE 62A ASSY. 2 Type 62A
2-1 KV7-M7720-A1X NOZZLE 62A ASSY. 2 Type 62A (2000/4/11) M040041 OK
3 KV7-M7730-00X NOZZLE 63A 2 Type 63A
4 KV7-M7740-A0X NOZZLE 64A 2
5 KGB-M7742-00X O-RING 5 KSP0004
5-1 90990-17J013 O-RING 5 (2001/12/6) M1X0134 OK
5-2 90990-17J081 O-RING 5 (2015/4/27) MM30191 OK
6 KV7-M7750-A0X NOZZLE 65A 1
7 KGA-M7752-00X O-RING 5 KSP0009
7-1 90990-17J015 O-RING 5 (2001/12/6) M1X0134 OK
7-2 90990-17J083 O-RING 5 (2015/4/27) MM30191 OK
8 KV7-M7760-00X NOZZLE 66A 2 Type 66A
9 90200-02J015 O-RING 5
10 KV7-M77GX-A0X CIRCLE NOZZLE 69A 2 CIRCLE NOZZLE
10-1 KV7-M7790-A0X NOZZLE 69A ASSY. 1 (2003/5/14) H7399 OK
4
6
Nozzle Selection(FNC)
Nozzle
KV7-090901
1
5
4 8
3
7
34
7
9
23
24
12
11
13 18
16 21
14
17
15 20
19
22
27
25
Type61F Type62F Type63F Type69F
Type65FType64F Type66F
26
Nozzle Holder
8
29
28
32
31
30
33
30
32
31
32
31
30
30
32
31
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M71N1-A0X NOZZLE 61F ASSY. 2
1-1 KGA-M71N1-A0X NOZZLE 61F ASSY. 2 (2001/3/12) M130050 OK
2
2-1
3 KV7-M71M6-01X SCREW, NOZZLE 6
4 KV7-M71S2-00X O-RING 5
4-1 90200-02J038 O-RING 5 (2001/11/22) M1X0060 OK
5 KV7-M71N2-A0X NOZZLE 62F ASSY. 2
5-1 KGA-M71N2-A0X NOZZLE 62F ASSY. 2 (2001/3/12) M130050 OK
6
6-1
7 KV7-M71M6-01X SCREW, NOZZLE 6
8 KV7-M71S2-00X O-RING 5
8-1 90200-02J038 O-RING 5 (2001/11/22) M1X0060 OK
9 KV7-M71N3-A0X NOZZLE 63F ASSY. 2
9-1 KV7-M71N3-A1X NOZZLE 63F ASSY. 2 (2001/3/12) M130050 OK
10
10-1
11 KV7-M71M6-01X SCREW, NOZZLE 6
12 KV7-M71S2-00X O-RING 5
12-1 90200-02J038 O-RING 5 (2001/11/22) M1X0060 OK
13 KV7-M71N4-A0X NOZZLE 64F ASSY. 2
14 KV7-M71N4-00X BODY, NOZZLE 4 1
15 KGB-M7742-00X O-RING 5
15-1 90990-17J013 O-RING 5 (2001/12/6) M1X0134 OK
16 KV7-M71S2-00X O-RING 5
16-1 90200-02J038 O-RING 5 (2001/11/22) M1X0060 OK
17 92A08-03005 SET SCREW M3X5 3
17-1
92A08-03305 SCREW,SET 3 (2001/9/21) M190079 OK
18 KV7-M71N5-A0X NOZZLE 65F ASSY. 2
19 KV7-M71N5-00X BODY, NOZZLE 5 1
20 KGA-M8752-00X O-RING 5
20-1 90990-17J014 O-RING 5 (2001/12/6) M1X0134 OK
21 KV7-M71S2-00X O-RING 5
21-1 90200-02J038 O-RING 5 (2001/11/22) M1X0060 OK
22 92A08-03005 SET SCREW M3X5 3
22-1 92A08-03305 SCREW,SET 3 (2001/9/21) M190079 OK
23 KV7-M71N6-A0X NOZZLE 66F ASSY. 2
24 KV7-M71N6-B0X NOZZLE 66F SUB ASSY. 1
25 KV7-M71S4-00X O-RING 5
25-1 90200-02J065 O-RING 5 (2001/11/22) M1X0060 OK
26 92A08-03003 SET SCREW M3X3 3
26-1 92A08-03303 SET SCREW M3X3 3 (2001/9/21) M190079 OK
27 KV7-M71M0-A0X NOZZLE HOLDER ASSY. 2
27-1 KV7-M71M0-A1X NOZZLE HOLDER ASSY. 2 (2007/6/14) MD60046 OK
28 KV7-M71M0-00X HOLDER NOZZLE SP 1
29 KV7-M71S4-00X O-RING 5
29-1 90200-02J065 O-RING 5 (2001/11/22) M1X0060 OK
30 KG7-M7137-A0X LEAF SPRING 4
30-1 KGR-M71M3-00X LEAF SPRING 4 (2007/6/14) MD60046 NG
31 KG7-M7169-00X SCREW 4
31-1 90990-08J002 SCREW,PAN HEAD 4 (2007/6/14) MD60046 NG
32 KG7-M7170-00X WASHER 4
32-1 90990-28J002 WASHER 4 (2003/3/28) M330113
32-2 KGS-M714W-03X PLATE,SPRING 4 (2007/6/14) MD60046 NG
33 92A08-03003 SET SCREW M3X3 3
33-1 92A08-03303 SET SCREW M3X3 3 (2001/9/21) M190079 OK
34 KV7-M87GF-A0X CIRCLE NOZZLE 6F 2
34-1 KV7-M71N9-A0X NOZZLE 69F ASSY. 2 (2002/9/10) M280135 OK
