KV7_YV88X_PL - 第24页

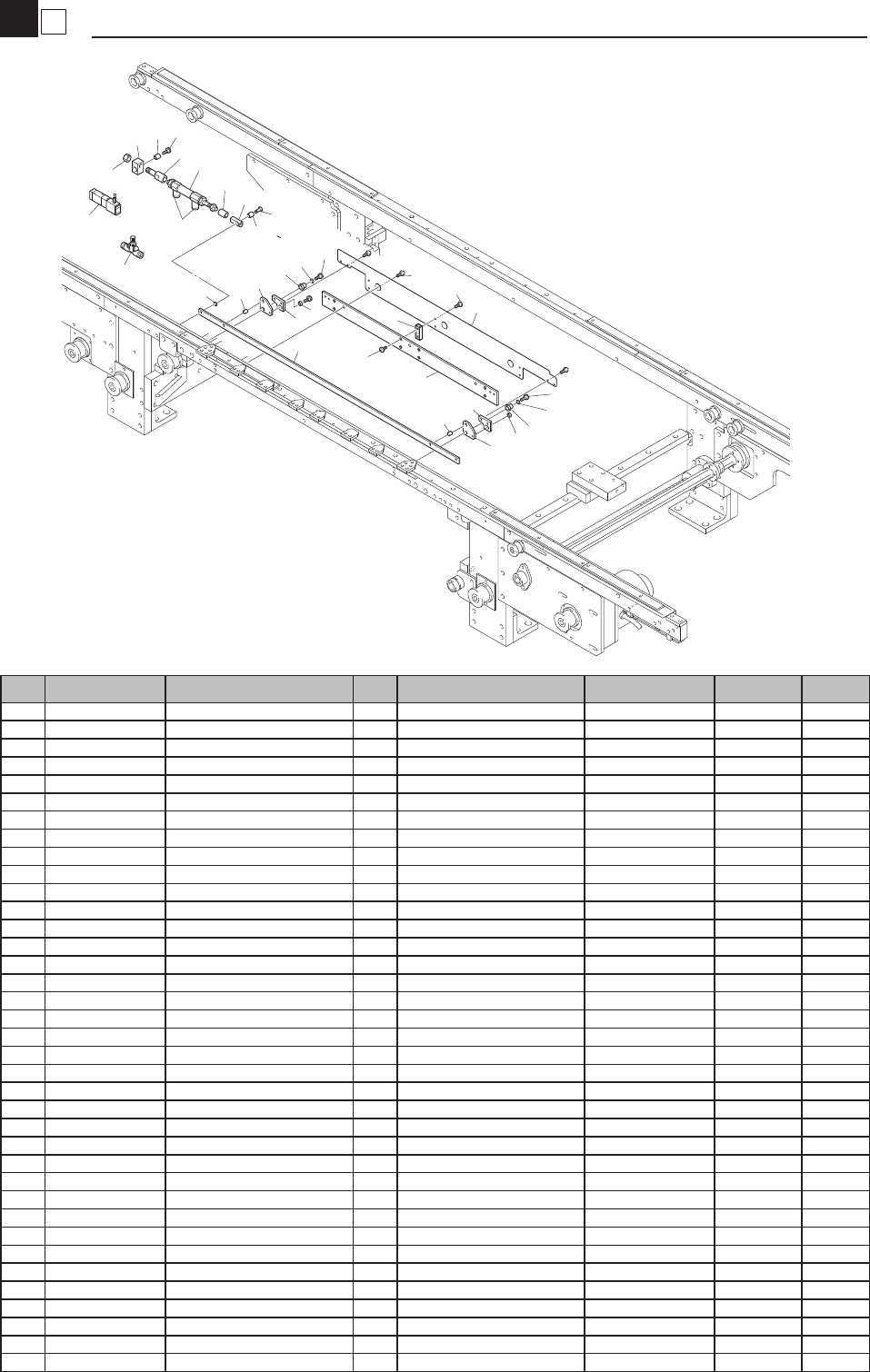

6 7 Edge clamp Conveyor Unit KV7-1 102 OLD 3(KV7) 3(KV7) 16 7 9 18 20 20 5 1 1 21 1 1 3 14 15 8 10 18 4 5 13 22 18 1 1 21 3 1 12 2 19 17 23 16 7 9 18 20 20 8 6 15 10 13 22 12 19 2 1 23 1 Fig 1 Fig 2 2(KV7) 2(KV7) 24 24 1…
5
7
Clamp board
Conveyor Unit
KV7-080228
5
8
8
15
2
21
21
20
3
1
1
16
11
17
10
12
22
9
14
25
11
13
17
17
18
6
7
5
18
19
4
7
4
23
24
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M9261-01X PLATE 1, LINK 4
2 KV7-M9262-01X PLATE BOARD CLAMP 2
3 KV7-M9263-01X PLATE 2, LINK 2
4 KV7-M9264-01X LINK 4
4-1 KV7-M9264-02X LINK 4 (2005/10/17) MB00045 OK
5 KV7-M9265-01X SPACER, COLLAR 4
6 KV7-M9266-01X GUIDE 6
7 KV7-M9267-01X COLLAR 2 4
8 KV7-M9268-00X PIN 4
8-1 KV7-M9268-01X PIN 4 (2007/6/18) MD60100 OK
8-2 90990-18J017 PIN,PARALLEL 4 (2007/11/30) MD00140 OK
9 KV7-M9269-01X CYLINDER 2
9-1 KV7-M9269-02X CYLINDER 2 (2001/6/22) M160146 OK
10 KV7-M926A-01X JOINT, CYL. 2
11 KV7-M926B-01X COLLAR, JOINT 4
12 KV7-M926C-01X STOPPER, CYLNDER 2
13 KV7-M926D-01X JOINT, CYL.BRKT. 2
14 KV7-M926E-01X BRKT., CYL. 2
15 98904-03004 SCREW BINDING HEAD 8
15-1 98902-03004 SCREW BINDING HEAD 8 (2006/1/9) MBY0166 OK
16 KV7-M926G-00X BOLT,BUTTON HEAD 2
16-1 92017-04010 BOLT, BUTTON HEAD 2 (2001/12/11) M1Y0031 OK
16-2 92012-04010 BOLT BUTTON HEAD 2 (2007/4/9) MD40011 OK
17 91317-04014 BOLT HEX.SOCKET HEAD 10
17-1 91312-04014 BOLT HEX.SOCKET HEAD 10 (2007/4/9) MD40011 OK
18 92907-03200 WASHER PLAIN 4
18-1 92902-03200 WASHER PLAIN 4 (2007/4/9) MD40011 OK
19 92907-04600 WASHER,PLAIN (S) 4
19-1 92902-04600 WASHER PLAIN 4 (2007/4/9) MD40011 OK
20 KV7-M926H-00X PLATE 1 2
21 KV7-M926K-00X BOLT,1 24
21-1 KV7-M926K-00X BOLT,1 24 (2006/5/22) MC50055 OK
21-2 90169-02JB04 SCREW, BINDING HEAD 24 (2007/11/9) MD00082 OK
22 KG2-M8582-40X VALVE 1 (2001/5/21) M150069
23 $UEF4BU JOINT 4 (2006/2/10) MC20078
24 $SSU4 SPEED CONTROLLER 4 (2004/1/5) M410009
25 95302-06600 NUT HEXAGON 2 (2007/12/5) MDY0009
6
7
Edge clamp
Conveyor Unit
KV7-1102
OLD
3(KV7)
3(KV7)
16
7
9
18
20
20
5
11
21
11
3
14
15
8
10
18
4
5
13
22
18
11
21
3
1
12
2
19
17
23
16
7
9
18
20
20
8
6
15
10
13
22
12
19
2
1
23
1
Fig 1
Fig 2
2(KV7)
2(KV7)
24
24
1
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M9231-00X
PLATE,EDGE CLAMP 2
Fig 1
1-1 KV7-M9231-01X PLATE,EDGE CLAMP 2 w=25.0mm Fig 2 1999/8/5 M960025 NG
1-2 KGA-M9231-S0X PLATE,EDGE CLAMP SET 1 w=24.5mm 2002/12/6 M250036 NG
2 KV7-M9232-01X PLATE 3,GUIDE 2
2-1 KV7-M9232-S0X PLATE 3,GUIDE 1 (2000/7/26) M070194 OK
2-2 KGA-M9232-S0X PLATE 3,GUIDE SET 1 2002/12/6 M250036 NG
3 KV7-M9233-00X
GUIDE 2
2
3-1 KV7-M9233-S0X GUIDE 2,SET 1 (2000/10/31) M000158 OK
3-2 KGA-M9233-S0X GUIDE 2,SET 1 2002/12/6 M250036 NG
4 KV7-M9234-00X SPACER,GUIDE 1
5 KV7-M9235-00X PLATE,LINK 6
5-1 KV7-M9235-00X PLATE,LINK 4 Q'ty change 2002/12/6 M250036 OK
6 KV7-M9236-00X SHAFT,LINK 1 8-M3
6-1 KV7-M9236-01X SHAFT,LINK 1 2-M3 6-Ø3 1999/8/5 M960025 NG
6-2 KGA-M9236-10X SHAFT,LINK 1 2-M3 4-Ø3 2002/12/6 M250036 NG
7 KV7-M9237-00X CYLINDER PBSA 2 10X5
8 KV7-M9238-00X JONIT,CYL. 2
9 KV7-M9239-00X BRKT.,CYL. 2
9-1 KV7-M9239-01X BRKT.,CYL. 2 (2005/10/17) MB00045 OK
10 KV7-M923A-00X COLLAR,JOINT 2
10-1 90990-41J062 COLLAR 2 (2008/4/17) ME20197 OK
11 KV7-M923B-00X BEARING 12 MR84ZZ
11-1 90933-02J084 BEARING 12 MR84ZZ (2001/7/4) M170002 OK
11-2 90933-02J084 BEARING 8 MR84ZZ (2001/7/30) M170153 OK
12 KV7-M923C-00X BEARING 6 F683ZZS
12-1 90933-03J683 BEARING 6 F683ZZS (2001/6/29) M160193 OK
13 KV7-M923D-01X COLLAR,CLAMP PLATE 6
13-1 KV7-M923D-02X COLLAR,CLUMP PLATE 6 (2002/4/12) M240056 OK
13-2 KV7-M923D-03X COLLAR,CLAMP PLATE 6 (2006/6/8) MC60029 OK
13-3 90990-41J063 COLLAR 6 (2008/4/17) ME20197 OK
14 KV7-M9130-00X GUIDE 2-1 1 16-M3 8-Ø4
14-1 KV7-M9130-01X GUIDE 2-1 1 10-M3 6-Ø3 8-Ø4 1999/8/5 M960025 NG
14-2 KGA-M9130-10X GUIDE 2-1 1 12-M3 4-Ø3 8-Ø4 2002/12/6 M250036 NG
15 KV7-M9130-10X GUIDE2-2 2
16 $TSH4-M5M JOINT 2
17 91317-03006 BOLT HEX.SOCKET HEAD 18
18 91317-03008 BOLT HEX.SOCKET HEAD 6
19 91317-03010 BOLT HEX.SOCKET HEAD 6
20 92907-03200 WASHER,PLAIN 6
21 KV7-M923E-00X PIN ,LINK 8
21-1 90990-43J012 PIN 8 (2008/6/3) ME30136 OK
22 KU1-M9237-30X SPACER 6
22-1 90990-41J095 COLLAR 6 (2008/4/44) ME30019 OK
23 91317-03005 BOLT HEX.SOCKET HEAD 6
24 98907-03012 SCREW,FLAT HEAD 8
7
7
Main Conveyor
Conveyor Unit
KV7-1011
7
81
81
3
39
33
75
9
12
8
39
5
1
1
25
28
25
30
84
57
23
79
86
65 Fig E
76
20
28
25
35
29
57
34
22
32
85
58
14
16
57
15
58
58
27
26
24
31
56
77
34
28
28
25
11
64
63
59
60
40
80
62
61
74
39
13
66
73
47
45
55
72
87
71
13
15
61
4
1
2
50
53
48
51
46
61
52
54
44
42
43
32
1
2
6
80
13
67
15
15
70
68
62
74
69
14
16
11
24
85
29
22
84
57
57
57
34
26
19
36
37
36
37
38
38
19
17
17
10
10
24
30
84
57
23
21
34
39
33
3
9
18
18
76
49
58
58
58
58
82
83
84
65 Fig A
65 Fig B
65 Fig C
65 Fig F
OLD
41
with Clamp board
88
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M9101-00X STAY,FOOT 4
1-1 KV7-M9101-01X STAY,FOOT 4 2000/2/1 M970075 NG
1-2 KV7-M9101-02X STAY,FOOT 4 2000/7/8 M030148 NG
2 KV7-M9102-00X PLATE 1 2
3 KV7-M9103-00X PLATE 2 2
4 KV7-M9106-00X BRKT.1,EXT.FRAME 1
5 KV7-M9107-00X BRKT.2,EXT.FRAME 1
6 KV7-M9108-00X BRKT.3,EXT.FRAME 1
7 KV7-M9109-00X BRKT.4,EXT.FRAME 1
8 KV7-M9105-00X BRKT.,SPLINE 1
9 KV7-M9104-00X PLATE 3 2
10 KV7-M9116-10X GUIDE 2 250
10-1 90K71-0L0280 LM RAIL,15 2 250 (1999/11/12) M9X0050 OK
10-2
90K71-0L0460 LM RAIL,15 2 (445)
90K71-0L0280 LM RAIL,15 3 (250)
90K71-0L0400 LM RAIL,15 4 (385)
11 KV7-M9115-10X PLATE,LINEAR 2 (250) t=15
11-1 KV7-M9115-11X PLATE,LINEAR 2 (250) t=16 2002/12/5 M330041 NG
11-2
KV7-M9115-11X PLATE,LINEAR 2 (250)
KV7-M9115-23X PLATE,LINEAR 2 (385)
KV7-M9115-03X PLATE,LINEAR 2 (445)
12 KV7-M9111-01X BRKT.,COLLAR 1
13 KG7-M9110-01X COLLAR,W 3
14 KV7-M9110-00X COLLAR 2,W 2
15 KV7-M9118-00X PLATE,BRG. 4
16 KG7-M9119-00X BRG 6200ZZ 2
16-1 90933-01J200 BEARING 2 (2001/6/29) M160195 OK
17 KV7-M9132-10X BALL SCREW W 2 250
17-1
KV7-M9132-10X BALL SCREW W 2 (250)
KV7-M9132-20X BALL SCREW W 2 (385)
KV7-M9132-00X BALL SCREW W 2 (445)
18 KV7-M9113-00X STAY,FRAME 2
19 KV7-M9114-00X BRKT.,GUIDE 2
19-1 KV7-M9114-01X BRKT.,GUIDE 2 Two points of white marks. 2002/12/5 M330041 NG
20 KV7-M9121-00X FRAME,CONV.FIXED 1
21 KV7-M9122-00X FRAME CONV.MOVING 1
22 KV7-M9127-00X FRAME 1,EXT. 2
22-1 KV7-M9127-01X FRAME 1,EXT. 2 (2004/5/11) MA50020 OK
23 KV7-M9128-00X FRAME 2,EXT. 2
23-1 KV7-M9128-01X FRAME 2,EXT. 2 (2004/5/11) MA50020 OK
24 KV7-M9123-00X GUIDE 1 4
25 KV7-M9126-00X GUIDE 1-1 4
26 KV7-M9124-00X PLATE 1,GUIDE 1
27 KV7-M9125-00X PLATE 2 GUIDE 1
28 KV7-M9126-10X GUIDE 1-2 4
29 KM7-M9113-00X GUIDE 1,END 2 t=16
29-1 KM7-M9113-01X GUIDE 1,END 2 t=12 2001/5/31 M110108 NG
29-2 KGA-M9113-00X GUIDE 1,END 2 t=16 2001/11/16 M180096 NG
30 KM7-M9114-00X GUIDE 2,END 2 t=16
30-1 KM7-M9114-01X GUIDE 2,END 2 t=12 2001/5/31 M110108 NG
30-2 KGA-M9114-00X GUIDE 2,END 2 t=16 2001/11/16 M180096 NG
31 KG7-M912A-00X BRACKET SENSOR 1
32 KV7-M9151-00X DAMPER 1,W 2
33 KV7-M9152-00X DAMPER 2,W 2
34 KV7-M9129-00X BELT 1,CONVEYOR 2
35 KV7-M9144-00X BRKT.3,SENSOR 1
36 KG7-M9133-00X PLATE LOCATE PIN 2
37 KG7-M9135-00X PLATE EDGE 2 4
38 KG7-M9136-00X PLATE EDGE 3 2
39 KH2-M9121-00X BEARING 4
40 KV7-M4886-00X MOTOR ASSY.6 1 CONV.MO
41 KGA-M911D-00X SENSOR, SET POS 1 1
42 KM0-M9182-00X PLATE GUIDE 1
43 KG7-M9183-00X BRACKET BELT 1
44 KM8-M9189-00X GUIDE 1
45 KG7-M9127-00X STOPPER LOCATE PIN 1
46 KV7-M9188-00X BELT 1 1305-3GT-6
47 KV7-M9192-00X PLATE,IDLER 1
48 KV7-M9185-00X HOUSING,SHAFT 1
49 KG7-M9190-00X HANDLE 1
50 KV7-M9191-00X SHAFT 1 1
51 KV7-M9193-00X LEVER,CLAMP 1
52 KU0-M9194-00X WASHER 1
52-1 90990-28J068 WASHER,PLAIN 1 (2007/12/18) MDX0125 OK
53 99009-15400 CIRCLIP 1
54 KV7-M9195-00X BRKT.,HOUSING 1
55 KV7-M9196-00X SHAFT 2 1
55-1 KV7-M9196-01X SHAFT 2 1 (2000/4/19) M040115 OK
55-2 KV7-M9196-02X SHAFT 2 1 (2001/12/3) M1Y0003 OK
56 KH4-M655F-20X SENSOR,1-3 2 L=1400
56-1 KU0-M655F-20X SENSOR,1-3 2 L=1400 (2000/5/23) M040045 OK
56-2 KGA-M911A-00X SENSOR,ENT 1 (2002/2/28) M220126 OK
57 KV7-M9140-A0X PULLEY,CONVEYOR ASSY 12 2002/7 M070149
58 91317-05020 BOLT HZX. S.H 12 2002/3/15 M070149
59 KV7-M9143-10X SPLINE 1 2 250
59-1
KV7-M9143-10X SPLINE 1 2 (250)
KV7-M9143-20X SPLINE 1 2 (385)
KV7-M9143-00X SPLINE 1 2 (445)
60 KV7-M9142-00X PILLEY 1,MOTOR 1
61 KH2-M9105-10X PULLEY MOTOR 4 3GTP30
61-1 KH2-M9105-11X PULLEY,MOTOR 4 P30-3GT (2001/6/5) M160031 OK
62 KV7-M9146-00X BELT 2 300-3GT-9
63 KG2-M9105-00X PULLEY 1 SPLINE 1
64 KG2-M9108-10X COLLAR,CONVEYOR 1
64-1 KG2-M9108-11X COLLAR,CONVEYOR 1 (2000/7/31) M070221 OK
65 KV7-M91B2-00X BRKT.,SENSOR 1 Fig A
65-1 KV7-M91B2-01X BRKT.,SENSOR 1 Fig B (2000/6/15) M030172 OK
65-2 KV7-M91B2-02X BRKT.,SENSOR 1 Fig C 2000/12/7 M060068 NG
65-3
KGA-M91B2-00X BRKT.,SENSOR 1 Fig D S.T.D 2003/5/21 M360097 NG
KV7-M926F-00X BRKT.,SENSOR 1 Fig E with Clamp board 2003/5/21 M360097 NG
66 KG7-M9111-01X PULLEY 1 1
67 KG7-M9112-01X PULLEY 2 1
68 KG7-M9113-01X PULLEY 3 1
69 90K50-4W072W AC SERVO MOTOR 1
69-1 90K55-4W072W AC SERVO MOTOR 1 (1999/6/14) M960053 OK
69-2 90K55-4W076W AC SERVO MOTOR 1 (2000/2/2) M010106 OK
70 KV7-M9147-00X BRKT.,MOTOR W 1
71 KV7-M9148-00X BRKT.,TENSION 2
72 K94-M9316-00X BEARING 4 608ZZ
72-1 90933-02J608 BEARING 4 608ZZ (2001/7/6) M170026 OK
72-2 90933-02J608 BEARING 2 608ZZ (2002/3/25) M230126 OK
73 KV7-M9149-00X COLLAR,BRG. 2
74 KG7-M9115-00X BELT W AXIS 1
75 KV7-M653A-20X SENSOR,1 ASSY 1 L=300
75-1 KGA-M911F-00X SENSOR,ORG 1 (2002/2/28) (M220126) OK
76 KV7-M9150-00X DOG 1,ORIGIN 1
76-3
KV7-M9150-00X DOG 1,ORIGIN 1 L=36
KV7-M9150-10X DOG 2,ORIGIN 1 L=86
KV7-M9150-20X DOG 3,ORIGIN 1 L=96
KV7-M9150-30X DOG 4,ORIGIN 1 L=146
KV7-M9150-40X DOG 5,ORIGIN 1 L=166
77 KV7-M9155-00X BRKT.,SENSOR SHAFT 2
78 KV7-M9156-00X SENSOR SHAFT 1 L=295
78-1 KV7-M9156-01X SENSOR SHAFT 1 L=271 2000/1/26 M9X0012 NG
79 KV7-M9157-00X BRKT,4,SENSOR 1 W=29
79-1 KV7-M9157-01X BRKT.4,SENSOR 1 W=32 2001/2/1 M960040 NG
79-2 KV7-M9157-02X BRKT.4,SENSOR 1 W=33 2006/6/9 MC30083 NG
80 KV7-M910A-00X STAY1.FRAME. 2
81 KV7-M910B-00X STAY2.FRAME. 2
82 98907-03005 SCREW BINDING HEAD 20 M3X5
83 95304-03700 NUT HEXGON 20 M3
84 KGS-M9140-A0X PULLEY,CONVER.ASSY 4 (2004/8/17) MA80028
85 92907-05600 WASHER PLAIN 2
86 KH4-M655F-20X SENSOR,1-3 2
86-1 KU0-M655F-20X SENSOR,1-3 2 1400 (2000/5/23) M040045 OK
86-2 KGA-M911E-00X SENSOR,OUT 1 (2002/2/28) M220126 OK
87 K94-M9316-00X BEARING 4 608ZZ
87-1 90933-02J608 BEARING 4 608ZZ (2001/7/6) M170026 OK
87-2 90933-03J608 BEARING 2 F608ZZ (2002/3/25) M230126 OK
88 91312-04010 BOLT HEX.SOCKET HEAD 1
