KV7_YV88X_PL - 第27页

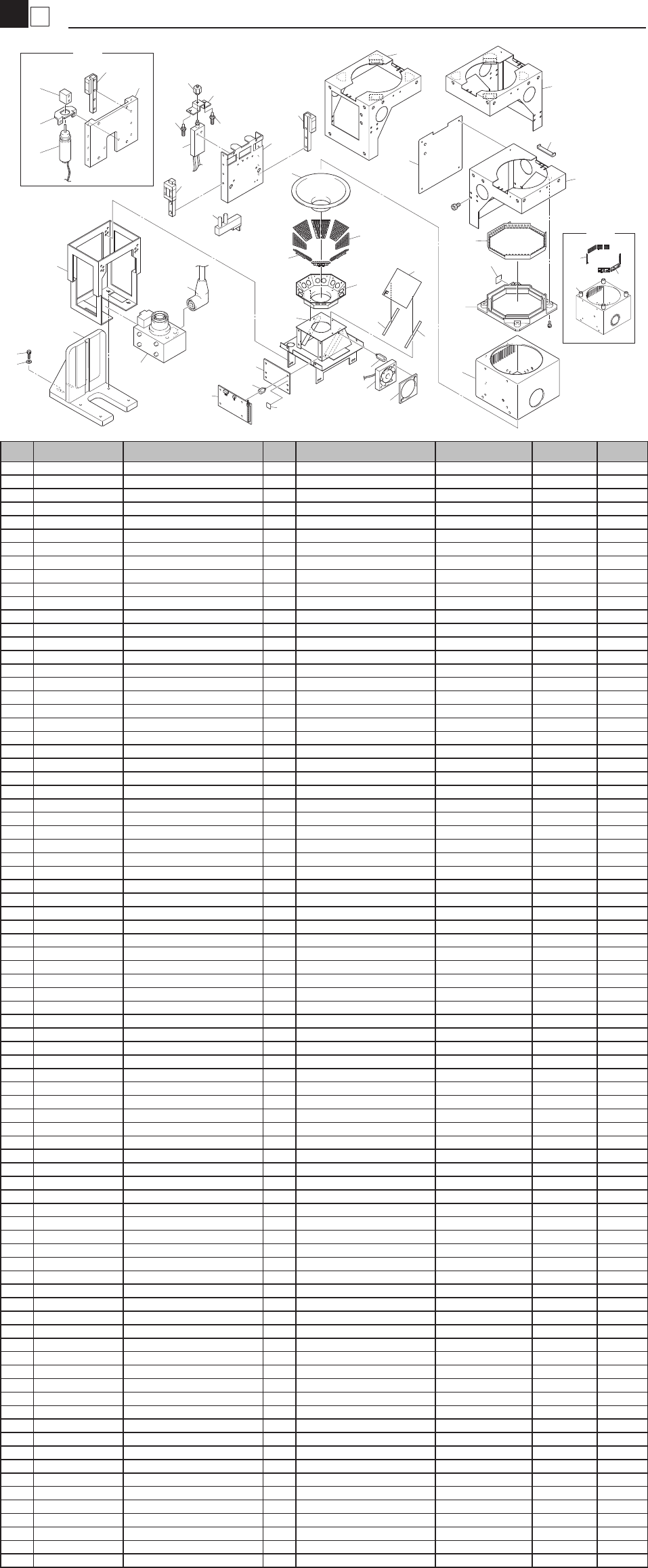

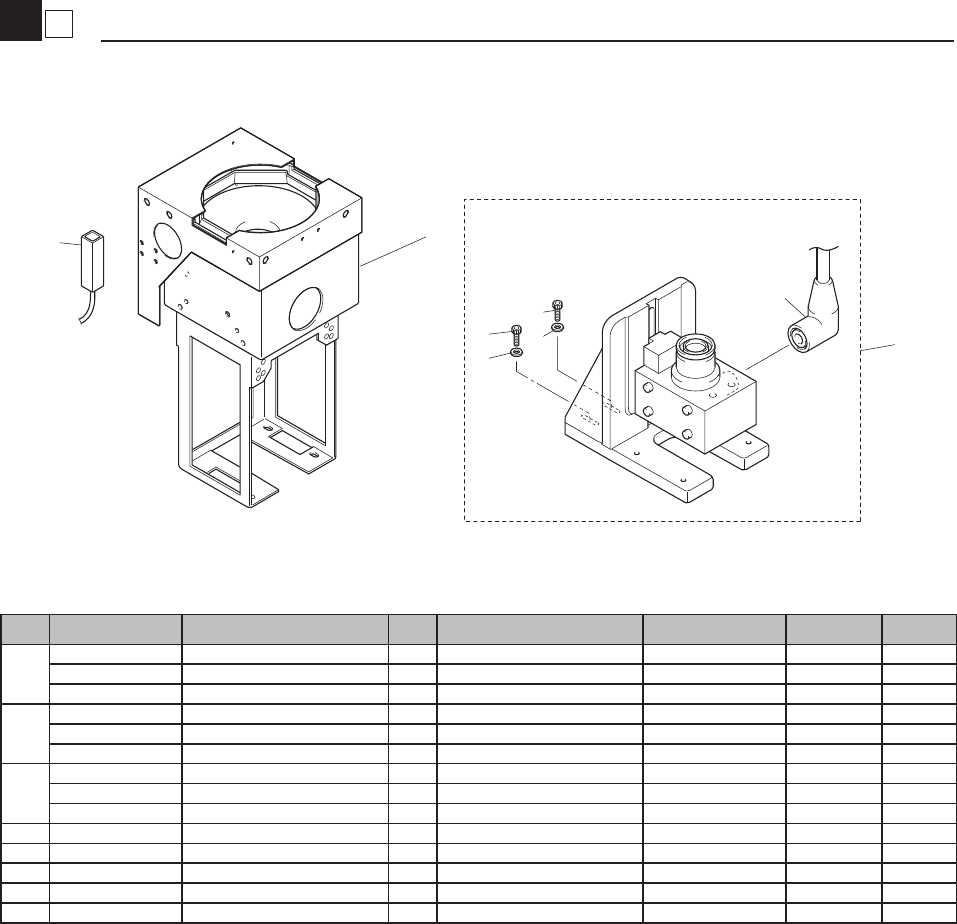

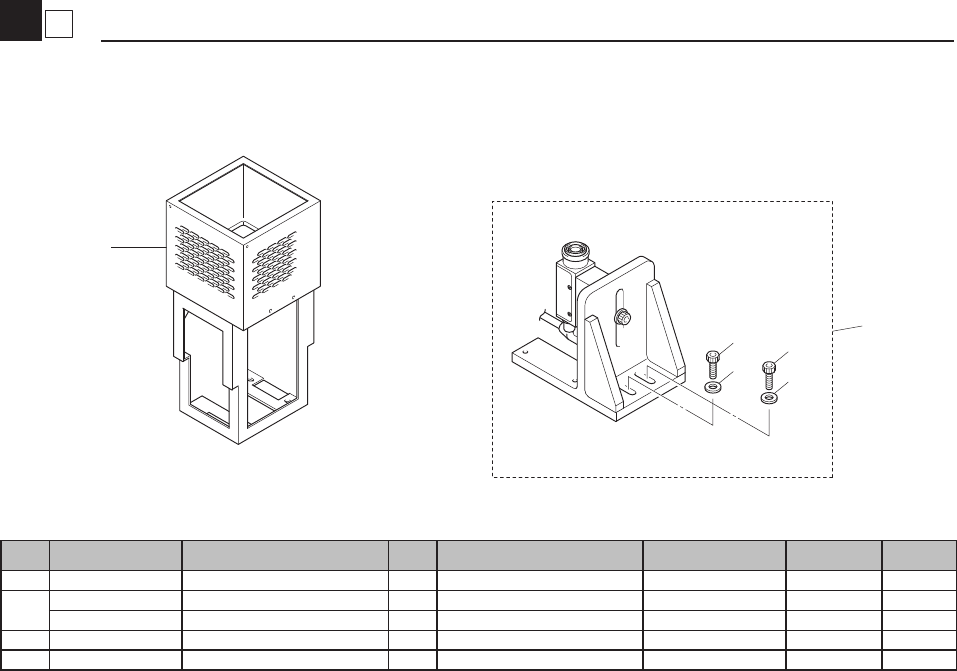

1 8 Front Light (These paets can't be sold) Light KV7-080306 15 13 15 17 24 14 20 20 19 25 39 38 40 30 1 1 31 4 9 23 21 22 2 2 1 10 29 28 3 12 5 7 6 41 42 44 43 8 46 45 OLD 18 26 27 OLD 15 47 49 48 17 No. Part No. P…
1
8
Front Light
Light
KV7-080305
1
5
4
5
4
3
6
2
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KV8-M7500-10X FRONT LIGHT 2 ASSY 1 slider front
KV8-M7500-20X FRONT LIGHT 2 ASSY 1 slider right.
KV8-M7500-30X FRONT LIGHT 2 ASSY 1 slider left.
1-1
KV8-M7500-21X FRONT LIGHT 2 ASSY 1 slider front 1999/4/15 M930045 NG
KV8-M7500-31X FRONT LIGHT 2 ASSY 1 slider right. 1999/4/15 M930045 NG
KV8-M7500-11X FRONT LIGHT 2 ASSY 1 slider left. 1999/4/15 M930045 NG
1-2
KV8-M7500-22X FRONT LIGHT 2 ASSY 1 slider front (1999/8/30) M980009 OK
KV8-M7500-32X FRONT LIGHT 2 ASSY 1 slider right. (1999/8/30) M980009 OK
KV8-M7500-12X FRONT LIGHT 2 ASSY 1 slider left. (1999/8/30) M980009 OK
2 KV8-M7300-00X MULTI CAMERA ASSY. 1
3 KV7-M652G-00X SENSOR,CYLINDER 1
4 91317-06020 BOLT HEX. SOCKET HEAD 3
5 92907-06200 WASHER, PLAIN 3
6 KV8-M66F0-00X C. CABLE ASSY L5M 1
1
8
Front Light (These paets can't be sold)
Light
KV7-080306
15
13
15
17
24
14
20
20
19
25
39
38
40
30
11
31
4
9
23
21
22
2
2
1
10
29
28
3
12
5
7
6
41
42
44
43
8
46
45
OLD
18
26
27
OLD
15
47
49
48
17
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M7510-00X HARF MIRROR 1
2 KM5-M7534-00X ADHESIVE TAPE 2
3 KV8-M7512-00X DIFFUSER 2 1
4 KV8-M7513-00X DIFFUSER 3 1
5 KV8-M7515-10X CASE 1 1
5-1 KV8-M7515-11X CASE 1 1 1999/4/15 H3682 NG
5-2 KV8-M7515-12X CASE 1 1 2000/1/31 M980009 NG
5-3 KV8-M7515-13X CASE 1 1 2000/2/25 M9Y0003 NG
6 KV8-M7515-20X CASE 1 1 Right side
6-1 KV8-M7515-21X CASE 1 1 Right side 1999/4/15 H3682 NG
6-2 KV8-M7515-22X CASE 1 1 Right side 2000/1/31 M980009 NG
6-3 KV8-M7515-23X CASE 1 1 Right side 2000/2/25 M9Y0003 NG
7 KV8-M7515-20X CASE 1 1 Left side
7-1 KV8-M7515-21X CASE 1 1 Left side 1999/4/15 H3682 NG
7-2 KV8-M7515-22X CASE 1 1 Left side 2000/1/31 M980009 NG
7-3 KV8-M7515-23X CASE 1 1 Left side 2000/2/25 M9Y0003 NG
8 KV8-M7516-01X CASE 2 1
8-1 KV8-M7516-03X CASE 2 1 2000/2/29 M020055 NG
9 KV8-M7517-00X CASE 3 1
9-1 KV8-M7517-01X CASE 3 1 1999/4/15 H3682 NG
9-2 KV8-M7517-03X CASE 3 1 2000/2/25 M9Y0005 NG
10 KV8-M7518-00X REFLECTOR 1 1
10-1 KV8-M7518-01X REFLECTOR 1 1 2000/2/1 H4009
11 KV8-M7519-00X REFLECTOR 2 3
11-1 KV8-M7519-00X REFLECTOR 2 2 2000/2/1 H4009 OK
12 KV8-M7520-01X CASE 4 1 1999/5/14 H3682
12-1 KV8-M7520-02X CASE 4 1 2000/2/1 H4009 NG
12-2 KV8-M7520-03X CASE 4 1 2000/2/25 M9Y0003 NG
13 KV8-M7521-01X JOINT 1
14 KV8-M7522-01X CYLINDER ASSY. 1
15 KV8-M7524-00X GLIDE 2
16 KV8-M7536-00X BOLT HEX.SOCK.H.M3L4 8
16-1 91317-03004 BOLT HEX.SOCKET HEAD 8 (2007/10/29) MD00030 OK
17
KV8-M7525-00X BASE,SLIDE 1
17-1
KV8-M7525-01X BASE,SLIDE 1 1999/5/22 H3682 NG
17-2 KV8-M7525-03X BASE,SLIDE 1 2000/1/20 M9Y0007 NG
18 KV8-M7526-00X STOPER 1 4
19 KV8-M7527-00X STOPER 2 1
19-1 KV8-M7527-01X STOPER 2 1 1999/5/22 H3682 NG
19-2 KV8-M7527-03X STOPER 2 1 2000/2/1 M9Y0007 NG
20 KV8-M7537-00X STOPER 3 1
20-1 KV8-M7528-01X STOPER 3 1 1999/5/22 H3682 NG
20-2 KV8-M7528-02X STOPER 3 2 2000/2/1 M970055 OK
21 KV8-M7529-00X SEAL 1 1
22 KV8-M7531-00X FAN MOTOR ASSY. 1
23 91C00-03208 SPACER : M3X8L 2
23-1 90563-03J080 SPACER BOLT 2 (2001/9/1) M180147 OK
23 91C00-03208 SPACER 2 M3X8L
23-1 90563-03J080 SPACER BOLT 2 (2001/9/1) M180147 OK
24 KV8-M7538-01X VALVE 1 2004/11/25
25 KV8-M7539-01X LIGHT STAND 1
25-1 KV8-M7539-03X LIGHT STAND 1 2000/2/28 M9Y0005 NG
26 KV8-M7550-00X M.LIGHT SIDE ASSY. 1
26-1
KV8-M7550-10X M.LIGHT SIDE ASSY. 5 1999/10/6 H3682 NG
26-2 Delete (1999/8/30) M980009
27 KV8-M7550-10X M.LIGHT SIDE ASSY. 5
27-1 Delete (1999/8/30) M980009
28 KV8-M7554-00X M.LIGHT MAIN ASSY. 1
29 KV8-M7554-10X M.LIGHT MAIN ASSY. 7
30 KV8-M7558-00X M.LIGHT COAX. ASSY. 1
30-1 KV8-M7558-01X M.LIGHT COAX. ASSY. 1 1999/5/22 H3682 NG
31 91C00-03205 SPACER 4 M3X5L
31-1 91C00-03208 SPACER 4 M3X8L (1999/4/21) M930046 NG
31-2 90563-03J050 SPACER BOLT 4 (2001/9/2) M180148 OK
38 KV8-M73A0-30X MULTI CAM.SUB ASSY. 1
38-1 KV8-M73A0-31X MULTI CAM.SUB ASSY 1 (2005/6/8) MB60041 OK
39 KV8-M7301-00X CAMERA STAND 1 1
39-1 KV8-M7301-01X STAND,CAMERA 1 1 (2001/3/7) M130033 OK
39-2 KV8-M7301-02X STAND,CAMERA 1 1 (2001/4/20) M140127 OK
40 KV8-M66F0-00X C.CABLE ASSY.L5M 1
41 KV8-M7511-02X DIFFUSER 1 1 (1999/8/30) M980009 NG
42 KV8-M7514-02X DIFFUSER 4 2 (1999/8/30) M980009 NG
43 KV8-M7550-01X M.LIGHT SIDE BOARD A 1 (1999/8/30) M980009 NG
44 KV8-M7519-00X REFLECTOR 2 1
45 91317-06025 BOLT HEX.SOCKET HEAD 2
46 92907-06200 WASHER PLAIN 2
47 KV8-M7520-00X STAY,SOLENOID 1
47-1 Delete (1999/3/22) M930045
48 KV8-M7521-00X BRACKET,SOLENOID 1
48-1 Delete (1999/3/22) M930045
49 KV8-M7522-00X SOLENOID ASSY. 1
49-1 Delete (1999/3/22) M930045
