Main- and sector distributor Page 11 / 18 24.11.2021
Main- and sector distributor
Page 10 / 18 24.11.2021
Main- and sector distributor
Page 11 / 18 24.11.2021
Main- and sector distributor
Page 12 / 18 24.11.2021

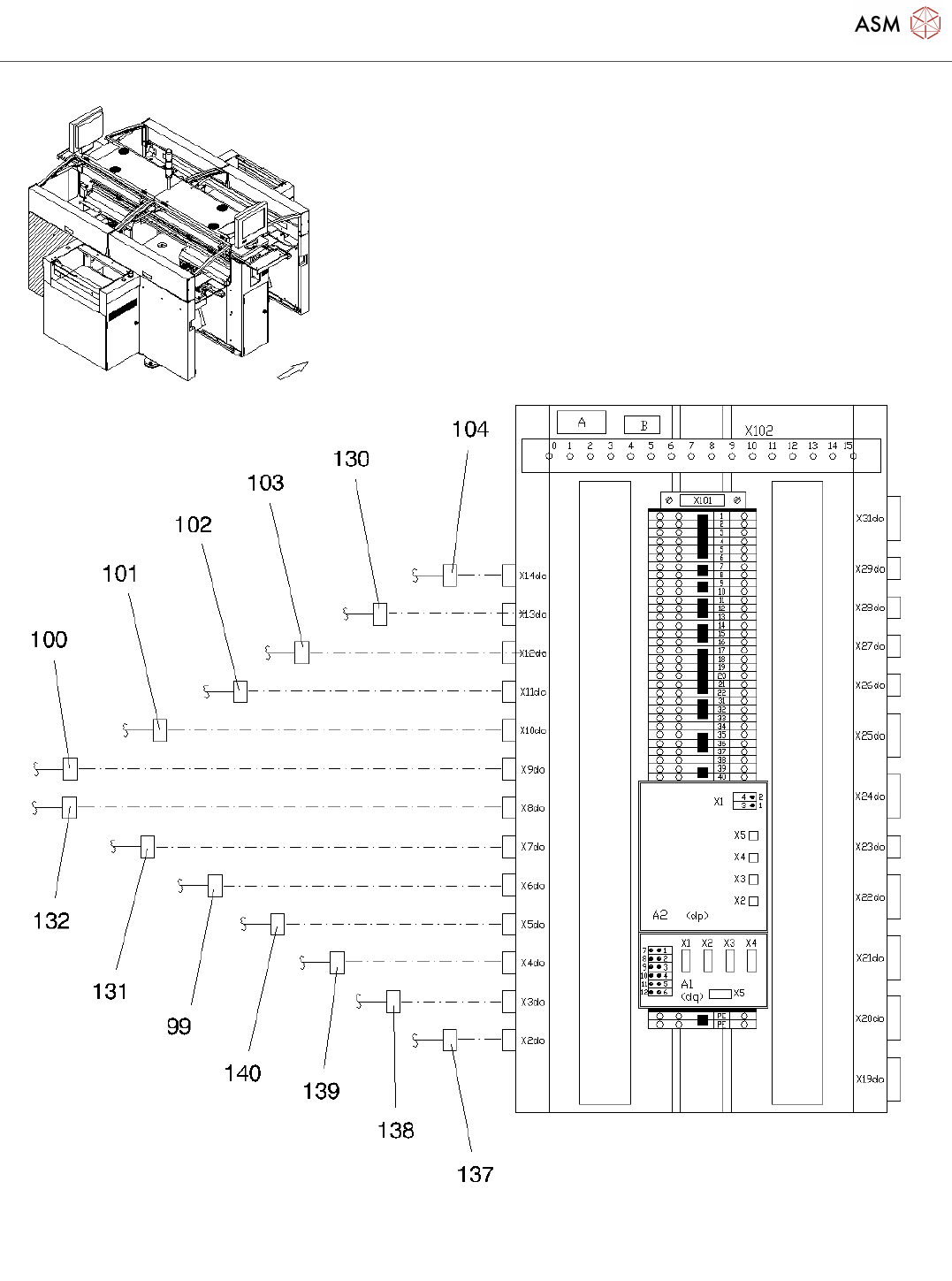

Pos. Item no. Description Part marking
00336152-03 DISTRIBUTOR SECTOR 1 Spare Part
2 00335968-04 DISTRIBUTOR PLATE SECTOR 1 AND
4
3 00332557-04 CAN - BUS COUPLER SPARE PART
4 00336781-01 HAN D PLUG FEM. 12-POLE SPARE PART
5 00336778-01 HAN ADD-ON HOUSING FOR 3
MODULES
SPARE PART
6 00374728-01 HAN RETAINING FRAME FOR 3
MODULES
SPARE PART
7 00305012-01 MATE-N-LOK FEMALE CONNECTOR
3-POLE
8 00310124-01 MATE-N-LOK PLUG FEMALE 4-POLE
9 00304780-01 MATE-N-LOK FEMALE CONNECTOR
6-POLE
10 00304982-01 MATE-N-LOK FEMALE CONNECTOR
9-POLE
11 00336767-01 PASSING CLAMP GREY 3-PHASE
281-681
12 00336774-01 GROUND TERMINAL 3-WIRE
281-687
SPARE
13 00823309-01 END CLAMP E/UK UNIVERSAL 9.5MM
14 00304932-01 AMPMODU CONNECTOR SOCKET
2X5POLE
SPARE PART
15 00304909-01 AMPMODU FEMALE CONNECTOR
2*2-POLE
16 00304916S01 AMPMODU PLUG 2*3 POL. STANDARD PARTS
17 00336801-01 CABLE S50: CAN-I/O-MODULE -
DISTRIBUTOR
00336787-01 GROUND STRAND DISTRIBUTOR -
MACHINE
00336788-01 GROUND STRAND DISTRIBUTOR
PLATE
00336789-01 GROUND STRAND DISTRIBUTOR -
COVER PLATE
00336790-01 GROUND STRAND DISTRIBUTOR -
HARTING-CONNECTOR
00336181-03 DISTRIBUTOR SECTOR 2 Spare Part
22 00335973-02 DISTRIBUTOR PLATE SECTOR 2 AND
3
23 00332557-04 CAN - BUS COUPLER SPARE PART
