~ built in from SN 380 Page 4 / 5 24.11.2021 Pos. Item no. Description Part marking 1 00375318-02 POWER SUPPLY UNIT HS60 2 00374780-01 TRANSFORMER 11.1 KVA 3 00359214-01 MAIN SWITCH EM. STOP C32 3POL 50A RD/YE SPARE PART…
~ built in from SN 380
Page 3 / 5 24.11.2021
~ built in from SN 380
Page 4 / 5 24.11.2021

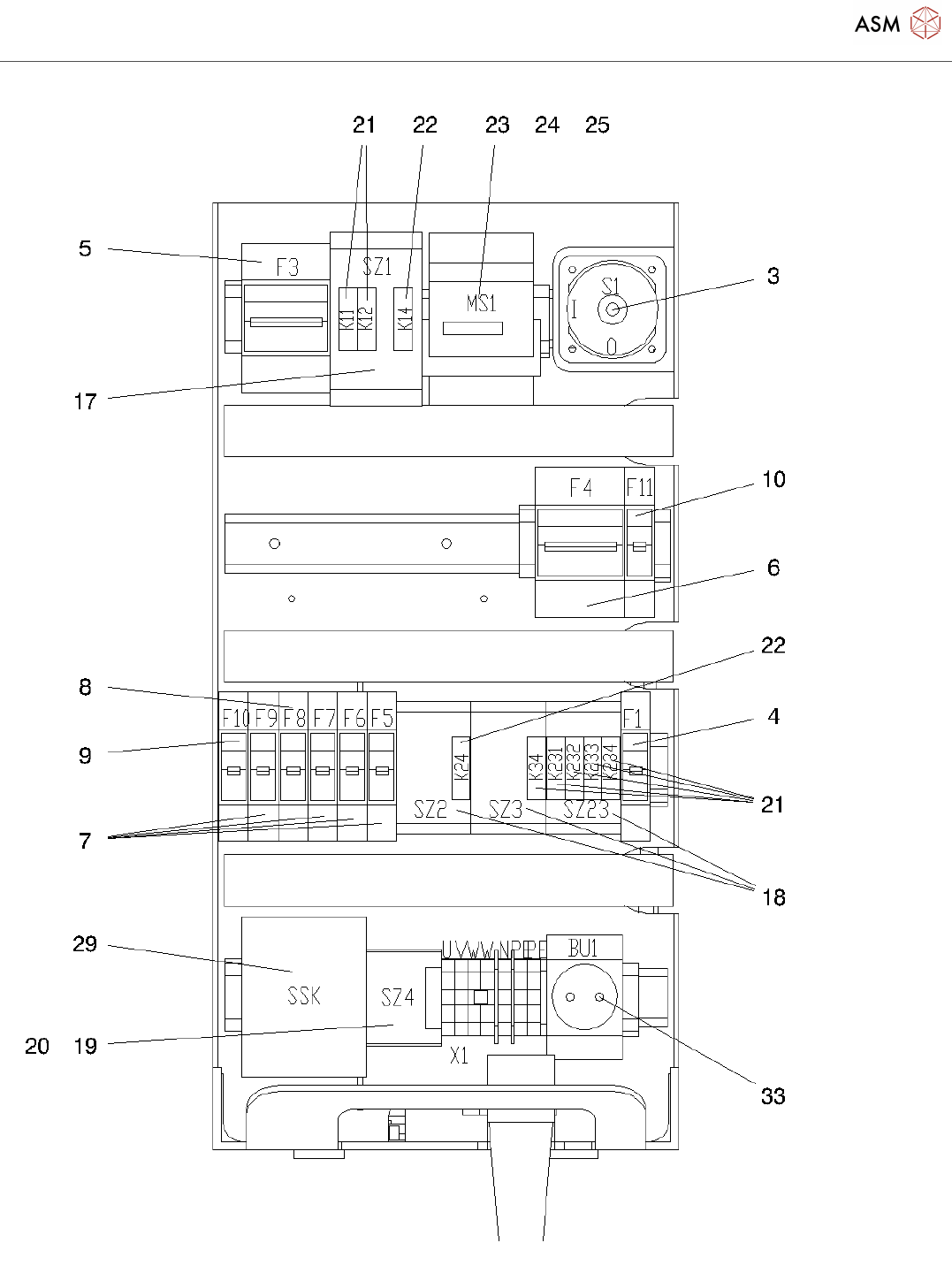

Pos. Item no. Description Part marking
1 00375318-02 POWER SUPPLY UNIT HS60
2 00374780-01 TRANSFORMER 11.1 KVA
3 00359214-01 MAIN SWITCH EM. STOP C32 3POL
50A RD/YE
SPARE PART
4 00307161-01 AUTO CIRCUIT BREAKER
5SX2/1POLE/4A-AC
Spare Part
5 00302817S01 AUTOMATIC CIRCUIT BREAKER
5SX2/3P/4A-AC
Spare Part
6 00341203S01 AUTOMATIC CIRCUITE BREAKER
5SX2
Spare Part
7 00341204S01 AUTOMATIC CIRCUITE BREAKER
5SX2
SPARE PART
8 00341205S01 AUTOMATIC CIRCUITE BREAKER
5SX2
Spare Part
9 00374505-01 AUTOMATIC CIRCUIT BREAKER
5SX2 / 1-POLE / 25A-D-AC
10 00310685-01 AUTO CIRCUIT BREAKER
5SX2/1POLE/1A-AC
SPARE PART
00373660-01 AUTOMATIC CIRCUIT BREAKER
5SX2 / 2-POLE / 32A-D-AC
00373661-01 AUTOMATIC CIRCUIT BREAKER
5SX2 / 2-POLE / 16A-D-AC
00372781-01 FUSE CLAMP-10A (6,3X32) 282-128 SPARE PART
00375476-01 MICRO-FUSE 6.3*32 / T 20A
00362754-01 MICRO-FUSE 5*20 / T 2.00A / GLAS
17 00341207-01 CONTACTOR 3RT10 / 24VDC / SIZE
S2
SPARE PART
18 00341208-01 CONTACTOR 3RT10 / 24VDC / SIZE
S0
SPARE PART
19 00341209-01 CONTACTOR 3RT23 / 24VDC /
2S-2OE
SPARE PART
20 00342396S01 INTERFER. SUPPR. DIODE
F.CONTACT.DC24-70
SPARE PART
21 00341210-01 AUXILIARY SWITCH BLOCK
3RH1/1POLE/1NC
SPARE PART
22 00341221-01 AUXILIARY SWITCH BLOCK
3RH1/1POLE/1NO
SPARE PART
23 00342494S01 PROTECTIVE MOTOR SWITCH
PKZ2/3POL/40A
SPARE PART
24 00342495S01 ENGINE PROTEC.- RELEA.BLOCK
ZM-16-PKZ2
Spare
~ built in from SN 380
Page 5 / 5 24.11.2021
Pos. Item no. Description Part marking
25 00342496-01 MOTOR PROTECT. RELEASE BLOCK
ZM-32-PKZ2
Spare Part
26 00342397S01 MAINS FILTER FOR 3-PHASEN-
SYSTEM 36A
Spare
27 00341246-01 RECTIFIER S101-B6U 160-08 SPARE PART
28 00341245S01 RECTIFIER S63-B6U 28-02 SPARE PART
29 00341222S01 SAFETY CONTACTOR 3TK28 24VDC
5NO-1NC
SPARE PART
30 00348352-01 ELECTROLYTIC CAPACITOR
33000UF/63V
SPARE PART
31 00341831S03 INRUSH CURRENT LIMITER
BRW3TG31033-01
SPARE PART
32 00344136-04 BASIC HOUSING FOR POWER
SUPPLAY HS50
33 00375320-01 SOCKET RAIL MOUNTING SD-
D/SC/LA/GY
SPARE PART
34 00341244S01 RECTIFIER S61-B2U 28-02 SPARE PART
00374128-02 DISCHARGE CHOKE COIL 230-600V
50-60HZ
SPARE PART
00374141-01 MICRO-FUSE 5X20 / T 1.0A / GLAS
36 00336137-02 PRESSURE ANGLE
