Retrofit instructions Wide board 242 / 508 mm SIPLACE HS-60 / D4
08/2006 Edition
49
: If this is not the case, loosen the clamping rings on the hexagonal shafts of the stationary con-
veyor side wall (see photograph).
WARNING: The clamping ring can stick on the hexagonal shaft.
Insert the hexagonal shafts as described above. Then fix the hexagonal shaft once more using
the clamping rings.
: Remove the clamping ring for the conveyor side wall of the outer stationary side wall.
2
2
2
2
2
2
2
2
2
2
2
2
2
2

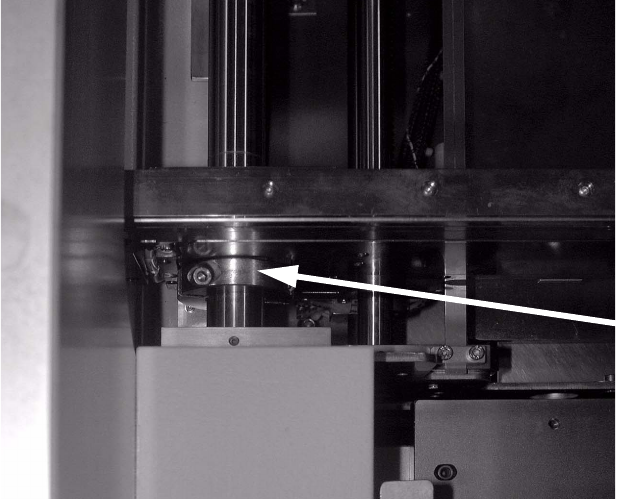

Clamping rings
Retrofit instructions Wide board 242 / 508 mm SIPLACE HS-60 / D4
08/2006 Edition
50
: Release the clamp on the stationary side using the grub screw.
Remember to tighten the grub screw once more after changing the conveyor width.
2
2
: Switch to service engineer mode in SITEST.
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2

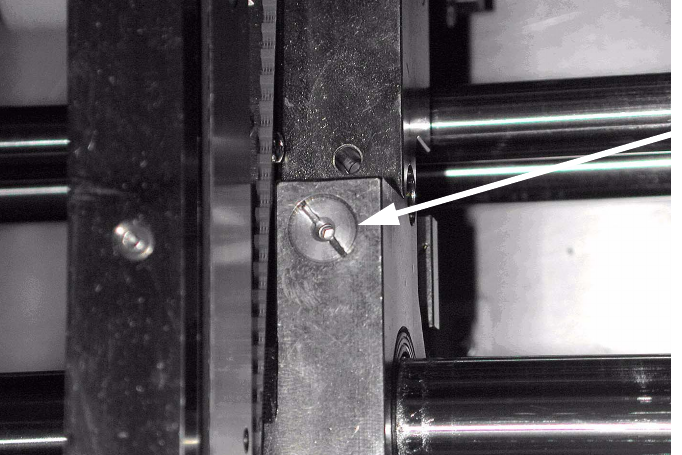

Grub screw
clamp
Retrofit instructions Wide board 242 / 508 mm SIPLACE HS-60 / D4
08/2006 Edition
51
: Use the "PCB conveyor", "Options and configuration", "Teach" function to move the stationary
conveyor side wall 5 x 10 mm increments to the side so that you can remove the assembly tray
limit switch from its current position.
2
Do not accept the setting. Do not click on OK. 2
2
2
2
2
Limit switch,
old version
