Retrofit instructions Wide board 242 / 508 mm SIPLACE HS-60 / D4 08/2006 Edition 59 2.7.1.2 Label 2 Gantry 2 and 4 (in the vicinity of the reflector) (105mm x 41mm) 2 2 2 2 2 2 2 2 2 Attention: Option maintenance 0019457…
Retrofit instructions Wide board 242 / 508 mm SIPLACE HS-60 / D4
08/2006 Edition
58
2.7 Attaching the warning labels
2.7.1 Positions of the warning labels 242mm / 508mm
2.7.1.1 Label 1
Centrally beneath the track rule on the feeder cover plate at each location (105mm x 41mm): 2
2
2
2
Use S-Feeders only with 242/506 option
Warning label
Retrofit instructions Wide board 242 / 508 mm SIPLACE HS-60 / D4
08/2006 Edition
59

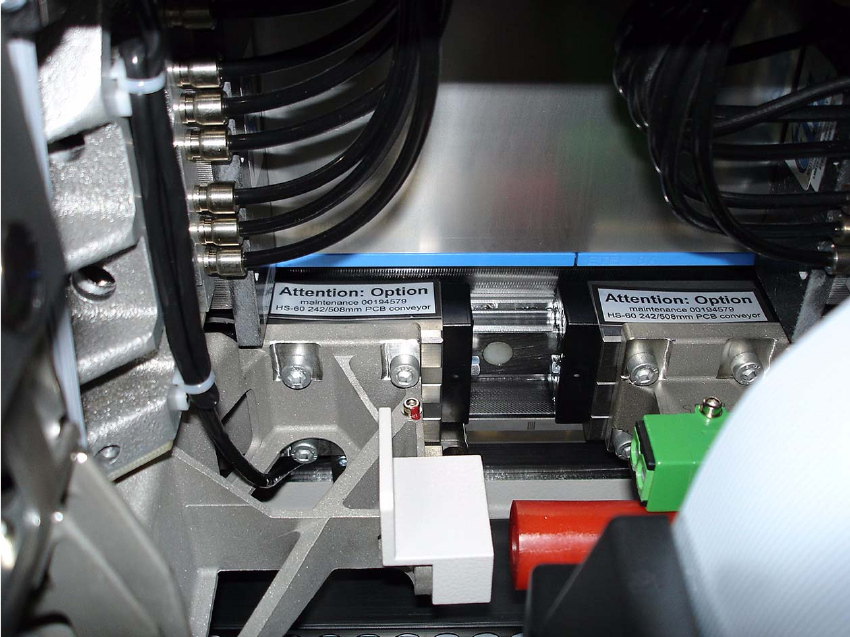

2.7.1.2 Label 2
Gantry 2 and 4 (in the vicinity of the reflector) (105mm x 41mm) 2
2
2
2
2
2
2
2
2
Attention: Option
maintenance 00194579
HS-60 242/508mm PCB conveyor
Retrofit instructions Wide board 242 / 508 mm SIPLACE HS-60 / D4
08/2006 Edition
60
2.8 Software installation and update
2.8.1 Installation
Reinstalling on machine type HS-60 / D4. 2
: Install the software for one machine with machine zero point on the inside.
After installation, check whether the machine configuration (SITEST / "Settings" menu) will have
to be modified for the installed machine zero point. 2
2.8.2 Update
Updating a machine that is already set to "Wide conveyor“.
The software update leaves the machine configuration unchanged. If machine zero point "outside"
was set before the update, then it will be retained. 2
