Cable trailing unit
Page 4 / 6 22.11.2021
Cable trailing unit
Page 5 / 6 22.11.2021

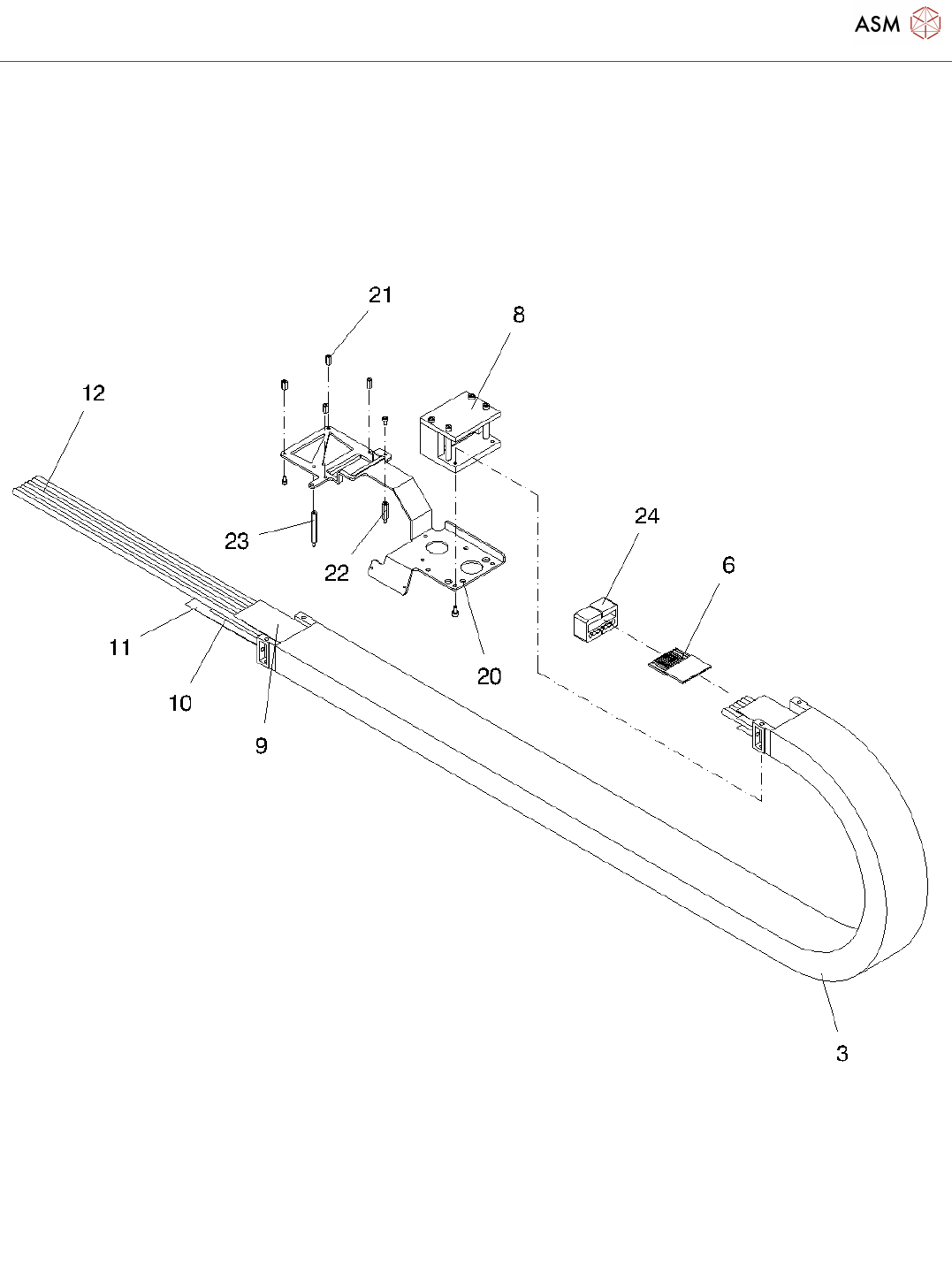

Pos. Item no. Description Part marking
03043814-02 MODULE TRAILING-CABLE UNIT F-D
2 03039487-01 TRAILING CABLE UNIT SIPLACE F-D SPARE PART
3 03039476-01 CHAIN F-D
5 03042995-01 MOUNT
6 03020516-01 CLAMPING HYBRID CABLE B = 30
7 03043060-01 CABLE SUPPORT PORTAL, F-D
8 03043282-01 CONNECTION TRAILING-CABLE UNIT
9 03044435-01 PROTECTION BAND INSIDE, F-D
10 03044449-01 PROTECTION BAND MIDDLE, F-D
11 03044451-01 PROTECTION BAND OUTSIDE, F-D
12 03044512-01 7-FOLD TUBE Y-AXIS, F-D
13 03044566-01 SEVENFOLD-TUBE X-AXIS, F-D
14 00318551S03 SEVENFOLD TUBE PK-3, BLACK 4
METER
SPARE PART
15 03044632-01 KLEMMUNG X-HALTER
16 03039144-01 CABLE SET TRAILING CABLE F-D
17 00305458-01 BK-MOD421/2 CONNECTOR PLUG
34POLE
*
18 03045268-01 PROTECTION BAND PORTAL, S/F-D
19 03046454-01 CLAMPING UNIT, BOTTOM
20 03046505-01 C4-BOARD-MOUNT CPL.
21 03046944-01 DISTANCE BOLT I/I M3X10
22 03046873-01 DISTANCE BOLT I/A M3X20
23 03046876-01 DISTANCE BOLT I/A M3X40
24 03042511-01 STRAIN RELIEF
25 03042211-01 SUPPORT TRAILING CABLE F-D
26 03044601-02 GUIDE PLATE COMPLETE
27 03044577-01 GUIDE PLATE RIGHT CPL.
28 03044355-01 BACKING PLATE
29 03044361-01 BACKING PLATE LEFT
30 03044368-01 PAD
31 03044381-01 COVER SHEET RIGHT, F-D
32 03044597-01 CAP COMPLETE
33 03044623-01 FACEPLATE
34 03027979-01 CLAMPING YOKE
