Pos. Item no. Description Part marking
1 03021002-03 MACHINE FRAME CPL.
2 03015763-03 MACHINE BASE COMPLETE
3 03000890-02 MACHINE BASE SPARE PART
4 03002561-01 MACHINE BASE HF SPARE PART
5 03001910-01 SLIDING STRIPE INSIDE
7 03033517-01 COMPONENTS SUPPORTING RAIL
LEFT SIDE
8 03022404-01 COMPONENTS SUPPORTING RAIL
RIGHT SIDE
9 03021619-02 INSERT RAIL CENTER
10 03021597-01 INSERT RAIL OUTSIDE
11 03021623-02 COMPONENTS RETAINING PLATE R
12 03001833-01 INSERT RAIL BOTTOM
13 03002778-01 SLIDING RAIL COMPLETE
14 03000892-01 BLOCK FOR HEIGHT ADJUSTMENT
15 03000891-01 CLAMPING PIECE
16 03001352-01 PRESSURE PAD
19 03005932-01 CABLE HOLDER BOTTOM PART
20 03002282-01 SPACER THREAD SPARE PART
21 03005955-01 CABLE HOLDER TOP PART
22 03004085-01 DISTANCE BOLT TYPE B I/A-
M6X30-ST ZN
25 03015980-02 SCALE SIPLACE X-SERIES Y-AXIS *
26 03001227-02 GUIDE RAIL, SIZE 25 *
27 00845060-01 HEXAGON SOCKET HEAD CAP
SCREW M6 X 25-8.8
28 03003176-04 CALIBRATION JIG REST CPL. SPARE PART
29 03061103S01 MAGNETIC TRACK
MWA120-0128-25A
*
30 03061100S01 MAGNETIC TRACK
MWA120-0512-25A
*
31 00845058-01 HEXAGON SOCKET HEAD CAP
SCREW M6 X 16-8.8, COPPER + NI-
PLATED
03049888-03 X-SERIES DRIVE ACCESSORIES Y
1-GANTRIES R2
32 03004645-01 COVER Y-MAGNET GUIDE HF SPARE PART
33 03013461-01 STOP, RIGHT, Y-LINEAR MOTOR *
Basic module
Page 17 / 17 23.11.2021

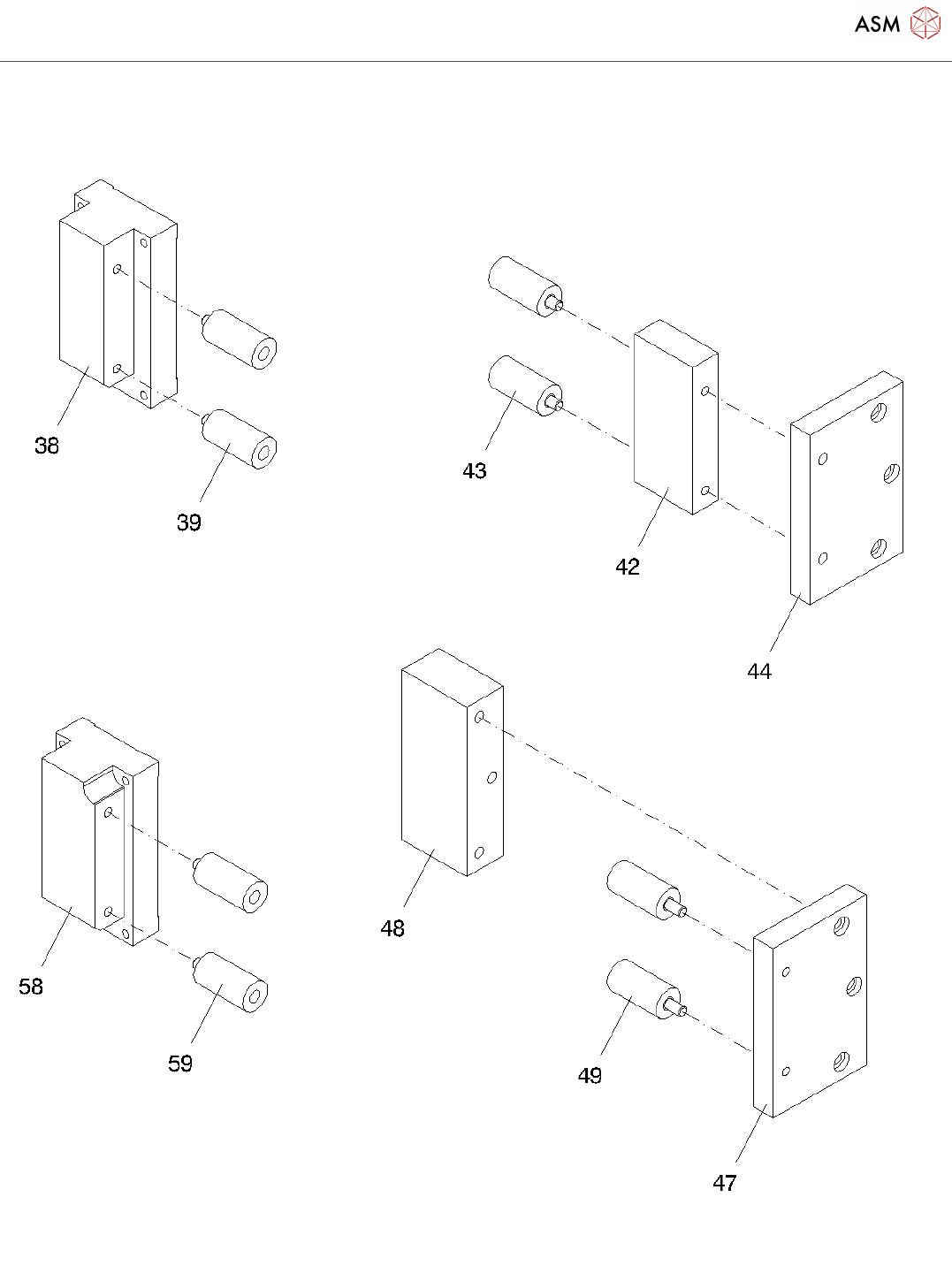

Pos. Item no. Description Part marking
34 03013460-01 STOP LEFT Y LINEAR MOTOR SPARE PART
35 03061100S01 MAGNETIC TRACK
MWA120-0512-25A
*
36 03061103S01 MAGNETIC TRACK
MWA120-0128-25A
*
37 03060022-01 Y-STOPPER, 1-PORTAL, 1
38 03056204-01 Y-STOPPER, 1-SERIE
39 03051730-01 BUFFER COMPL.
40 03063282-01 FRICTION FOIL 13X78X0,1
41 03056212-01 Y-STOPPER, 1-PORTAL, 2
42 03056217-01 Y-STOPPER, ADAPTER / X-SERIE
43 03051730-01 BUFFER COMPL.
44 03057350-01 BUFFER BLOCK Y-AXIS RIGHT
03049887-03 X-SERIES DRIVE ACCESSORIES Y
2-GANTRIES R2
46 03009903-01 ASSEMBLY Y-CUSHION RIGHT X-4 SPARE PART
47 03005503-02 BUFFER BLOCK Y-AXIS RIGHT
48 03005506-02 BUFFER BLOCK Y-AXIS RIGHT
49 03043672-01 Y-BUFFER COMPL.
50 03005574-02 REFLECTOR
51 03010865-01 COVER PLATE, Y-MAGNET TRACK, X-
HS
SPARE PART
52 03043672-01 Y-BUFFER COMPL.
53 03009909-01 ASSEMBLY CENTER STOP Y-AXIS X-
HS
54 03061105S01 MAGNETIC TRACK
MWA120-0064-25A
*
55 03061100S01 MAGNETIC TRACK
MWA120-0512-25A
*
56 03061103S01 MAGNETIC TRACK
MWA120-0128-25A
*
57 03060027-01 Y-STOPPER, 2-PORTAL, 1
58 03060324-01 Y-STOPPER, 2-PORTAL, 1
59 03051730-01 BUFFER COMPL.
60 03063282-01 FRICTION FOIL 13X78X0,1
