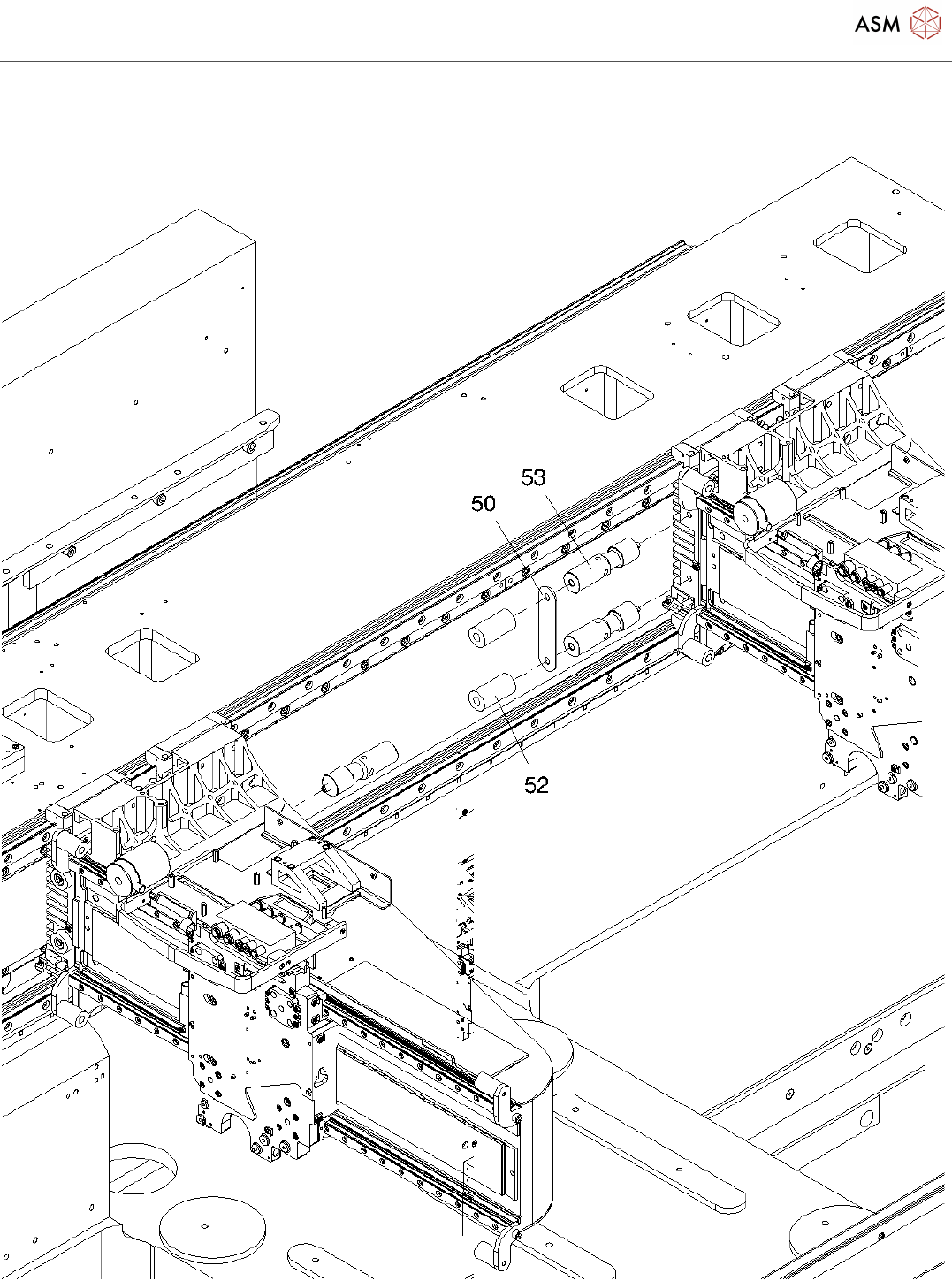

Basic module Page 15 / 17 23.11.2021
Basic module
Page 14 / 17 23.11.2021
Basic module
Page 15 / 17 23.11.2021
Basic module
Page 16 / 17 23.11.2021
Pos. Item no. Description Part marking
1 03021002-03 MACHINE FRAME CPL.
2 03015763-03 MACHINE BASE COMPLETE
3 03000890-02 MACHINE BASE SPARE PART
4 03002561-01 MACHINE BASE HF SPARE PART
5 03001910-01 SLIDING STRIPE INSIDE
7 03033517-01 COMPONENTS SUPPORTING RAIL
LEFT SIDE
8 03022404-01 COMPONENTS SUPPORTING RAIL
RIGHT SIDE
9 03021619-02 INSERT RAIL CENTER
10 03021597-01 INSERT RAIL OUTSIDE
11 03021623-02 COMPONENTS RETAINING PLATE R
12 03001833-01 INSERT RAIL BOTTOM
13 03002778-01 SLIDING RAIL COMPLETE
14 03000892-01 BLOCK FOR HEIGHT ADJUSTMENT
15 03000891-01 CLAMPING PIECE
16 03001352-01 PRESSURE PAD
19 03005932-01 CABLE HOLDER BOTTOM PART
20 03002282-01 SPACER THREAD SPARE PART
21 03005955-01 CABLE HOLDER TOP PART
22 03004085-01 DISTANCE BOLT TYPE B I/A-
M6X30-ST ZN
25 03015980-02 SCALE SIPLACE X-SERIES Y-AXIS *
26 03001227-02 GUIDE RAIL, SIZE 25 *
27 00845060-01 HEXAGON SOCKET HEAD CAP
SCREW M6 X 25-8.8
28 03003176-04 CALIBRATION JIG REST CPL. SPARE PART
29 03061103S01 MAGNETIC TRACK
MWA120-0128-25A
*
30 03061100S01 MAGNETIC TRACK
MWA120-0512-25A
*
31 00845058-01 HEXAGON SOCKET HEAD CAP
SCREW M6 X 16-8.8, COPPER + NI-
PLATED
03049888-03 X-SERIES DRIVE ACCESSORIES Y
1-GANTRIES R2
32 03004645-01 COVER Y-MAGNET GUIDE HF SPARE PART
33 03013461-01 STOP, RIGHT, Y-LINEAR MOTOR *
