SP60P-M Mechanical 20120628 - 第50页

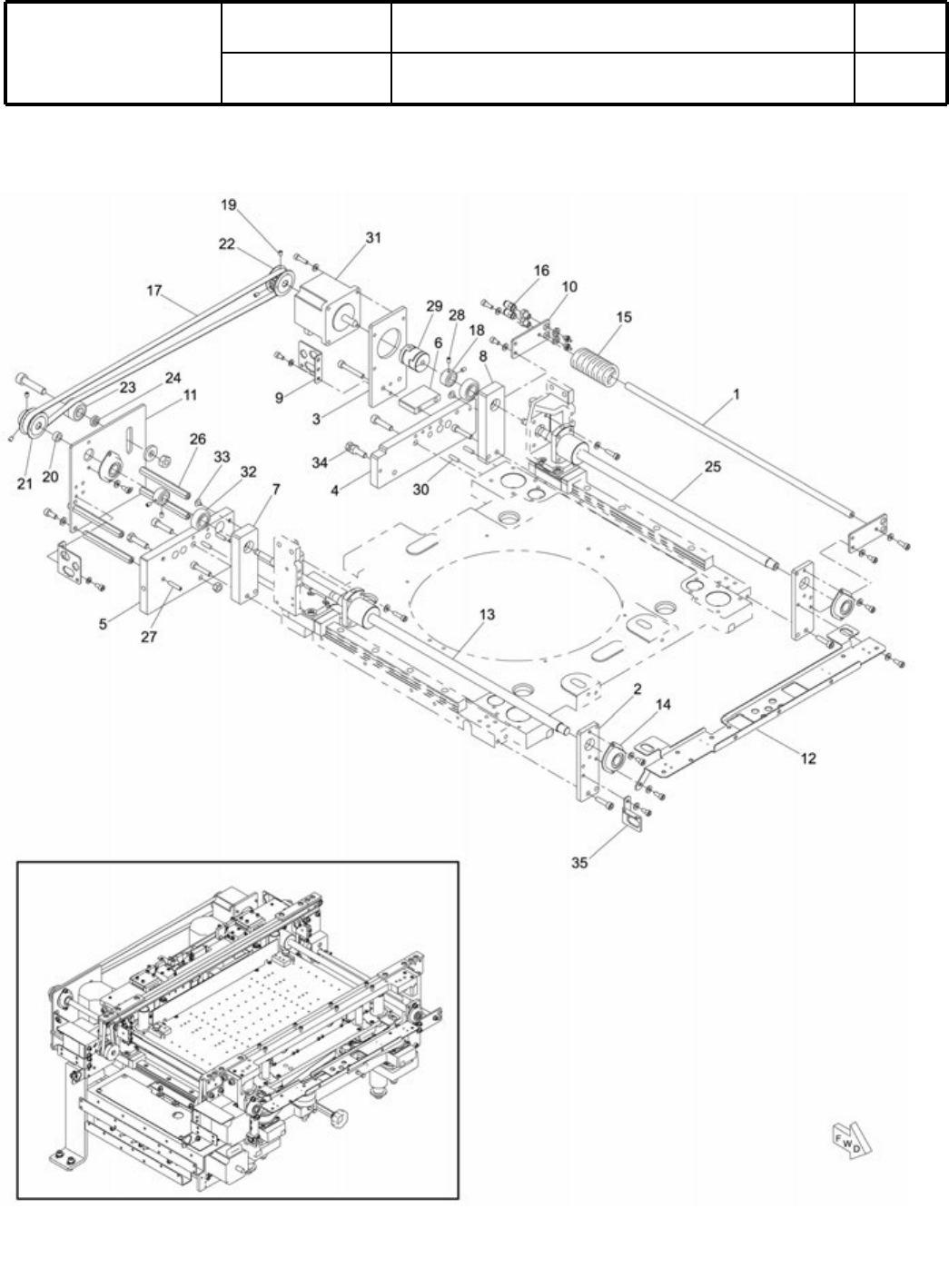

4-C 基 板 位置 決 めリフト(M ) Board Positioning Lif t(M) パーツレイアウト Ki t N o . キット 品番 Kit N am e キット名称 KXFX039DA00 ｾｸｼｮﾝNo. PARTS LAYOUT Section No. M31
Ref
No.
Remarks
R
1
Q'ty
4-B
基
板
位置
決
めリフト(M)
Board Positioning Lift(M)
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
KXFX039DA00
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
GUIDE
1
1 N210028528AA
BRACKET
1
2 KXFB0327A02
BRACKET
1
3 KXFB0328A02
FRAME
1
4 N210003085AA
PLATE
1
5 KXFB032BA00
GUIDE
1
6 N210028529AA
JOINT
2
7 KXFB01WWA01
PLATE
2
8 KXFB01WXA01
MANIFOLD
1
9 KXFB01WYA00
BLOCK
2
10 KXFB0382A01
BRACKET
1
11 KXFB0338A00
BRACKET
1
12 KXFB033CA00
BRACKET
1
13 KXFB037QA00
BRACKET
1
14 KXFB033HA00
DOG
1
15 KXFB033JA00
DOG
1
16 KXFB00F3A00
JOINT
10
17 KXF02T3AA00 M-5AU-4
JOINT
4
18 KXF05X7AA00 M-5E
JOINT
6
19 KXF02SZAA00 M-5ALU-4
CYLINDER
2
20 KXF016EAA00 BDA10X5
LINEAR-WAY
2
21 N510016310AA LWLF24C1R54BCSE723
SENSOR
4
22 KXF07B3AA00
A
PM-T53B-C1
SPACER
2
23 N510019914AA CB-308E
BOLT
2
24 N510018863AA
Hexagon head bolt M5X16-6g 4T A2J (Trivalent) (no mark)
BOLT
2
25 N510018865AA
Hexagon head bolt M5X25-6g 4T A2J (Trivalent) (no mark)
SCREW-STOPPER
4
26 KXF0B65AA00 ANBN6-20
SENSOR
1
27 KXF0DX51A00 E3T-ST11
BOLT
8
28 N510017254AA
Hexagon socket head cap screw M2X12-10.9 A2J (Trivalent)
WASHER
8
29 N510018492AA
Round finish plain washer 2 10H A2J (Trivalent)
WASHER
8
30 N510018324AA Spring lock washer No.2 2 S A2J (Trivalent)
BRACKET
1
31 N210013813AC
BRACKET
1
32 N210013814AC
DOG
1
33 N210013819AB
BOLT
4
34 XVE2B6FTC Hexagon socket head cap screw M2X6-12.9 SOB
SENSOR
2
35 N310E3TST12 E3T-ST12
CONTROLLER
2
36 N310E39E10 E39-E10
M30
4-C
基
板
位置
決
めリフト(M)
Board Positioning Lift(M)
パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
KXFX039DA00
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
M31
Ref
No.
Remarks
R
1
Q'ty
4-C
基
板
位置
決
めリフト(M)
Board Positioning Lift(M)
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
KXFX039DA00
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
SHAFT
1
1 KXFB0324A00
PLATE
2
2 N210024365AB
PLATE
1
3 N210022701AA
PLATE
1
4 KXFB032MB01
PLATE
1
5 KXFB032PA01
SPACER
1
6 KXFB032RA01
PLATE
1
7 N210024251AA
PLATE
1
8 KXFB032YA00
BRACKET
2
9 KXFB0335A00
BRACKET
2
10 N210003120AA
PLATE
1
11 N210022702AA
BRACKET
1
12 N210003166AB
BALL-SCREW
1
13 N510032582AA XSTR01204C1DFC7-538-P0(NA120503)
BEARING
3
14 KXF03G0AA00 SFB38-10
TUBE
1
15 KXF0DWS1A00 TCU0425B-2-10-XL
JOINT
2
16 KXF02AWAA00 KQH04-M5
T-BELT
1
17 KXF0DWS2A00 372XL037
COLLAR
2
18 KXF09THAA00 SCC10-10
SCREW
4
19 N510018444AA
Hexagon socket set screw Flat point M5X5-45H A2J (Trivalent)
WASHER
1
20 KXF09S5AA00 SSWA11.5-5.0
PULLEY
1
21 N510032578AA R101-KXF0DWXXA00S-F-PK
PULLEY
1
22 N510032579AA R101-KXF0DWXYA00S-F-PK
BEARING
2
23 KXF00L7AA00 628ZZ
WASHER
1
24 KXF0AJKAA00 WSSB13-8-3
BALL-SCREW
1
25 N510032583AA XSTR01204C1DFC7-437-P0(NA120505)
SPACER
4
26 N510017069AA ASF-580E
SCREW
5
27 N510018378AA
Hexagon socket set screw Cup point M5X20-45H A2J
SCREW
4
28 XXE4D6FT
Hexagon socket set screw Cup point M4X6-45H SOB
COUPLING
1
29 KXF0DWSDA00 MOL-25-D6.35XD8
PIN
12
30 KXF02Y7AA00 MS4-15
MOTOR
2
31 KXF0DZDRA00
S
103H7832-0312(DDA)
BEARING
2
32 N510024787AA 6000ZZ
SCREW
8
33 N510018277AA
Cross recessed Truss head machine screw M4X5-4.8 A2J (Trivalent)
BOLT
2
34 N510018881AA
Hexagon head bolt M6X25-6g 4T A2J (Trivalent) (no
mark)
BRACKET
1
35 N210013821AD
