MN-E00372EDW-XX_B(1) - 第128页
CS DWG NO. OF REV DESCRIPTION SHEET DESCRIPTION NO. PART NO. PART INFORMATION AND IS NOT TO BE USED OR DO NOT SCALE REPRODUCED WITH OUT PERMISSION OF THIS DRAWING CON TAINS PROPRIETARY ALL CAPACITORS ARE IN µ F ALL RESIS…
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV
(FHFC) FLIP HEAD
01-E44121
CS-01-E44121
21
FROM: 01-E44121_A_2015.02.10
A1
A
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B

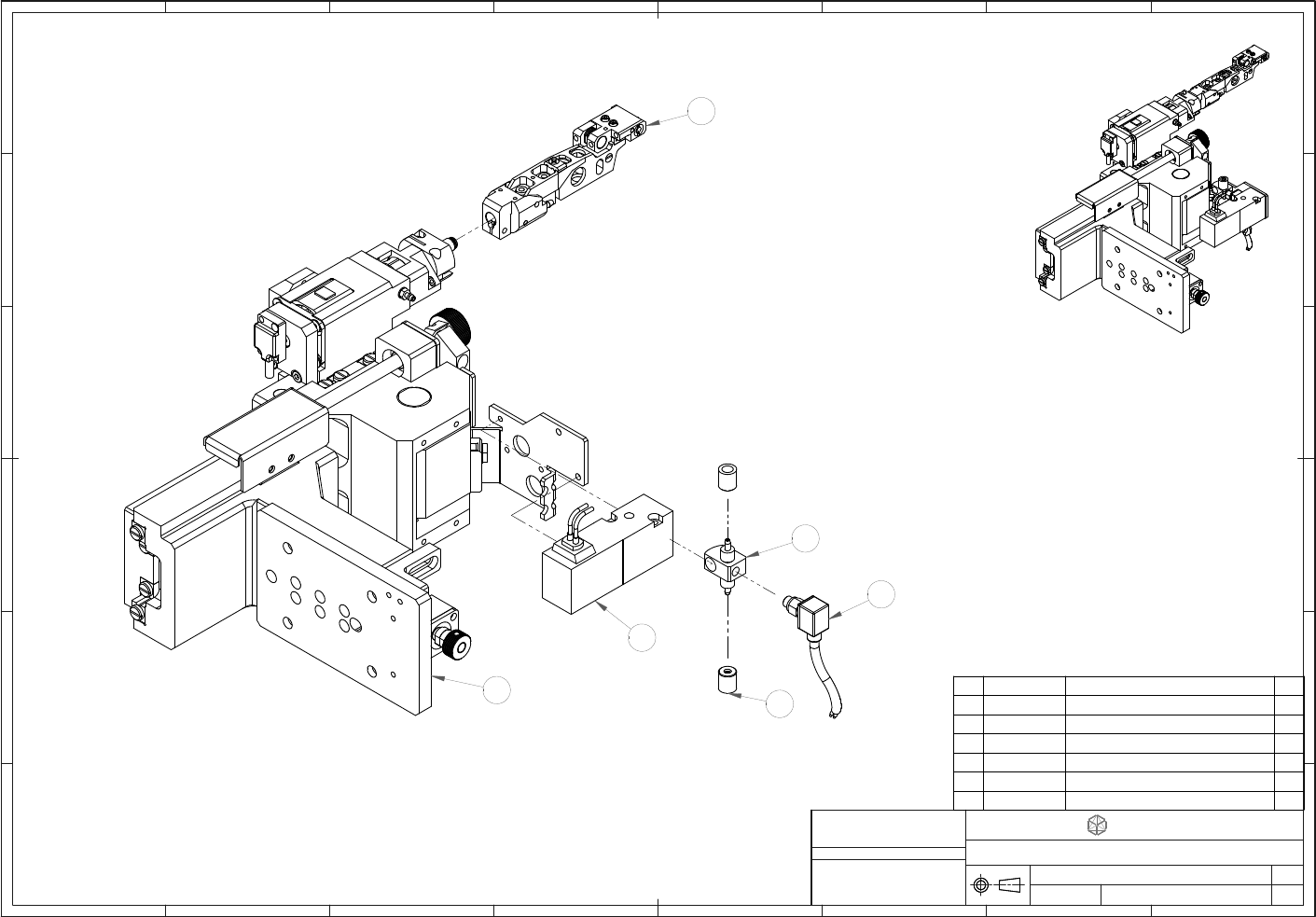

ITEM PART NO. DESCRIPTION QTY.
1 01-E35874 (FA)FLIP ARM 1
2 01-E44120 (FH)FLIP HEAD TABLE ASSY 1
3 02-E03424 (FA)VAC SOL 1
4 02-E03425 (FA)VAC SNR 1
5 S26-E10162 AP-41ADAPTOR 1
6 S26-E10163 AP-41 ADAPTOR NUT 2
Assembly View
1
2
3
4
5
6
NOTE:02-E03424,02-E03425,S26-E10162,S26-E10163 are included of 01-E17249 in the assembly.
Section 7(FHFC) FLIP HEAD
7-1
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV
(FHFC) FLIP HEAD
01-E44121
CS-01-E44121
22
FROM: 01-E44121_A_2015.02.10
A1
A
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B

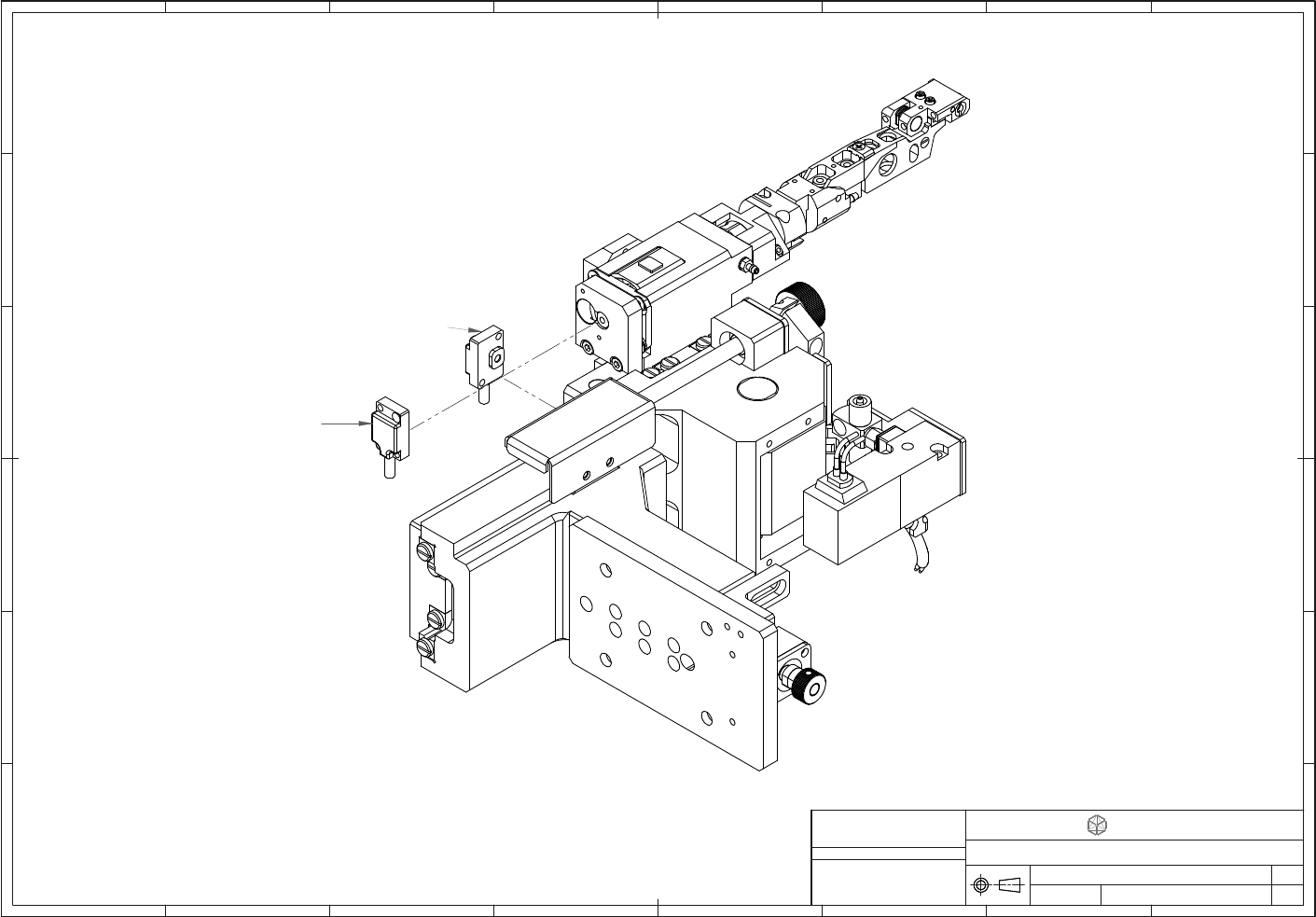

02-E03332
(FA)MICRO-E ENC
02-E11958
(FH) Z ENCODER
7-2
(FHFC) FLIP HEAD
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV
(FA)FLIP ARM
01-E35874
CS-01-E35874
11
FROM: 01-E35874_G_2015.03.25
G1
G
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 01-21248 (BA) CONTACT SNR ASSY (WBCS) 2
2 01-E64311 (FA)FLIP ARM BASE 1
3 20-44435 FLAT HD PHI SCREW M2X6 1
4 20-60423 SOC HD CAP SCREW M1.6X3 2
5 20-60425 SOC HD CAP SCREW M1.6X5 2
6 20-70431 SOC SET CUP SCREW M2 X 2.5 2
7 24-00777 LM GUIDE HSR10R2UUC1M+145LSPM-II 1
8 26-F08397 (FA) PRELOAD ADJUSTING SCREW 1
9 26-G79206 (FA) GLASS LOCKING RING 1
10 36-50004 SAPPHIRE PAD 1
11 72-08002-1 O-RING 0.8 X 1.9 ID. 2
12 75-10079 COMP. SPRING 0.4DX3.60DX12.0LG 1
Assembly View
3
4
5
6
7
8
9
10
11
12
1
2
7-3
(FHFC) FLIP HEAD
