MN-E00372EDW-XX_B(1) - 第137页
CS DWG NO. OF REV DESCRIPTION SHEET DESCRIPTION NO. PART NO. PART INFORMATION AND IS NOT TO BE USED OR DO NOT SCALE REPRODUCED WITH OUT PERMISSION OF THIS DRAWING CON TAINS PROPRIETARY ALL CAPACITORS ARE IN µ F ALL RESIS…
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV
(FX)BIN ASSY
01-E35878
CS-01-E35878
11
FROM: 01-E35878_L_2015.06.12
L1
L
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 01-E40569 (FX) RUBBISH BIN ASSY 1
2 02-E17573 (FX)BIN EXTEND SNR 1
3 02-E17574 (FX)BIN HOME SNR 1
4 20-00062 SOC HD CAP SCREW M3X18 ALLOY ST ZN PLT 2
5 32-00075 PNEU. CYLINDER, D-ACT, 6X40 1
6 74-40013 KNOB FOR M3 SCREW 2
7 823-30316 DOWEL PIN D3X15(16) 1
Assembly View
1
5
2
3
6
4
7
8-2
(FXFC) FLUXER
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV
(FX) G2 FLUXER FOR 10MM DIE
01-E51092
CS-01-E51092
11
FROM: 01-E51092_L_2015.06.12
L1
L
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 01-E56162 (FX) X MOVING BASE ASSY 1
2 01-E56206 (FX) NEW TILTING BLK KIT 1
3 01-E56261 (FX) FLUXER RELOAD CLAMP 1
4 01-E66799 (FX) FLUX POT AND 30UM PLATE 1
5 02-E03479 (FX)HOME SNR 1
6 02-E17371 (FX)BELT DRIVE MOTOR 1
7 20-70509 SOC SET CUP SCREW M4 X 4 1
8 24-11104 MINIATURE FLANGE BEARING 5 X 11 X 5 2
9 26-E98175 (FX) PULLEY 1
10 26-F01524 PULLEY COUPLER (SHAFT DIA 11MM) 1
11 26-F69500 (FX)BELT TENSION ADJ CAM 1
12 26-F69516 (FX)PULLEY SHAFT 1
13 26-F69518 (FX)TENSION PULLEY BKT 1
14 26-G75430 (FX) FLUXER LEVEL SCREW 2
15 26-G75431 (FX) FLIXER TITLING LOCK NUT 2
16 26K-E03751 (FX) MOTOR PULLEY 1
17 873-10031 TIMING BELT HTD 228-3M-9 1
18 S26-G65359 (FX) FLUXER PRELOAD HINGE 1
19 S26-G66195 (FX) FLUXER CLAMP 1
Assembly View
3
8
16
9
11
12
13
4
5
6
17
18
19
NOTE:26-G75430,26-G75431,are included of 01-E56206 in the assembly.
26-F69500,26K-E03751,26-E98175,26-F69516,26-F69518,24-11104,
837-10031,26-F01524,are included of 04-E00250 in the assembly.
1
14
15
2
7
10
8-3
(FXFC) FLUXER
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV

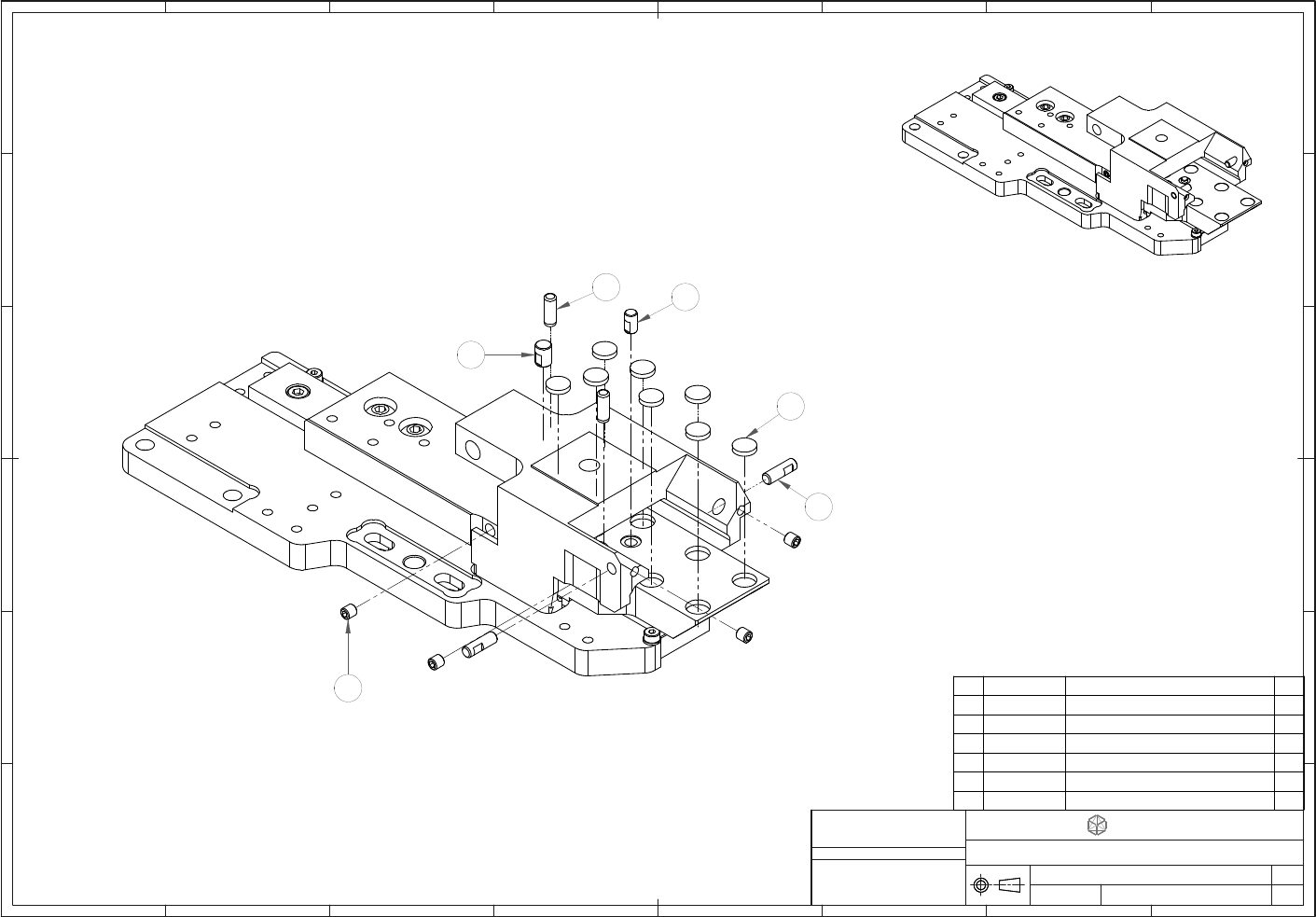

(FX) X MOVING BASE ASSY
01-E56162
CS-01-E56162
11
FROM: 01-E56162_F_2015.06.12
F1
F
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 00-00274 DISC MAGNET 2 8
2 20-70469 SOC SET CUP SCREW M3 X 3 4
3 23-40005 DOWEL PIN DIA3X8LG 2
4 26-G92954 (FX) FLUXER PART FIXED DOWEL PIN 1 1
5 26-G92957 (FX) FLUXER PART FIXED DOWEL PIN 2 1
6 26-G93851 (FX) POT X GUIDE PIN 2
Assembly View
1
2
4
5
6
3
8-4
(FXFC) FLUXER
