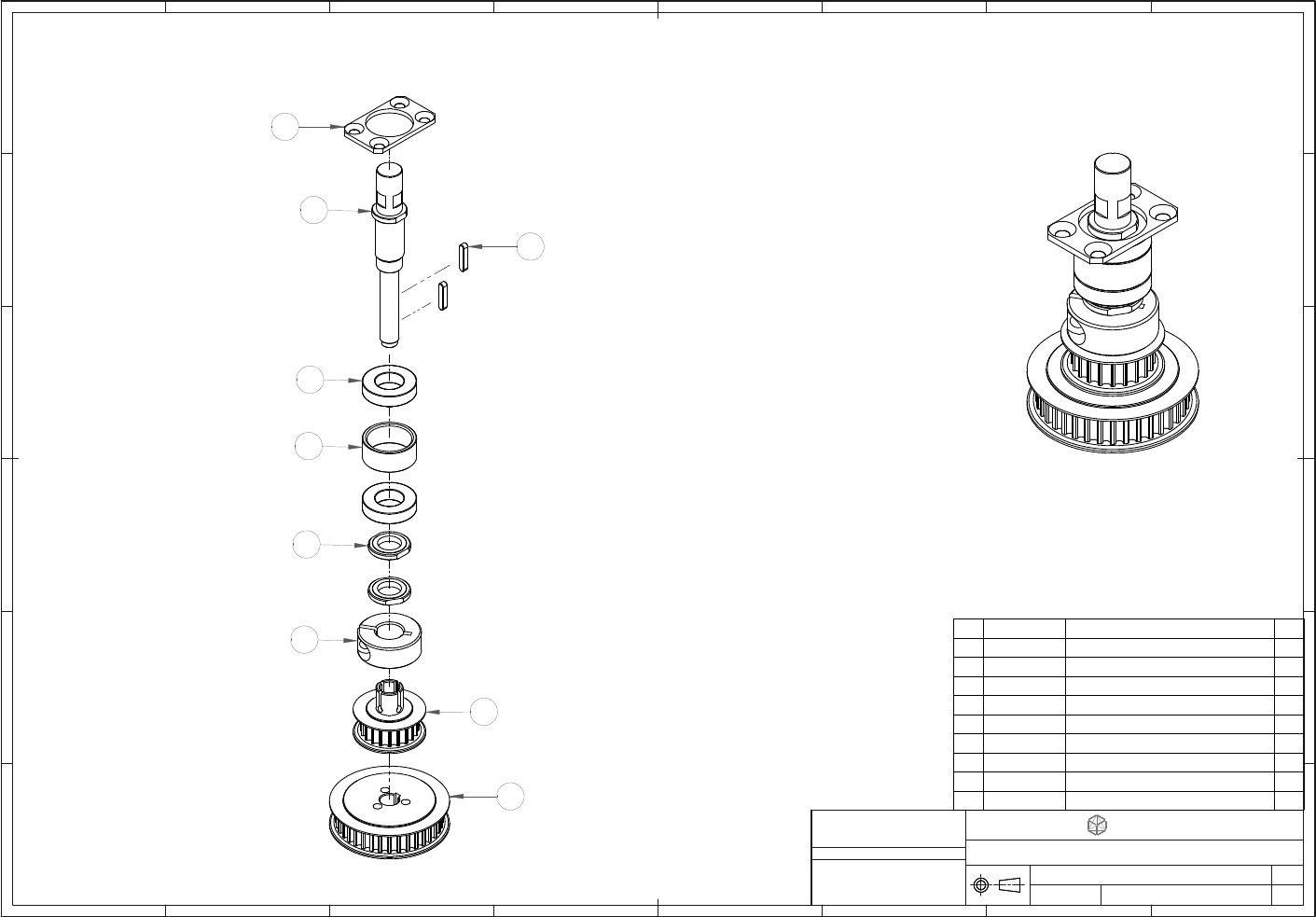

(WT) ROTATING RING ENCODER IDLER
01-E11116
CS-01-E11116
11
FROM: 01-E11116_B_2015.03.07
B1
B
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 23-60014 PARALLEL KEY B2 X H2 X L10 2
2 24-00151 BALL BEARING 689 2
3 26-E26668 (WT) SET COLLAR D8.5 1
4 26-E38682 (WT) BEARING COVER, B17 1
5 26-E89100 LOCK NUT M8X0.75 T2 2
6 26-F51618 (WT) BEARING SPACER FOR IDLER SHAFT 1
7 26-F51619 (WT) ROTATING RING IDLER SHAFT 1
8 26-F51620 (WT) TIMING PULLEY (GT 3, 20T, W7) 1
9 26-F51621 (WT) TIMING PULLEY (HTD 3, 36T, W7) 1
1
2
3
4
5
6
7
8
9
Assembly View
11-11
(WT) 8312SD WAFER TABLE
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV
(WL) WAFER LOAD ASSY. (NONE CONTACT SNR)
01-E41542
CS-01-E41542
11
FROM: 01-E41542_A_2013.04.09
A1
A
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 01-E10934 (WL) Y DRIVING ASSY 1
2 01-E11054 (WL) IDLER PULLEY ASSY 1
3 01-E11055 (WL) DRIVIEN PULLEY (T2.5, 21T, W4) 1
4 01-E11056 (WT) WL, TENSIONER ASSY 1
5 01-E41543 (WL) LOADER Y ARM ASSY 1
6 01-E41544 (WL) LINEAR OPENNING WAFER CLAMPER 1
7 02-79146 (WL) Y-HOME SENSOR ASSY 1
8 24-00729 LM GUIDE MHD10C2R625SLT1H/U 1
9 73-00701 TIMING BELT 6T2.5/5000M 1
Assembly View
8
1
2
3
4
5
6
9
7
NOTE:02-79146 is included of 01-E10934 in the assembly.
11-12
(WT) 8312SD WAFER TABLE
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV

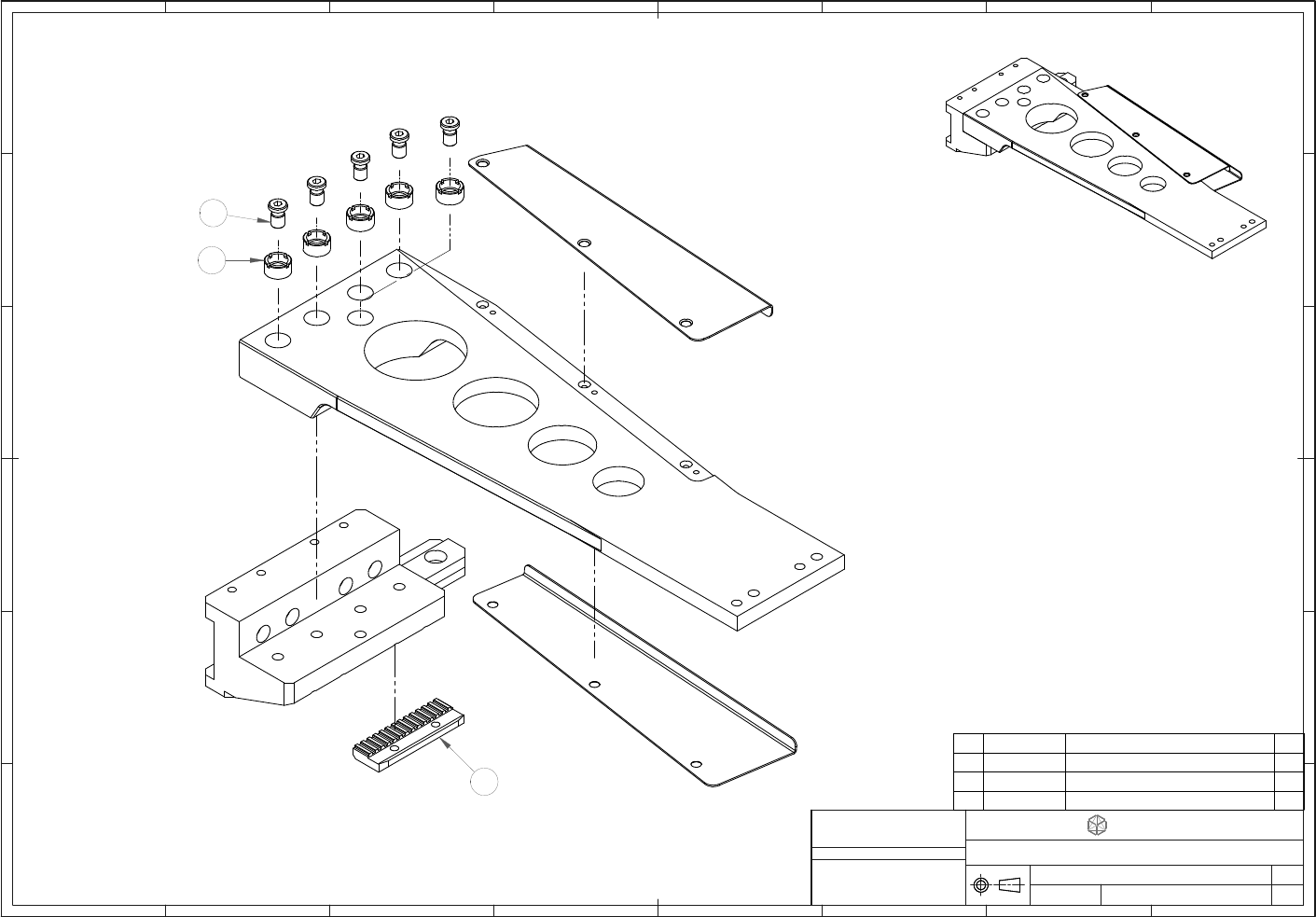

(WL) LOADER Y ARM ASSY
