(LL) FLOATING MENTAL SENSOR ASSY
S01-E45717
CS-S01-E45717
11
FROM: S01-E45717_C_2015.06.19
C1
C
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 19-40192-2 E-RING (SHAFT DIA 4MM) 1
2 20-70458-2 SOC SET CUP SCREW M2.5X3 BLACK 1
3 24-00530 OIL FREE BUSHING MPBZ6-12 1
4 24-13187 BALL BEARING 681XZZ 1.5X4X2 1
5 26-G15334 (LL) BALL BEARING SHAFT 1
6 26-G15335 (LL) BALL BEARING SPACER 1
7 74-40014 KNOB FOR M4 SCREW 1
8 S26-G95319 (LL) COMPRESSION SPRING 1
9 S26-G98228 (LL) MENTAL SNR FLOAT SHAFT 1

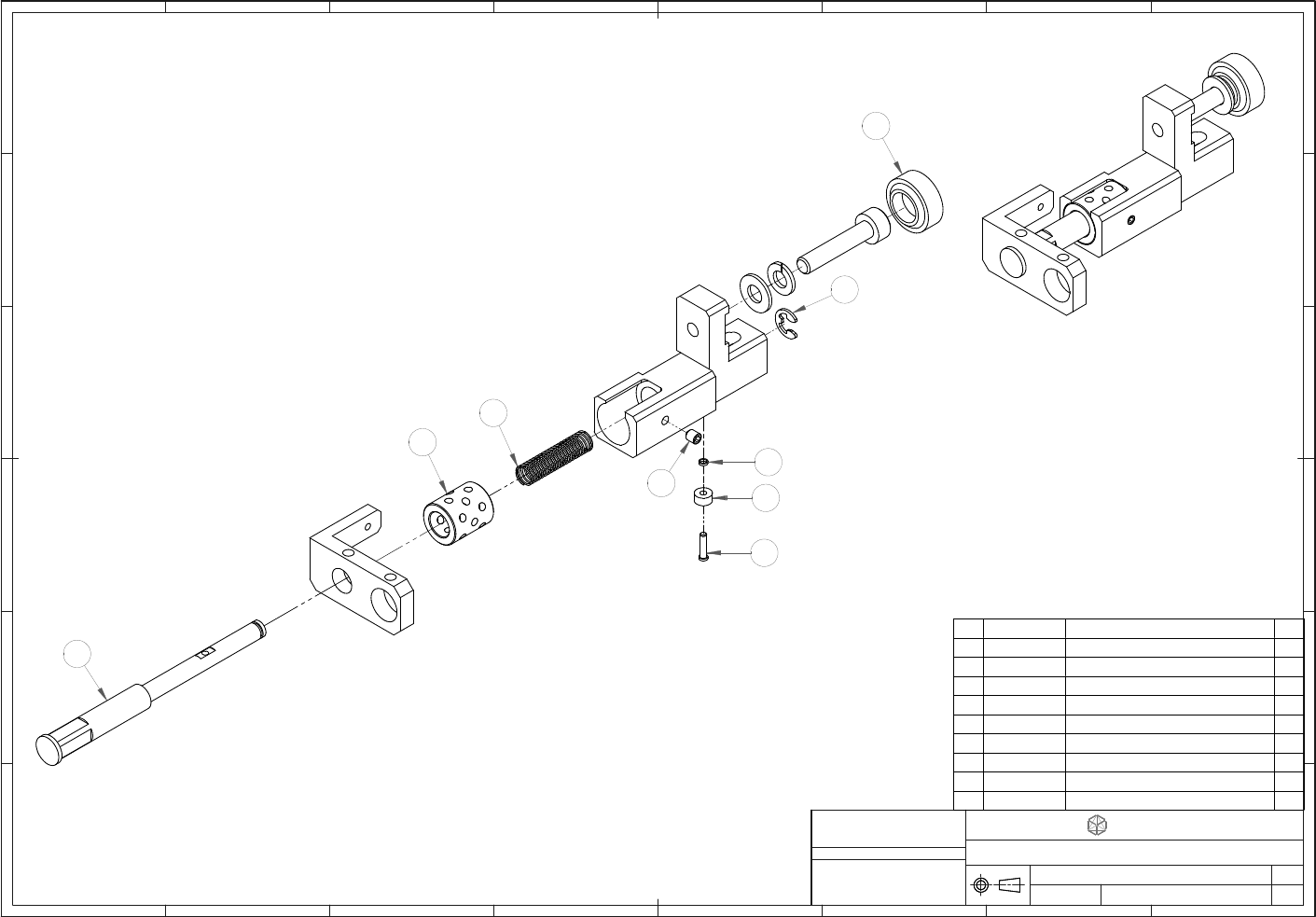

Assembly View
1
2
3
4
5
6
7
8
9
1-8
(MI83)G2 INPUT COMBO MAGAZINE ELEVATOR
