Section 15
Part NoDescriptionRevPage
01-E19079(PSFC) PNEUMATIC MAINTENANCE UNITF15-1
01-E19897BONDHEAD PNEUMATIC ASSYI15-2
01-E04256(EJ83) PNEU ASSYK15-3
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV
(PSFC) PNEUMATIC MAINTENANCE UNIT
01-E19079
CS-01-E19079
11
FROM: 01-E19079_F_2015.06.18
F1
F
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 01-E04256 PNEU ASSY 1
2 01-E19897 BONDHEAD PNEUMATIC ASSY 1
3 24-31001 SLIDE RAIL 12" 2
4 26-E38000 MANIFOLD 1 1
5 31-00255 FEMALE ELBOW KQ2LF06-01 2
6 31-00308 SPACER WITH BRACKET Y300T-A 2
7 31-40163 PLUG R I/4" BSP 1
8 31-40198 MALE ELBOW KJL06-01S-X20 [20B3] 2
9 31-40420 MALE ELBOW KQ2L10-02S 4
10 33-00006 MIST SEPARATOR AFD3000-02 2
11 33-20018 PRESSURE GAUGE (0-10) BAR 2
12 33-40027 FILTER REGULATOR AW3000-02 2
13 874-50041 DRAWER PULL A-1075-5 1
14 S26-E09786 SPACER(DIA10) 2

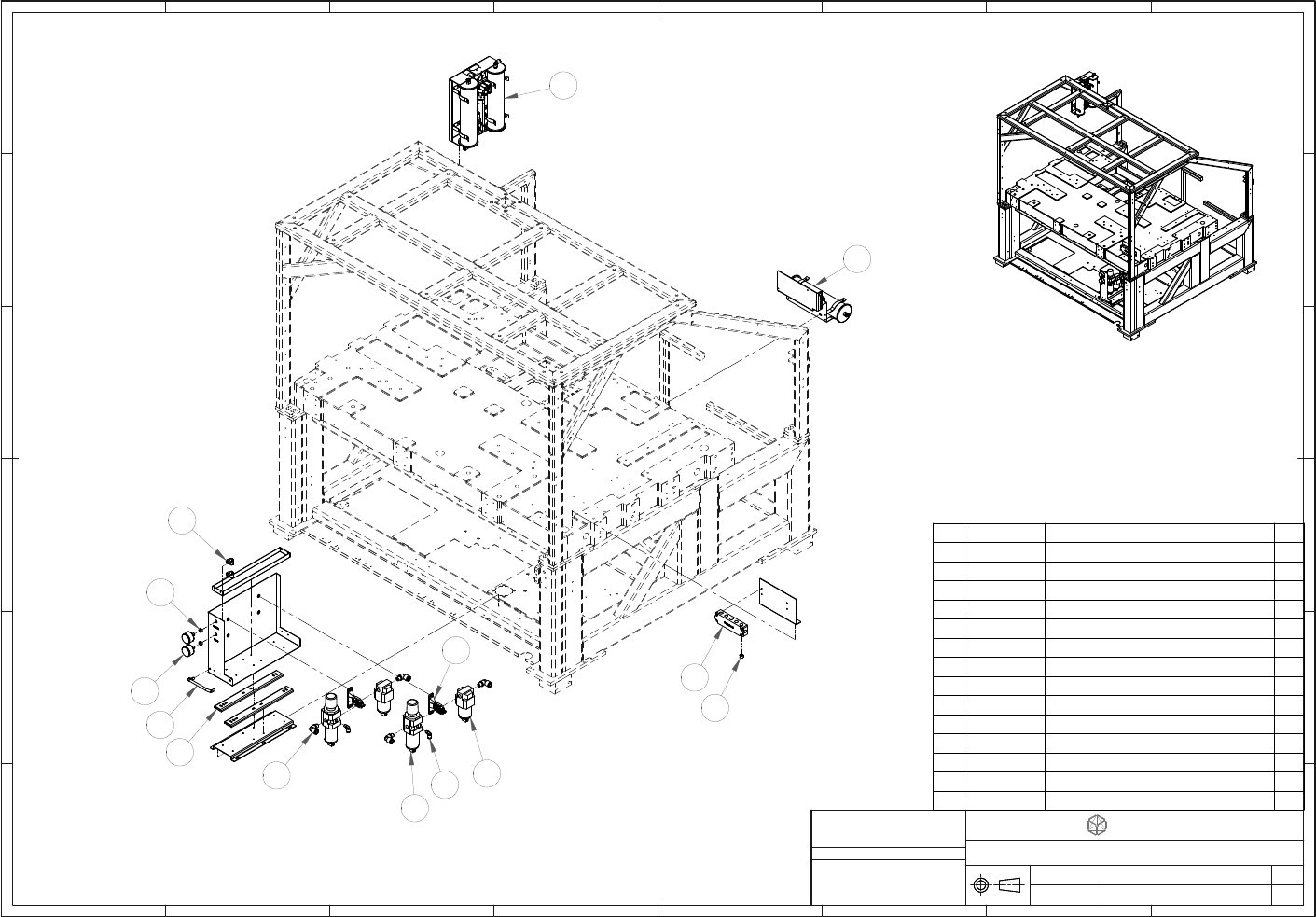

Assembly View
3
4
5
6
7
8
9
10
11
12
13
1
2
14
NOTE:01-E04256 is included of 01-E35500 in the assembly.
01-E19897 is included of 01-E38499 in the assembly.
Section 15(PSFC) PNEUMATIC MAINTENANCE UNIT
15-1
