MN-E00372EDW-XX_B(1) - 第51页
CS DWG NO. OF REV DESCRIPTION SHEET DESCRIPTION NO. PART NO. PART INFORMATION AND IS NOT TO BE USED OR DO NOT SCALE REPRODUCED WITH OUT PERMISSION OF THIS DRAWING CON TAINS PROPRIETARY ALL CAPACITORS ARE IN µ F ALL RESIS…
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV
(WH)DS &UDA UNIT LEFT
01-E18263
CS-01-E18263
11
FROM: 01-E18263_D_2015.02.07
D1
D
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 01-E01675 (WH) SDII, DS, GUIDING UNIT 1
2 01-E01678 (WH) DS, LEAD SCREW ASSY 1
3 01-E18267 (WH)UDA KIT LEFT 1
4 02-E03936 (WH)DOWN SET HOME SNR 1
5 02-E04233 (WH)UDA HOME SNR 1
6 02-E27448 (WH)DS MOTOR & ENC ASSY 1
7 23-60005 PARALLEL KEY KESS3-10 2
8 24-08002 MAGNETO BALL BEARING 8X24X7, EN8 2
9 24-11004 A/C BALL BEARING 10 X 26 X 8 C7 NSK 1
10 26-66103 (WH) WORM GEAR AG0.8-50R1 1
11 26-E40839 A/C BEARING COVER OD26 1
12 26-E40861 LOCK NUT M10X0.75 2
13 26-E50347 C-CLAMP D12 1
14 26-E53972 C-CLAMP D13 1
15 26-F23321 (WH) SDII, PULLEY 20G ID 8 MM 1
16 26-F23322 (WH) SDII, BRG SPACER ID8 2
17 26-F23328 A/C BEARING COVER OD24 1
18 26-F23657 (WH) SDII, PULLEY 45G 1
19 26-F72400 (WH)TRANS CONNECTION ROD 1
20 26-F72402 (WH)WORM KWG08-R1 L 1
21 73-10459 TIMING BELT 10 AT3/201 1
22 S26-E07365 COUPLING_HARD 1
23 S26-E09781 C_CLAMP 1
Assembly View
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
21
22
23
NOTE:02-E04233 is included of 01-E18267 in the assembly.
2-6
(WHFC) WORKHOLDER
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV

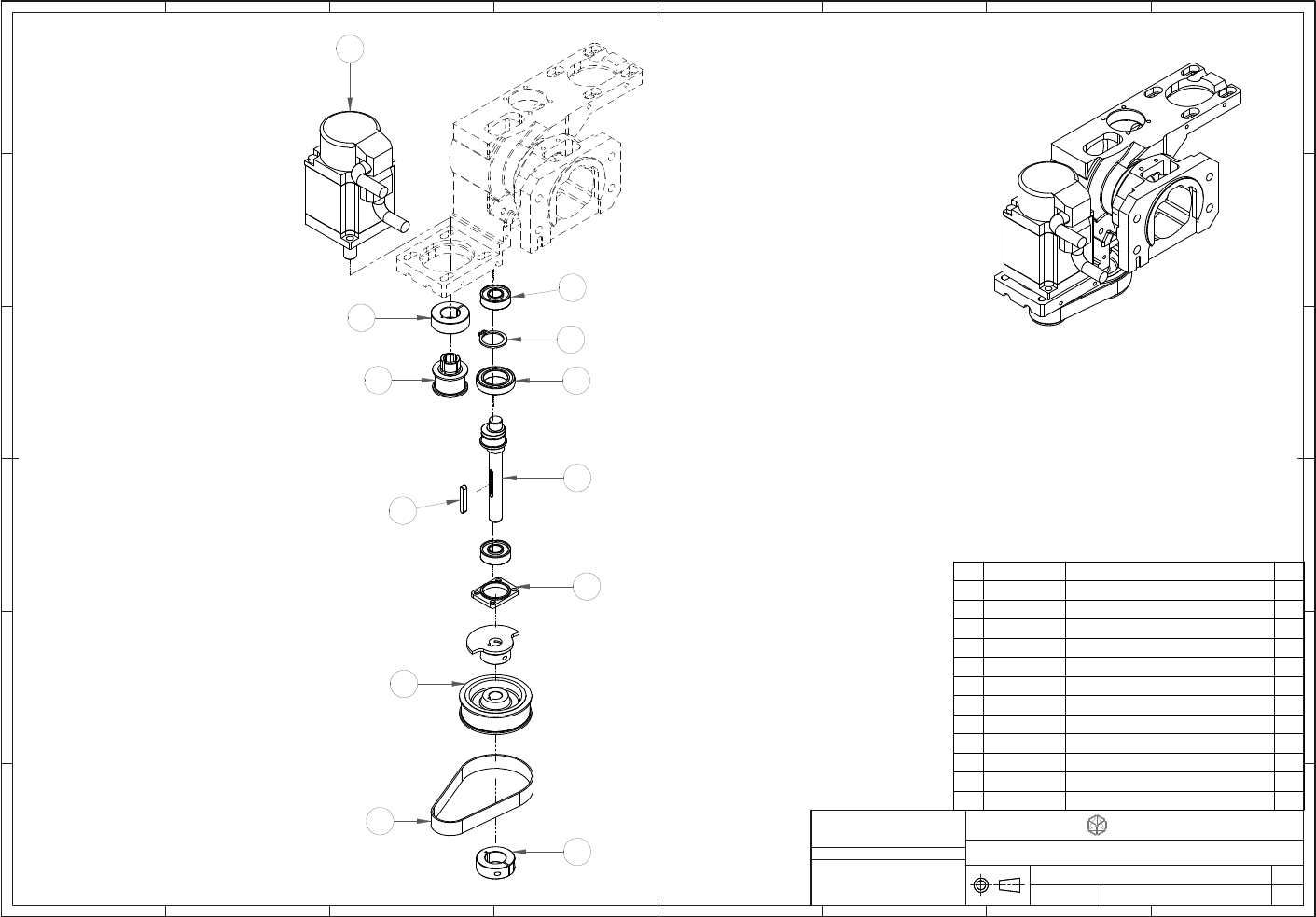

(WH)UDA KIT LEFT
01-E18267
CS-01-E18267
11
FROM: 01-E18267_C_2015.03.05
C1
C
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 02-E27449 (WHFC) DS MOTOR AND ENC ASSY 1
2 19-00006 RETAINING RING FOR SHAFT 15MM STWS15 1
3 23-60009 PARALLEL KEY KES3-20 1
4 24-00121 DEEP GROOVE BALL BEARING 6802 ZZ 1
5 24-11083 BALL BEARING 8X19X6 698ZZ 2
6 26-E50347 C-CLAMP D12 1
7 26-E53972 C-CLAMP D13 1
8 26-F23321 (WH) SDII, PULLEY 20G ID 8 MM 1
9 26-F23329 A/C BEARING COVER OD19 W/ CS 1
10 26-F23657 (WH) SDII, PULLEY 45G 1
11 26-F72398 (WH)DS ECCENTRIC CAM 1
12 73-10459 TIMING BELT 10 AT3/201 1
Assembly View
8
10
11
1
12
2
3
4
5
6
7
9
2-7
(WHFC) WORKHOLDER
CS DWG NO.
OF
REV
DESCRIPTION
SHEET
DESCRIPTION
NO.
PART
NO.
PART
INFORMATION AND IS NOT TO BE USED OR
DO NOT SCALE
REPRODUCED WITHOUT PERMISSION OF
THIS DRAWING CONTAINS PROPRIETARY
ALL CAPACITORS ARE IN µ F
ALL RESISTORS ARE IN Ω
ALL DIM ARE IN mm
UNLESS OTHERWISE SPECIFIED
A S M
DWG REV

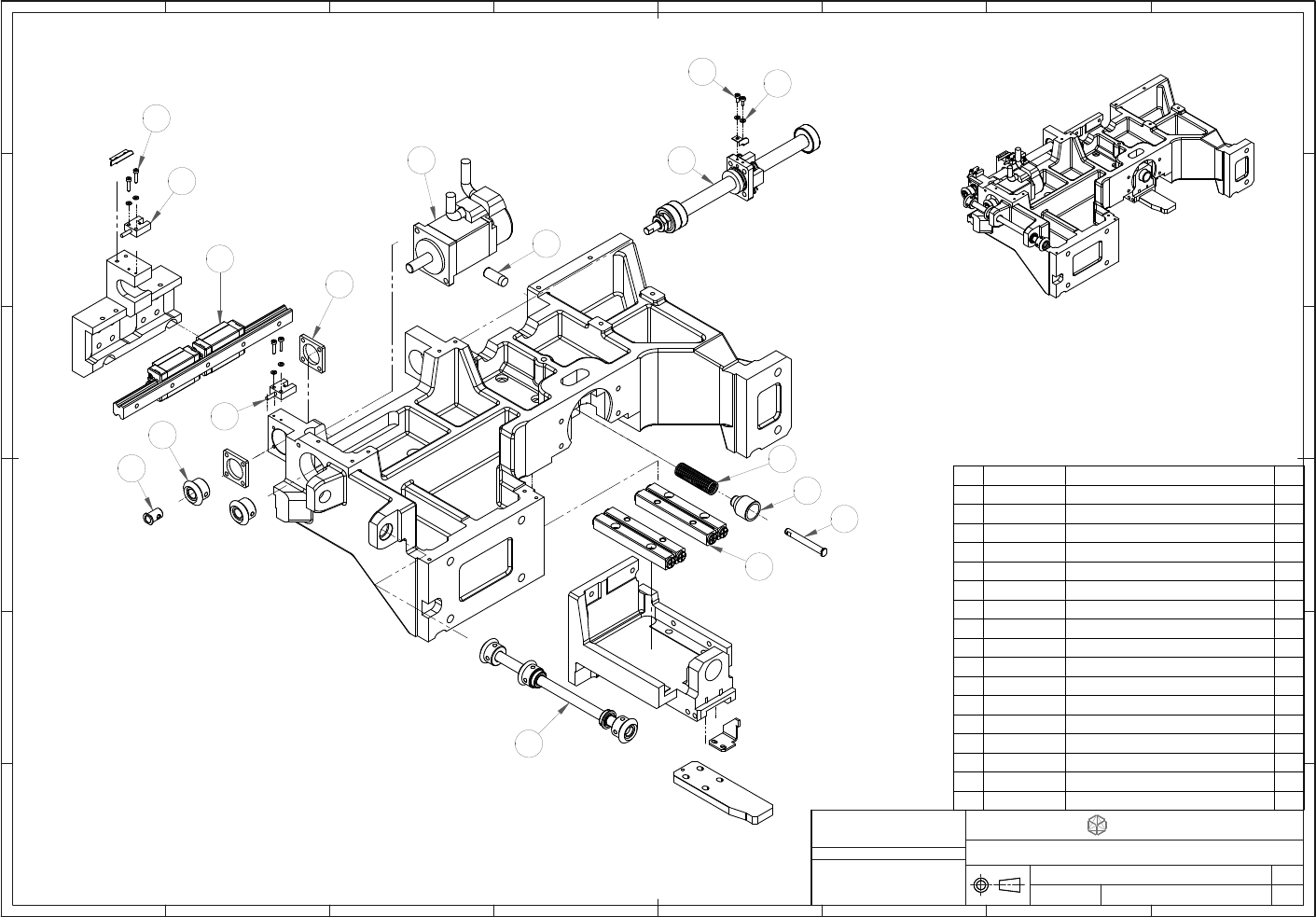

(WH)TW &DS TABLE LEFT
01-E18264
CS-01-E18264
11
FROM: 01-E18264_H_2015.06.24
H1
H
ASM Pacific Technology
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING ASM CUSTOMER SERVICE DRAWINGASM CUSTOMER SERVICE DRAWING
21 3 4 5 6 7 8
8765431 2
B
A
C
D
E
F F
E
D
C
A
B
ITEM PART NO. DESCRIPTION QTY.
1 01-E18265 (WH)ANTI JAM LEADSCREW ASSY 1
2 01-E18266 (WH)TW TRANS ROD VERTICAL LEFT 1
3 02-E03934 (WH)WT HOME SNR 1
4 02-E03948 (WH)ANTI JAM SNR 1
5 02-E27447 (WH)TW MOTOR & ENC ASSY 1
6 20-60434 SOC HD CAP SCREW M2X5 2
7 20-60439 SOC HD CAP SCREW M2 X 10 4
8 22-20102 WASHER SPRING M2 6
9 24-00987 CROSS ROLLER WAY CRWG4-80 1
10 24-30366 LM GUIDE HSR12R2UUC1M+190LSPM 1
11 26-E17560 BEARING COVER 2
12 26-E89508 (WH) SPIRAL GEAR (DRIVEN) 2
13 26-F23319 (WH) SDII, DS, SPRING HOLDER FOR LS-NUT 1
14 26-F23336 (WH) SDII, DS, GUIDE ROD FOR SPRING 1
15 26-F72390 (WH)SLEEVE FOR MITER GEAR 1
16 75-10129 COMP SPRING D22020 (1X11X39) 1
17 823-30820 DOWEL PIN D8X20 1
Assembly View
6
7
9
10
11
12
13
14
15
16
17
1
2
3
4
5
8
2-8
(WHFC) WORKHOLDER
