5.1.1 BoardGateKeeper Server System Components
SIPLACE BoardGateKeeper 1.2 SP1 31
5
5 System Components and Features
System Components and Features
5.1
5.1 System Components
System Components
SIPLACE BoardGateKeeper is used for further processing of board data. This data is imported from the
barcode and/or transportation systems and transferred to the MES system.

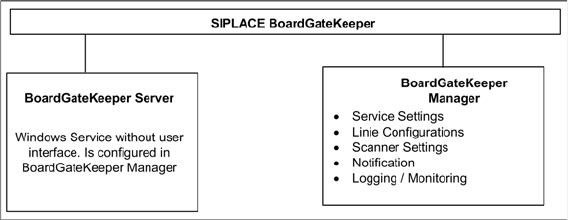

SIPLACE BoardGateKeeper consists of two components:
▪ BoardGateKeeper server:
for connection of the scanner and MES systems
▪ BoardGateKeeper Manager:
for configuration of the BoardGateKeeper server
All SIPLACE BoardGateKeeper components are automatically installed on the same computer during
installation.
5.1.1
5.1.1 BoardGateKeeper Server
BoardGateKeeper Server
Connects to the scanner and transportation systems configured for each line and transfers notification
messages to the MES.
5.1.2
5.1.2 BoardGateKeeper Manager
BoardGateKeeper Manager
The line-specific configuration and other options are set via the user interface of the BoardGateKeeper
Manager.
▪ Configuring the OIB
▪ Configures the lines and their scanner hardware
▪ Scanner Settings
▪ Configures the protocol and monitoring options
