2.1.密閉スキージ Hermetic squeegee(CLFS)
GP-551E PARTS LIST ver03
2-4
2.1.密閉スキージ(CLFS)
2.1.Hermetic squeegee(CLFS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
89W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
90W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
91W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
92W1045A WASHER, FLAT
ﾜｯｼｬ 平         
4W-6
93W1047A WASHER, FLAT
ﾜｯｼｬ 平         
4W-10
94W1010A WASHER, CONICAL
ﾜｯｼｬ 皿         
M-3-L
95W1011A WASHER, CONICAL
ﾜｯｼｬ 皿         
M-4-L
96W1012A WASHER, CONICAL
ﾜｯｼｬ 皿         
M-5-L
97W1013A WASHER, CONICAL
ﾜｯｼｬ 皿         
M-6-H
98N1082A NUT, HEX
ﾅｯﾄ 六角         
M5P=0.8
99N1089A NUT, HEX
ﾅｯﾄ 六角         
M8P=1.25
100N1086A NUT, HEX
ﾅｯﾄ 六角         
M6P=1.03ｼｭ
101N1094A NUT, HEX
ﾅｯﾄ 六角         
M10P=1.53ｼｭ
102N4027A SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め       
M4X5L
103K52565 SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ  M4X6L
104K5260A SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ  M5X8L
105K5262B SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ  M6X12L
106K5357H SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿       
M3X5L
107H5274A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X6L
108H5275A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X8L
110H5287A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X8L
111H5288A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X10L
112H5289A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X12L
113H5290A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X15L
114H5291A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X18L
115H5295A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X35L
117H5298A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X10L
118H5299A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X12L
119H5300A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X15L
120H5321A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X12L
121H5322A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X15L
122H5326A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X25L
123H5326T BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X30L
124H5329A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X35L
125H5273T BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X4L
126H1017S 1 HANDLE ﾊﾝﾄﾞﾙ ･
注1.No.74 S4060A(ｾﾝｻ)は､CLEN6682(ﾊｰﾈｽ)に接続します｡
Note.1 : Use harness CLEN6682 with sensor No.74(S4060A)
2.2.密閉スキージ Hermetic squeegee(CLFS)
GP-551E PARTS LIST ver03
2-5

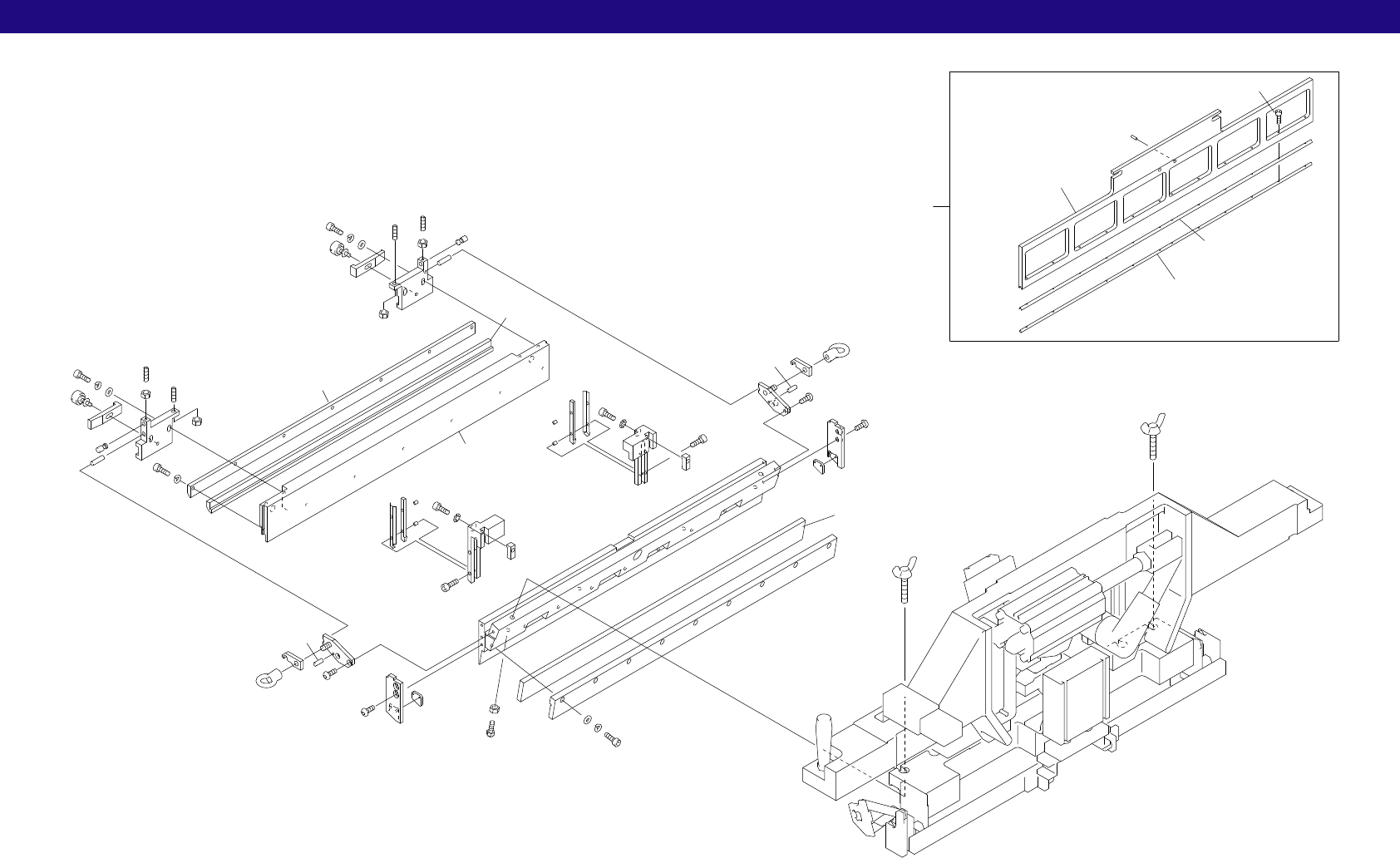

2.2.密閉スキージ(CLFS)
2.2.Hermetic squeegee(CLFS)
x5.5
104
105
78,79,80,81,82,83,84
85,86,87,88,89,90
91,92,93,94,95,96,97
98,99,100,101,102,103
65,66,67,68,69,70,71
72,73,74,75,76,77
52,53,54,55,56,57,58
59,60,61,62,63,64
34
34
48
46
42
51
18
13
3,4,5,6
20
26
38
38
31
16
15
33
12
27
19
38
38
14
30
16
33
36
25
28
41
49
23
24
21
22
24
23
41
49
29
36
25
7
1,2
8
37
44
32
17
35
11
40
45
47
39
50
43
51
9
43
39
50
17
32
40
45
47
35
11
51
10
2.2.密閉スキージ Hermetic squeegee(CLFS)
GP-551E PARTS LIST ver03
2-6
2.2.密閉スキージ(CLFS)
2.2.Hermetic squeegee(CLFS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1CLFS2340 1 SQUEEGEE ｽｷｰｼﾞ
2CLFS2130 1 SQUEEGEE ｽｷｰｼﾞ
3CLFS2330 1 SQUEEGEE ｽｷｰｼﾞ
4CLFS2350 1 SQUEEGEE ｽｷｰｼﾞ
5CLFS2320 1 SQUEEGEE ｽｷｰｼﾞ
6CLFS2360 1 SQUEEGEE ｽｷｰｼﾞ
7CLFS2110 1 SQUEEGEE ｽｷｰｼﾞ
8CLFS2120 1 RETAINER 押え
9CLFS2140 1 BKT BKT
10CLFS2150 1 BKT BKT
11CLFS2162 2 ARM, CLAMP ｱｰﾑ ｸﾗﾝﾌﾟ
12CLFS2172 1 SQUEEGEE ｽｷｰｼﾞ
13CLFS2180 1 RETAINER 押え
14CLFS2202 1 PLATE ﾌﾟﾚｰﾄ
15CLFS2212 1 PLATE ﾌﾟﾚｰﾄ
16CLFS2221 2 ARM, CLAMP ｱｰﾑ ｸﾗﾝﾌﾟ
17CLFS2250 2 PIN ﾋﾟﾝ
18PPT0540 4 STOPPER ｽﾄｯﾊﾟ
19BSFS1600 1 PLATE ﾌﾟﾚｰﾄ
20BSFS1610 1 PLATE ﾌﾟﾚｰﾄ
21BSFS0641 1 SEAL ｼｰﾙ
22BSFS0651 1 SEAL ｼｰﾙ
23BSFS5962 4 COLLAR ｶﾗｰ
24BSFS6181 2 SEAL ｼｰﾙ
25BSFS6390 2 NUT ﾅｯﾄ
26BSFS6500 1 PLATE, SIDE ﾌﾟﾚｰﾄ ｻｲﾄﾞ
27BSFS6510 1 PLATE, SIDE ﾌﾟﾚｰﾄ ｻｲﾄﾞ
28BSFS6571 1 GUIDE ｶﾞｲﾄﾞ
29BSFS6581 1 GUIDE ｶﾞｲﾄﾞ
30BSFS6591 1 NUT, EYE ﾅｯﾄ ｱｲ
31N1012Z 1 NUT, EYE ﾅｯﾄ ｱｲ TM-200SUS-6878
32H2063A 2
PIN, SPRING
ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ 5ﾟX18
33H2047A 2
PIN, SPRING
ﾋﾟﾝ ｽﾌﾟﾘﾝｸﾞ 3゜X8
34H5144M 2
BOLT, WING
ﾎﾞﾙﾄ 蝶          
M5X25L
35T3005T 2 KNOB ﾂﾏﾐ TL-233(No.4)
36H5268A 1
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M2X10L
37H5276A 1
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X10L
38K5255T 1
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M3X6L
39N4021A 1
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め       
M3X6L
40H5290A 1
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X15L
41H5299A 1
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X12L
42H5301A 1
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X18L
43N4042A 1
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め       
M5X18L
44W1021A 1
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
