5 . 1 . 枠受け F r a m e h o l d e r ( C L F B ) GP-551E P ARTS LIST ver03 5 - 2 5 . 1 . 枠受け( C L F B ) 5 . 1 . F r a m e h o l d e r ( C L F B ) 番号 図番 & ｺ ｰ ﾄ ﾞ 番号 個数 品名 規格 備考 N o . D r g . N o . & C o d e N o . Q …

100%1 / 109

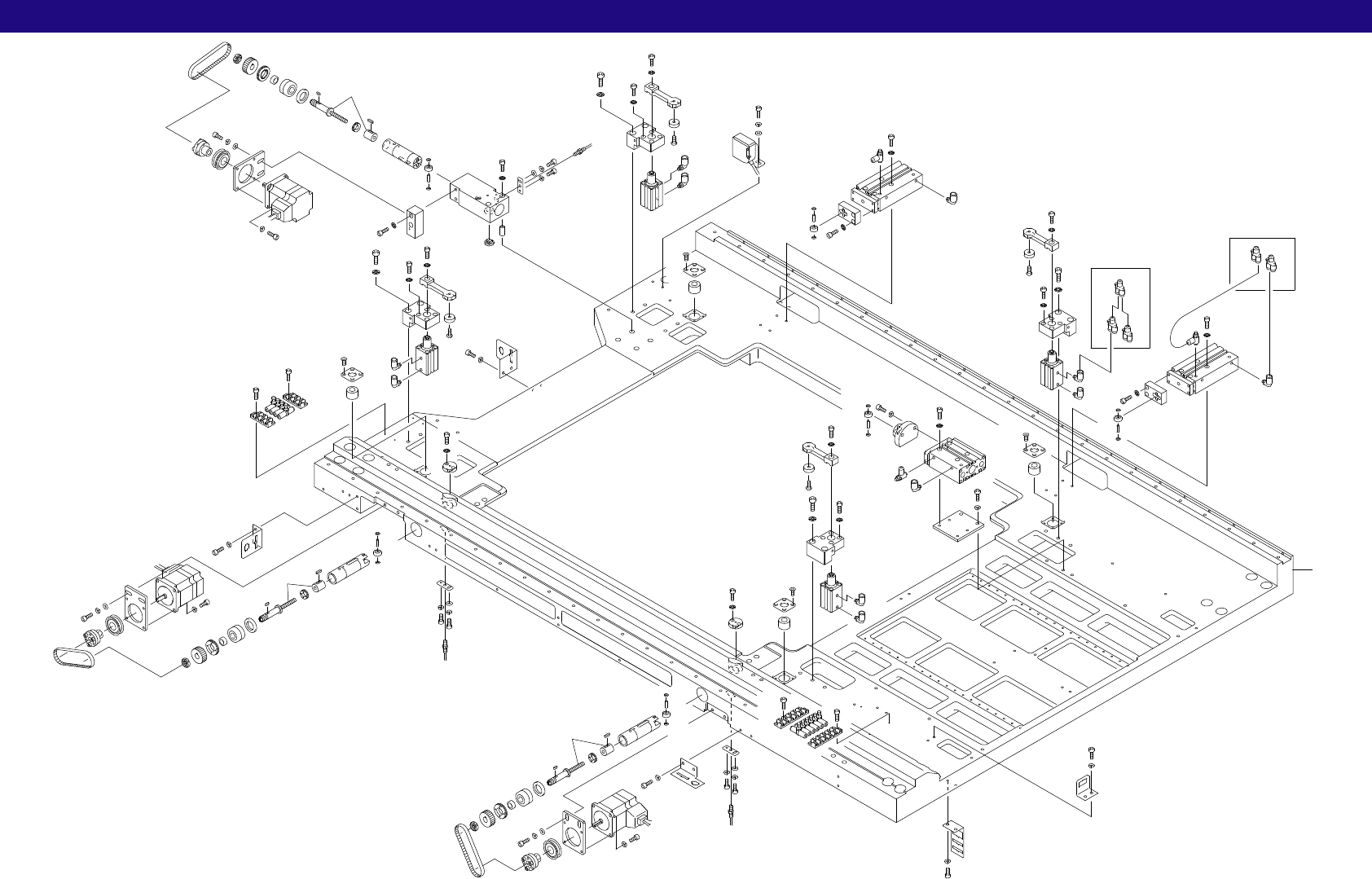

5.1.枠受け Frame holder(CLFB)
GP-551E PARTS LIST ver03
5-1
5.1.枠受け(CLFB)
5.1.Frame holder(CLFB)
x8
1
9
75
17
17
18
75
80
19
21
75
80
22
23
81
23
81
31
31
32
80
33
33
33
34
34
35
74
78
74
78
35
35
74
78
36
36
34
36
37
37
37
38
38
38
83
39
40
42
42
42
43
44
83
87
30
87
30
87
30
87
30
47
47
48
48
51
50
48
48
51
50
47
31
49
49
49
52
53
53
53
54
54
54
55
55
55
61
61
61
61
56
63
63
63
56
56
26
26
82
82
57
57
82
82
64
64
66
66
48
48
51
50
48
51
50
48
75
73
73
75
75
73
48
48
51
50
97
95
89
74
91
90
92
93
76
99
74
91
90
93
92
76
99
89
92
104
102
90
74
91
93
76
99
95
97
67
67
95
7
27
86
46
7
27
86
46
58
59
7
106
27
86
46
84
7
27
86
46
59
58
79
62
83
83
83
83
64
64
64
64
64
64
64
64
82
24
25
76
64
65
65
66
88
88
68
68
88
88
68
68
76
6
106
99
101
97
100
99
84
99
82
99
106
84
75
92
95
82
48
48
51
50
95
82
84
95
82
106
67
67
67
10
75
75
45
92
92
5.1.枠受け Frame holder(CLFB)
GP-551E PARTS LIST ver03
5-2
5.1.枠受け(CLFB)
5.1.Frame holder(CLFB)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1CLFB0010 1 PLATE, REFERENCE ﾌﾟﾚｰﾄ 基準
6CLFB0060 1 PLATE, CYLINDER ﾌﾟﾚｰﾄ ｼﾘﾝﾀﾞ
7CLFB0071 4 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ
9CLFB0100 1 BKT BKT
10CLFB0111 1 BKT BKT
17CLFB0261 2 ROD, PUSH ﾛｯﾄﾞ ﾌﾟｯｼｭ
18CLFB0271 1 PLATE ﾌﾟﾚｰﾄ
19CLFB0280 1 PLATE ﾌﾟﾚｰﾄ
21CLFB0300 1 BKT BKT
22CLFB0332 1 BKT BKT
23CLFB0340 2 WHIRL STOP 回止め
24CLFB0400 1 CYLINDER ｼﾘﾝﾀﾞ
25CLFB0410 1 ROD, PUSH ﾛｯﾄﾞ ﾌﾟｯｼｭ
26CLFB0420 2 ROD, PUSH ﾛｯﾄﾞ ﾌﾟｯｼｭ
27CLFB0620 4 ARM, CLAMP ｱｰﾑ ｸﾗﾝﾌﾟ
30BSFA1831 4 PLATE ﾌﾟﾚｰﾄ
31BSFB2012 3 BALL SCREW ﾎﾞｰﾙﾈｼﾞ
32BSFB2081 1 PLATE ﾌﾟﾚｰﾄ
33BSFB2091 3 PULLEY, MOTOR ﾌﾟｰﾘ ﾓｰﾀ
34BSFB2100 3 PULLEY ﾌﾟｰﾘ
35BSFB2131 3 PLATE, SENSOR ﾌﾟﾚｰﾄ ｾﾝｻ
36BSFB2140 3 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ
37BSFB2150 3 COLLAR, BEARING ｶﾗｰ ﾍﾞｱﾘﾝｸﾞ
38BSFB2160 3 KEY ｷｰ
39BSFB4090 1 BODY 本体
40BSFB4101 1 ROD, PUSH ﾛｯﾄﾞ ﾌﾟｯｼｭ
42BSFB4160 3 COLLAR ｶﾗｰ
43BSFB4270 1 WHIRL STOP 回止め
44BSFB4320 1 BKT BKT
45BSFS1510 1 BKT BKT
46TFB3020 4 RETAINER 押え
47TFB3200 3 KEY ｷｰ
48TFB3260 12 COLLAR ｶﾗｰ
49TFB3270 3 RETAINER 押え
50H4130F 6 BEARING ﾍﾞｱﾘﾝｸﾞ 6244ZZ
51R5016A 6 ROLLER, NEEDLE ﾛｰﾗ ﾆｰﾄﾞﾙ ﾟ4X13.8L
52. 2 BEARING, INNER RING ﾍﾞｱﾘﾝｸﾞ 内輪 IR6X9X16
53N1025F 3
NUT, LOCK
ﾅｯﾄ ﾛｯｸ ZM10
54H4206Z 3 BEARING ﾍﾞｱﾘﾝｸﾞ 7000ATDBC7P5
55H3076M 3 BUSHING ﾌﾞｯｼｭ ETR-K-08
56H4476B 3
BELT
ﾍﾞﾙﾄ 228-2GT-6
57S21261 2 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ MGPM12-75
58S21269 2 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ MKB16-10R-F9NL
59S21268 2 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ MKB16-10L-F9NL
5.1.枠受け Frame holder(CLFB)
GP-551E PARTS LIST ver03
5-3
5.1.枠受け(CLFB)
5.1.Frame holder(CLFB)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
61H5059T 4 BALL ﾎﾞｰﾙ PC-3S
62S4027G 1 SENSOR ｾﾝｻ E3S-CL1
63S4027F 3 SW, PROXIMITY
SW 近接          
E2E-X1C1
64Y3049Z 13 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQL04-M5
65K5340N 10 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2001F-04
66K5337H 3 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS1201F-M5-04
67Y3034F 8 UNION ﾕﾆｵﾝ KJU04-00
68H5056H 4 HOLDER ﾎﾙﾀﾞ TM-04
73M5076H 3 MOTOR, DC SERVO ﾓｰﾀ DCｻｰﾎﾞ RB2566CT204
74W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
75W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
76W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
78W1042A WASHER, FLAT
ﾜｯｼｬ 平         
4W-3
79W1043A WASHER, FLAT
ﾜｯｼｬ 平         
4W-4
80W1044A WASHER, FLAT
ﾜｯｼｬ 平         
4W-5
81W1010A WASHER, CONICAL
ﾜｯｼｬ 皿         
M-3-L
82W1011A WASHER, CONICAL
ﾜｯｼｬ 皿         
M-4-L
83W1012A WASHER, CONICAL
ﾜｯｼｬ 皿         
M-5-L
84W1013A WASHER, CONICAL
ﾜｯｼｬ 皿         
M-6-H
86K5257E SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ  M4X10L
87K5357M SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿       
M3X6L
88H5266A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M2X6L
89H5274A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X6L
90H5275A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X8L
91H5276A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X10L
92H5287A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X8L
93H5288A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X10L
95H5290A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X15L
97H5294A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X30L
99H5299A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X12L
100H5300A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X15L
101H5301A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X18L
102H5302A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X20L
104H5305A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X30L
106H5326A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X25L
