GP-551E-03 - 第32页

6 . 枠受けアダプタ( 4 0 0 0 対応) F r a m e h o l d e r a d a p t e r ( F o r 4 0 0 0 f r a m e ) ( C L F B ) GP-551E P ARTS LIST ver03 6 - 1 6 . 枠受け( 4 0 0 0 対応) アダプタ( C L F B ) 6 . F r a m e h o l d e r ( F o r 4 0 0 0 f r a m …

5.2.枠受け Frame holder(CLFB)

GP-551E PARTS LIST ver03

5-6

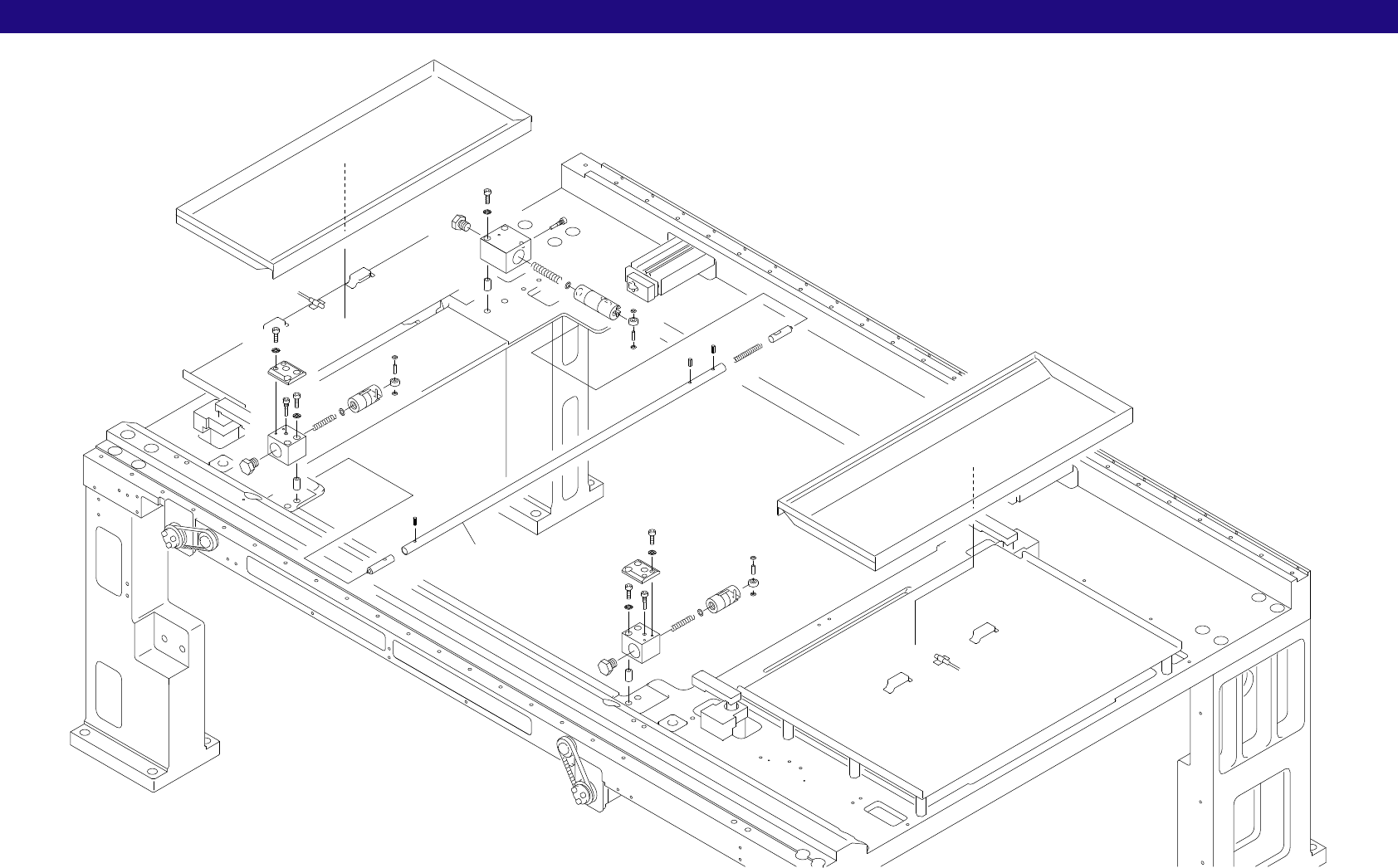

5.2.枠受け(CLFB)

5.2.Frame holder(CLFB)

番号図番 & ｺｰﾄﾞ番号個数品名規格備考

No. Drg.No. & Code No. QTY Description Rating Remarks

111CLFB0601 1 CATCH PAN 受け皿 TYPE5000

112S3090D 2 SENSOR ｾﾝｻ E2E-C1C1

113K1045D 2 BKT, SENSOR BKT ｾﾝｻ Y92E-F5R4

114K5360Z SCREW, HEX SOCKET COUNTERSUNK

小ﾈｼﾞ六角穴皿

M5X6L

115N1076A NUT, HEX

ﾅｯﾄ六角

M3P=0.5

116K5255A SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M3X4L

117CLFB0630 1 CATCH PAN 受け皿 TYPE5000

・

6.枠受けアダプタ(4000対応) Frame holder adapter(For 4000 frame)(CLFB)

GP-551E PARTS LIST ver03

6-1

6.枠受け(4000対応)アダプタ(CLFB)

6.Frame holder(For 4000 frame) adapter(CLFB)

x6.5

6-2

6.枠受け(4000対応)アダプタ(CLFB)

6.Frame holder(For 4000 frame) adapter(CLFB)

6.枠受けアダプタ(4000対応) Frame holder adapter(For 4000 frame)(CLFB)

GP-551E PARTS LIST ver03

番号図番 & ｺｰﾄﾞ番号個数品名規格備考

No. Drg.No. & Code No. QTY Description Rating Remarks

1CLFB0170 1 PIPE ﾊﾟｲﾌﾟ

2CLFB0181 1 PIN ﾋﾟﾝ

3CLFB0191 1 PIN ﾋﾟﾝ

4CLFB0200 3 PIN, SPRING ﾋﾟﾝｽﾌﾟﾘﾝｸﾞ

5CLFB0220 1 SPRING ｽﾌﾟﾘﾝｸﾞ

6CLFB0350 2 ROD, PUSH ﾛｯﾄﾞﾌﾟｯｼｭ

7CLFB0362 1 BODY 本体

8CLFB0371 2 BOLT ﾎﾞﾙﾄ

9CLFB0380 1 ROD, PUSH ﾛｯﾄﾞﾌﾟｯｼｭ

10CLFB0393 1 BODY 本体

11CLFB0442 1 BODY 本体

12CLFB0490 1 HOLDER 受け

13CLFB0500 1 HOLDER 受け

14CLFB0510 2 SPRING ｽﾌﾟﾘﾝｸﾞ

15CLFB0610 2 CATCH PAN 受け皿

16FSFB2510 1 BOLT ﾎﾞﾙﾄ

17FSFB4070 3 BOLT ﾎﾞﾙﾄ

18TFB3260 6 COLLAR ｶﾗｰ

19H4130F 3 BEARING ﾍﾞｱﾘﾝｸﾞ 624ZZ

20R5016A 3 ROLLER, NEEDLE ﾛｰﾗﾆｰﾄﾞﾙﾟ4X13.8L

21. 6 BEARING, INNER RING ﾍﾞｱﾘﾝｸﾞ内輪 IR6X9X16

22S30235 1

SPRING, COIL

ｽﾌﾟﾘﾝｸﾞｺｲﾙ WR10-50

23W1010A

WASHER, CONICAL

ﾜｯｼｬ皿

M-3-L

24W1012A

WASHER, CONICAL

ﾜｯｼｬ皿

M-5-L

25H5275A

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴

M3X8L

26H5305A

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴

M5X30L

27W10045 3 WASHER ﾜｯｼｬ MSRB6.5-0.5 ･
