14.2.半田供給装置 Automatic solder-paste dispenser(CLRD)
GP-551E PARTS LIST ver03
14-4
14.2.半田供給装置(CLRD)
14.2.Automatic solder-paste dispenser(CLRD)
x8
33
78
48
66
49
81
50
61
56
56
56
57
57
6
62
78
62
62
77
62
78
14.2.半田供給装置 Automatic solder-paste dispenser(CLRD)
GP-551E PARTS LIST ver03
14-5
14.2.半田供給装置(CLRD)
14.2.Automatic solder-paste dispenser(CLRD)
番号 図番 & ｺｰﾄﾞ番号 個数 規格 備考
No. Drg.No. & Code No. QTY Rating Remarks
6CLRD0150 1 BKT BKT
33BSFB4410 1 BKT BKT
47H3035H 1 HOOK ﾌｯｸ TL-58
48H1028B 1
VALVE, PRESSURE REDUCING
ﾊﾞﾙﾌﾞ 減圧 AR1000-M5GB-N
49A4002T 1
EJECTOR, VACUUM
ｴｼﾞｪｸﾀ ﾊﾞｷｭｰﾑ VBL10-66P
50H11212 1
VALVE, SOL
ﾊﾞﾙﾌﾞ SOL VJ314R-5G-M5
56Y3049H 4
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KJL06-M5
57Y3049E 2
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KJL04-M5
61W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
62W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
66W1043A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-4
77H5278A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X15L
78H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X8L
81H5291A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X18L
品名
Description
15.1.クリーナ上 Upper cleaner(CLFC)
GP-551E PARTS LIST ver03
15-1

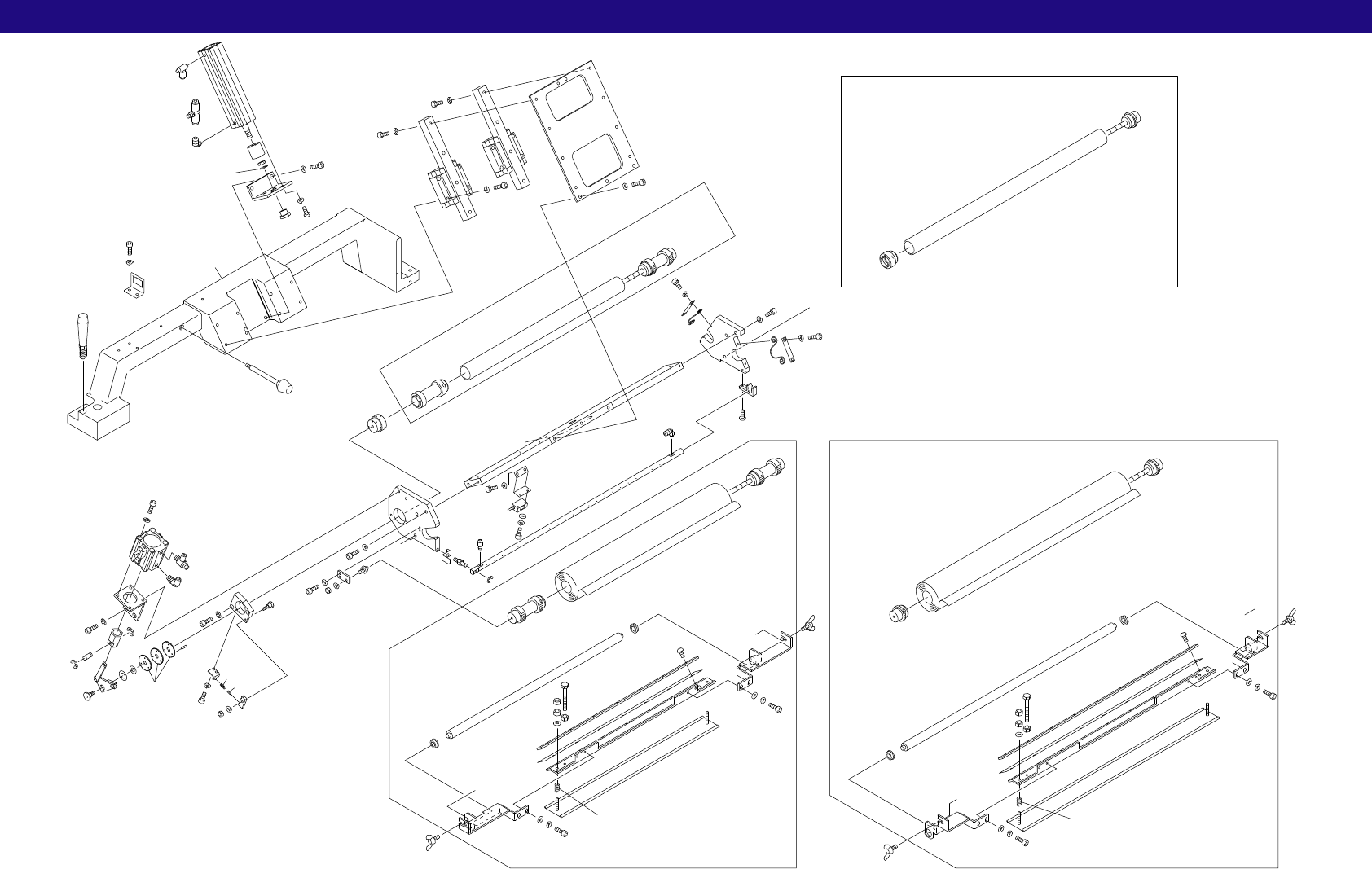

15.1.クリーナ上(CLFC)
15.1.Upper cleaner(CLFC)
x8.5
TYPE4000
TYPE4000
TYPE5000
TYPE5000
73
136
50
92
49
145
134
145
104
104
50
146
104
144
133
132
135
138
147
50
92
49
137
73
140
141
139
73
161
150
161
104
104
50
162
104
160
148
151
152
149
154
158
156
159
73
50
92
49
153
50
92
49
163
A
B
B
A
143
142
139
155
157
159
3
4
100
115
4
100
115
93
116
93
112
7
68
79
78
129
51
94
120
6
8
94
106
111
92
25
42
41
2
118
100
86
87
88
32
112
100
85
33
28
34
31
54
53
84
44
91
108
103
91
46
55
82
43
52
99
111
104
92
26
27
109
91
93
115
13
A
130
9
83
67
15
71
5
105
16
30
29
91
109
B
14
93
115
109
91
29
30
131
164
165
92
166
91
167
168
