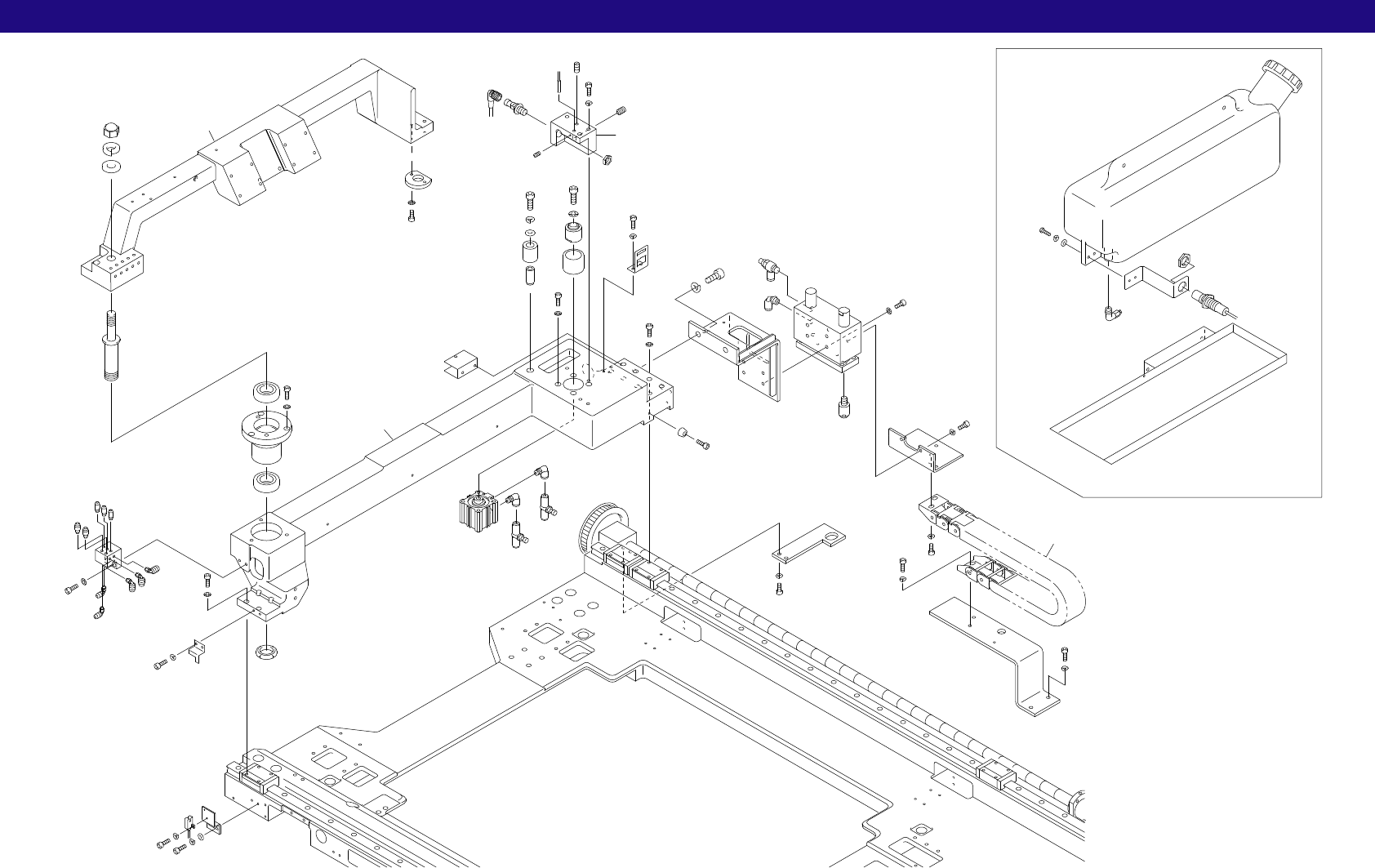

15.2.クリーナ上 Upper cleaner(CLFC)
GP-551E PARTS LIST ver03
15-5
15.2.クリーナ上(CLFC)
15.2.Upper cleaner(CLFC)
x8.5
58
80
22
59
91
109
109
91
97
110
92
21
100
114
61
1
78
74
113
100
77
76
12
60
36
60
120
101
65
81
56
81
56
35
2
128
127
62
40
99
111
69
63
64
89
123
94
90
23
107
125
95
98
37
38
124
102
39
66
111
92
24
126
96
117
100
122
170
72
111
10
18
17
101
123
93
113
19
94
119
119
94
57
11
94
120
120
94
20
169
92
50
164
165
166
167
168
101
15.2.クリーナ上 Upper cleaner(CLFC)
GP-551E PARTS LIST ver03
15-6
15.2.クリーナ上(CLFC)
15.2.Upper cleaner(CLFC)
番号 図番 & ｺｰﾄﾞ番号 個数 規格 備考
No. Drg.No. & Code No. QTY Rating Remarks
1CLFC0700 1 BKT, SLIDE BKT ｽﾗｲﾄﾞ
2CLFC0023 1 BKT BKT
10CLFC0231 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ
11CLFC0241 1 BKT BKT
12CLFC0320 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
17CLFC0430 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ
18CLFC0440 1 PIN, LOCATING ﾋﾟﾝ 位置決め
19CLFC0451 1 BKT BKT
20CLFC0460 1 BKT BKT
21CLFC0470 1 DOG ﾄﾞｯｸﾞ
22CLFC0480 1 BKT BKT
23CLFC0492 1 HOLDER 受け
24CLFC0500 1 BKT BKT
35BSFS0310 1 BOLT ﾎﾞﾙﾄ
36CLFS0102 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ
37CLFS0310 1 STOPPER ｽﾄｯﾊﾟ
38CLFS0330 1 COLLAR ｶﾗｰ
39CLFS0340 1 PIN ﾋﾟﾝ
40CLFS0350 1 PLATE ﾌﾟﾚｰﾄ
50W1043A
WASHER, FLAT
ﾜｯｼｬ 平
4W-4
56Y3050A 2
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KQL06-01S
57K4154K 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ 15.3-038-22-13B
58Y3049T 1
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KJL06-01S
59S4046H 1
SENSOR, PHOTO
ｾﾝｻ ﾌｫﾄ EE-SPX304-W2A
60H4138T 2
BEARING
ﾍﾞｱﾘﾝｸﾞ HR32005XJ
61N1020T 1
NUT, FINE U
ﾅｯﾄ ﾌｧｲﾝU FU05SC
62N1108T 1
NUT, DOMED CAP
ﾅｯﾄ 六角袋
M16ﾕﾆｸﾛﾒｯｷﾂｷ
63S30963 1
SENSOR, PROXIMITY
ｾﾝｻ 近接 E2E-X5E1-M1
64S3090D 1
SENSOR, PROXIMITY
ｾﾝｻ 近接 E2E-C1C1
65S21213 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CQ2A40-15D
66H30635 1 BUSHING ﾌﾞｯｼｭ SPB-303830
69K5028R 1 CONNECTOR ｺﾈｸﾀ XS2F-D422-DCO-A
72A1004C 1 LEG, RUBBER 脚 ｺﾞﾑ K-6
74Y3049E 2
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KJL04-M5
76Y3061D 3
UNION, HALF
ﾕﾆｵﾝ ﾊｰﾌ KJS04-M5
77Y3061T 2
UNION, HALF
ﾕﾆｵﾝ ﾊｰﾌ KJS06-M5
78Y3049H 4
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KJL06-M5
80K5342A 1
CONTROLLER, SPEED
ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2201F-01-06S
81K5340T 2
CONTROLLER, SPEED
ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2001F-06
89H5137C 1 BOLT, STOPPER ﾎﾞﾙﾄ ｽﾄｯﾊﾟ SGPB6-12
90H3154K 1 PLUNGER ﾌﾟﾗﾝｼﾞｬ BSJ10
91W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
92W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
93W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
品名
Description
15.2.クリーナ上 Upper cleaner(CLFC)
GP-551E PARTS LIST ver03
15-7
15.2.クリーナ上(CLFC)
15.2.Upper cleaner(CLFC)
番号 図番 & ｺｰﾄﾞ番号 個数 規格 備考
No. Drg.No. & Code No. QTY Rating Remarks
94W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
95W1025A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M
96W1026A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 10M/M
97W1042A
WASHER, FLAT
ﾜｯｼｬ 平
4W-3
98W1046A
WASHER, FLAT
ﾜｯｼｬ 平
4W-8
99W1011A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-4-L
100W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-5-L
101W1013A WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
102W1014A WASHER, CONICAL ﾜｯｼｬ 皿 M-8-H
107N4021A
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め
M3X6L
109H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X8L
110H5286A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X6L
111H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X8L
113H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X12L
114H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X15L
117H5304A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X25L
119H5320A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X10L
120H5322A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X15L
121H5324A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X20L
122H5329A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X35L
123H5332T
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X55L
124H5341A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M8X20L
125H5345A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M8X40L
126H5358A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M10X18L
127W1029A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 16M/M
128W1049A
WASHER, FLAT
ﾜｯｼｬ 平
4W-16
164CLFC1772 1 CATCH PAN 受け皿
165BSFC4100 1 TANK ﾀﾝｸ
166A40305 1 ELBOW ｴﾙﾎﾞ PL-1/8-PT1/8-BS
167S3097T 1
SW, PROXIMITY
SW 近接
E2K-X8ME1
168CLFC1800 1 BKT BKT
169. SCREW, C/R PAN 小ﾈｼﾞ +穴鍋 M4X15L
170CLFC0680 1 HOLDER ﾎﾙﾀﾞ ・
品名
Description
