16.1.クリーナ下 Lower cleaner(CLFC)
GP-551E PARTS LIST ver03
16-3
16.1.クリーナ下(CLFC)
16.1.Lower cleaner(CLFC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
113S3096W 1 SW, PROXIMATE SW 近接 E2E-X2E1-M1
114K5028N 1 CONNECTOR ｺﾈｸﾀ XS2F-D422-GCO-A
119K5337M 1 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS1201F-M5-06
121W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
122W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
123W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
124W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
125W1042A WASHER, FLAT
ﾜｯｼｬ 平         
4W-3
126W1043A WASHER, FLAT
ﾜｯｼｬ 平         
4W-4
128W1045A WASHER, FLAT
ﾜｯｼｬ 平         
4W-6
129N1078A NUT, HEX
ﾅｯﾄ 六角         
M3-L
130N1081A NUT, HEX
ﾅｯﾄ 六角         
M4-L
131N1084A NUT, HEX
ﾅｯﾄ 六角         
M5-L
132W1014A WASHER, CONICAL ﾜｯｼｬ 皿 M8-H
133N1076A NUT, HEX
ﾅｯﾄ 六角         
M3 P=0.5
135N1082A NUT, HEX
ﾅｯﾄ 六角         
M3 P=0.8
136N1085A NUT, HEX
ﾅｯﾄ 六角         
M6P=1.0
139K5257A SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ  M4X8L
140K5261A SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ  M5X10L
141K5262H SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ  M6X20L
142K5360Z SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿       
M5X6L
143N4021A SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め       
M3X6L
147H5273A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X5L
148H5274A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X6L
149H5275A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X8L
151H5277A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X12L
152H5263A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M3X18L
153H5286A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X6L
154H5287A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X8L
155H5288A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X10L
157H5292A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X20L
158H5293A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M4X25L
159H5298A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X10L
160H5299A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X12L
161H5300A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X15L
162H5302A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X20L
163H5309A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X50L
165H5320A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X10L
166H5341A BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M8X20L
168CLFC1880 1 RETAINER, WIRING 押え 配線 ･

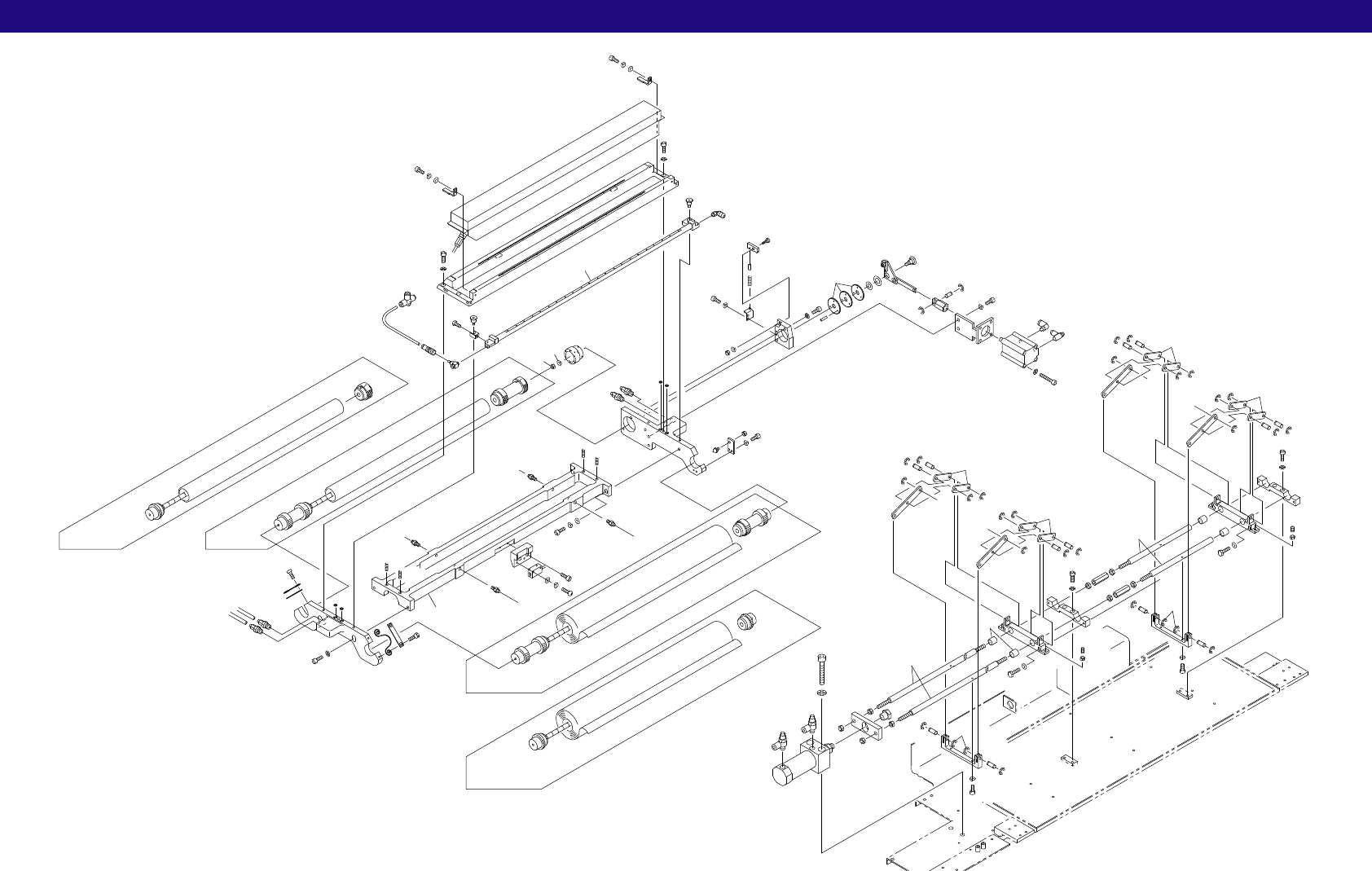

16.2.クリーナ下 Lower cleaner(CLFC)
GP-551E PARTS LIST ver03
16-4
16.2.クリーナ下(CLFC)
16.2.Lower cleaner(CLFC)
x8.5
58
63
78
80
83
84
71
130
10
12
13
122
14
134
18
131
19
130
20
21
21
22
137
48
36
125
36
125
51
38
149
38
149
47
47
35
28
28
29
123
30
31
32
34
67
123
68
79
59
130
121
121
62
75
75
74
133
81
164
82
85
88
88
93
95
95
97
97
116
117
52
52
52
127
24
106
106
106
106
52
120
121
149
121
149
155
155
148
60
155
131
160
135
145
123
161
159
55
56
A
B
C
D
TYPE5000
TYPE4000
TYPE4000
TYPE4000
168
169
170
171
121
148
130
16
17
126
25
26
136
136
136
136
27
42
44
121
43
43
53
54
54
54
54
94
132
95
95
95
95
95
95
95
96
96
115
118
118
130
16
17
126
42
44
121
43
43
54
54
54
54
95
95
95
95
95
95
95
167
146
150
156
96
146
156
95
44
95
150
95
44
95
134
144
134
144
90
A
B
C
D
16.2.クリーナ下 Lower cleaner(CLFC)
GP-551E PARTS LIST ver03
16-5
16.2.クリーナ下(CLFC)
16.2.Lower cleaner(CLFC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
10CLFC1183 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
12CLFC1230 1
CLEANING MACHINE, ULTRASONIC
洗浄機 超音波        
13CLFC1250 1 BKT BKT
14CLFC1261 1 PIN ﾋﾟﾝ
16CLFC1321 2 BLOCK ﾌﾞﾛｯｸ
17CLFC1330 2 BKT BKT
18CLFC1340 1 PLATE, SIDE ﾌﾟﾚｰﾄ ｻｲﾄﾞ
19CLFC1351 1 PLATE, SIDE ﾌﾟﾚｰﾄ ｻｲﾄﾞ
20CLFC1361 1 NOZZLE ﾉｽﾞﾙ
21CLFC1371 2 PIN ﾋﾟﾝ
22CLFC1381 1 CLAMPER ｸﾗﾝﾊﾟ
24CLFC1401 1 FRAME ﾌﾚｰﾑ
25CLFC1411 1 BKT BKT
26CLFC1451 2 BAR, GUIDE ﾊﾞｰ ｶﾞｲﾄﾞ
27CLFC1461 2 BAR, GUIDE ﾊﾞｰ ｶﾞｲﾄﾞ
28CLFC1501 2 SCREW ﾈｼﾞ TYPE4000
29CLFC1511 1 NUT ﾅｯﾄ TYPE4000
30CLFC1520 1 PAPER ﾍﾟｰﾊﾟ TYPE4000
31CLFC1530 1 PIPE ﾊﾟｲﾌﾟ TYPE4000
32CLFC1542 1 NUT ﾅｯﾄ TYPE4000
34CLFC1570 1 NUT ﾅｯﾄ TYPE5000
35CLFC1851 1 PIN ﾋﾟﾝ
36CLFC1610 2 GUIDE ｶﾞｲﾄﾞ
38CLFC1630 2 PLATE, RETAINING ﾌﾟﾚｰﾄ 押え
42CLFC1671 2 BKT BKT
43CLFC1680 4 LINK ﾘﾝｸ
44CLFC1690 8 LINK ﾘﾝｸ
47CLFC1720 2 SPRING ｽﾌﾟﾘﾝｸﾞ
48CLFC1730 1 SPACER ｽﾍﾟｰｻ
51ACLFC1552 1 LINK ﾘﾝｸ
52BSFC0650 4 PIN, PIVOT ﾋﾟﾝ支点
53BSFC0680 1 JOINT, KNUCKLE ｼﾞｮｲﾝﾄﾅｯｸﾙ
54BSFC0710 12 PIN ﾋﾟﾝ
55BSFC0772 1 PAPER ﾍﾟｰﾊﾟ TYPE5000
56BSFC0781 1 PIPE ﾊﾟｲﾌﾟ TYPE5000
58BSFC3111 1 FLANGE ﾌﾗﾝｼﾞ
59BSFC3320 1 BOSS ﾎﾞｽ
60BSFC3330 1 HOLDER, SPRING 受け ｽﾌﾟﾘﾝｸﾞ
62BSFC3360 1 STOPPER ｽﾄｯﾊﾟ
63BSFC3370 1 PIN ﾋﾟﾝ
67BSFC3420 1 KNUCKLE ﾅｯｸﾙ
68BSFC3430 1 BKT BKT
71BSFC3470 1 PIN ﾋﾟﾝ
74BSFC6770 1 NUT ﾅｯﾄ TYPE5000
