1.1.ダブルスキージ Double squeegee(CLFS)

GP-551E PARTS LIST ver03

1-2

1.1.ダブルスキージ(CLFS)

1.1.Double squeegee(CLFS)

番号図番 & ｺｰﾄﾞ番号個数品名規格備考

No. Drg.No. & Code No. QTY Description Rating Remarks

1CLFS0350 1 PLATE ﾌﾟﾚｰﾄ

2CLFS1015 1 BKT BKT

3CLFS1022 2 HOLDER ﾎﾙﾀﾞ

4CLFS1033 2 HOLDER ﾎﾙﾀﾞ

5CLFS1050 2 LEVER ﾚﾊﾞｰ

6CLFS1060 2 KNUCKLE ﾅｯｸﾙ

7CLFS1070 2 PIN, SNAP ﾋﾟﾝｽﾅｯﾌﾟ

8CLFS1080 1 PIN, SNAP ﾋﾟﾝｽﾅｯﾌﾟ

9CLFS1091 1 PIN, PIVOT ﾋﾟﾝ支点

10CLFS1100 4 PLATE, STOPPER ﾌﾟﾚｰﾄｽﾄｯﾊﾟ

12CLFS1160 1 BKT, VALVE BKT ﾊﾞﾙﾌﾞ

13CLFS1172 1 BKT, WIPING BKT 配線

14CLFS1180 1 BKT, WIPING BKT 配線

15CLFS1190 4SetGUIDE, RAIL ｶﾞｲﾄﾞﾚｰﾙ

16CLFS1200 2 PLATE, HOLDER ﾌﾟﾚｰﾄﾎﾙﾀﾞ

27CLFS2040 1 HANDLE ﾊﾝﾄﾞﾙ

28CLFS2050 1 BKT BKT

33BSFS1201 2 SHAFT ｼｬﾌﾄ

34BSFS1212 2 ROD, JOINT ﾛｯﾄﾞｼﾞｮｲﾝﾄ

35BSFS1520 2 SHAFT ｼｬﾌﾄ

37BSFS3111 2 PIN ﾋﾟﾝ

38BSFS3535 2 CYLINDER, AIR ｼﾘﾝﾀﾞｴｱｰ

39BSFS3542 2 PISTON ﾋﾟｽﾄﾝ

40BSFS5470 4 BOLT, ADJUSTING ﾎﾞﾙﾄｾﾘ

41BSFS5480 4 NUT, LOCK ﾅｯﾄﾛｯｸ

42BSFS6020 4 BOLT, STOPPER ﾎﾞﾙﾄｽﾄｯﾊﾟ

43BSFS7141 2 SPRING ｽﾌﾟﾘﾝｸﾞ

45TFS2160 4 COLLAR ｶﾗｰ

46TFS2170 2 COLLAR ｶﾗｰ

47TFS2640 2 STOPPER ｽﾄｯﾊﾟ

48H1017S 1 HANDLE ﾊﾝﾄﾞﾙ CGL6X100

49S21001 2 CYLINDER, AIR ｼﾘﾝﾀﾞｴｱｰ CDQ2D40-45DM-F792

50H1121K 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL SS3Y3-X1

51H1057T 1 VALVE, ELEC/AIR PROPORTIONALﾊﾞﾙﾌﾞﾃﾞﾝｸｳﾋﾚｲ VY1100-01-BN

52S1031A 6 CIR-CLIP ｻｰｸﾘｯﾌﾟ STW10

53S1022A 4 CIR-CLIP ｻｰｸﾘｯﾌﾟ ST-EW-4

54S4060A 4 SENSOR ｾﾝｻ注１.Note.1

55H4197A 4 BEARING ﾍﾞｱﾘﾝｸﾞ 6802ZZ

56K1112A 2 CAM FOLLOWER ｶﾑﾌｫﾛｱ CF05UU-A

57N1020H 2 NUT, FINE U ﾅｯﾄﾌｧｲﾝU FU02SC

58H31915 2 PLATE, END ﾌﾟﾚｰﾄｴﾝﾄﾞ NOS5T

59N1086A 4 NUT, HEX

ﾅｯﾄ六角

M6P=1.0 3ｼｭ

60A3034A 2 PLUG 埋栓 PT1/8

61K5342A 4 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗｽﾋﾟｰﾄﾞ AS2201F-01-06S

1.1.ダブルスキージ Double squeegee(CLFS)

GP-551E PARTS LIST ver03

1-3

1.1.ダブルスキージ(CLFS)

1.1.Double squeegee(CLFS)

番号図番 & ｺｰﾄﾞ番号個数品名規格備考

No. Drg.No. & Code No. QTY Description Rating Remarks

62K5345A 4

CONTROLLER, SPEED

ｺﾝﾄﾛｰﾗｽﾋﾟｰﾄﾞ AS2211F-01-06S

63S1057A 1

SILENCER

ｻｲﾚﾝｻ AN110-01

64Y3051A 6

UNION, ELBOW

ﾕﾆｵﾝｴﾙﾎﾞ KQL06-01S

65Y3059A 2

UNION, HALF

ﾕﾆｵﾝﾊｰﾌ KQS06-M5

67K5075A 5

CONNECTOR

ｺﾈｸﾀ KQU06-00

68H4313X 2 BEARING, DRY ﾍﾞｱﾘﾝｸﾞﾄﾞﾗｲ 70B1006

74W1022A

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 4M/M

75W1023A

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 5M/M

76W1024A

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 6M/M

77W1025A

WASHER, LOCK

ﾜｯｼｬｽﾌﾟﾘﾝｸﾞ 8M/M

80W1045A

WASHER, FLAT

ﾜｯｼｬ平

4W-6

81W1046A

WASHER, FLAT

ﾜｯｼｬ平

4W-8

82W1011A

WASHER, CONICAL

ﾜｯｼｬ皿

M-4-L

83W1012A

WASHER, CONICAL

ﾜｯｼｬ皿

M-5-L

84N1082A

NUT, HEX

ﾅｯﾄ六角

M5 P=0.8

85N1089A

NUT, HEX

ﾅｯﾄ六角

M8 P=1.25

87K5256L

SCREW, HEX SOCKET BUTTON

小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M3X18L

88K5259A

SCREW, HEX SOCKET BUTTON

小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M4X30L

89N4027A

SCREW, HEX SOCKET SET

ﾈｼﾞ六角穴止め

M4X5L

90.

SCREW, HEX SOCKET SET

ﾈｼﾞ六角穴止め

M5X30L

91H5275A

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴

M3X8L

92H5287A

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴

M4X8L

93H5288A

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴

M4X10L

94H5290A

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴

M4X15L

96H5295A

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴

M4X35L

97H5299A

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴

M5X12L

100H5329A

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴

M6X35L

101.

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴

M8X12L

103H5301A

BOLT, HEX SOCKET

ﾎﾞﾙﾄ六角穴

M5X18L

注1.No.54 S4060A(ｾﾝｻ)は取り付け位置により接続するﾊｰﾈｽが異なります｡

･ｽｷｰｼﾞﾍｯﾄﾞ右側のｾﾝｻはCLEN6692(ﾊｰﾈｽ)に接続します｡

･ｽｷｰｼﾞﾍｯﾄﾞ左側のｾﾝｻはCLEN6712(ﾊｰﾈｽ)に接続します｡

Note.1 : The harness connector to sensor No.54(S4060A)differs depending on

which side of the squeegee it is sttached.

･If the sensor is connected to the right of the squeegee head, used harness CLEN6692.

･If the sensor is connected to the left of the squeegee head, harness CLEN6712.

･

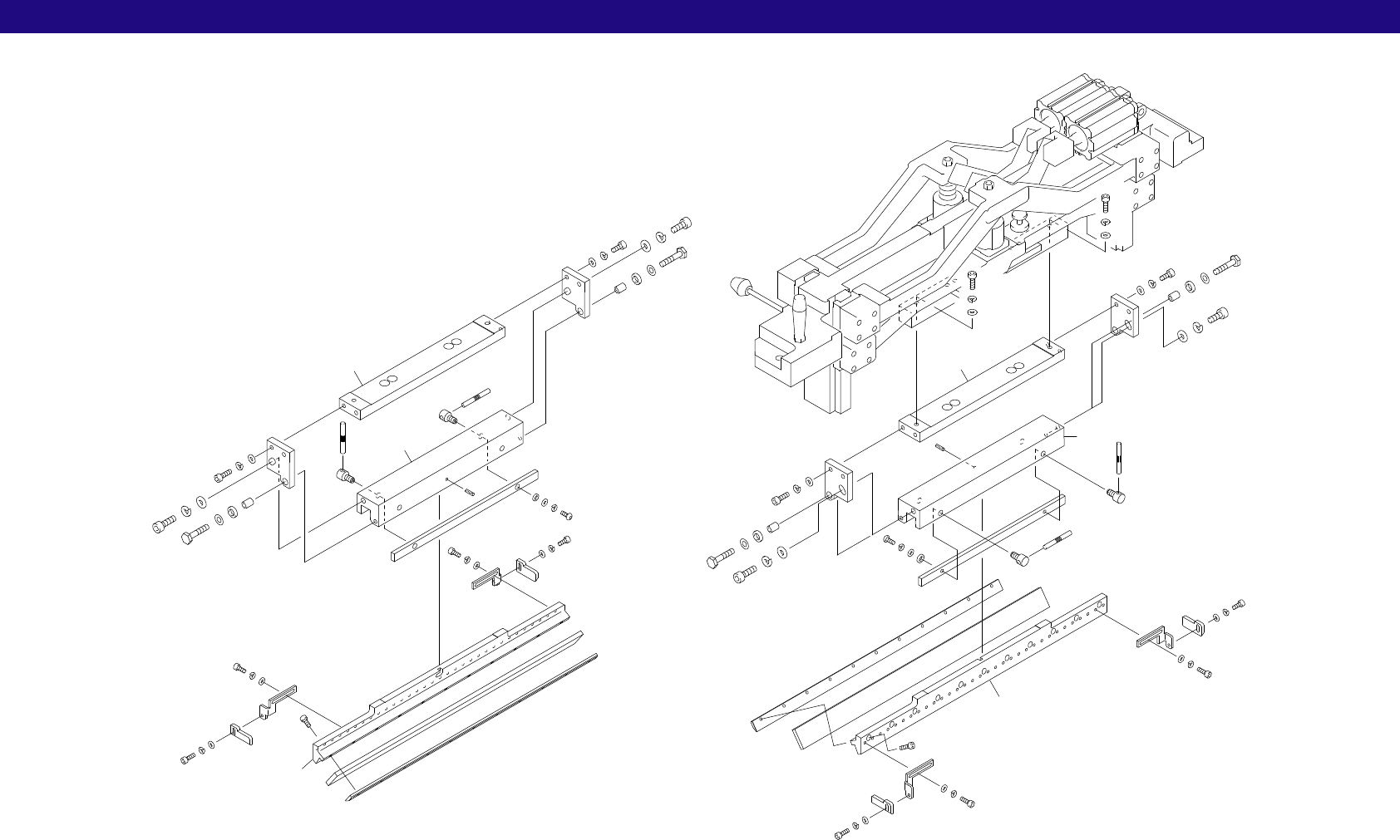

1.2.ダブルスキージ Double squeegee(CLFS)

GP-551E PARTS LIST ver03

1-4

1.2.ダブルスキージ(CLFS)

1.2.Double squeegee(CLFS)

x6.5

11

18

17

76

81

102

19

20

22

95

23

24

104

105

79

21,26

72

78

32

36

29

30

31

69

70

71

93

79

11

99

76

17

18

19

81

102

20

22

95

23

24

105

104

79

21,26

72

86

32

36

29

30

31

69

70

71

79

100

99

81

77

78

73

76

77

102

74

93

74

93

74

93

74

93

74

93

74

93

79

74

93

73

86

99

77

102

99

81

77

80

76

80
