维修调整要领书 9- 2. 调试模式的操作 ·························································································· 9- 2 9-2- 1. Initia lize （初始化） ..........................................................................…

维修调整要领书

3-14. 门传感器布置图 ························································································ 3-15

3-15. 门锁传感器的更换及调整 ············································································ 3-16

3-16. 门打开传感器的更换及调整（标准机型） ························································ 3-17

3-17. 门打开开关的更换及调整（EN 机型） ···························································· 3-18

3-18. TRAY LED PCB 的更换 ·············································································· 3-19

3-19. IS 装置天线的更换及调整（IS：选配） ·························································· 3-20

电动机的更换及调整

··················································································· 4-1

4-1. 电动机布置图 ····························································································· 4-1

4-2. Y 电动机的更换··························································································· 4-2

4-3. Z 电动机的更换 ··························································································· 4-3

皮带的更换及调整

······················································································ 5-1

5-1. 皮带布置图 ································································································ 5-1

5-2. Y 皮带、YJ 皮带的更换及调整 ········································································ 5-2

5-2-1. 中央导轨装置的拆卸和安装要领 ...................................................................................... 5-3

5-2-2. Y 工作台 L 组合件的拆卸和安装要领 ............................................................................... 5-4

5-2-3. Y 皮带与 YJ 皮带的位置调整 ........................................................................................... 5-9

5-3. Z 皮带的更换及调整 ···················································································· 5-11

气动零部件的更换及调整

············································································· 6-1

6-1. Y 装置气动零部件的布置 ··············································································· 6-1

6-2. 卡盘开闭气缸的更换及调整 ··········································································· 6-2

6-3. 卡盘开闭阀的更换 ······················································································· 6-4

6-4. Y 夹持器减速用电磁阀的更换 ········································································· 6-5

6-5. Y 中央电磁阀的更换 ····················································································· 6-6

6-6. Z 装置气动零部件布置图 ··············································································· 6-7

6-7. 闸门气缸的更换及调整 ················································································· 6-8

6-8. 闸门电磁阀的更换 ····················································································· 6-10

6-9. 减速电路的更换 ························································································· 6-11

滚珠螺杆的更换及调整

················································································ 7-1

7-1. 滚珠螺杆布置图 ·························································································· 7-1

7-2. Z 滚珠螺杆的更换及调整 ··············································································· 7-2

气动系统配管图

·························································································· 8-1

8-1. 气动零部件清单 ·························································································· 8-1

8-2. 气动系统配管图（标准） ·············································································· 8-2

8-3. 气动系统配管图（选配：低速 2 模式） ····························································· 8-3

调试模式

··································································································· 9-1

9-1. 调试模式的启动和结束 ················································································· 9-1

维修调整要领书

9-2. 调试模式的操作 ·························································································· 9-2

9-2-1. Initialize（初始化） .......................................................................................................... 9-2

9-2-2. Sensor Check（传感器校验） ......................................................................................... 9-3

9-2-3. Z Jog Right（Z 装置 JOG 右） ...................................................................................... 9-4

9-2-4. Z Jog Left（Z 装置 JOG 左）.......................................................................................... 9-5

9-2-5. Shutter（闸门） ............................................................................................................... 9-6

9-2-6. Pull Out Tray（托盘拉出） .............................................................................................. 9-7

9-2-7. Y Holder（Y 夹持器） ...................................................................................................... 9-9

9-2-8. Z Unit（Z 装置） ............................................................................................................ 9-10

9-2-9. Y Unit Adjustment（Y 装置调整） ................................................................................. 9-11

9-2-10. Center Guide（切换中央导轨） .................................................................................... 9-12

维修调整要领书

1-1

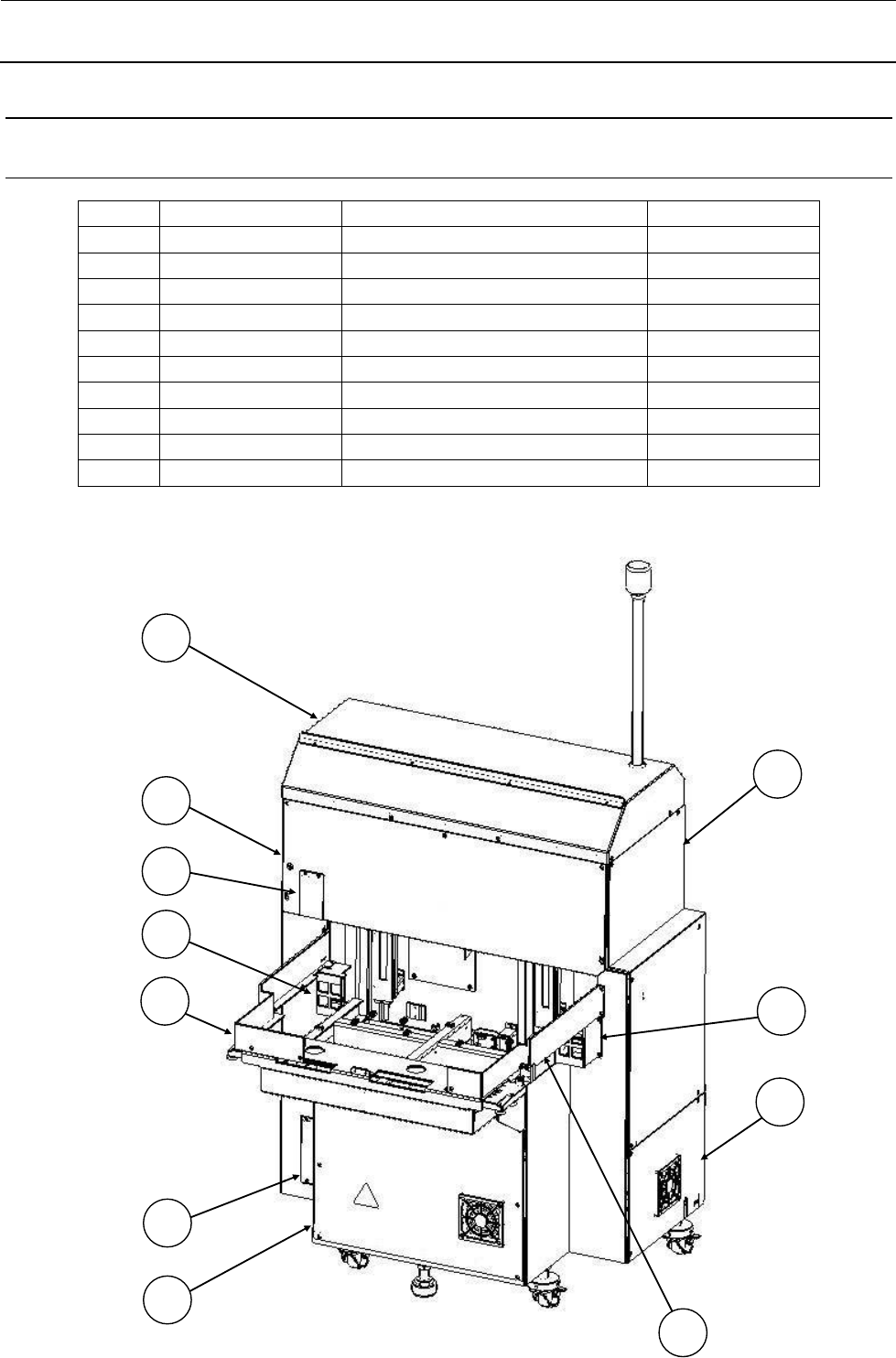

护罩的名称及拆卸方法

1-1.

正面侧

No.

货号

品名

螺丝个数

1 40120806 UPPER COVER 8

2 40117301 FRONT COVER U 6

3 40117302 FRONT COVER B 6

4 40117319 VALVE COVER 2

5 40119585 SIDE COVER R U 9

6 40119586 SIDE COVER R B 6

7 40117318 NOISE_FILTER COVER 4

8 40117659 Y SIDE COV L 6

9 40117660 Y SIDE COV R 5

10 40117662 Y BOTTOM COV 3
