KGD_YV180Xg_PL - 第10页
2 4 Y -axis Moving-axis KGD-0801 3 8 22 6 6 20 27 9 4 2 31 28 1 1 29 12 19 23 18 10 2 28 24 24 5 1 1 5 5 5 24 4 22 13 14 21 15 24 13 14 15 17 21 30 30 25 17 16 26 16 24 24 24 23 23 25 29 27 27 No. Part No. Part Name Q&ap…
1
4

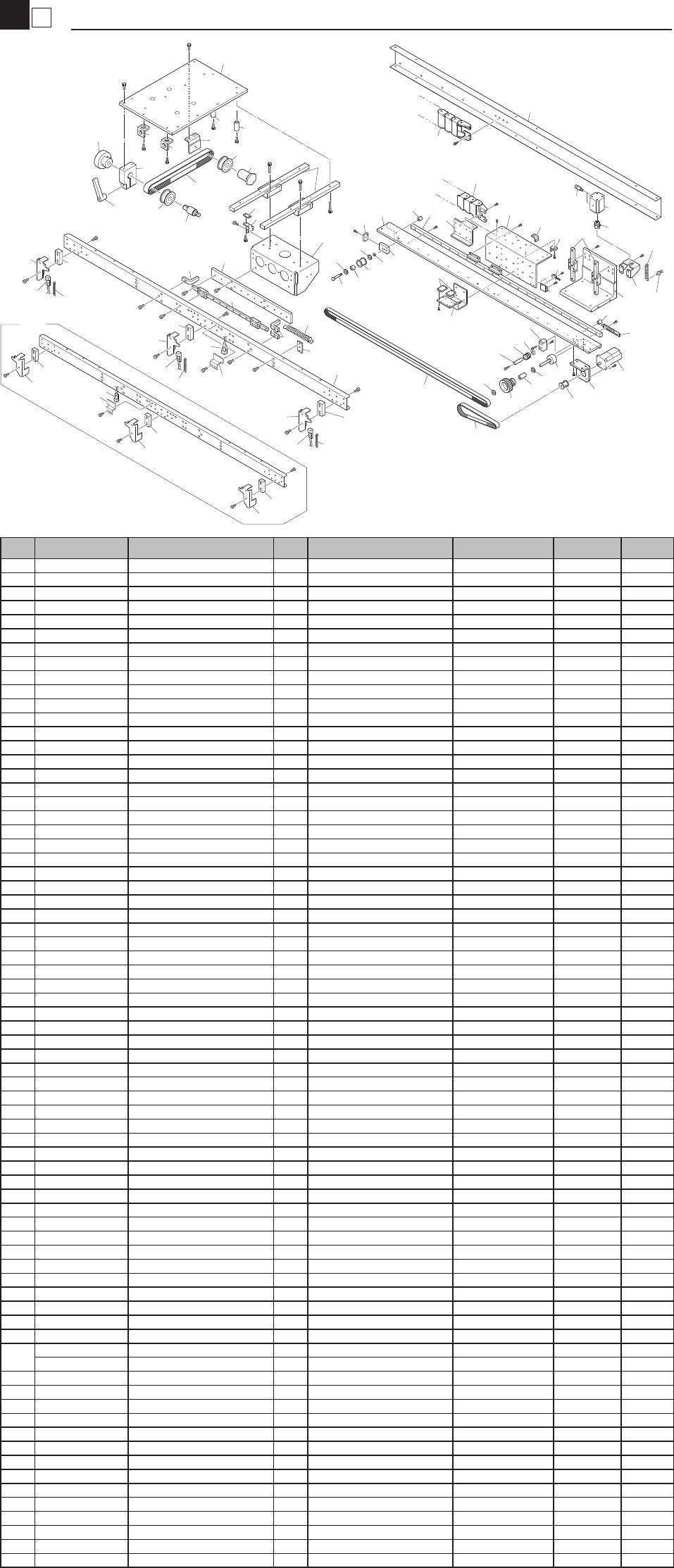

X-axis
Moving-axis
KGD-0801
24
6
8
8
8
25
4
52
54
26
39
58
38
43
46
45
1
23
57
59
44
18
53
13
45
46
45
41
40
46
22
51
51
23
43
47
37
35
33
38
47
47
47
47
36
49
37
3
34
7
2
21
57
11
32
31
30
13
19
17
16
14
15
27
53
50
55
48
50
42
4
26
20
31
10
12
28
29
9
56
60
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGD-M2201-00X FRAME 1 X-AXIS 2
2 KGD-M2203-00X SCREW BALL X-AXIS 1
2-1 KGD-M2203-01X SCREW,BALL 1 (2003/10/6) M300016 OK
3 KW8-M2204-00X X-AXIS GUIDE SET 2
4 KGD-M2205-S0X HOUSING SET,X 2
5
6 KGD-M2206-00X HOUSING 2 BRG 2
7 KW8-M2207-00X PLATE PRESSURE 2
8 KGD-M2209-00X COLLAR 6
9 KW8-M2213-00X HOLDER,HEAD 2
10 KW8-M2218-00X BRACKET,GUIDE 2
11 KW8-M2218-A0X PLATE B 2
12 KW8-M2218-B0X BAR 1 4
13 KW8-M2267-00X CABLE,DUCT 2
13-1 KW8-M2267-A0X CABLE,DUCT 2 (2004/3/31) M430131 OK
14 KW8-M220A-00X TAPE, X DUCT 2
15 KW8-M220B-00X TAPE 2, X DUCT 2
16 KW8-M220C-00X TAPE 3,X DUCT 2
17 KV7-M2266-00X PLATE,NUT 4
18 KV7-M2268-00X BRACKET 1,TAPE 2
19 KV7-M2269-00X BRACKET 2,TAPE 2
20 KW8-M2220-00X COUPLING,X-AXIS 2 LCD
21 KW8-M2223-00X BRACKET SENSOR 2
22 KW8-M2224-00X DOG ORIGIN 2
23 KW8-M2225-00X DOG SECOND 4
24 KGD-M2227-00X BRG. 2
25 KGD-M2226-00X SUPPORT BRG. 2
26 KG2-M2228-00X NUT LOCK 4
27 90K5A-9C10M0 AC SERVO MOTOR 2
28 KM0-M655A-00X SENSOR 1-1,ASSY 2
29 KM0-M655E-00X SENSOR 1-2,ASSY 2
30 KW8-M2241-00X ACCUMULATAOR 2
31 KW8-M2243-00X BUSH,ACCUMULATAOR 4
32 KW8-M2244-00X BRACKET,ACCUMULATAOR 2
33 KW8-M2236-00X PLATE 1 DAMPER 4
34 KW8-M2236-10X PLATE 1,DAMPER 4
35 KW8-M2237-00X PLATE 2 DAMPER 4
36 KW8-M2237-10X PLATE 2,DAMPER 4
37 KV7-M2651-00X DAMPER,STOPPER 8
38 KV7-M2653-00X PIN,PARALLEL 4
38-1 90990-18J012 PIN,PARALLEL 4 (2007/11/30) MD00140 OK
39 KW8-M2245-00X SPRING 8
40 KW8-M2229-00X PLATE UNDER 2
41 KW8-M2233-00X TAPE, X-AXIS 2
42 KW8-M2297-A0X FAN MOTOR X ASSY 2
43 KGD-M2202-01X FRAME 2,X AXIS 2
44 KW8-M2215-00X BRACKET,HARNESS 2
45 KM5-M2221-00X PLATE 1,JOINT 3
46 KG2-M2222-00X PLATE 2 JOINT 6
47 KV7-M2661-00X NYLOCK BOLT 16 M12X50
47-1 KV7-M2661-00X NYLOCK BOLT 20 M12X50 (2004/2/16) M420083 OK
47-2 90990-01J028 BOLT,HEX.SOCKET HEAD 20 (2007/10/29) MD00030 OK
48 KM8-M26D1-00X SEAL, HIGH TEMP. 2
49 91317-05012 BOLT HEX.SOCKET HEAD 16
50 91317-05014 BOLT HEX.SOCKET HEAD 112
51 98907-03005 SCREW BINDING HEAD 4
51-2 98902-03006 SCREW BINDING HEAD 4 (2007/7/9) MD60168 OK
52 91317-05025 BOLT HEX.SOCKET HEAD 16
53 91317-06018 BOLT HEX.SOCKET HEAD 16
54 91317-05035 BOLT HEX.SOCKET HEAD 16
55 91317-05020 BOLT HEX.SOCKET HEAD 16
56 99480-06014 PIN,PARALLEL 8
57 91317-04010 BOLT HEX.SOCKET HEAD 76
58 91317-06035 BOLT HEX.SOCKET HEAD 32
59 KGD-M2252-00X STOPPER 2 (2003/6/26) M360118
60
KGD-M222A-00X SUPPORT UNIT 2 1
2
4
Y-axis
Moving-axis
KGD-0801
3
8
22
6
6
20
27
9
4
2
31
28
11
29
12
19
23
18
10
2
28
24
24
5
1
1
5
5
5
24
4
22
13
14
21
15
24
13
14
15
17
21
30
30
25
17
16
26
16
24
24
24
23
23
25
29
27
27
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KW8-M2677-S0X Y AXIS GUIDE SET 2
2 KGD-M2601-00X FRAME 1,Y AXIS 4
3 KW8-M2603-00X SCREW BALL Y-AXIS 2
4 KG2-M2604-00X SUPPORT UNIT 2
5 KG2-M2606-00X DAMPER 8
6 KV1-M280A-00X HOLDER SET YT AXIS 1 2
7
8 KGD-M2609-00X HOLDER,NUT 2
9 KM5-M2611-00X COUPLING,Y-AXIS 1 LCD
10 KW8-M2616-00X DOG, ORIGIN 2
11 KW8-M2617-00X DOG SEC LIMIT Y AXIS 4
12 KW8-M2619-01X BRACKET,SENSOR 1
13 KGD-M260A-00X TAPE 1,Y DUCT CABLE 4
14 KGD-M260B-00X TAPE 2,Y DUCT CABLE 4
15 KGD-M2621-00X GUIDE,HARNESS 4
16 KGD-M2622-00X BRACKET 1,DUCT 4
17 KGD-M2623-00X BRACKET 2,DUCT 4
17-1 Delete (2001/12/10() M1Y0037
18 KH1-M655A-10X SENSOR,1-1 2
19 KH1-M655E-10X SENSOR 1-2,ASSY 2
20 90K56-8A175Y AC SERVO MOTOR 2
20-1 90K56-8A17LY AC SERVO MOTOR 2 (2001/12/28) M1Y0137 OK
21 KW8-M2624-00X TAPE, Y AXIS 4
22 KV7-M226B-00X PLATE 4
23 91317-04008 BOLT HEX.SOCKET HEAD 24
24 91317-04014 BOLT HEX.SOCKET HEAD 80
25 91317-05008 BOLT HEX.SOCKET HEAD 32
26 91317-05018 BOLT HEX.SOCKET HEAD 8
27 91317-06020 BOLT HEX.SOCKET HEAD 20
28 91317-08020 BOLT HEX.SOCKET HEAD 32
29 98904-04008 SCREW BINDING HEAD 6
29-1 98902-04008 SCREW BINDING HEAD 6 (2006/1/9) MBY0166 OK
30 91317-06008 BOLT HEX.SOCKET HEAD 16
31 KGD-M2652-00X STOPPER 1 (2003/6/26) M360118
3
4
T-axis
Moving-axis
KGD-0801
27
62
63
58
64
64
58
63
58
61
61
66
62
62
61
4
17
3
30
5
14
14
2
17
15
7
31
16
36
19
18
11
37
33
25
21
28
55
67
60
42
46
53
49
41
52
54
51
51
50
47
50
68
68
48
44
43
45
57
57
65
56
9
1
23
6
32
22
38
24
26
34
29
35
39
20
40
12
13
13
8
10
62
59
64
69
62
59
62
59
L>R
28
28
28
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KW8-M2251-00X FRAME, T-AXIS 1
2 KW8-M2252-00X PLATE 1 1
3 KW8-M2254-00X PLATE 3 1
4 KW8-M2255-00X PLATE 4 1
5 KW8-M2257-00X HOLDER 1
6 KW8-M2259-00X BRACKET MOTOR 1
7 KW8-M2264-00X BRACKET 1 GUIDE 1
8 KW8-M2265-00X BRACKET 2 GUIDE 1
9 KW8-M2274-00X PLATE TENSION 1
10 KW8-M2275-00X GUIDE 1 T-AXIS 1
11 KV7-M9166-00X GUIDE 2 LWL9 R80B
12 KW8-M2279-00X DOG ORIGIN 1
13 KG2-M2282-00X DAMPER 2
14 KW8-M2283-00X HOOK 2
15 KG2-M2284-00X SPG. MAIN 2
16 KM0-M655A-00X SENSOR 1-1, ASSY 1
17 KW8-M8507-00X DUCT 1
18 KL0-M8506-00X CYLINDER 1
19 $TSH4-M5 JOINT 2
20 KB0-M2236-00X PLATE 1 2
21 KB0-M223E-00X COLLAR 2 1
22 KB0-M223F-00X COLLAR 3 1
23 KC0-M1751-00X PULLEY, 1 1 P16S3M0150
24 KB0-M2255-01X PULLEY, 5 1
25 KB2-M2254-00X PULLEY, 4 1
26 KB0-M2256-00X BELT 1 1 B150S3M225
27 KB0-M2257-00X BELT 2 1 2800mm:B150S3M
28 KB0-M2274-00X BEARING 2 4
28-1 90933-03J696 BEARING 4 (2007/12/4) MDX0031 OK
29 KV5-M7810-00X SPACER 1 1
30 KM5-M7158-00X POST TENTION 2
31 KW8-M2291-00X BRACKET, SENSOR 1
32 KW8-M2292-00X SHAFT, PULLEY 1
33 KW8-M2293-00X SHAFT, PULLEY 1
34 KW8-M2294-00X BELT BLOCK 1
35 90933-02J696 BEARING 3
36 KW8-M2295-00X HEAD, CYLINDER 1
37 KW8-M2296-00X SHAFT 1
38 KB0-M2616-00X COLLAR 1 1
39 KV5-M7834-00X BELT SHAFT 1
40 90K55-4W074M AC SERVO MOTOR 1
41 KW8-M2256-00X PLATE 5 1
42 KW8-M2261-00X BRACKET, ARM 2 1
43 KW8-M2277-00X GUIDE 3 T-AXIS 2
44 KG7-M9190-00X HANDLE 1
45 KW8-M2268-00X BRACKET, BELT 1
46 KW8-M2269-00X PLATE, BELT 1
47 KW8-M2271-00X BRKT.1, SHAFT 1
48 KW8-M2272-00X BRKT.2, SHAFT 1
49 KW8-M2280-00X BELT 1
50 KW8-M2273-00X STOPPER 2
51 KH2-M9105-11X PULLEY, MOTOR 2 P30-3GT
52 KV7-M9191-00X SHAFT 1 1
53 KV7-M9196-01X SHAFT 2 1
53-1 KV7-M9196-02X SHAFT 2 1 (2001/12/3) M1Y0003 OK
54 KV7-M9193-00X LEVER, CLAMP 1
55
KW8-M2262-00X ARM 1 (M) 1 L=850 M Type
KW8-M2262-10X ARM 1 (L) 1 L=950 L Type
56 KW8-M2263-00X ARM 2 1
57 KW8-M2258-00X STOPPER 3
58 KW8-M2289-00X NAIL, PLATE 3 R>L
59 KW8-M2290-00X NAIL, PLATE 3 L>R
60 KW8-M2286-00X PLATE, TENSION 1
61 KG2-M2285-00X SPG. NAIL 3
62 K98-M9237-00X BALL SLIDE 3 BSR1530
63 KM0-M655E-20X SENSOR, 1-2 ASSY 2
64 KM0-M655E-30X SENSOR, 1-2 2
65 KG2-M2284-00X SPG. MAIN 1
66 KW8-M2287-01X DOG 1 R>L
67 KW8-M2288-00X GUIDE 1
68 KGD-M2273-00X STOPPER 2
69 KW8-M2287-11X DOG 1 L>R
