KGD_YV180Xg_PL - 第11页
3 4 T -axis Moving-axis KGD-0801 27 62 63 58 64 64 58 63 58 61 61 66 62 62 61 4 17 3 30 5 14 14 2 17 15 7 31 16 36 19 18 1 1 37 33 25 21 28 55 67 60 42 46 53 49 41 52 54 51 51 50 47 50 68 68 48 44 43 45 57 57 65 56 9 1 2…
2
4
Y-axis
Moving-axis
KGD-0801
3
8
22
6
6
20
27
9
4
2
31
28
11
29
12
19
23
18
10
2
28
24
24
5
1
1
5
5
5
24
4
22
13
14
21
15
24
13
14
15
17
21
30
30
25
17
16
26
16
24
24
24
23
23
25
29
27
27
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KW8-M2677-S0X Y AXIS GUIDE SET 2
2 KGD-M2601-00X FRAME 1,Y AXIS 4
3 KW8-M2603-00X SCREW BALL Y-AXIS 2
4 KG2-M2604-00X SUPPORT UNIT 2
5 KG2-M2606-00X DAMPER 8
6 KV1-M280A-00X HOLDER SET YT AXIS 1 2
7
8 KGD-M2609-00X HOLDER,NUT 2
9 KM5-M2611-00X COUPLING,Y-AXIS 1 LCD
10 KW8-M2616-00X DOG, ORIGIN 2
11 KW8-M2617-00X DOG SEC LIMIT Y AXIS 4
12 KW8-M2619-01X BRACKET,SENSOR 1
13 KGD-M260A-00X TAPE 1,Y DUCT CABLE 4
14 KGD-M260B-00X TAPE 2,Y DUCT CABLE 4
15 KGD-M2621-00X GUIDE,HARNESS 4
16 KGD-M2622-00X BRACKET 1,DUCT 4
17 KGD-M2623-00X BRACKET 2,DUCT 4
17-1 Delete (2001/12/10() M1Y0037
18 KH1-M655A-10X SENSOR,1-1 2
19 KH1-M655E-10X SENSOR 1-2,ASSY 2
20 90K56-8A175Y AC SERVO MOTOR 2
20-1 90K56-8A17LY AC SERVO MOTOR 2 (2001/12/28) M1Y0137 OK
21 KW8-M2624-00X TAPE, Y AXIS 4
22 KV7-M226B-00X PLATE 4
23 91317-04008 BOLT HEX.SOCKET HEAD 24
24 91317-04014 BOLT HEX.SOCKET HEAD 80
25 91317-05008 BOLT HEX.SOCKET HEAD 32
26 91317-05018 BOLT HEX.SOCKET HEAD 8
27 91317-06020 BOLT HEX.SOCKET HEAD 20
28 91317-08020 BOLT HEX.SOCKET HEAD 32
29 98904-04008 SCREW BINDING HEAD 6
29-1 98902-04008 SCREW BINDING HEAD 6 (2006/1/9) MBY0166 OK
30 91317-06008 BOLT HEX.SOCKET HEAD 16
31 KGD-M2652-00X STOPPER 1 (2003/6/26) M360118
3
4
T-axis
Moving-axis
KGD-0801
27
62
63
58
64
64
58
63
58
61
61
66
62
62
61
4
17
3
30
5
14
14
2
17
15
7
31
16
36
19
18
11
37
33
25
21
28
55
67
60
42
46
53
49
41
52
54
51
51
50
47
50
68
68
48
44
43
45
57
57
65
56
9
1
23
6
32
22
38
24
26
34
29
35
39
20
40
12
13
13
8
10
62
59
64
69
62
59
62
59
L>R
28
28
28
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KW8-M2251-00X FRAME, T-AXIS 1
2 KW8-M2252-00X PLATE 1 1
3 KW8-M2254-00X PLATE 3 1
4 KW8-M2255-00X PLATE 4 1
5 KW8-M2257-00X HOLDER 1
6 KW8-M2259-00X BRACKET MOTOR 1
7 KW8-M2264-00X BRACKET 1 GUIDE 1
8 KW8-M2265-00X BRACKET 2 GUIDE 1
9 KW8-M2274-00X PLATE TENSION 1
10 KW8-M2275-00X GUIDE 1 T-AXIS 1
11 KV7-M9166-00X GUIDE 2 LWL9 R80B
12 KW8-M2279-00X DOG ORIGIN 1
13 KG2-M2282-00X DAMPER 2
14 KW8-M2283-00X HOOK 2
15 KG2-M2284-00X SPG. MAIN 2
16 KM0-M655A-00X SENSOR 1-1, ASSY 1
17 KW8-M8507-00X DUCT 1
18 KL0-M8506-00X CYLINDER 1
19 $TSH4-M5 JOINT 2
20 KB0-M2236-00X PLATE 1 2
21 KB0-M223E-00X COLLAR 2 1
22 KB0-M223F-00X COLLAR 3 1
23 KC0-M1751-00X PULLEY, 1 1 P16S3M0150
24 KB0-M2255-01X PULLEY, 5 1
25 KB2-M2254-00X PULLEY, 4 1
26 KB0-M2256-00X BELT 1 1 B150S3M225
27 KB0-M2257-00X BELT 2 1 2800mm:B150S3M
28 KB0-M2274-00X BEARING 2 4
28-1 90933-03J696 BEARING 4 (2007/12/4) MDX0031 OK
29 KV5-M7810-00X SPACER 1 1
30 KM5-M7158-00X POST TENTION 2
31 KW8-M2291-00X BRACKET, SENSOR 1
32 KW8-M2292-00X SHAFT, PULLEY 1
33 KW8-M2293-00X SHAFT, PULLEY 1
34 KW8-M2294-00X BELT BLOCK 1
35 90933-02J696 BEARING 3
36 KW8-M2295-00X HEAD, CYLINDER 1
37 KW8-M2296-00X SHAFT 1
38 KB0-M2616-00X COLLAR 1 1
39 KV5-M7834-00X BELT SHAFT 1
40 90K55-4W074M AC SERVO MOTOR 1
41 KW8-M2256-00X PLATE 5 1
42 KW8-M2261-00X BRACKET, ARM 2 1
43 KW8-M2277-00X GUIDE 3 T-AXIS 2
44 KG7-M9190-00X HANDLE 1
45 KW8-M2268-00X BRACKET, BELT 1
46 KW8-M2269-00X PLATE, BELT 1
47 KW8-M2271-00X BRKT.1, SHAFT 1
48 KW8-M2272-00X BRKT.2, SHAFT 1
49 KW8-M2280-00X BELT 1
50 KW8-M2273-00X STOPPER 2
51 KH2-M9105-11X PULLEY, MOTOR 2 P30-3GT
52 KV7-M9191-00X SHAFT 1 1
53 KV7-M9196-01X SHAFT 2 1
53-1 KV7-M9196-02X SHAFT 2 1 (2001/12/3) M1Y0003 OK
54 KV7-M9193-00X LEVER, CLAMP 1
55
KW8-M2262-00X ARM 1 (M) 1 L=850 M Type
KW8-M2262-10X ARM 1 (L) 1 L=950 L Type
56 KW8-M2263-00X ARM 2 1
57 KW8-M2258-00X STOPPER 3
58 KW8-M2289-00X NAIL, PLATE 3 R>L
59 KW8-M2290-00X NAIL, PLATE 3 L>R
60 KW8-M2286-00X PLATE, TENSION 1
61 KG2-M2285-00X SPG. NAIL 3
62 K98-M9237-00X BALL SLIDE 3 BSR1530
63 KM0-M655E-20X SENSOR, 1-2 ASSY 2
64 KM0-M655E-30X SENSOR, 1-2 2
65 KG2-M2284-00X SPG. MAIN 1
66 KW8-M2287-01X DOG 1 R>L
67 KW8-M2288-00X GUIDE 1
68 KGD-M2273-00X STOPPER 2
69 KW8-M2287-11X DOG 1 L>R
1
5

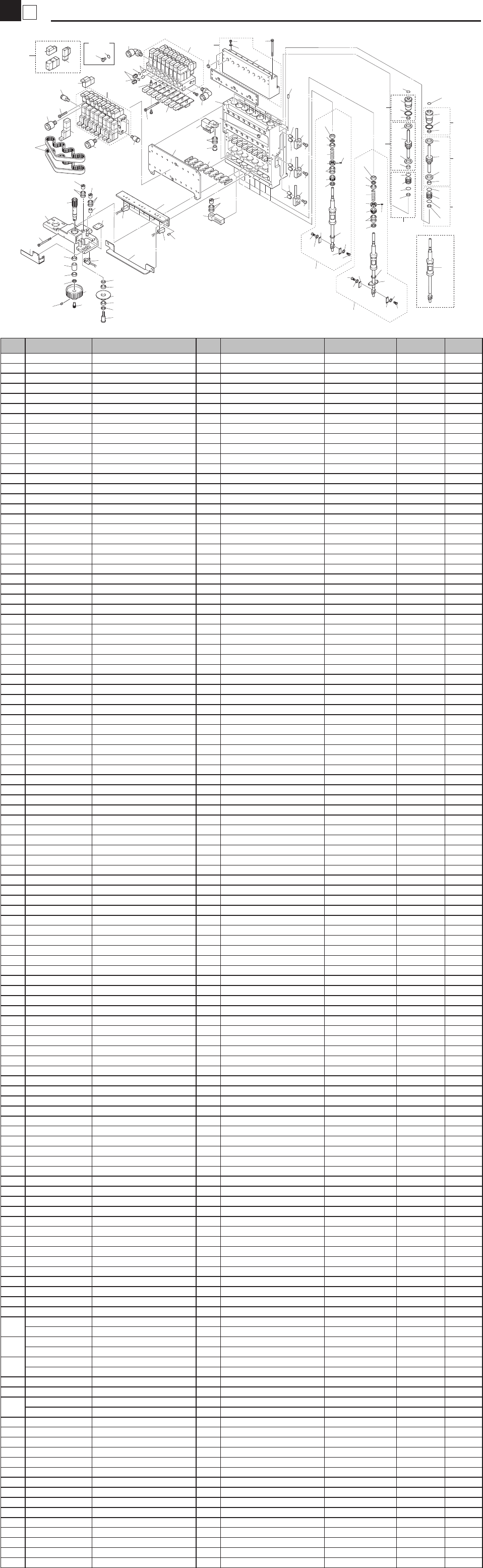

Head (Nor)
Head
KGD-0712
3
44
47
15
56
52
50
38
28
33
42
53
40
39
30
56
79
19
45
29
32
49
46
43
55
57
55
91
31
1
5
8
4
3
44
76
77
75
77
80
80
2
4
6
8
7
3
3
41
4
4
8
6
8
7
3
3
41
25
24
23
21
22
19
14
20
17
9
10
10
11
11
12
12
19
20
18
9
10
10
11
11
12
12
26
59
54
16
58
60
13
53
51
25
24
23
21
22
73
78
74
54
15
47
52
15
47
15
52
19
28
14
89
90
82
84
83
88
88
87
86
85
92
OLD
93
29
72
36
72
37
35
48
71
62
66
65
67
67
63
64
13
34
70
61
19
28
19
27
81
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M7101-00X HOUSING HEAD 1
2 KV8-M7103-50X PLUG 4
3 K65-M257M-00X O-RING 3 24 S12.5
3-1 90200-01J125 O-RING 3 24 S12.5 (2001/11/27) M1X0094 OK
4 KM1-M7140-00X PACKING 16 MYR-6
4-1 90990-22J003 PACKING 16 MYR-6 (2002/1/21) M210051 OK
5 KV8-M7103-10X PLUG 4
6 KV8-M7104-00X PISTON 8
7 KM1-M7107-00X PACKING 8 LO43165
7-1 90990-22J006 PACKING 8 LO43165 (2002/1/21) M210051 OK
8 KM1-M7141-00X PACKING 16 MYA-10A
8-1 90990-22J002 PACKING 16 MYA-10A (2002/1/21) M210051 OK
9 KV8-M71RJ-00X COLLAR BRG. 8
10 KG7-M7137-A0X LEAF SPRING 16
11 KG7-M7169-00X SCREW 16 M2X3
12 KG7-M7170-00X WASHER 16
12-1 90990-28J002 WASHER PLAIN 2 (2003/3/28) M330113 OK
13 KGB-M7184-00X BOLT,HEX. S.H 7 M3X60
13-1
91317-03060 BOLT,HEX.SOCKET HEAD 4 (2007/10/29) MD00030 OK
14 92A08-03303 SET SCREW 16 M3X3
15 KV8-M71VS-00X COLLAR,SENSOR 12
16 KGB-M7183-00X PLATE,EJECTOR 1
17 KV8-M7109-00X COLLAR 1, HEAD 4
18 KV8-M7110-00X COLLAR 2, HEAD 4
19 90933-03J128 BRG. 24 MF128ZZS
20 KGB-M7167-00X PULLEY 8
21 KV8-M7154-00X SPG.RETURN 8
22 KV8-M7108-00X NUT 8
23 90933-02J604 BRG. 8 604ZZ
24 99001-03600 CIRCLIP : 1
24-1 90440-01J030 CIRCLIP 1 (2001/12/28) M1Y0129 OK
25 KU1-M7152-00X WASHER 1 THURUST 8
26 KV8-M71R7-50X PLATE BEARING 4
27 KGB-M7111-00X PULLY, POST 1
28 KV8-M7115-00X SHAFT 1 TENSION 4
29 KGB-M7116-00X PULLY 2 1
30 KV8-M7117-00X BLOCK, ADJUST 1
31 KV8-M7119-00X BLOCK, ADJUST 1
32 KV8-M7131-01X BRACKET, Z SENSOR 1
33 KV8-M7166-00X PLATE, VALVE 1
34 KGB-M71VC-00X HOLDER PULLEY 1 (2002/1/17) M210074
35 92A08-04305 SET SCREW M4X5
36 KGB-M71Y1-01X COLLAR 1 PULLEY 1
37 99009-10800 CIRCLIP 1 ISTW-10
38 KGB-M71Y9-50X BODY, CYLINDER 1
39 KV8-M71YB-00X PACKING 8 (2002/2/1) M220005 OK
39-1 90990-22J005 PACKING 8
40 91317-05005 BOLT HEX. SOCKET HEAD 8
40-1 91317-05006 BOLT HEX. SOCKET HEAD 8 (2002/01/08) M210011 OK
41 KM1-M7105-00X PLUG 2 8
42 KM1-M7112-01X STOPPER 1
43 KGB-M7181-00X BELT, HEAD 2
44 KM1-M7186-00X O-RING : 5X1.0 8 5X1.0
44-1 90990-17J007 0-RING 8 5X1.0 (2001/12/25) M1Y0084 OK
45 KV8-M653F-A0X SENSOR 3 ASSY 4 E2S-Q22 (DOWN 1,3,5,7)
46 KV8-M653G-A0X SENSOR 4 ASSY 4 E2S-Q22B (DOWN 2,4,6,8)
47 KGB-M653A-00X SENSOR HEAD ASSY 3
47-1 KGB-M653A-01X SENSOR HEAD ASSY 1 (2004/3/18) M430057 OK
47-2 KGB-M653A-02X SENSOR HEAD ASSY 1 (2005/7/21) MB70010 OK
48 KGB-M653F-10X SENSOR 3 ASSY 1 EE-SX872P
49 93604-06083 PIN DOWEL 6 4X6
49-1 90990-02J001 PIN DOWEL 4 (2002/2/19) M220087 OK
50 99480-04008 PIN PARALLEL 8 4X8
51 90110-03248 BOLT HEXA.S.H: M3X55 7
51-1 90110-03248 BOLT HEXA.S.H: M3X55 3 (2002/1/17) M210076 OK
51-2 91317-03055 BOLT HEX.SOCKET HEAD 3 (2003/7/15) M370057 OK
51-3 91317-03055 BOLT HEX.SOCKET HEAD 5 (2006/8/11) MC80042 OK
52 92D18-02006 BOLT HEX 12 M2X0.4X6
52-1 90115-02J008 BOLT HEX. SOCKET HEAD 12 (2002/8/21) M280085 OK
53 $KM-05 MUFFLER 7
54 $SLH8-01 JOINT 2
55 $TSH6-01 JOINT 2
56 KG2-M7181-00X PACKIN MYA 4 24
56-1 90990-22J001 PACKING 24 (2002/1/21) M210051 OK
57 KV8-M7162-00X SOLENOID VALVE 1
58 KGB-M7163-00X EJECTOR,RESIN 1
58-1 KGB-M7163-01X EJECTOR,RESIN 1 (2006/12/11) MCY0027 OK
59 KV8-M71VB-00X COVER SENSOR 1
60 KM1-M4592-11X VAC SENSOR BOARD ASS 8
60-1 KM1-M4592-12X VAC SENSOR BOARD ASS 8 (2001/9/30) M190105 OK
60-2 KM1-M4592-13X VAC SENSOR BOARD ASS 8 (2005/4/19) MB40065 OK
61 KGB-M7169-00X SPACER 1
62 KGB-M7170-00X GEAR 1 1
63 KGB-M7171-00X GEAR 2 1
64 KGB-M7172-00X COLLAR 1, GEAR 1
65 KGB-M7173-00X COLLAR 2, GEAR 1
66 KGB-M7174-00X SHAFT, GEAR 1
67 90933-02J085 BEARING 2 MR85ZZS
68
69
70 KGB-M7179-00X COVER, GEAR 1
71 KGB-M7185-00X PLATE 2, NUT 1
72 90933-01J800 BEARING 2
73 KGB-M712S-A0X STD. SHAFT 1, SPARE 1 SPARE PARTS
74 KGB-M713S-A0X STD. SHAFT 2, SPARE 1 SPARE PARTS
75
KV8-M7103-B0X PLUG ASSY 4
KGB-M8C01-10X PLUG ASSY SET 4 1 4 SET of parts numbers (2013/4/9) H018073 OK
76
KV8-M7103-C0X PLUG ASSY 4
KGB-M8C01-20X PLUG ASSY SET 4 S 1 4 SET of parts numbers (2013/4/9) H018073 OK
77
KV8-M7104-A0X PISTON ASSY 8
KGB-M8C00-00X PISTON ASSY SET 8 1 8 SET of parts numbers (2013/4/9) H018073 OK
78 KGB-M71S0-50X STD. SHAFT 3, SPARE 1 SPARE PARTS (2002/10/18) M200051
79 KGB-M71Y9-B0X BODY BRACKET ASSY 1 (2001/2/2) M110144
80
KM1-M7105-A0X PLUG 2 ASSY 8
KGB-M8C02-00X PLUG ASSY 2 SET 8 1 8 SET of parts numbers (2013/4/9) H018073 OK
81 KGB-M71VD-00X NUT GEAR 1 (2004/2/3) M420001
82 KGB-M7163-A0X EJECTOR 1 SPARE PARTS
83 KM1-M7163-20X VALVE 1 SPARE PARTS
84 KM1-M7163-30X VALVE 1 SPARE PARTS
85 K46-M8527-C0X FILTER 1 SPARE PARTS (2001/2/2) M120012
86
90990-17J00B O-RING 1 SPARE PARTS
86-1
Delete (2006/12/11) MCY0027
87
KM5-M7174-F0X FILTER CAP 1 SPARE PARTS 2001/2/2 M120012
87-1
Delete (2006/12/11) MCY0027
88 90990-17J010 O-RING 1
89 KM5-M7174-G0X FILTER CAP 1
90 KV8-M7162-20X VALVE 1 SPARE PARTS
91 KV8-M7162-10X VALVE 1 SPARE PARTS
92 91317-04030 BOLT,HEX. S.H 4 M4X30 (2006/10/2) MC90097
93 KM5-M7174-H0X SPACER 8
