2 6 Nozzle (FNC) Nozzle KGD-0712 1 3 7 4 2 5 6 8 T ype71F T ype72F 1 1 T ype79F 9 10 T ype73F 10 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KV8-M71N1-A0X NOZZLE 71F ASSY 1 TYPE71F 1-1 …
1
6

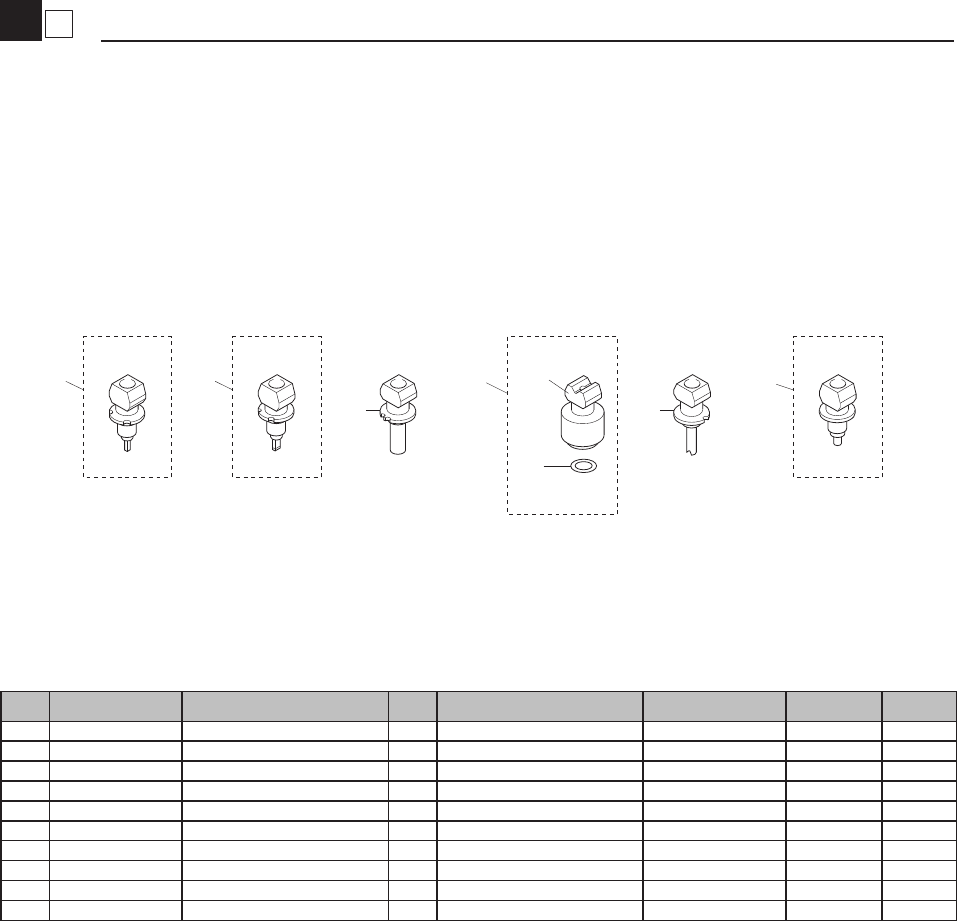

Nozzle (Nor)
Nozzle
KGD-0712
4
5
1 2
6
3
7
Type71A Type72A
8
Type79AType73A Type76AType74A
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M7710-A1X NOZZLE 71A ASSY. 1
2 KV8-M7720-A1X NOZZLE 72A ASSY. 1
3 KV8-M7730-00X NOZZLE 73A 1
4 KV8-M7740-A0X NOZZLE 74A ASSY. 1
5 KGB-M7742-00X O-RING 5 KSP0004
5-1 90990-17J013 O-RING 5 (2001/12/6) M1X0134 OK
6 KV8-M7741-00X NOZZLE 74A 1
7 KV8-M7760-00X NOZZLE 76A 1
8 KV8-M77WL-A0X CIRCLE NOZZLE 7A 1
8-1 KV8-M7790-A0X NOZZLE 79A ASSY. 1 (2002/9/10) M280135 OK
2
6
Nozzle (FNC)
Nozzle
KGD-0712
1
3
7
4
2
5
6
8
Type71F Type72F
11
Type79F
9
10
Type73F
10
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M71N1-A0X NOZZLE 71F ASSY 1 TYPE71F
1-1 KV8-M71N1-A1X NOZZLE 71F ASSY. 1 (2004/8/2) MA70130 OK
2 KV8-M71U5-00X SCREW 2
3 KV8-M71U6-00X HOUSING NOZZLE 1
4 KV8-M71U7-00X SPRING 1
5 KV8-M71N2-A0X NOZZLE 72F ASSY 1 TYPE72F
5-1 KV8-M71N2-A1X NOZZLE 72F ASSY. 1 (2004/8/2) MA70130 OK
6 KV8-M71U5-00X SCREW 2
7 KV8-M71U6-00X HOUSING NOZZLE 1
8 KV8-M71U7-00X SPRING 1
9 KV8-M71N3-A0X NOZZLE 73F ASSY 1 TYPE73F
10 KV8-M71U5-00X SCREW 2
11 KV8-M87WK-A0X CIRCLE NOZZLE 7F 1
11-1 KV8-M71N9-A1X NOZZLE 79F ASSY 1 TYPE79F (2004/8/2) MA70130 OK
1
7
Push-up
Conveyor
KGD-0801
34
36
38
19
8
6
7
39
26
24
25
8
5
6
15
36
18
1
21
42
31
20
15
43
14
6
11
44
10
17
43
9
6
8
5
14
12
13
39
14
12
13
39
40
40
22
16
39
37
14
3
2
43
43
8
2
7
8
5
6
15
15
6
6
41
35
45
6
30
14
12
13
40
40
14
3
11
2
43
43
8
23
2
28
33
4
29
32
27
46
OLD
52
50
53
48
52
50
53
48
49
4
14
47
51
49
4
14
47
51
49
4
14
47
51
54
54
54
54
OLD
23
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGD-M921S-01X BRACKET, MOTOR 1
2 KV1-M9212-00X BASE RACK 1 4
3 KV1-M921Y-00X PULLY 2
4 KGC-M9214-00X RACK 3
4-1 KGC-M9214-01X RACK 3 (2002/3/8) M230047 Set
5 KV1-M9215-00X GEAR 3
6 KV1-M9216-00X B.R.G 8
6-1 KV1-M9216-00X BEARING 8 (2005/1/12) MB10042 OK
6-2 90933-02J638 BEARING 8 (2007/9/24) MD80067 OK
7 KGD-M9217-00X SHAFT PULLY 2
8 KV1-M9218-00X COLLER 6
9 KV1-M9219-00X PULLY 1
10 KB0-M2256-00X BELT 1 1 B150S3M225
11 KGD-M921B-01X BELT 2 1 B150S3M501
12 KV1-M9201-00X STOPPER 3
13 KV1-M9202-00X WASHER 3
13-1 90990-28J072 WASHER,PLAIN 3 (2007/12/18) MDX0125 OK
14 KV1-M921E-00X BUSH 6
15 KV1-M921F-00X CLIP 4
16 KV1-M921K-00X STAY SENSOR 1
17 KV1-M921L-00X STAY DOG 1
18 KV1-M921M-00X DOG 1
19
KGD-M921N-M2X PLATE 1 270x300mm t=10 M Type
KGD-M921N-L2X PLATE 1 320x300mm t=10 L Type
19-1
KGD-M921N-M3X PLATE 1 270x300mm (t=9mm equivalency) (2001/8/21) M180085 OK
KGD-M921N-L3X PLATE 1 320x300mm (t=9mm equivalency) (2001/8/21) M180085 OK
20 90K55-523D7U AC SERVO MOTOR 1
21 KC4-M1751-00X PULLEY, 1 1
22 KH1-M655A-10X SENSOR, 1-1 1
23 KV1-M921G-00X BASE TENSION 1 H=21
23-1 KV1-M921G-01X BASE TENSION 1 H=26 (2003/2/27) M320066 NG
24 KV1-M921H-00X B.R.G 4
24-1 90933-02J686 BEARING 4 (2007/9/24) MD80067 OK
25 KV1-M921J-00X WASHER 1
26 KH2-M1807-00X BOLT DRIVEN PULLEY 1
27 KV1-M9204-01X COLLER 3
27-1 KV1-M9204-02X COLLER 3 (2002/3/8) M230047 Set
28 KGD-M9208-00X COLLER 2 3
28-1
KGD-M9208-01X COLLER 2 3 (2002/3/8) M230047 Set
29 KV1-M9209-00X SPRING 12
30 KGC-M9219-00X COLLER 3 1
31
KGD-M9206-M1X PLATE 2 1 270x300mm M Type
KGD-M9206-L1X PLATE 2 1 320x300mm L Type
32 92A08-04312 SCREW, SET 3
33 92A08-04316 SCREW, SET 3
34 KGD-M921C-00X PUSH UP PIN UNIT 9 H=40
34-1 KV7-M921D-10X PUSH UP PIN UNIT 9 H=64 (2001/8/2) M180010 NG
34-2 KV7-M921D-10X PUSH UP PIN UNIT 18 H=64 (2003/1/20) M310083
35 91317-03020 BOLT HEX.SOCKET HEAD 1
35-1 91317-03025 BOLT HEX.SOCKET HEAD 1 (2003/2/27) M320066 NG
36 91317-03008 BOLT HEX. SOCKET HEAD 12
37 91317-04012 BOLT HEX. SOCKET HEAD 2
38 91317-04006 BOLT HEX. SOCKET HEAD 2
39 91317-04008 BOLT HEX. SOCKET HEAD 5
40 91317-05012 BOLT HEX. SOCKET HEAD 8
41 91317-06030 BOLT HEX.SOCKET HEAD 2
41-1
91317-06035 BOLT HEX.SOCKET HEAD 2 (2003/2/27) M320066 NG
42 92A08-04004 SET SCREW 2 M4X4
43 KV1-M9205-00X SET SCREW 12 M4X4 E
43-1 92A08-04304 SET SCREW 12 (2004/12/27) MAY0104 OK
44 98507-03006 SCREW PAN HEAD 2
45 95607-05100 NUT U 1
46 95307-04700 NUT HEXAGON 6
47 KV1-M9204-02X COLLER 3
48 KV1-M9208-01X COLLER 2 3
49 KV1-M9209-00X SPRING 12
50 95307-05700 NUT, HEXAGON 3
51 90990-28J001 WASHER, PLAIN 3
52 KGC-M9207-00X NYLOCK NUT 3
52-1 90990-15J010 NUT,HEXAGON 3 (2007/11/21) MD00121 OK
53 KGC-M9202-00X WASHER 3
54 90990-23J004 GROMMET 4
