KGD_YV180Xg_PL - 第17页
1 7 Push-up Conveyor KGD-0801 34 36 38 19 8 6 7 39 26 24 25 8 5 6 15 36 18 1 21 42 31 20 15 43 14 6 1 1 44 10 17 43 9 6 8 5 14 12 13 39 14 12 13 39 40 40 22 16 39 37 14 3 2 43 43 8 2 7 8 5 6 15 15 6 6 41 35 45 6 30 14 12…
2
6

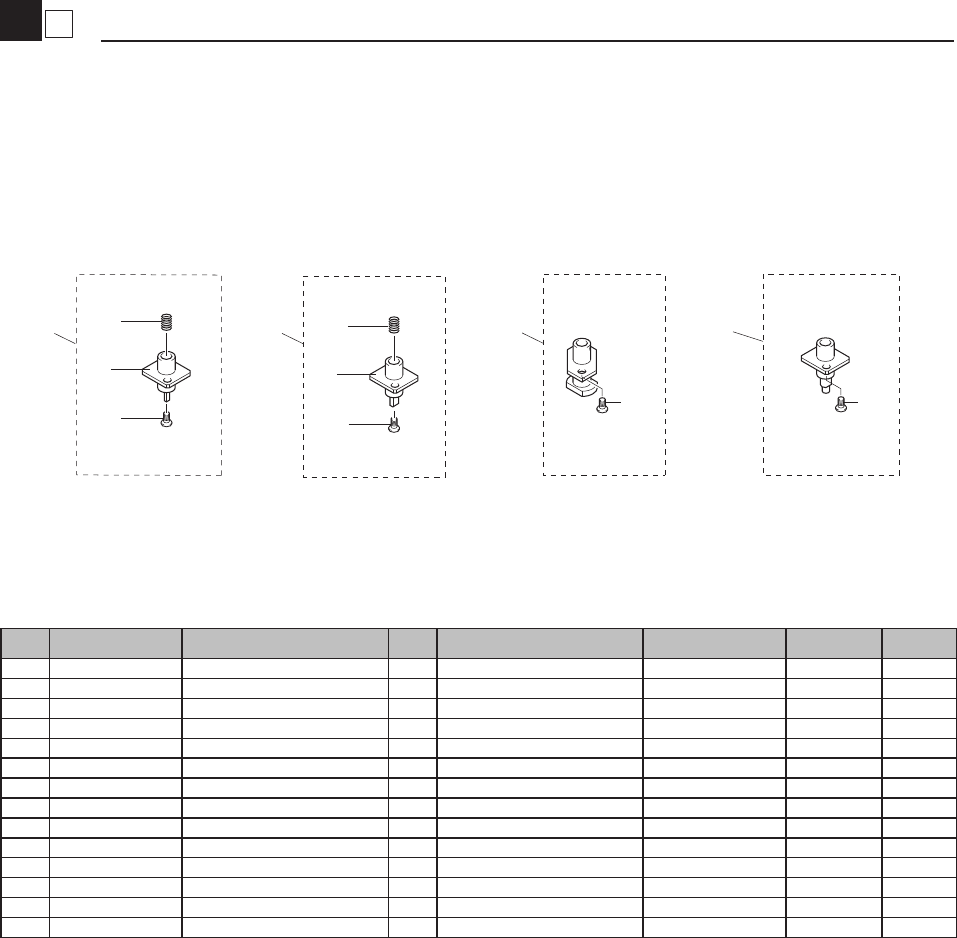

Nozzle (FNC)
Nozzle
KGD-0712
1
3
7
4
2
5
6
8
Type71F Type72F
11
Type79F
9
10
Type73F
10
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV8-M71N1-A0X NOZZLE 71F ASSY 1 TYPE71F
1-1 KV8-M71N1-A1X NOZZLE 71F ASSY. 1 (2004/8/2) MA70130 OK
2 KV8-M71U5-00X SCREW 2
3 KV8-M71U6-00X HOUSING NOZZLE 1
4 KV8-M71U7-00X SPRING 1
5 KV8-M71N2-A0X NOZZLE 72F ASSY 1 TYPE72F
5-1 KV8-M71N2-A1X NOZZLE 72F ASSY. 1 (2004/8/2) MA70130 OK
6 KV8-M71U5-00X SCREW 2
7 KV8-M71U6-00X HOUSING NOZZLE 1
8 KV8-M71U7-00X SPRING 1
9 KV8-M71N3-A0X NOZZLE 73F ASSY 1 TYPE73F
10 KV8-M71U5-00X SCREW 2
11 KV8-M87WK-A0X CIRCLE NOZZLE 7F 1
11-1 KV8-M71N9-A1X NOZZLE 79F ASSY 1 TYPE79F (2004/8/2) MA70130 OK

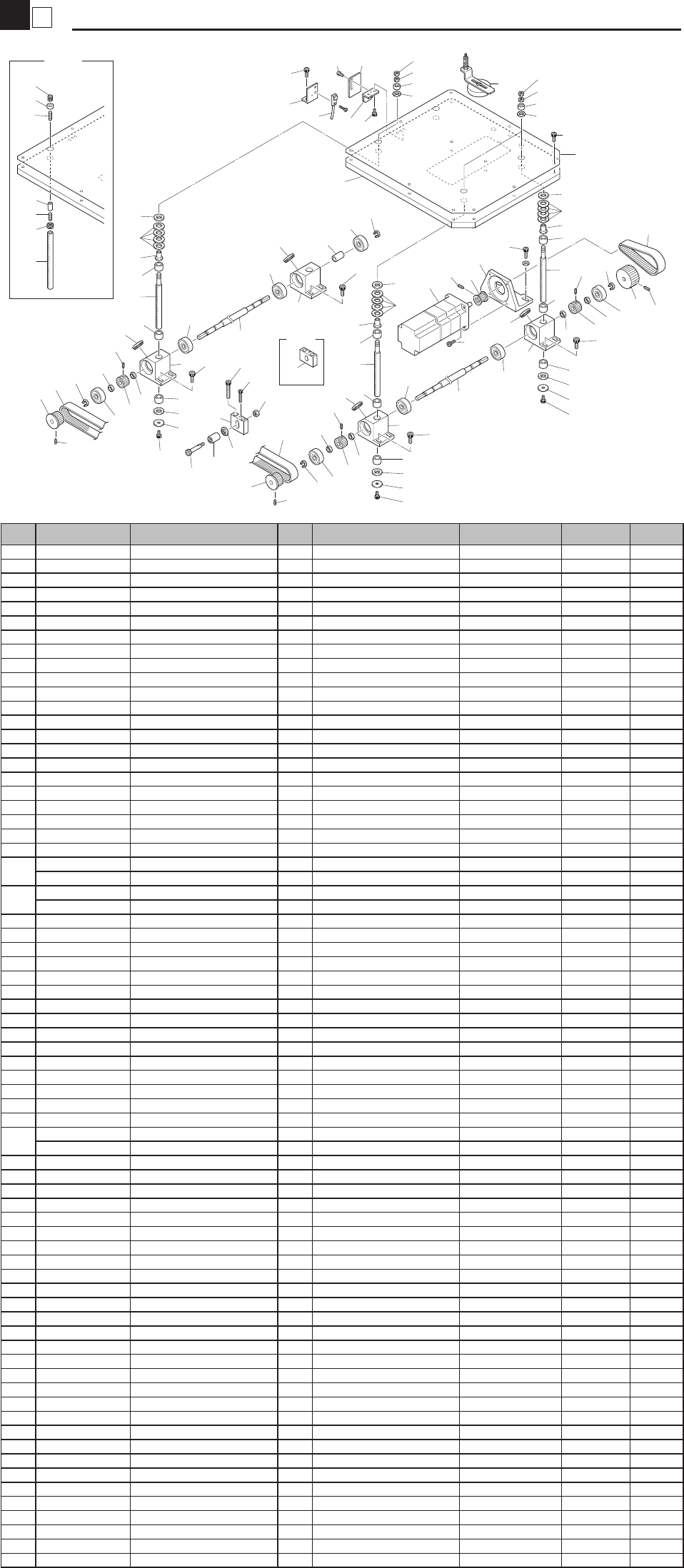

1
7
Push-up
Conveyor
KGD-0801
34
36
38
19
8
6
7
39
26
24
25
8
5
6
15
36
18
1
21
42
31
20
15
43
14
6
11
44
10
17
43
9
6
8
5
14
12
13
39
14
12
13
39
40
40
22
16
39
37
14
3
2
43
43
8
2
7
8
5
6
15
15
6
6
41
35
45
6
30
14
12
13
40
40
14
3
11
2
43
43
8
23
2
28
33
4
29
32
27
46
OLD
52
50
53
48
52
50
53
48
49
4
14
47
51
49
4
14
47
51
49
4
14
47
51
54
54
54
54
OLD
23
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGD-M921S-01X BRACKET, MOTOR 1
2 KV1-M9212-00X BASE RACK 1 4
3 KV1-M921Y-00X PULLY 2
4 KGC-M9214-00X RACK 3
4-1 KGC-M9214-01X RACK 3 (2002/3/8) M230047 Set
5 KV1-M9215-00X GEAR 3
6 KV1-M9216-00X B.R.G 8
6-1 KV1-M9216-00X BEARING 8 (2005/1/12) MB10042 OK
6-2 90933-02J638 BEARING 8 (2007/9/24) MD80067 OK
7 KGD-M9217-00X SHAFT PULLY 2
8 KV1-M9218-00X COLLER 6
9 KV1-M9219-00X PULLY 1
10 KB0-M2256-00X BELT 1 1 B150S3M225
11 KGD-M921B-01X BELT 2 1 B150S3M501
12 KV1-M9201-00X STOPPER 3
13 KV1-M9202-00X WASHER 3
13-1 90990-28J072 WASHER,PLAIN 3 (2007/12/18) MDX0125 OK
14 KV1-M921E-00X BUSH 6
15 KV1-M921F-00X CLIP 4
16 KV1-M921K-00X STAY SENSOR 1
17 KV1-M921L-00X STAY DOG 1
18 KV1-M921M-00X DOG 1
19
KGD-M921N-M2X PLATE 1 270x300mm t=10 M Type
KGD-M921N-L2X PLATE 1 320x300mm t=10 L Type
19-1
KGD-M921N-M3X PLATE 1 270x300mm (t=9mm equivalency) (2001/8/21) M180085 OK
KGD-M921N-L3X PLATE 1 320x300mm (t=9mm equivalency) (2001/8/21) M180085 OK
20 90K55-523D7U AC SERVO MOTOR 1
21 KC4-M1751-00X PULLEY, 1 1
22 KH1-M655A-10X SENSOR, 1-1 1
23 KV1-M921G-00X BASE TENSION 1 H=21
23-1 KV1-M921G-01X BASE TENSION 1 H=26 (2003/2/27) M320066 NG
24 KV1-M921H-00X B.R.G 4
24-1 90933-02J686 BEARING 4 (2007/9/24) MD80067 OK
25 KV1-M921J-00X WASHER 1
26 KH2-M1807-00X BOLT DRIVEN PULLEY 1
27 KV1-M9204-01X COLLER 3
27-1 KV1-M9204-02X COLLER 3 (2002/3/8) M230047 Set
28 KGD-M9208-00X COLLER 2 3
28-1
KGD-M9208-01X COLLER 2 3 (2002/3/8) M230047 Set
29 KV1-M9209-00X SPRING 12
30 KGC-M9219-00X COLLER 3 1
31
KGD-M9206-M1X PLATE 2 1 270x300mm M Type
KGD-M9206-L1X PLATE 2 1 320x300mm L Type
32 92A08-04312 SCREW, SET 3
33 92A08-04316 SCREW, SET 3
34 KGD-M921C-00X PUSH UP PIN UNIT 9 H=40
34-1 KV7-M921D-10X PUSH UP PIN UNIT 9 H=64 (2001/8/2) M180010 NG
34-2 KV7-M921D-10X PUSH UP PIN UNIT 18 H=64 (2003/1/20) M310083
35 91317-03020 BOLT HEX.SOCKET HEAD 1
35-1 91317-03025 BOLT HEX.SOCKET HEAD 1 (2003/2/27) M320066 NG
36 91317-03008 BOLT HEX. SOCKET HEAD 12
37 91317-04012 BOLT HEX. SOCKET HEAD 2
38 91317-04006 BOLT HEX. SOCKET HEAD 2
39 91317-04008 BOLT HEX. SOCKET HEAD 5
40 91317-05012 BOLT HEX. SOCKET HEAD 8
41 91317-06030 BOLT HEX.SOCKET HEAD 2
41-1
91317-06035 BOLT HEX.SOCKET HEAD 2 (2003/2/27) M320066 NG
42 92A08-04004 SET SCREW 2 M4X4
43 KV1-M9205-00X SET SCREW 12 M4X4 E
43-1 92A08-04304 SET SCREW 12 (2004/12/27) MAY0104 OK
44 98507-03006 SCREW PAN HEAD 2
45 95607-05100 NUT U 1
46 95307-04700 NUT HEXAGON 6
47 KV1-M9204-02X COLLER 3
48 KV1-M9208-01X COLLER 2 3
49 KV1-M9209-00X SPRING 12
50 95307-05700 NUT, HEXAGON 3
51 90990-28J001 WASHER, PLAIN 3
52 KGC-M9207-00X NYLOCK NUT 3
52-1 90990-15J010 NUT,HEXAGON 3 (2007/11/21) MD00121 OK
53 KGC-M9202-00X WASHER 3
54 90990-23J004 GROMMET 4
2
7
Locate-pin (Before June 2003 Applicable)
Conveyor
KGD-0802
1
2
5
5
7
8
9
7
3
4
27
12
4
15
22
23
22
23
36
15
37
16
30
21
32
19
34
34
34
17
18
35
24
38
11
11
13
13
20
30
27
12
29
27
28
27
27
31
12
12
29
10
6
OLD
25
26
34
14
33
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGD-M9215-00X PLATE 1,LOCATE 1
2 KGD-M9216-00X PLATE 2, LOCATE 1
3 KGD-M9189-00X GUIDE 1
4 KGD-M9212-00X GUIDE 2
5
KGD-M9172-00X
HOLDER,LOCATION 2
6 KV1-M9174-01X PIN 1,LOCATION 1
6-1 Delete (2003/2/11) M320041
7 KV1-M9174-11X PIN 2,LOCATION 1
7-1 KV1-M9174-11X PIN 2,LOCATION 2 (2003/2/11) M320041 OK
8
KGD-M9218-R0X BRKT.1 R,CYLINDER
1 R>L
KGD-M9218-L0X BRKT.1 L,CYLINDER 1 L>R
9
KGD-M9219-R0X BRKT.2 R,CYLINDER 1 R>L
KGD-M9219-L0X BRKT.2 L,CYLINDER 1 L>R
10
KGD-M9213-00X HOLDER R,GUIDE 1 R>L
KGD-M9214-00X HOLDER L,GUIDE 1 L>R
11 KV1-M9176-40X CYILINDER ASSY 2
12 KV1-M9167-01X NUT,JOINT 4
13 KV1-M9229-00X JOINT(M-5ALU-4) 4
14 KGD-M9211-00X PULLEY 1
15 KGB-M7167-00X PULLEY 2
16 KGD-M921D-01X BRACKET,PULLEY 1
17 KGD-M921F-00X HANDLE 1
18 KGD-M921G-00X SHAFT 3 1
19 KGD-M921H-00X HOUSING,SHAFT 1
20 KGD-M921J-00X PLATE,BELT 1
21 KGD-M921K-01X BELT 1,PULLEY 1
22 KGD-M921P-00X WASHER 1 2
23 KGD-M921R-00X COLLAR 2
24 KV1-M9193-00X LEVER,CLAMP 1
25 KJ2-M7157-00X BRG. 2 MF128ZZS
25-1 90933-03J128 BEARING 2 (2001/7/6) M170026 OK
26 KV8-M7115-00X SHAFT 1,TENSION 1
27 92D18-02004 BOLT HEX.SOCKET HEAD 4
27-1 90115-02J004 BOLT,HEX.SOCKET HEAD 4 (2002/8/21) M280085 OK
28 91317-03012 BOLT HEX.SOCKET HEAD 16
29 91317-03006 BOLT HEX.SOCKET HEAD 8
30 91317-03008 BOLT HEX.SOCKET HEAD 3
31 91317-04012 BOLT HEX.SOCKET HEAD 2
32 91317-04020 BOLT HEX.SOCKET HEAD 1
33 91317-04035 BOLT HEX.SOCKET HEAD 2
34 92A08-03006 SET SCREW M3X6 3
34-1 92A08-03306 SCREW,SET 3 (2001/9/21) M190079 OK
34-2 90990-02J003 SET SCREW 3 (2002/5/29) M250059 OK
35 92907-08600 WASHER PLAIN 2
36 91317-05015 BOLT HEX. SOCKET HEAD 1
37 92017-05016 BOLT BUTTON HEAD 1
38
KGD-M921U-R0X PLATE,AIR HOSE 1 R>L
KGD-M921U-L0X PLATE,AIR HOSE 1 L>R
