KGD_YV180Xg_PL - 第9页
1 4 X-axis Moving-axis KGD-0801 24 6 8 8 8 25 4 52 54 26 39 58 38 43 46 45 1 23 57 59 44 18 53 13 45 46 45 41 40 46 22 51 51 23 43 47 37 35 33 38 47 47 47 47 36 49 37 3 34 7 2 21 57 1 1 32 31 30 13 19 17 16 14 15 27 53 5…
2
3
Feeder Holder B
Feeder
KGD-080410
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KG2-M3401-C2X PLATE C,FEEDER 1
1-1 KG2-M3401-C3X PLATE C,FEEDER 1 (2005/2/14) MB20042 NG
2 KM0-M3402-C0X GUIDE C-1,TAPE 1
3 KG2-M3403-C0X GUIDE C-2 TAPE 1
3-1 KG2-M3403-C1X GUIDE C-2,TAPE 1 (1993/6/30) M860108 OK
4 KM0-M3405-01X STAND 1 1 Fig D
4-1 KM0-M3405-02X STAND,1 1 Fig E (2004/4/20) M440062 OK
4-2 KM0-M3405-03X STAND,1 1 Fig F (2004/11/1) MA00129 NG
5 KM0-M3406-01X STAND 2 1 Fig G
5-1 KM0-M3406-02X STAND,2 1 Fig H (2004/11/1) MA00129 NG
6 KM0-M3408-C0X BRACKETC,VALVE 1
7 KL0-M3409-C1X COVER C,VALVE 1
8 KM5-M3410-C0X VALVE ASSY C 1
8-1 KM5-M3410-30X VALVE ASSY.R 1 (1999/7/1) M960150 OK
8-2 KGA-M3410-80X VALVE 8-R 1 (2003/2/5) M320011 OK
9 KM0-M3417-00X GUIDE,4 2
11 $BF4BU JOINT 8
14 91317-06020 BOLT,HEX. SOCKET HEAD 4
15 91317-04010 BOLT,HEX. SOCKET HEAD 12
16 90990-12J005 SCREW BINDING HEAD 6
18 KM0-M3416-00X GASKET 8
18-1 Delete (2005/2/14) MB20042
19 98907-03004 SCREW BINDING HEAD 8
19-1 Delete (2005/2/14) MB20042
20 KG2-M3407-A0X AIR JOINT 8
24 91317-08020 BOLT,HEX. SOCKET HEAD 4
25 91317-03006 BOLT,HEX. SOCKET HEAD 4
26 KGA-M37P0-00X VALVE KIT 1
27
KM5-M34B0-00X FEEDER PLATE ASSY. 1
27-1
KM5-M34B0-01X FEEDER PLATE ASSY.8 1 (2004/4/20) M440062 NG
Fig D Fig E Fig F
16mm
16mm
20mm
Fig G Fig H
16mm
20mm
50mm
38mm
9
15
1
27
14
25
26
14
15
15
7
6
16
8
15
2
24
5
11
15
16
16
3
15
9
4
24
20
19
18
OLD
11
20
27
1
OLD
1
4
X-axis
Moving-axis
KGD-0801
24
6
8
8
8
25
4
52
54
26
39
58
38
43
46
45
1
23
57
59
44
18
53
13
45
46
45
41
40
46
22
51
51
23
43
47
37
35
33
38
47
47
47
47
36
49
37
3
34
7
2
21
57
11
32
31
30
13
19
17
16
14
15
27
53
50
55
48
50
42
4
26
20
31
10
12
28
29
9
56
60
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.

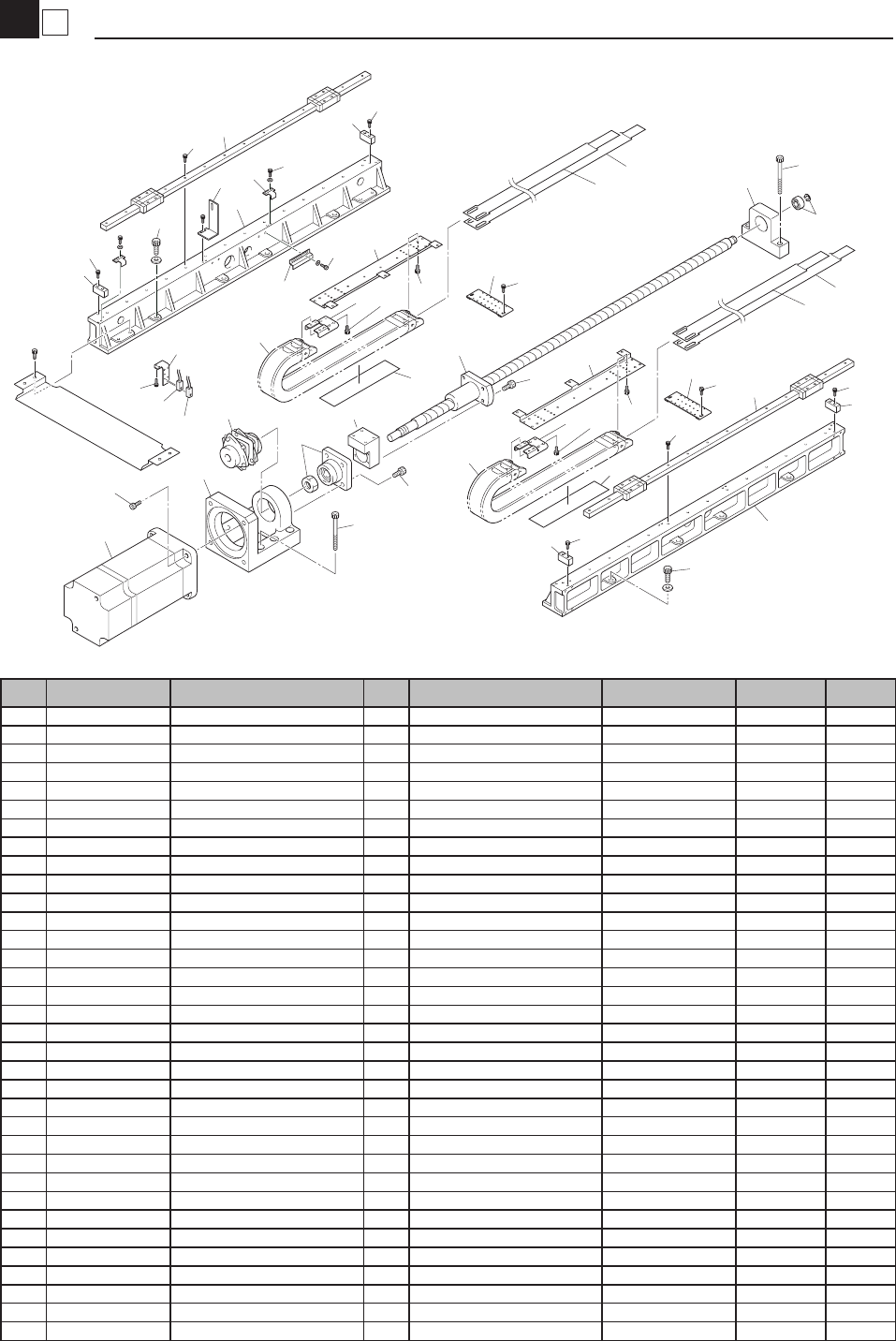

1 KGD-M2201-00X FRAME 1 X-AXIS 2
2 KGD-M2203-00X SCREW BALL X-AXIS 1
2-1 KGD-M2203-01X SCREW,BALL 1 (2003/10/6) M300016 OK
3 KW8-M2204-00X X-AXIS GUIDE SET 2
4 KGD-M2205-S0X HOUSING SET,X 2
5
6 KGD-M2206-00X HOUSING 2 BRG 2
7 KW8-M2207-00X PLATE PRESSURE 2
8 KGD-M2209-00X COLLAR 6
9 KW8-M2213-00X HOLDER,HEAD 2
10 KW8-M2218-00X BRACKET,GUIDE 2
11 KW8-M2218-A0X PLATE B 2
12 KW8-M2218-B0X BAR 1 4
13 KW8-M2267-00X CABLE,DUCT 2
13-1 KW8-M2267-A0X CABLE,DUCT 2 (2004/3/31) M430131 OK
14 KW8-M220A-00X TAPE, X DUCT 2
15 KW8-M220B-00X TAPE 2, X DUCT 2
16 KW8-M220C-00X TAPE 3,X DUCT 2
17 KV7-M2266-00X PLATE,NUT 4
18 KV7-M2268-00X BRACKET 1,TAPE 2
19 KV7-M2269-00X BRACKET 2,TAPE 2
20 KW8-M2220-00X COUPLING,X-AXIS 2 LCD
21 KW8-M2223-00X BRACKET SENSOR 2
22 KW8-M2224-00X DOG ORIGIN 2
23 KW8-M2225-00X DOG SECOND 4
24 KGD-M2227-00X BRG. 2
25 KGD-M2226-00X SUPPORT BRG. 2
26 KG2-M2228-00X NUT LOCK 4
27 90K5A-9C10M0 AC SERVO MOTOR 2
28 KM0-M655A-00X SENSOR 1-1,ASSY 2
29 KM0-M655E-00X SENSOR 1-2,ASSY 2
30 KW8-M2241-00X ACCUMULATAOR 2
31 KW8-M2243-00X BUSH,ACCUMULATAOR 4
32 KW8-M2244-00X BRACKET,ACCUMULATAOR 2
33 KW8-M2236-00X PLATE 1 DAMPER 4
34 KW8-M2236-10X PLATE 1,DAMPER 4
35 KW8-M2237-00X PLATE 2 DAMPER 4
36 KW8-M2237-10X PLATE 2,DAMPER 4
37 KV7-M2651-00X DAMPER,STOPPER 8
38 KV7-M2653-00X PIN,PARALLEL 4
38-1 90990-18J012 PIN,PARALLEL 4 (2007/11/30) MD00140 OK
39 KW8-M2245-00X SPRING 8
40 KW8-M2229-00X PLATE UNDER 2
41 KW8-M2233-00X TAPE, X-AXIS 2
42 KW8-M2297-A0X FAN MOTOR X ASSY 2
43 KGD-M2202-01X FRAME 2,X AXIS 2
44 KW8-M2215-00X BRACKET,HARNESS 2
45 KM5-M2221-00X PLATE 1,JOINT 3
46 KG2-M2222-00X PLATE 2 JOINT 6
47 KV7-M2661-00X NYLOCK BOLT 16 M12X50
47-1 KV7-M2661-00X NYLOCK BOLT 20 M12X50 (2004/2/16) M420083 OK
47-2 90990-01J028 BOLT,HEX.SOCKET HEAD 20 (2007/10/29) MD00030 OK
48 KM8-M26D1-00X SEAL, HIGH TEMP. 2
49 91317-05012 BOLT HEX.SOCKET HEAD 16
50 91317-05014 BOLT HEX.SOCKET HEAD 112
51 98907-03005 SCREW BINDING HEAD 4
51-2 98902-03006 SCREW BINDING HEAD 4 (2007/7/9) MD60168 OK
52 91317-05025 BOLT HEX.SOCKET HEAD 16
53 91317-06018 BOLT HEX.SOCKET HEAD 16
54 91317-05035 BOLT HEX.SOCKET HEAD 16
55 91317-05020 BOLT HEX.SOCKET HEAD 16
56 99480-06014 PIN,PARALLEL 8
57 91317-04010 BOLT HEX.SOCKET HEAD 76
58 91317-06035 BOLT HEX.SOCKET HEAD 32
59 KGD-M2252-00X STOPPER 2 (2003/6/26) M360118
60
KGD-M222A-00X SUPPORT UNIT 2 1
2
4
Y-axis
Moving-axis
KGD-0801
3
8
22
6
6
20
27
9
4
2
31
28
11
29
12
19
23
18
10
2
28
24
24
5
1
1
5
5
5
24
4
22
13
14
21
15
24
13
14
15
17
21
30
30
25
17
16
26
16
24
24
24
23
23
25
29
27
27
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KW8-M2677-S0X Y AXIS GUIDE SET 2
2 KGD-M2601-00X FRAME 1,Y AXIS 4
3 KW8-M2603-00X SCREW BALL Y-AXIS 2
4 KG2-M2604-00X SUPPORT UNIT 2
5 KG2-M2606-00X DAMPER 8
6 KV1-M280A-00X HOLDER SET YT AXIS 1 2
7
8 KGD-M2609-00X HOLDER,NUT 2
9 KM5-M2611-00X COUPLING,Y-AXIS 1 LCD
10 KW8-M2616-00X DOG, ORIGIN 2
11 KW8-M2617-00X DOG SEC LIMIT Y AXIS 4
12 KW8-M2619-01X BRACKET,SENSOR 1
13 KGD-M260A-00X TAPE 1,Y DUCT CABLE 4
14 KGD-M260B-00X TAPE 2,Y DUCT CABLE 4
15 KGD-M2621-00X GUIDE,HARNESS 4
16 KGD-M2622-00X BRACKET 1,DUCT 4
17 KGD-M2623-00X BRACKET 2,DUCT 4
17-1 Delete (2001/12/10() M1Y0037
18 KH1-M655A-10X SENSOR,1-1 2
19 KH1-M655E-10X SENSOR 1-2,ASSY 2
20 90K56-8A175Y AC SERVO MOTOR 2
20-1 90K56-8A17LY AC SERVO MOTOR 2 (2001/12/28) M1Y0137 OK
21 KW8-M2624-00X TAPE, Y AXIS 4
22 KV7-M226B-00X PLATE 4
23 91317-04008 BOLT HEX.SOCKET HEAD 24
24 91317-04014 BOLT HEX.SOCKET HEAD 80
25 91317-05008 BOLT HEX.SOCKET HEAD 32
26 91317-05018 BOLT HEX.SOCKET HEAD 8
27 91317-06020 BOLT HEX.SOCKET HEAD 20
28 91317-08020 BOLT HEX.SOCKET HEAD 32
29 98904-04008 SCREW BINDING HEAD 6
29-1 98902-04008 SCREW BINDING HEAD 6 (2006/1/9) MBY0166 OK
30 91317-06008 BOLT HEX.SOCKET HEAD 16
31 KGD-M2652-00X STOPPER 1 (2003/6/26) M360118
