2.3 Languages
SIPLACE Station and SIPLACE Vision GUI:
The standard package contains German, English and Simplified Chinese versions. As for
Simplified Chinese a preliminary version is provided.
The final version of Simplified Chinese and other languages contained in the languages package
are optional and available under the item number [00140046-xx].
The following table indicates which languages are available for the station software and SIPLACE
Vision:
Language Station software / SIPLACE
Vision
French x
Italian x
Spanish (Mexico) x
Portuguese (Brazil) x
Czech
*)
x
Polish
*)
x
Hungarian x
Bulgarian
*)
x
Romanian
*)
x
Russian
*)
x
Chinese (simplified) x
Korean x
Japanese x
Vietnamese
*)
x
Table 2-1: Languages
*)
GUI only (online help English)
Station Software 707.1 / Installation Manual Ausgabe 05/2014 Edition
8
3 Upgrading to the 707.x Software Version
This chapter describes which steps you have to attend when upgrading from different software
versions.
When upgrading the station software, always check the eSW versions and download the current
versions if necessary.
NOTICE
– With the installation of the 707.x station software, statistic data (maintenance
intervals) is registered for the CPP and C&P20A placement heads and the SX main
axis. In order to achieve a defined initial state for the maintenance due, the
correspondent maintenance operations have to be performed on the subsystems
after the software installation.
– An upgrade of the embedded software is necessary for the LDU-X. Generally, it is
not possible to perform a download of the embedded software via the station
software for the LDU-X. The LDU-X has to be upgraded to the 2.02 software version
with the aid of an external PC.
– There is new embedded software for the feeders. As soon as a feeder with an elder
eSW is set up an update of the eSW is proposed. This can be cancelled but it is not
possible to take out the table as long as the update is pending. To get the table out
without a download you have to take out the feeders or disable the feeder download
within the SW options.
– There is new embedded software for CPP and C&P20 placement heads. After an
update from a lower version they are recognized as modified heads and the head
data has to be saved manually once after the installation.
Station Software 707.1 / Installation Manual Ausgabe 05/2014 Edition
9
When upgrading to the 707.x station software the inspection options will be reset to the respective
default values. If necessary, the inspection options have to be adjusted under Settings – Machine
options – Inspection.

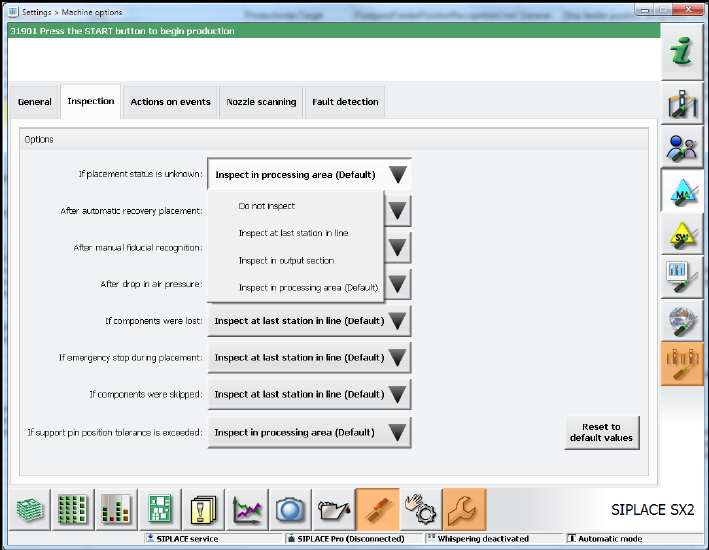

Abbildung 3-1: Adjust inspection options
3.1 Upgrading from the 706.xx Software Version
No further steps required.
3.2 Upgrading from the 705.xx Software Version
► SX1/SX2 and DX1/DX2 placement machines in the field with an FC camera at Location 1:
Due to an error correction in the configuration, the FC camera position has been moved and
thus the calibration values for the camera and the segment offset are invalid.
Recalibrate the camera and the segment offset.
