MACHINE CONTROL
CAN BUS
7.44 Technical Reference Manual Chapter Issue 11, Jul 16
I/O Node 4 (Screen Cleaner I/O)
Connector Description I/O
PL1 Paper Feed Brake In (Brake FET Gate control) Input
PL2 Paper Feed Brake Out Output
N4PL1 Power Input
N4PL2 CAN Signal In Input
N4PL3 CAN Signal Out Output
N4SK1 Paper Low/Paper Usage - Solvent Low Sensor Input
N4SK2 Cleaner Home Clamps Output
N4SK3 Solvent Pinch Valve - Paper Feed Motor/Vortex Motor Output
N4SK4 Cleaner Home Input
N4SK5 Solvent Pump (DUI) - Paper Feed Motor/Vortex Motor Output
N4SK6 Cleaner Vacuum Power Output
N4SK7 Cleaner Vacuum Sense Input
N4SK8 Levelness Screen Sensor - Levelness Cylinder Extended Input
N4SK9 Spare Output Output
N4SK10 Board Present - Product Sensor Input
N4SK11 Oscillating Motor Output
N4SK12 Cleaner Dropped Sensor Input
N4SK13 Spare Input Input
N4SK14 Spare Input Input
N4SK15 Cleaner Camera Clamps Output
SCREEN CLEANER NODE 4
DEK CYCLONE BRAK
E
181479 ISSUE
N4PL3
N4PL1
N4PL2
N4SK2
PL2
PL1
N4SK3
N4SK12N4SK14N4SK15
N4SK11
N4SK5
N4SK6
N4SK9
N4SK13 N4SK8 N4SK10
N4SK7 N4SK1 N4SK4
FET
MACHINE CONTROL
CAN BUS
Chapter Issue 11, Jul 16 Technical Reference Manual 7.45
PL1
PL2
N4PL1
Pin No. Signal Pin No. Signal
1 24V US 3 Paper Feed Brake
20V 40V
1
4 Way Trident Socket
Pin No. Signal Pin No. Signal
1 Solvent Pump (DUI) 3 Paper Feed Motor
20V 40V
1
4 Way Trident Socket
Pin No. Signal Pin No. Signal
124V US 40V
2 0V 5 12V
324V SW 60V
4
1
6 Way Trident Connector
(with pins)
MACHINE CONTROL
CAN BUS
7.46 Technical Reference Manual Chapter Issue 11, Jul 16

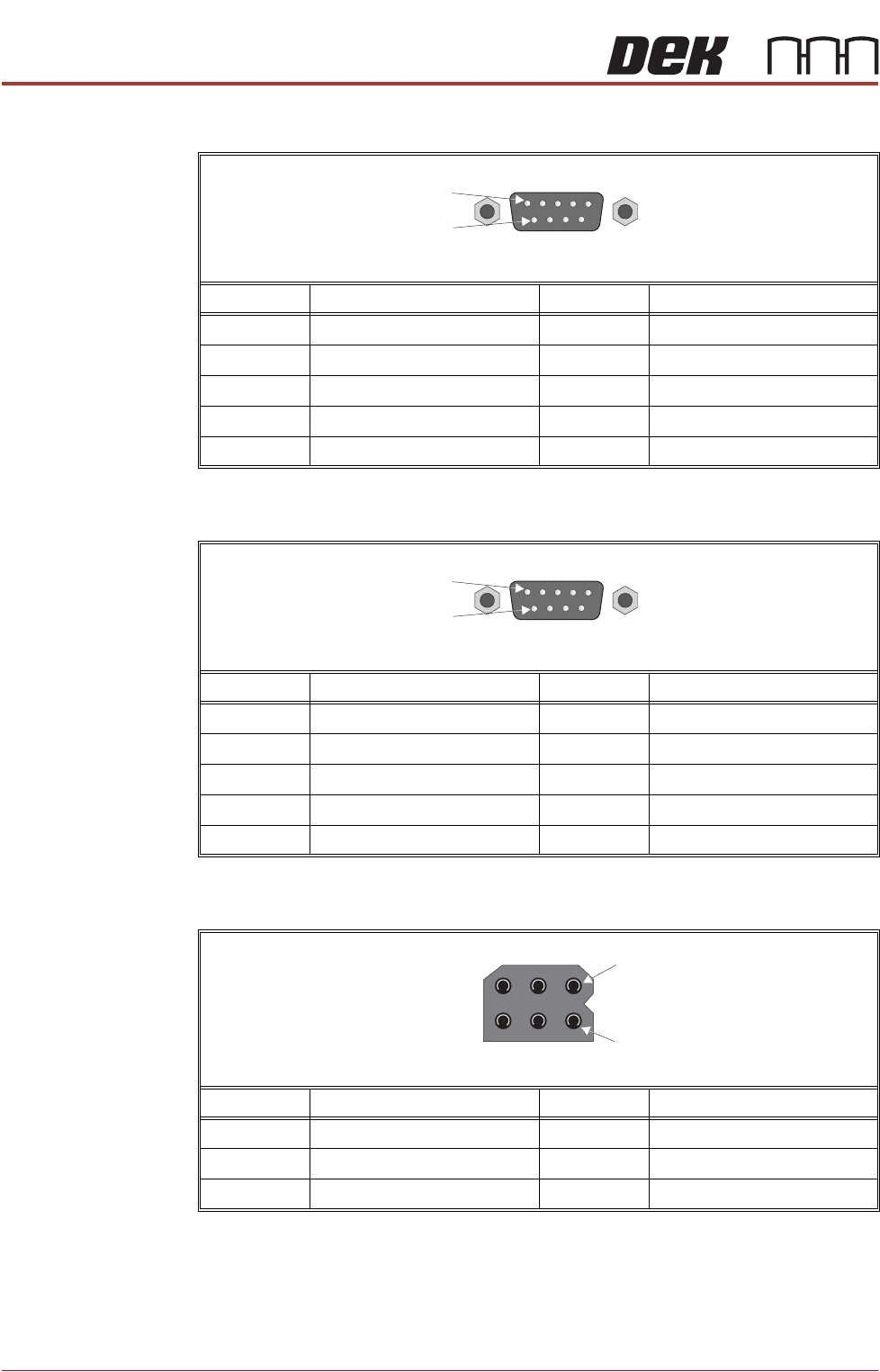

N4PL2
N4PL3
N4SK1
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Plug
1
6
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Plug
1
6
Pin No. Signal Pin No. Signal
1 +12V 4 +12V
2 Solvent Low Sensor 5 Paper Low/Paper Usage
30V 60V
4
1
6 Way Trident Socket
