MACHINE CONTROL CAN BUS Chapter Issue 11, Jul 16 Technical Reference Manual 7.51 I/O Node 5 (HTC/OTS) Connector Description N5PL1 Node Power N5PL2 CAN Signal In N5PL3 CAN Signal Out N5SK1 N/C N5SK2 N/C N5SK3 N/C N5SK4 N/…
MACHINE CONTROL
CAN BUS

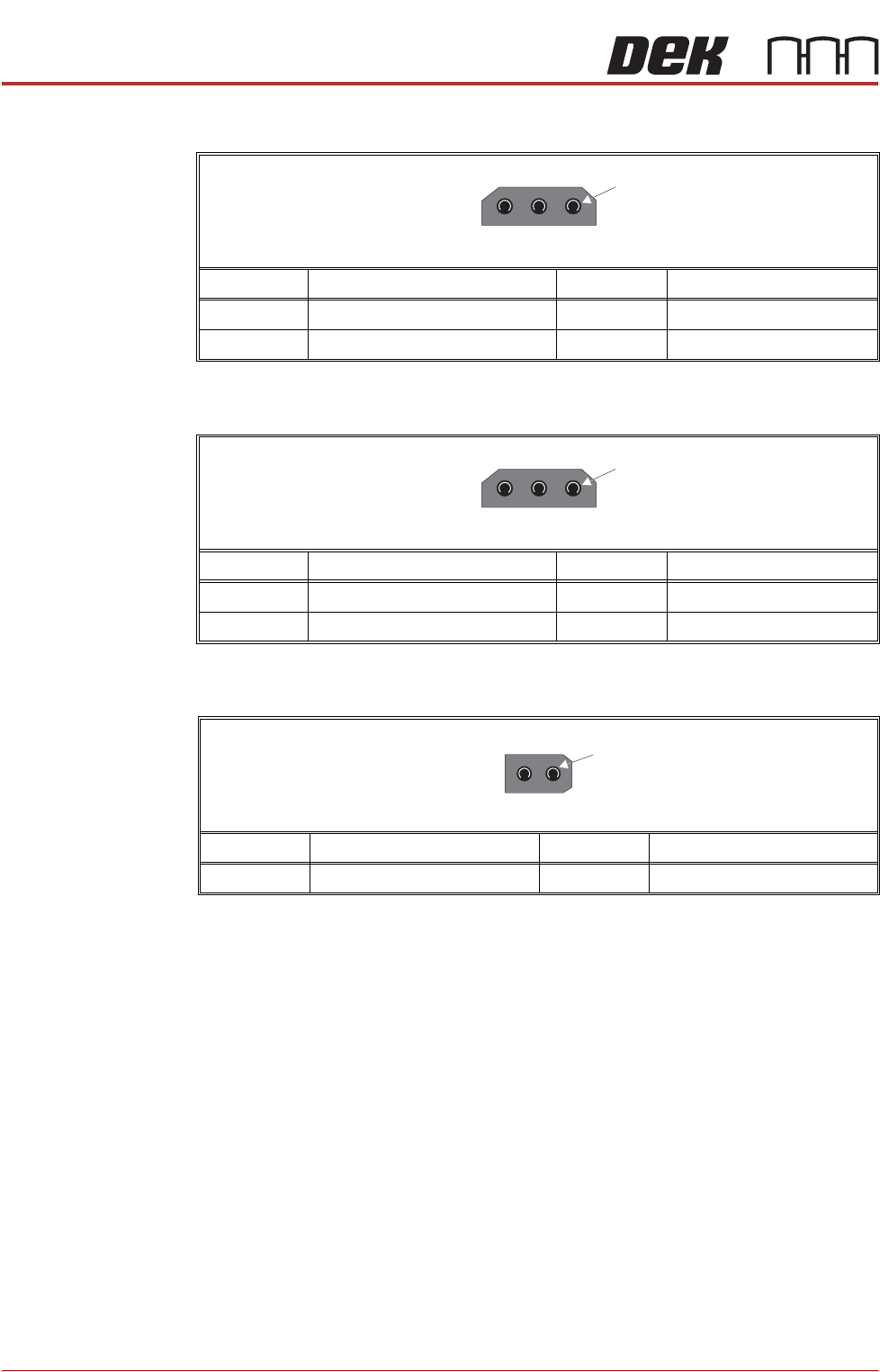

7.50 Technical Reference Manual Chapter Issue 11, Jul 16
N4SK13
N4SK14
N4SK15
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Spare Input
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 +12V 3 0V
2 Spare Input
1
3 Way Trident Socket
Pin No. Signal Pin No. Signal
1 Cleaner Camera Clamp 2 0V
2 Way Trident Socket
1
MACHINE CONTROL
CAN BUS

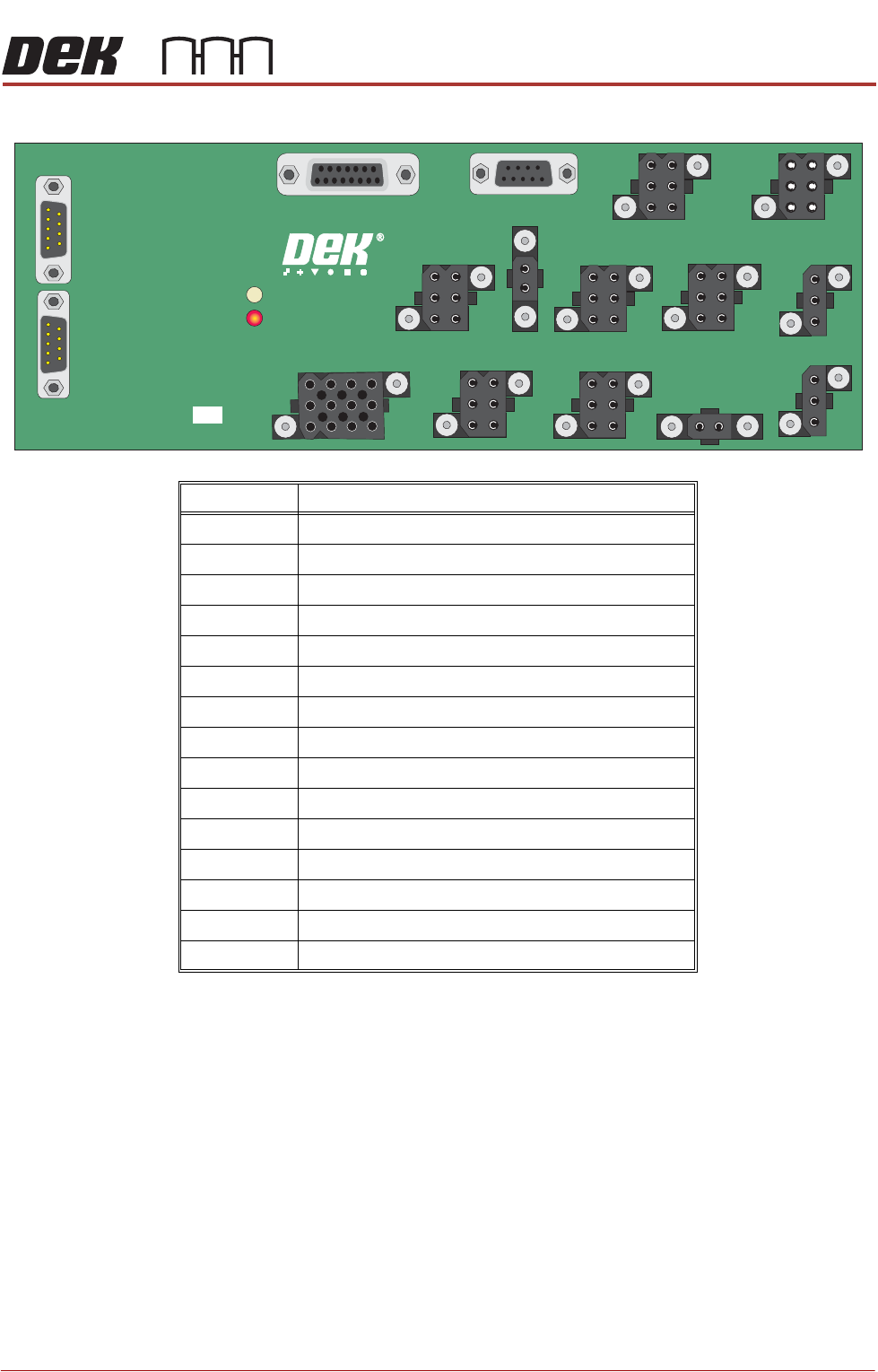

Chapter Issue 11, Jul 16 Technical Reference Manual 7.51
I/O Node 5 (HTC/OTS)
Connector Description
N5PL1 Node Power
N5PL2 CAN Signal In
N5PL3 CAN Signal Out
N5SK1 N/C
N5SK2 N/C
N5SK3 N/C
N5SK4 N/C
N5SK5 N/C
N5SK6 Solenoid Bank (OTS)
N5SK7 N/C
N5SK8 N/C
N5SK9 N/C
N5SK10 Snug / Clamp Pressure
N5SK11 N/C
N5SK12 N/C
NODE 5 OTS & HTC BOARD
198769 ISSUE
N5SK9
N5SK11
N5SK7
N5PL2
N5PL3
N5SK6
N5SK10
N5SK8
N5SK5
N5SK3
N5PL14
N5SK2
N5SK1
N5SK12
N5PL1
N5SK4
MACHINE CONTROL
CAN BUS

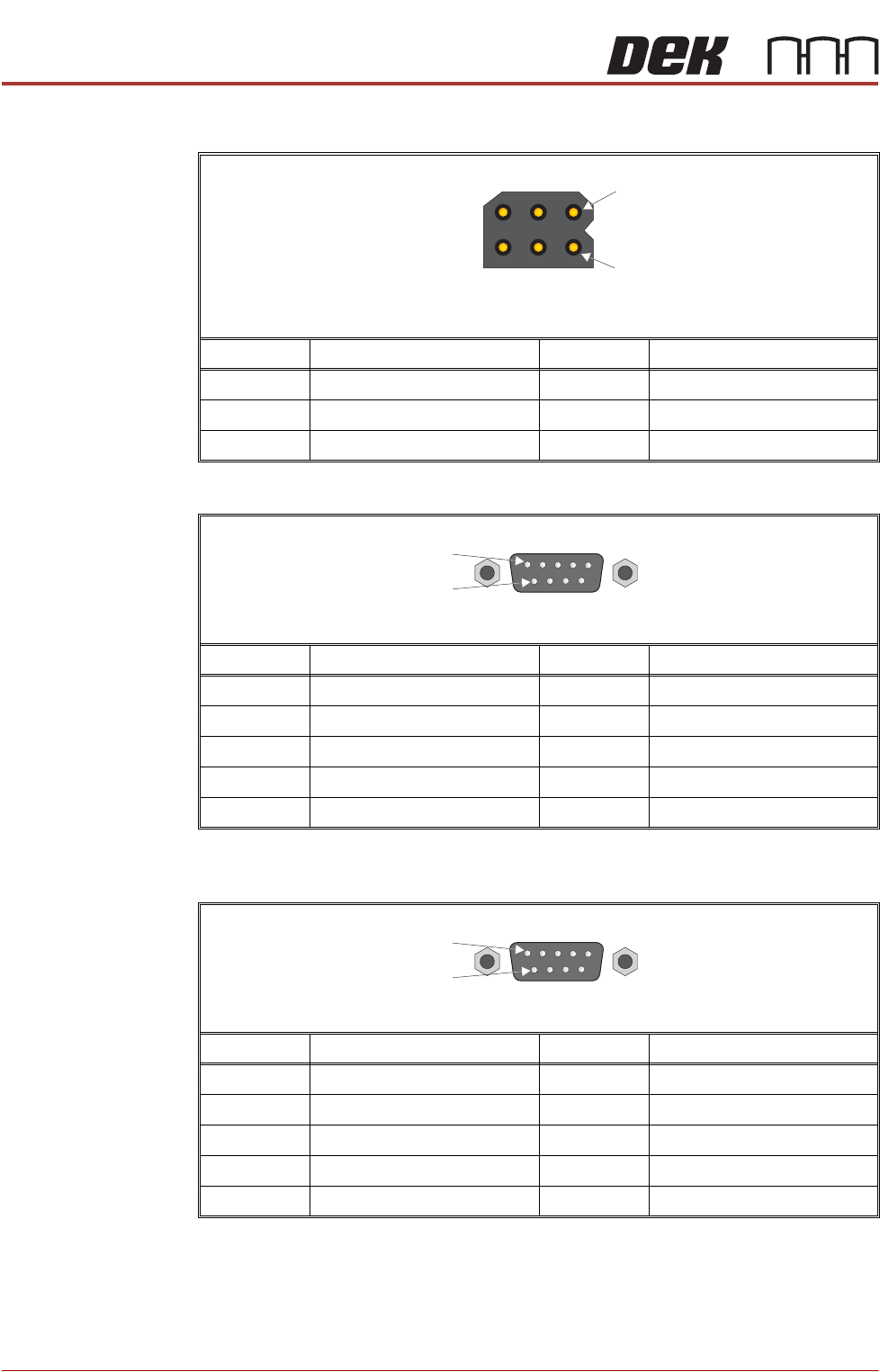

7.52 Technical Reference Manual Chapter Issue 11, Jul 16
N5PL1
N5PL2
N5PL3
Pin No. Signal Pin No. Signal
124V US 40V
2 0V 5 12V
324V SW 60V
4
1
6 Way Trident Connector
(with pins)
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Plug
1
6
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Plug
1
6
