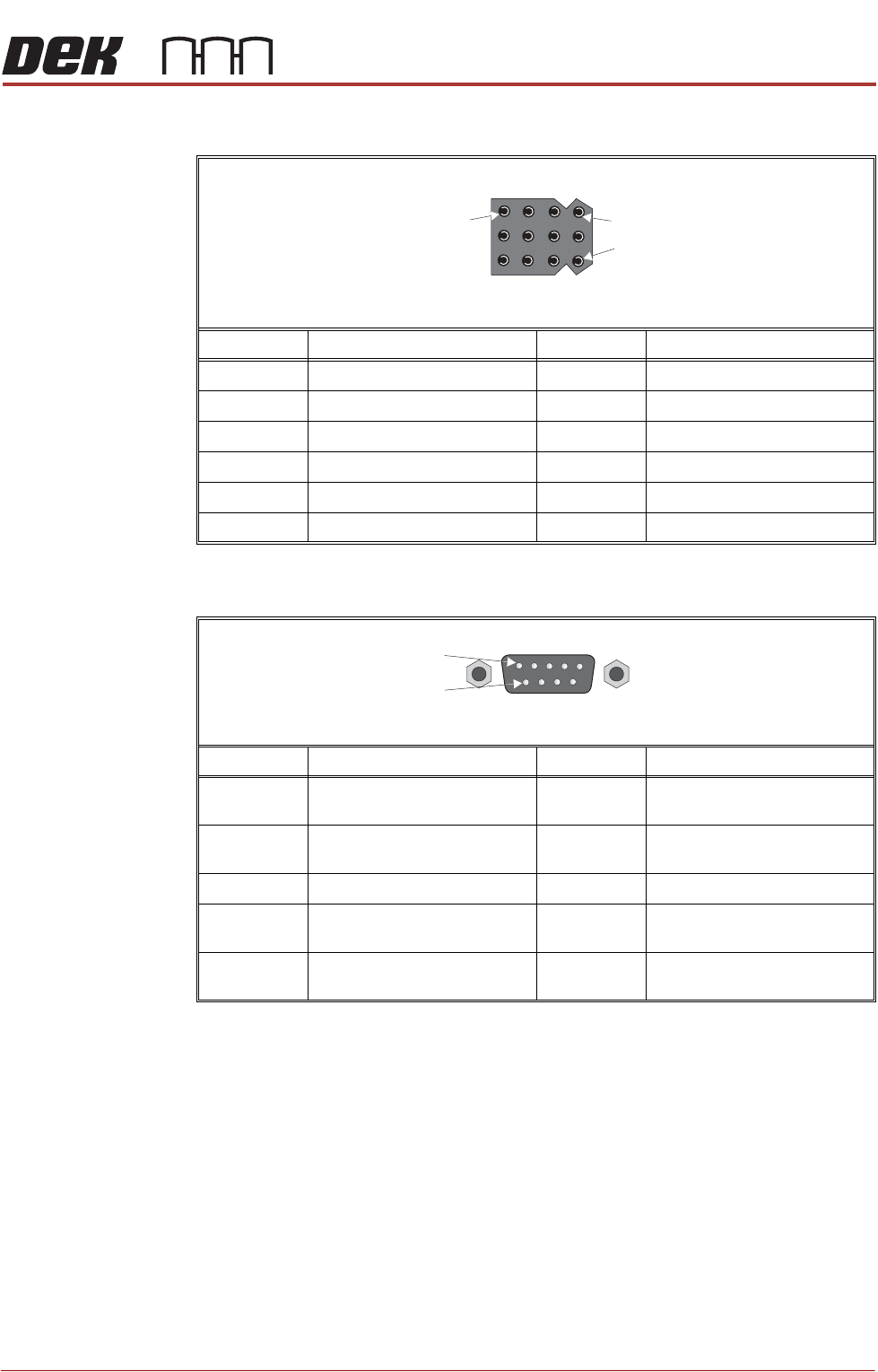

MACHINE CONTROL
CAN BUS
Chapter Issue 11, Jul 16 Technical Reference Manual 7.51
I/O Node 5 (HTC/OTS)
Connector Description
N5PL1 Node Power
N5PL2 CAN Signal In
N5PL3 CAN Signal Out
N5SK1 N/C
N5SK2 N/C
N5SK3 N/C
N5SK4 N/C
N5SK5 N/C
N5SK6 Solenoid Bank (OTS)
N5SK7 N/C
N5SK8 N/C
N5SK9 N/C
N5SK10 Snug / Clamp Pressure
N5SK11 N/C
N5SK12 N/C
NODE 5 OTS & HTC BOARD
198769 ISSUE
N5SK9
N5SK11
N5SK7
N5PL2
N5PL3
N5SK6
N5SK10
N5SK8
N5SK5
N5SK3
N5PL14
N5SK2
N5SK1
N5SK12
N5PL1
N5SK4
MACHINE CONTROL
CAN BUS
7.52 Technical Reference Manual Chapter Issue 11, Jul 16
N5PL1
N5PL2
N5PL3
Pin No. Signal Pin No. Signal
124V US 40V
2 0V 5 12V
324V SW 60V
4
1
6 Way Trident Connector
(with pins)
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Plug
1
6
Pin No. Signal Pin No. Signal
1N/C 6N/C
2CAN_L 7CAN_H
3CAN_GND 8N/C
4N/C 9N/C
5N/C
9 Way D Type Plug
1
6
MACHINE CONTROL
CAN BUS
Chapter Issue 11, Jul 16 Technical Reference Manual 7.53
N5SK6
N5SK10
Pin No. Signal Pin No. Signal
1 Mid Plate Up 7 Top Plate Up
2N/C 8N/C
3 Mid Plate Down 9 Vacuum
4N/C 10N/C
5 Over Top Plate Retract 11 Snugger and Brake
6N/C 120V
12 Way Trident Socket
1
12
3
Pin No. Signal Pin No. Signal
1 0V 6 Pressure Demand Input
(Snug)
2 0V 7 Pressure Demand Input
(Clamp)
30V 8+24V US
4 Pressure Monitor Output
(Snug)
9+24V US
5 Pressure Monitor Output
(Clamp)
9 Way D Type Plug
1
6
