12
G -S063-07
1004-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
401 6301588469 BLOCK 1 866N--100-201 211G5453
402 6301588476 BLOCK 1 866N--100-202 211G5454
403 6301565415 BLOCK 1 866N--100-203 211G5325
404 6301565422 BLOCK 1 866N--100-204 211G5326
406 6301562605 BRACKET 1 866N--100-206 211FC293
407 6301563015 BRACKET 1 866N--100-207 211FC299
412 6301553467 BRACKET 1 866N--100-212 211FC139
413 6301565040 BRACKET 1 866N--100-213 211FC339
414 6301568768 BRACKET 1 866N--100-714 211FC396
415 6301568775 BRACKET 1 866N--100-715 211FC397
416 6301545899 BRACKET 1 866N--100-216 211FC021
417 6301564500 BRACKET 1 866N--100-717 211FC330
418 6301564692 BALL SCREW 3 866N--100-218 223B0421
419 6301469089 BEARING,UNIT 4 866N--100-219 222F0104
421 4110007805 RING C 20 2 866N--100-221 221K0084
422 6300765731 BEARING,RADIAL 4 866N--100-222 222D0298
423 6301272733 PULLEY,TIMING 2 866N--100-223 223Q0564
424 6301236537 PULLEY,FLAT 2 866N--100-224 223M0050
425 224C0618 CYLINDER 2
866N-A100020-A001
224C0618
426 6300484656 PIPE FITTINGS 4
866N-A100020-A006
225F0261
428 6301550398 BLOCK 2
866N-A100020-A008
211G5201
429 6301562674 PLATE 2
866N-A100020-A009
211DC808
433 6301563022 BRACKET 1 866N--100-233 211FC300
434 6301588483 BRACKET 1 866N--100-234 211FC680
436 6301569765 BRACKET 1 866N--100-706 211FC415
437 6301568751 BRACKET 1 866N--100-707 211FC395
438 6301569772 BRACKET 1 866N--100-708 211FC416
439 6300763249 SENSOR,PELEC 2 866N--100-719 23G00162
440 6301532127 COLLAR 2 866N--100-240 216A1469
442 6301533179 BALL SCREW 1 866N--100-242 223B0418
443 6301563046 BRACKET 1 866N--100-603 211FC302
445 6300763225 SENSOR,PELEC 2 -B0532 866N--100-245 23G00161
446 6301562575 BRACKET 1 866N--100-246 211FC290
447 6301562582 BRACKET 1 866N--100-247 211FC291
448 6301562599 BRACKET 1 866N--100-248 211FC292
449 6301564579 MECH PARTS(CABLE VEYOR) 2 866N--100-249 226J2377
450 6301569765 BRACKET 1
866N-A100020-A015
211FC415
451 4110511708 SCR TRS 4X6 2
866N-A100020-A016
221E0532
453 4111412806 WASHER SPR 3 2 866N--100-803 221H0281
454 4111413902 WASHER V 3X7X0.5 2 866N--100-804 221H0312
458 4111412905 WASHER SPR 4 34 866N--100-808 221H0284
459 4111414008 WASHER V 4X9X0.8 34 866N--100-809 221H0315
464 4111416705 WASHER SPR 5 10 866N--100-814 221H0287
465 4111414107 WASHER V 5X10X1 10 866N--100-815 221H0318
467 4111413001 WASHER SPR 6 2 866N--100-817 221H0289
SL-G300
G -S063-07
N-5
13
G -S063-07
1004-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
474 6300007510 BOLT,HEX-SCT 2 M3X8 866N--100-824 221A0006
475 6300007510 BOLT,HEX-SCT 4 M3X8
866N-A100020-A010
221A0006
476 6300007619 BOLT,HEX-SCT 4 M4X8 866N--100-826 221A0016
477 6300007626 BOLT,HEX-SCT 6 M4X10 866N--100-827 221A0017
478 6300007633 BOLT,HEX-SCT 8 M4X12 866N--100-828 221A0018
480 6300007657 BOLT,HEX-SCT 16 M4X16 866N--100-830 221A0020
481 6300007664 BOLT,HEX-SCT 8 M4X20 866N--100-831 221A0021
483 6300008609 BOLT,HEX 1 M4X30 866N--100-833 221B0005
486 6300007763 BOLT,HEX-SCT 8 M5X16 866N--100-836 221A0031
487 6300007886 BOLT,HEX-SCT 2 M6X16 866N--100-837 221A0043
491 4111255403 SCR PAN 2X4 8 866N--100-901 221E0482
492 4110511708 SCR TRS 4X6 20 866N--100-907 221E0532
495 4111407208 SCR FLT 4X6 8 866N--100-915 221D0224
496 4110352707 SCR FLT 4X8 4
866N-A100020-A011
221D0225
497 4110024307 SCR FLT 5X10 4
866N-A100020-A012
221D0226
498 4110548506 NUT HEX 4 1 866N--100-918 221F0081
499 4111410505 NUT HEX 5 2 866N--100-919 221F0085
SL-G300
G -S063-07
N-5
G -S063-07
0909-002
14
-U08
-U09
-U09
-U08
-U09
-U09
351
352
353
356
357
355
354
353
352
364
363
361
See Fig. DX-1
Key No.61
See Fig. DX-1
Key No.61
See Fig. DX-1
Key No.61
内が大基板対応箇所です。
Inside the box shows the Large PCB applicable section.
363
362
364
383

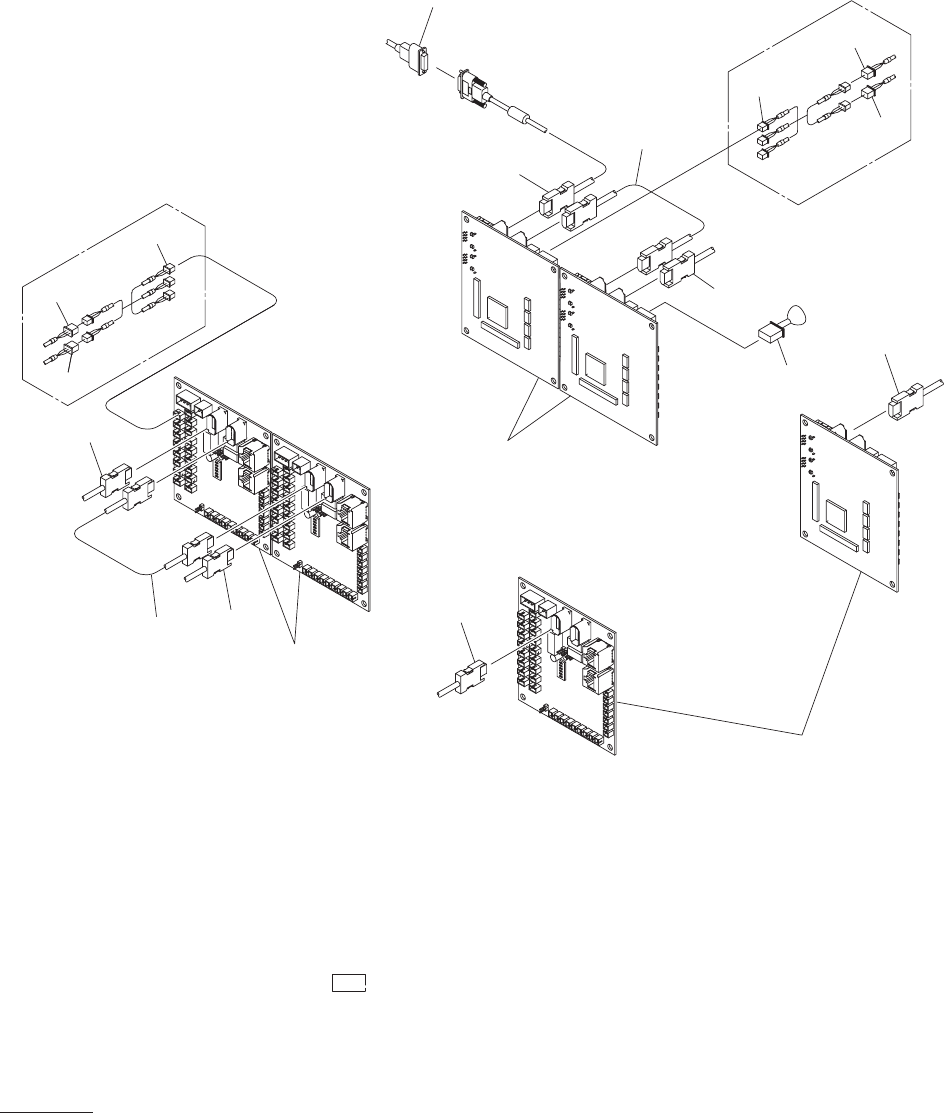

架台上全体部準備
OVERALL UPPERFRAME
PREPARATION SECTION
Fig. DX-4
ケーブル
Cable
