G -S0 63-07 0709-001 6 搬送部全体 OVERALL TRANSFER SECTION Fig. N-1 バックアップベース Back-up Base 8 7 7 6 36 34 34 17 15 17 15 1 32 33 39 40 28 21 22 23 3 27 27 93 . 55 . 56 12 13 14 44 44 44 35 42 44 18 47 47 50 50 50 48 50 50 50 6…
5
G -S063-07
0709-001
G -S063-07 G -S063-07
大基板対応
(GXH-3)
For Large PCB(GXH-3)
注)
イラストはGXH本体に大基板対応を装着した場合の、本体対応箇所を
示しております。
Notice)The illustration shows the applicable section in the main machine when the
application for Large PCB is attached to the GXH main machine.
架台上全体部準備Fig.DX
OVERALL UPPERFRAME PREPARATION SECTION

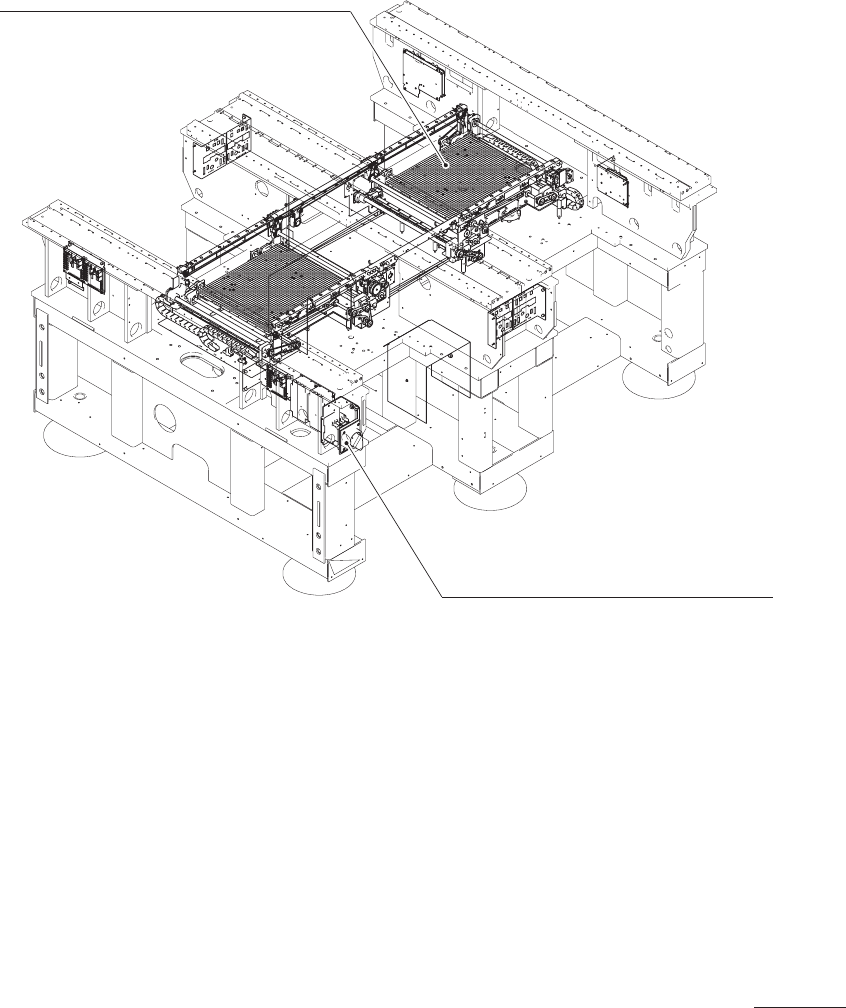

搬送部全体Fig.N OVERALL TRANSFER SECTION
G -S063-07
0709-001
6
搬送部全体
OVERALL
TRANSFER SECTION

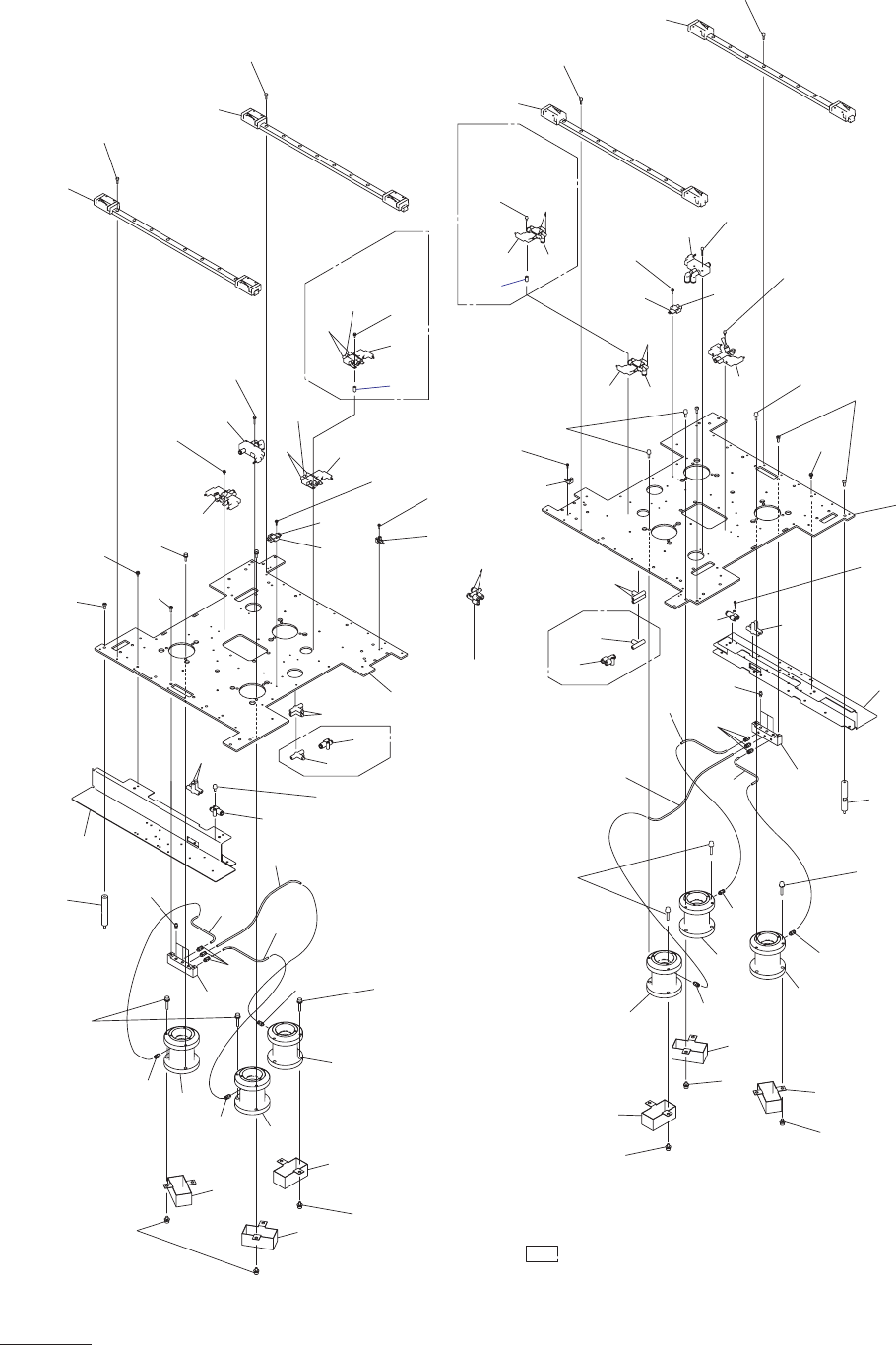

Fig. N-1
バックアップベース
Back-up Base
8
7
7
6
36
34
34
17
15
17
15
1
32
33
39
40
28
21
22
23
3
27
27
93
.
55
.
56
12
13
14
44
44
44
35
42
44
18
47
47
50
50
50
48
50
50
50
6
7
7
44
8
36
34
35
1
32
33
40
28
21
23
22
39
39
39
34
75
.
53
.
54
78
78
78
78
74
.
53
.
54
95
9
86
.
64
.
65
94
.
55
.
56
96
.
60
.
61
89
.
67
.
68
93
.
55
.
56
89
.
67
.
68
96
.
60
.
61
95
86
.
64
.
65
86
.
64
.
65
74
.
53
.
54
75
.
53
.
54
94
.
55
.
56
12
14
13
75
.
53
.
54
43
89
.
67
.
68
9
92
.
67
.
68
92
.
67
.
68
9
44
44
92
.
67
.
68
92
.
67
.
68
92
.
67
.
68
89
.
67
.
68
44
18
42
47
48
47
75
.
53
.
54
43
内が大基板対応箇所です。
Inside the box shows the Large PCB applicable section.
7
G -S063-07
1004-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6301683331 FRAME 2 866N--100-001 210B4355
3 6301164915 PIPE FITTINGS 2 866N--100-523 225F0504
6 6301616445 HOLDER 2 866N--100-601 216B1770
7 6301616452 HOLDER 4 866N--100-602 216B1771
8 6301587189 STAY 16 866N--100-608 211J1514
9 6301572222 BOLT,HEX-SCT 20 866N--100-609 221A0430
12 6301333106 VALVE 2
866N-A100020-A002
225C0125
13 6301106083 PIPE FITTINGS 2
866N-A100020-A003
225F0467
14 6300036534 AIR LINE EQPT 4
866N-A100020-A004
225B0059
15 6300482935 AIR LINE EQPT 4
866N-A100020-A005
225B0251
17 6301164915 PIPE FITTINGS 2
866N-A100020-A007
225F0504
18 6300034301 GREASE NIPPLE 6 866N--100-018 226B0002
21 6301333106 VALVE 2 Y0842 866N--100-501 225C0125
22 6301268064 PIPE FITTINGS 2 866N--100-502 225F0577
23 6300036534 AIR LINE EQPT 4 866N--100-503 225B0059
27 6301545820 SENSOR,PHOTO 2 B5501,B5601
866N--100-027 23G10096
28 6300000269 SENSOR,PHOTO(CONNECTOR) 2 866N--100-028 23G10003
32 6301554914 VALVE 2 Y0834,Y0835
866N--100-032 225C0160
33 6301554907 VALVE 2 Y0836 866N--100-033 225C0159
34 6300482935 AIR LINE EQPT 8 866N--100-034 225B0251
35 6300955026 AIR LINE EQPT 2 866N--100-035 225B0367
36 6301587240 BRACKET 2 866N--100-236 211FC655
39 6301256450 GUIDE,LINEAR 4 866N--100-039 222L0690
40 6300000245 SENSOR,PHOTO 2 B5301 866N--100-040 23G10001
42 6301580654 BLOCK 2 866N--100-722 211G5388
43 6301325477 ACCESSORY,P.C.B 4
866N-A100020-A013
23L10096
44 6301250212 PIPE FITTINGS 12 866N--100-724 225F0566
47 6301596648 TUBE 4 866N--100-727 225G0347
48 6301596655 TUBE 2 866N--100-728 225G0348
50 6301596969 BOX 6 866N--100-730 211B1327
53 4111412806 WASHER SPR 3 12 866N--100-803 221H0281
54 4111413902 WASHER V 3X7X0.5 12 866N--100-804 221H0312
55 4110864408 WASHER SPR 3 8 866N--100-805 221H0280
56 4110889005 WASHER F 3X6X0.5 8 866N--100-806 221H0337
60 4110081706 WASHER SPR 4 2 866N--100-810 221H0283
61 4111192104 WASHER V 4X9X0.8 2 866N--100-811 221H0314
64 4111416705 WASHER SPR 5 18 866N--100-814 221H0287
65 4111414107 WASHER V 5X10X1 18 866N--100-815 221H0318
67 4111413001 WASHER SPR 6 30 866N--100-817 221H0289
68 4111414305 WASHER V 6X12.5X1.6 30 866N--100-818 221H0320
74 6300007510 BOLT,HEX-SCT 8 4 M3X8 866N--100-824 221A0006
75 6300007565 BOLT,HEX-SCT 4 8 M3X20 866N--100-825 221A0011
78 6300007633 BOLT,HEX-SCT 40 M4X12 866N--100-828 221A0018
SL-G300
G -S063-07
N-1
