Test Research, Inc . TR7600 SIII Seri es User Gu ide – Hardw are 1 1 I NTRODUCTION The figure below shows the machine front view and Human-Machine I nterface (HMI or HCI) located in the top-right corner. Figure 1: F ront…
Test Research, Inc.
iv TR7600 SIII Series User Guide – Hardware
Tables
Table 1: Operating & Storage Environment for TR7600 SIII ............................................ 2
Table 2: Status Indicator Light Description ..................................................................... 21
Table 3: Error Codes Of Movement along X and U Axes .............................................. 38
Table 4: Error Codes of Movement along Y, Z, V and W Axes ...................................... 45
Test Research, Inc.
TR7600 SIII Series User Guide – Hardware 1
1 I
NTRODUCTION
The figure below shows the machine front view and Human-Machine Interface (HMI or HCI)
located in the top-right corner.

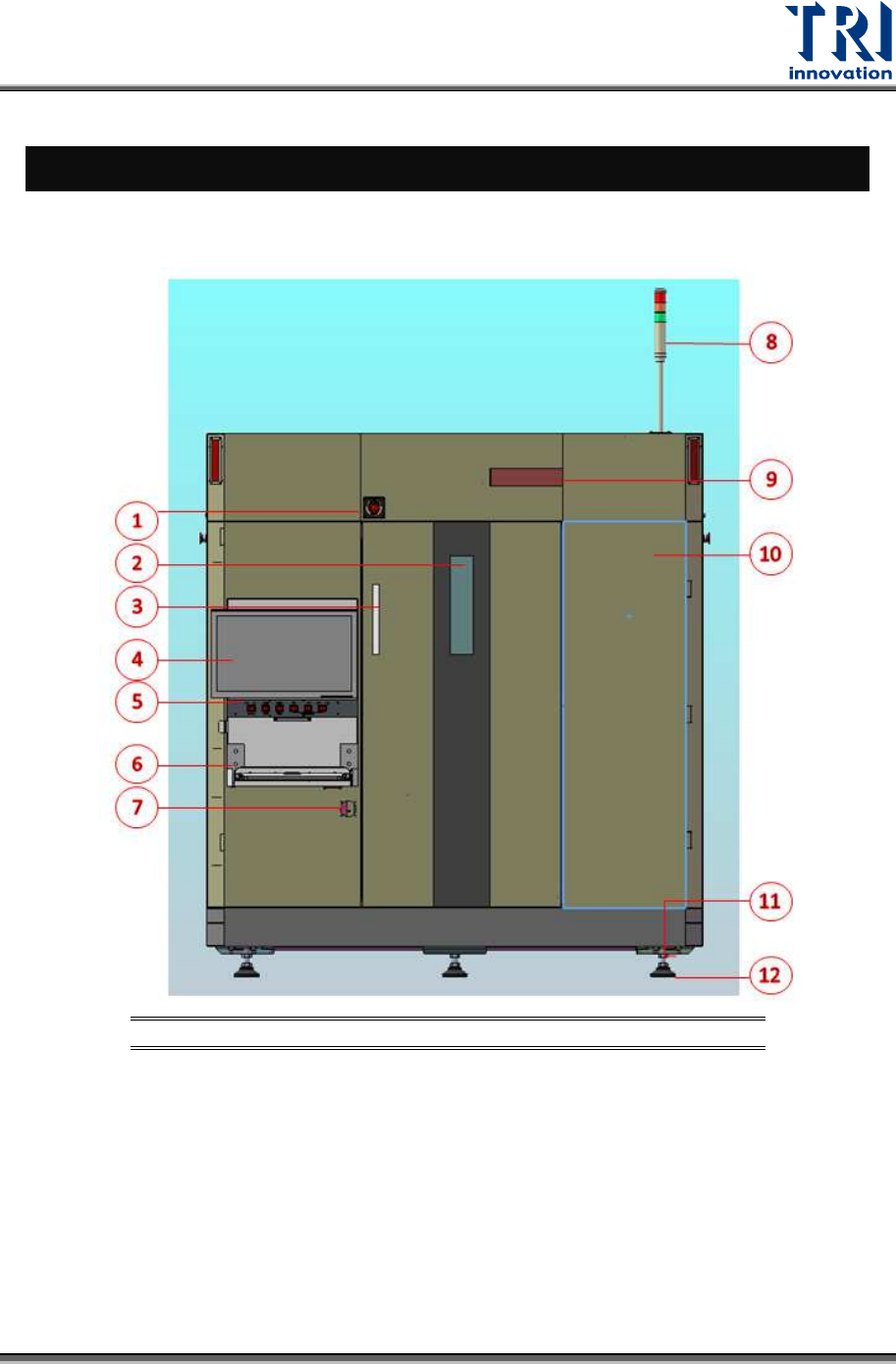

Figure 1: Front View
1) Emergency Stop 6) Keyboard
11) Adjustable Screw Of
Floor Stand
2) Lead Glass Window 7) Power Switch 12) Floor Stand
3) Front Door Handle 8) Signal Tower
4) Monitor 9) X-Ray Warning LED Light
5) Control Panel 10) Front Right Cover
Test Research, Inc.
2 TR7600 SIII Series User Guide – Hardware
The Operating and Storage environmental parameters are listed in the following table.
Operating Storage
Ambient Temperature:
0-40°C (32-104°F) -40-66°C (-40-151°F)
Max. Temperature Gradient:
10°C/hour (18°F/hour) 10°C/hour (18°F/hour)
Relative Humidity:
20-80% non-condensing Up to 95% non-condensing
Max. Humidity Gradient:
10%/hour 10%/hour
Max. Wet Bulb Temperature:
25°C (77°F) 46°C (115°F)
Max. Dew Point Temperature:
2°C (36°F) 2°C (36°F)
The power requirement for the TR7600 SIII is AC 200-240V/20A, three-phase, 50/60 Hz.
Table 1: Operating & Storage Environment for TR7600 SIII
