Fitting the Vacuum Pump Changeover 3.2.14 Connecting the Vacuum Distributor to the Pump 102 Vacuum Pump Vakuumpumpe 3.2.14 3 . 2 . 1 4 C o n n e c t in g t h e V a c u u m D is t r ib u t o r t o t h e P u m p Connecting…

Fitting the Vacuum Pump

3.2.12 Fitting the Exhaust Air Sheet to the Pump Support Sheet Changeover

Vacuum Pump Vakuumpumpe 101

3.2.12

3.2.12 Fitting the Exhaust Air Sheet to the Pump Support Sheet

Fitting the Exhaust Air Sheet to the Pump Support Sheet

3.2.13

3.2.13 Installation Variant 2 Only: Fitting the Cap

Installation Variant 2 Only: Fitting the Cap

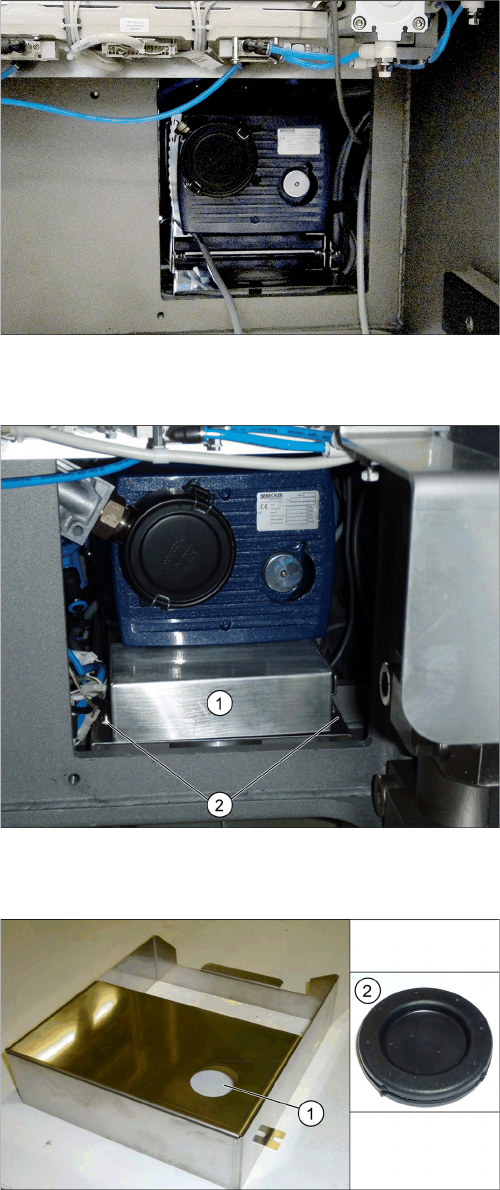

► Push the vacuum pump into the machine.

► Lift the vacuum pump slightly and fit the exhaust air

sheet (1) above the air outlet.

► Use two M4 screws to fasten the exhaust air sheet at

(2).

► Insert the cap (2) into the opening (1) on the exhaust

air sheet.

Fitting the Vacuum Pump

Changeover 3.2.14 Connecting the Vacuum Distributor to the Pump

102 Vacuum Pump Vakuumpumpe

3.2.14

3.2.14 Connecting the Vacuum Distributor to the Pump

Connecting the Vacuum Distributor to the Pump

3.2.15

3.2.15 Fitting the exhaust air disposal

Fitting the exhaust air disposal

There are two possibilities for the exhaust air disposal:

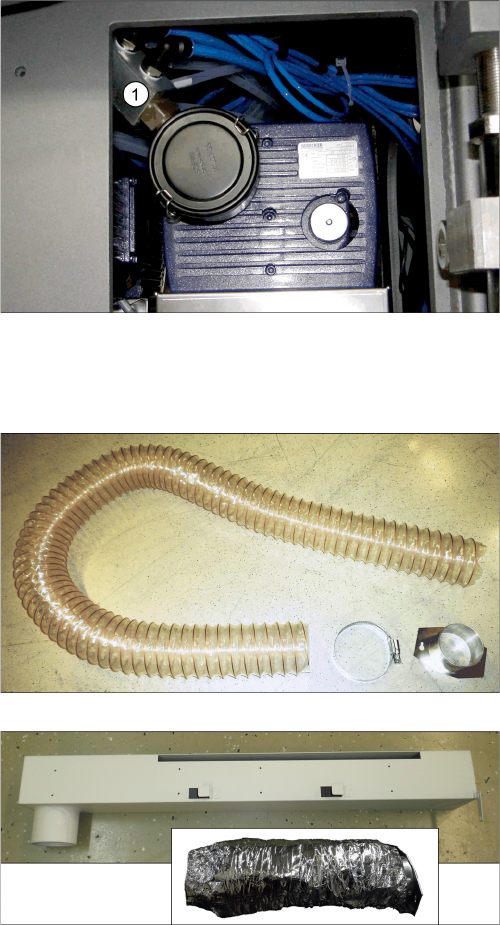

► Screw the vacuum distributor firmly to the vacuum

pump filter (1). Use a size 36 spanner wrench for this.

Variant 1: Exhaust tube (old)

An exhaust tube is connected to the air outlet conduit at

the vacuum pump.

► Also read section "3.2.15.1 Variant 1: Connecting the

Exhaust Tube to the Pump" [ ➙ 103].

Variant 2: Air box (new, standard)

An air box is fitted at the machine below and connected

to the air outlet conduit at the vacuum pump with a spe-

cial aluminum flex tube.

► Also read section "3.2.15.2 Variant 2: Instaling the

aluminum flex tube and the air box" [ ➙ 103].

Fitting the Vacuum Pump

3.2.15 Fitting the exhaust air disposal Changeover

Vacuum Pump Vakuumpumpe 103

3.2.15.1

3.2.15.1 Variant 1: Connecting the Exhaust Tube to the Pump

Variant 1: Connecting the Exhaust Tube to the Pump

3.2.15.2

3.2.15.2 Variant 2: Instaling the aluminum flex tube and the air box

Variant 2: Instaling the aluminum flex tube and the air box

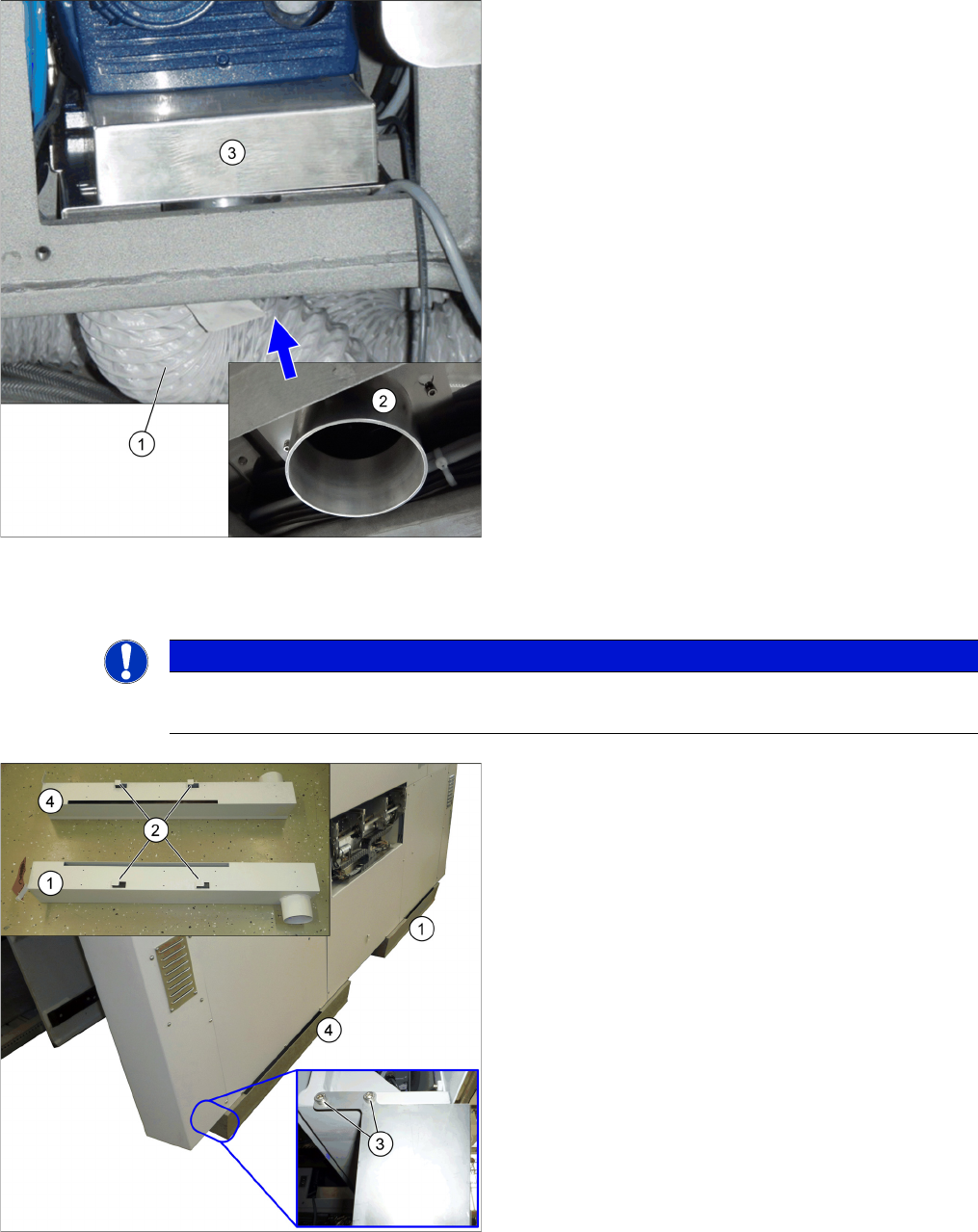

Exhaust tube installation

► Fasten the exhaust tube(1) with a hose clamp to the

"flange sheet assembly" [03084232-xx] (2) and then

fasten this from below to the air outlet conduit (3).

► Run the exhaust tube out of the machine.

NOTICE

Location 1 and 4

The installation at location 1 and 4 is identical

Air box installation

1. Air box location 1

2. Crotchets at the air box

3. Fastening screws

4. Air box location 4

► Hook the air box at the machine frame with the

crotchets and fix it in place with the two fastening

screws.
