序号料号部品名称数量规格备注

NB168IS2P01AA INSERTION UNIT 1

001 NB16809001AA SPRING 1

002 NB16809002AA SLIDER 1

003 NB16809003AA PIN 1

004 NB16809042PAA PLATE 1

005 NB16809052PAA PLATE 1

006 NB16809006AA PIN 2

007 NB16809072PAB GUIDE 1

008 NB16809008AA PIN 1

009 NB16809009AA BLOCK 1

010 NB16809010AA PIN 1

011 NB16809011AA PALTE 1

X001 NB168SH0254 SOKET HEAD CAP SCREW 2 M2.5-L4

X002 NB168SH0253 SOKET HEAD CAP SCREW 2 M2.5-L3

X003 NB168SH0412 SOKET HEAD CAP SCREW 2 M4-L12

X004 NB168HEX03 HEXAGON NUT 3 M3

X005 NB168FG0409 SPRING WASHER 2 4-9-H1.0

X006 NB168SW04 SPRING WASHER 2 4-7-H1.0

9 INSERT SECT.2P

N106

序号料号部品名称数量规格备注

NB168IS3P01AA INSERTION UNIT 1

001 NB16809001AA SPRING 1

002 NB16809002AA SLIDER 1

003 NB16809003AA PIN 1

004 NB16809043PAA PLATE 1

005 NB16809053PAA PLATE 1

006 NB16809006AA PIN 2

007 NB16809073PAB GUIDE 1

008 NB16809008AA PIN 1

009 NB16809009AA BLOCK 1

010 NB16809010AA PIN 1

011 NB16809011AA PALTE 1

X001 NB168SH0254 SOKET HEAD CAP SCREW 2 M2.5-L4

X002 NB168SH0253 SOKET HEAD CAP SCREW 2 M2.5-L3

X003 NB168SH0412 SOKET HEAD CAP SCREW 2 M4-L12

X004 NB168HEX03 HEXAGON NUT 3 M3

X005 NB168FG0409 SPRING WASHER 2 4-9-H1.0

X006 NB168SW04 SPRING WASHER 2 4-7-H1.0

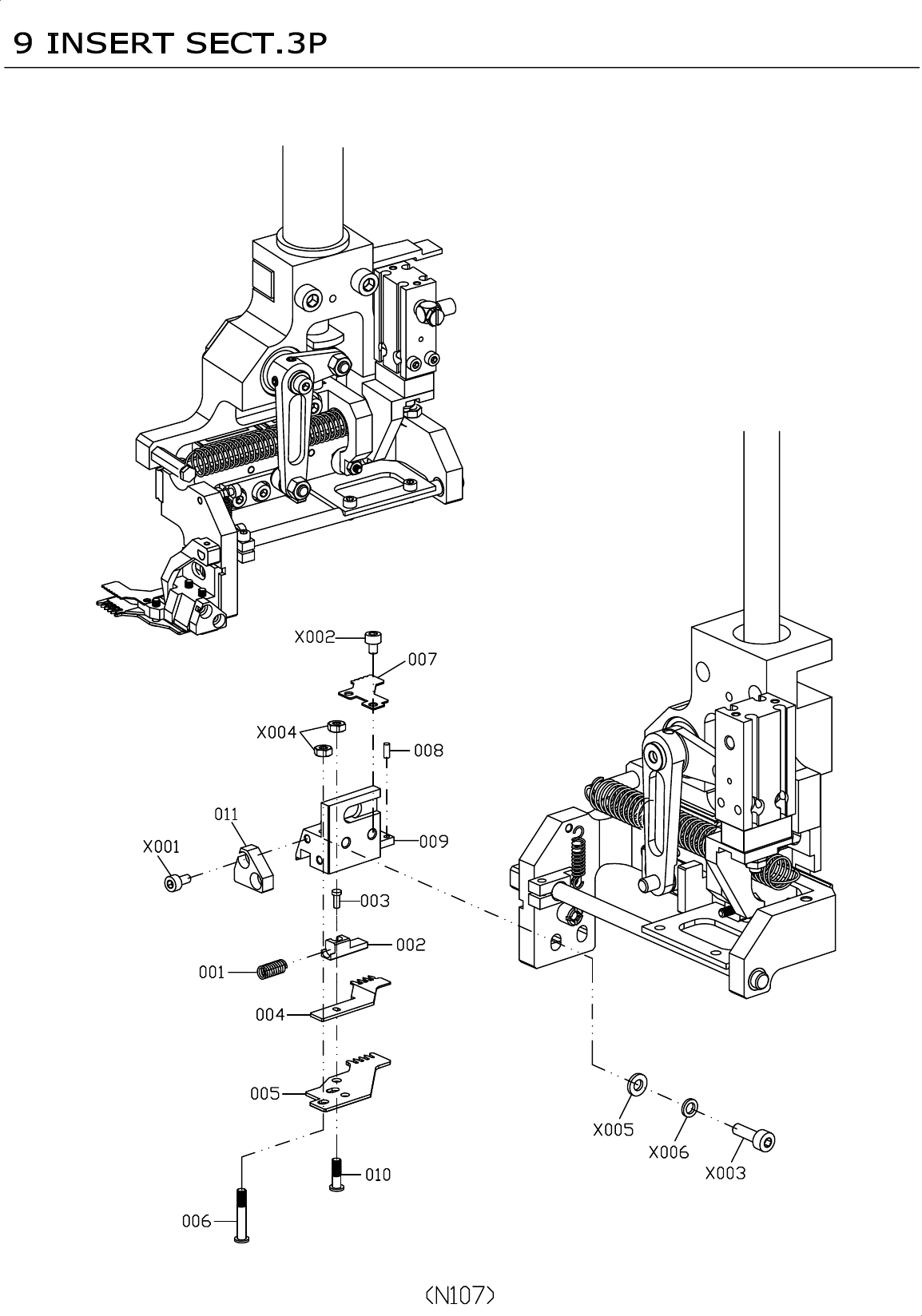

9 INSERT SECT.3P

N108
