序号 料号 部品名称 数量 规格 备注
001 NB16810035AA CAM 1
002 NB16810036AA CAM 1
003 NB16810037AA CAM 1
004 NB16810038AA KEY 1
005 NB16820013AA KEY 1
006 NB168T6368AA PULLEY 1
007 NB16810041AA BOX 1
008 NB16810042AA SHAFT 1
009 NB16810043AA PLATE 1
010 NB168W50E07AA REDUCTION GEAR 1 SW50E07LF-ST2
011 NB168D0425AA WASHER 1
012 NB16810045AA WASHER 1
013 NB168FU07SSAA NUT 1 FU07SS（M35X1.5）
014 NB1686007ZZAA BALL BEARING 1 6007ZZ
015 NB16807157AA FITTING 1 KS-1/4
X001 NB168SH0308 SOKET HEAD CAP SCREW 5 M3-L8
X002 NB168SH0616 SOKET HEAD CAP SCREW 1 M6-L16
X003 NB168SH0625 SOKET HEAD CAP SCREW 4 M6-L25
X004 NB168SH0630 SOKET HEAD CAP SCREW 6 M6-L30
X005 NB168SH0820 SOKET HEAD CAP SCREW 4 M8-L20
X006 NB168SH1020 SOKET HEAD CAP SCREW 1 M10-L20
X007 NB168SS0506 SUNK SCREW 2 M5-L6
10 LOWER ANVIL SECT.(ANVIL DRIVING SECT.-1)
X007 NB168SS0506 SUNK SCREW 2 M5-L6
X008 NB168SS0808 SUNK SCREW 3 M8-L8
X009 NB168SW03 SPRING WASHER 1 3-4-H1.0
X010 NB168SW06 SPRING WASHER 11 6-9.5-H1.6
X011 NB168SW08 SPRING WASHER 4 8-12.5-H2
X012 NB168SW10 SPRING WASHER 1 10-15.5-H2.5
N118
序号 料号 部品名称 数量 规格 备注
017 NB16842PJAAA MOTOR 1 MSMF042L1U2M
018 NB16810046AA COVER 1
019 NB16810047AA COVER 1
020 NB16810048AA PLATE 1
021 NB16810049AA BRACKET 1
022 NB16810050AA COVER 1
023 NB16810051AA BRACKET 1
024 NB16810052AA PULLEY 1
026 NB1685GT400AA BELT(TIMING) 1 400-EV5GT-15
027 NB16810076AA LAMP 1
X001 NB168SH0406 SOKET HEAD CAP SCREW 2 M4-L6
X002 NB168SH0410 SOKET HEAD CAP SCREW 6 M4-L10
X003 NB168SH0412 SOKET HEAD CAP SCREW 4 M4-L12
X004 NB168SH0416 SOKET HEAD CAP SCREW 4 M4-L16
X005 NB168SH0420 SOKET HEAD CAP SCREW 1 M4-L20
X006 NB168SH0510 SOKET HEAD CAP SCREW 2 M5-L10
X007 NB168SH0520 SOKET HEAD CAP SCREW 2 M5-L20
X008 NB168SH0610 SOKET HEAD CAP SCREW 5 M6-L10
X009 NB168SH0616 SOKET HEAD CAP SCREW 2 M6-L16
X010 NB168SH0820 SOKET HEAD CAP SCREW 4 M8-L20
X011 NB168FG0617 FLAT WASHER 2 6-17-H3
X012 NB168HEX04 HEXAGON NUT 1 M4

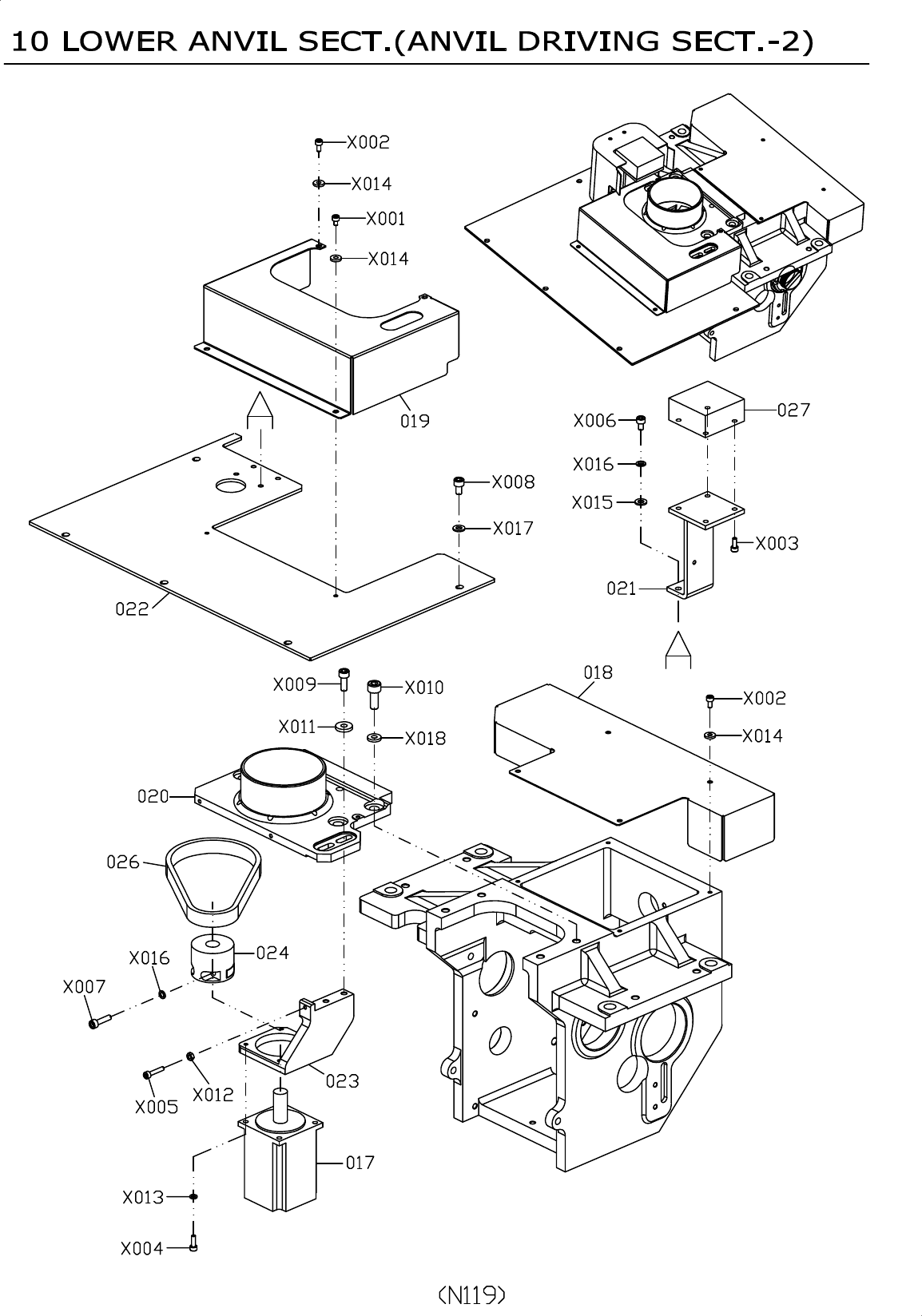

10 LOWER ANVIL SECT.(ANVIL DRIVING SECT.-2)
X012 NB168HEX04 HEXAGON NUT 1 M4
X013 NB168SW04 SPRING WASHER 4 4-7-H1.0
X014 NB168FG0409 FLAT WASHER 8 4-9-H1.0
X015 NB168FG0510 FLAT WASHER 2 5-10-H2
X016 NB168SW05 SPRING WASHER 4 5-8-H1.3
X017 NB168FG0612 FLAT WASHER 5 6-12-H1.5
X018 NB168SW08 SPRING WASHER 4 8-12.5-H2
N120
