NB168-Parts List 配件手册 - 第155页
在线预览 NB168-Parts List 配件手册 PDF 文档。
序号 料号 部品名称 数量 规格 备注
023 NB16814016AA BLOCK 1
024 NB16814017AA BLOCK 1
025 NB16814018AA RACK 1
026 NB16814019AB BLOCK 1
028 NB16814021AA BLOCK 2
029 NB16814022AA DOG FOR SENSOR 1
030 NB16814023AA LEVER 1
035 NB16814028AB LEVER 2
036 NB16814029AB LEVER 1
037 NB16814030AA PIPE 1
038 NB16814031AC BLOCK 2
039 NB16814032AA PLATE 1
041 NB16814034AA SHAFT 1
042 NB16814035AA BLOCK 1
043 NB16814036AA SPRING 1
046 NB1686902ZZAA BEARING 1 6902ZZ
050 NB168ZR2130AA COPPER SHEATHING 1
051 NB168ZR3280AA COPPER SHEATHING 1
052 NB168ZR1445AA COPPER SHEATHING 1
053 NB168JR22NAA RETAINING RING 1
015 NB16814038AA BELT(TIMING) 1
A001 NB168P0406AA PIN 2 ¢4-6
14 P.C.B. TRANSFER SECT.(RIGHT TO LEFT.-2)
A001 NB168P0406AA PIN 2 ¢4-6
X001 NB168SH0306 SOKET HEAD CAP SCREW 2 M3-L6
X002 NB168SH0416 SOKET HEAD CAP SCREW 4 M4-L16
X003 NB168SH0310 SOKET HEAD CAP SCREW 1 M3-L10
X004 NB168SH0435 SOKET HEAD CAP SCREW 2 M4-L35
X005 NB168SH0520 SOKET HEAD CAP SCREW 8 M5-L20
X006 NB168SH0612 SOKET HEAD CAP SCREW 2 M6-L12
X007 NB168SH0316 SOKET HEAD CAP SCREW 3 M3-L18
X008 NB168FG0307 FLAT WASHER 2 3-7-H0.5
X009 NB168FG0515 FLAT WASHER 2 5-15-H2
N138
序号 料号 部品名称 数量 规格 备注
027 NB16814020AA BLOCK 1
031 NB16814024AA LEVER 1
032 NB16814025AA PLATE 1
033 NB16814026AA PLATE 1
034 NB16814027AA ROD 1
040 NB16814033AA SPRING 1
042 NB16814035AA BLOCK 1
043 NB16814036AA SPRING 1
044 NB16814037AA NUT 1
045 NB168CDU20AA CYLINDER 1 CDU20-30D
046 NB1686902ZZAA BEARING 1 6902ZZ
047 NB168ASM506AA SPEED CONTROLLER 2 AS1201F M5-06
048 NB168RBA16AA BALL BEARING 1 RBQ1604
049 NB168625ZZAA BEARING 1 625ZZ
054 NB1686701ZZAA BALL BEARING 1 6701ZZ
055 NB168DA93AA SENSOR 2 3L-D-A93L
056 NB168M9NVLAA SENSOR 1 D-M9NVL
X001 NB168SH0512 SOKET HEAD CAP SCREW 1 M5-L12
X002 NB168SH0620 SOKET HEAD CAP SCREW 1 M6-L20
X003 NB168SH0520 SOKET HEAD CAP SCREW 2 M5-L20
X004 NB168SH0525 SOKET HEAD CAP SCREW 1 M5-L25
X005 NB168SH0550 SOKET HEAD CAP SCREW 3 M5-L50
X006 NB168SH0614 SOKET HEAD CAP SCREW 2 M6-L14
X007 NB168HEX05 HEXAGON NUT 2 M5
X008 NB168FG0510 FLAT WASHER 6 5-10-H2
X009 NB168SW05 SPRING WASHER 4 5-8-H1.3
X010 NB168SH0518 SOKET HEAD CAP SCREW 4 M5-L20

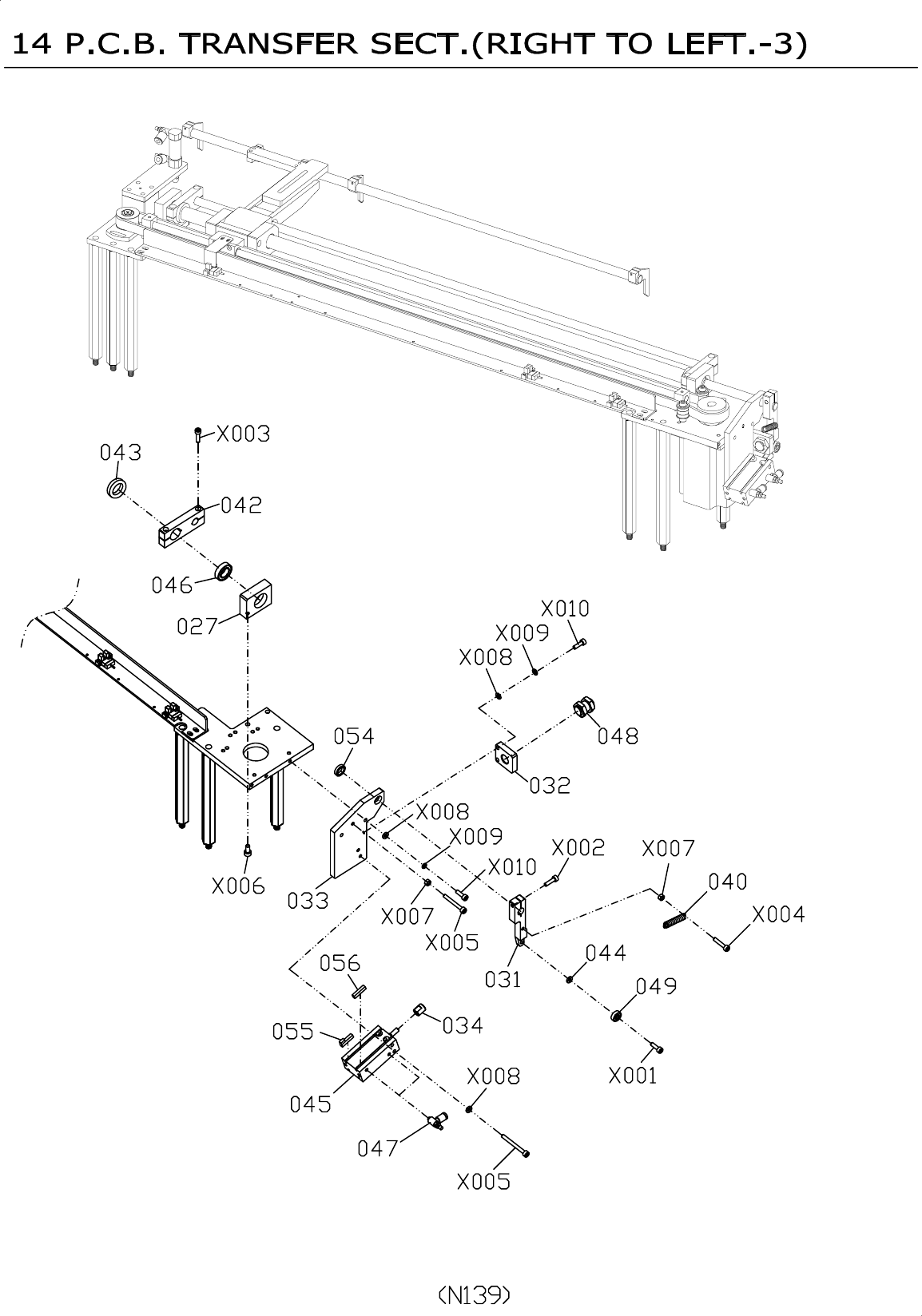

14 P.C.B. TRANSFER SECT.(RIGHT TO LEFT.-3)
N140
