序号 料号 部品名称 数量 规格 备注
050 NB16820029AB LEVER 1
051 NB16820030AA COLLAR 1
052 NB16820031AA LEVER 1
053 NB16820032AA COLLAR 1
054 NB16820033AA SHAFT 1
055 NB16820034AA COLLAR 1
056 NB16820035AA LEVER 1
057 NB16820036AA COLLAR 1
058 NB16820037AA COLLAR 1
059 NB16820038AA LEVER 1
060 NB16820039AA COLLAR 1
061 NB16820041AA TENSION SPRING 1
063 NB168624VZZAA BEARING 4 4-13VZZ
064 NB168D0206AA WASHER 4
065 NB168CFN12RAA CAM FOLLOWER 1 CFN12R-A
066 NB168CFN6RAA CAM FOLLOWER 4 CFN6R-A
067 NB1686004ZZAA BEARING 1 6004ZZ
068 NB1686905ZZAA BEARING 6 6905ZZ
069 NB168CFN5RAA CAM FOLLOWER 1 CFN5R-A
070 NB168D0530AA WASHER 2
072 NB16820040AA WASHER 1
073 NB1686005ZZAA BEARING 2 6005ZZ
20 PARTS PROCESS CECT.(DRIVING SECT.-4)
073 NB1686005ZZAA BEARING 2 6005ZZ
074 NB16820108AA COLLAR 1
075 NB16820117AA LEVER 1
X001 NB168SH0412 SOKET HEAD CAP SCREW 1 M4-L12
X002 NB168SH0416 SOKET HEAD CAP SCREW 3 M4-L16
X003 NB168SH0520 SOKET HEAD CAP SCREW 2 M5-L20
X004 NB168SH0816 SOKET HEAD CAP SCREW 2 M8-L16
X005 NB168HEX05 HEXAGON NUT 1 M5
X006 NB168HEX06 HEXAGON NUT 4 M6
X007 NB168HEX12 HEXAGON NUT 1 M12
X008 NB168SW06 SPRING WASHER 4 6-9.5-H1.6
X009 NB168SW05 SPRING WASHER 3 5-8-H1.3
X010 NB168SW12 SPRING WASHER 1 12-18-H3
X011 NB168SH0510 SOKET HEAD CAP SCREW 3 M5-L10
X012 NB168FG0510 FLAT WASHER 3 5-10-H2
X013 NB168SH0635 SOKET HEAD CAP SCREW 1 M6-L35
N208
序号 料号 部品名称 数量 规格 备注
062 NB16820044AA SPRING 1
075 NB16820042AA SPRING 1
076 NB16820045AA BRACKET 1
077 NB16820046AA BRACKET 1
078 NB16820047AA POST 1
079 NB16820048AA BRACKET 1
080 NB16820049AA SPRING 1
081 NB16820050AA TENSION SPRING 1
082 NB168624VZZAA BEARING 5 624VZZ
083 NB168D0206AA BEARING 5
X001 NB168SH0410 SOKET HEAD CAP SCREW 4 M4-L10
X002 NB168SH0412 SOKET HEAD CAP SCREW 1 M4-L12
X003 NB168SH0612 SOKET HEAD CAP SCREW 6 M6-L12
X004 NB168SH0635 SOKET HEAD CAP SCREW 1 M6-L35
X005 NB168SW06 SPRING WASHER 7 6-9.5-H1.6

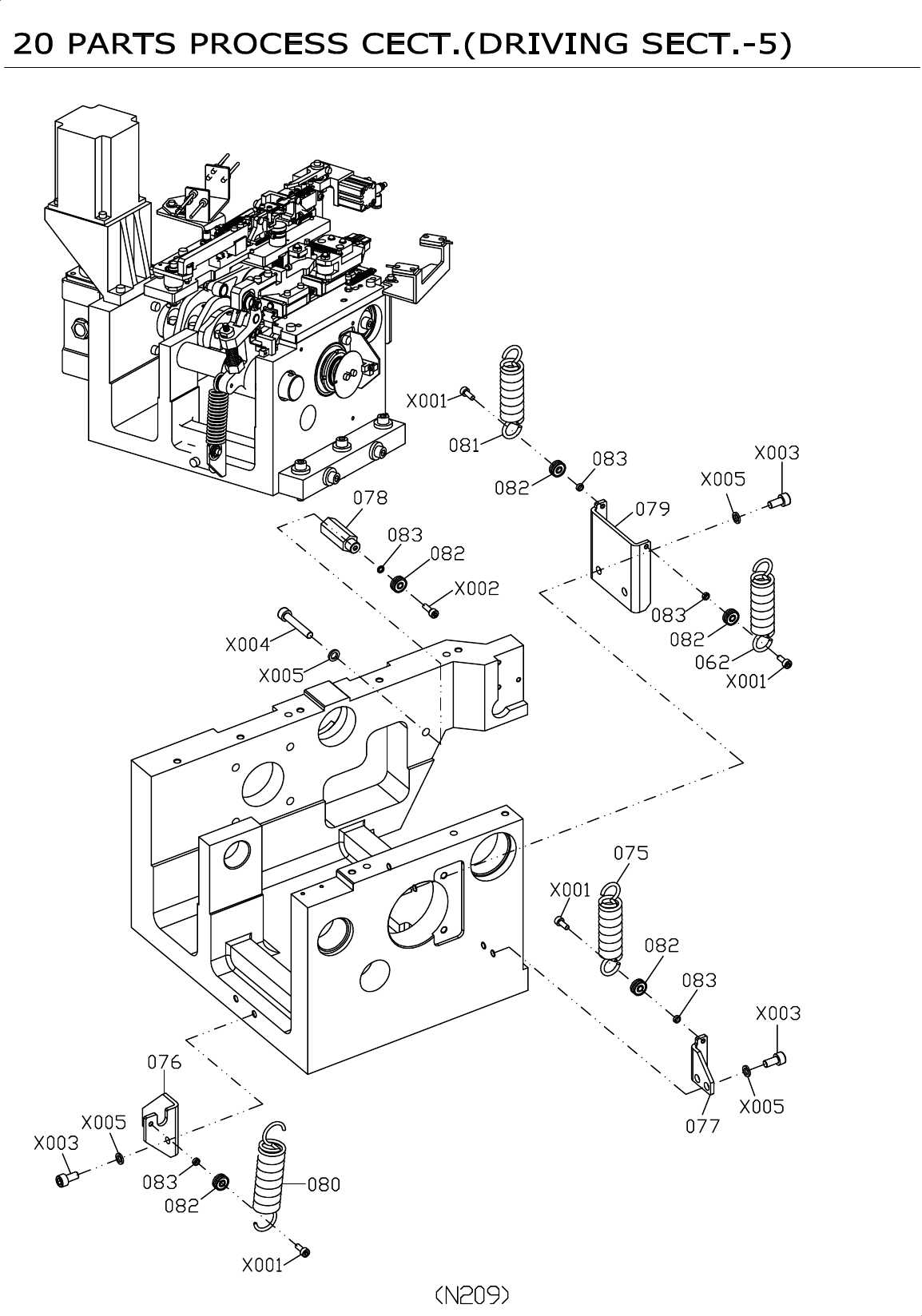

20 PARTS PROCESS CECT.(DRIVING SECT.-5)
