序号 料号 部品名称 数量 规格 备注
026 NB16820069AA SHAFT 1
027 NB16820070AA PIN 1
028 NB16820071AB LEVER 1
029 NB16820072AA PIN 1
030 NB16820073AA BRACKET 1
031 NB16820074AA LEVER 1
032 NB16820075AA COLLAR 1
033 NB16820076AA PLATE 1
034 NB16820077AA PLATE 1
035 NB16820078AA SPACER 1
036 NB16820079AA LEVER 1
037 NB16820080AA PIN 1
038 NB16820081AA SPRING 1
039 NB16820082AA COLLAR 1
040 NB16820083AA SPRING 1
042 NB168LM10UUAA BUSHING 1 LM10UU
043 NB168P0210AA PIN 1
044 NB1686800ZZAA BALL BEARING 2 6800ZZ
045 NB168POS5TAA ROD END 1 P0S5T
046 NB168POS5TLAA ROD END 1 POS5TL
047 NB16820085AA WASHER 2
048 NB1686000ZZAA BEARING 2 6000ZZ
20 PARTS PROCESS SECT.(PARTS POSITIONING SECT.-2)
048 NB1686000ZZAA BEARING 2 6000ZZ
049 NB168ASM506AA JOINT 2 AS1201F M5-06
050 NB16820086AA PLATE 1
051 NB16820087AA WASHER 1
052 NB16820088AB ROD 1
053 NB168CFN5RAA CAM FOLLOWER 1 CFN5R-A
054 NB168CDQSB16AA CYLINDER 1 CDQSB16-15D
055 NB16820089AA ROD 1
057 NB16820111AA OUTER HEXAGONAL SCREW 1 M4-L20
058 NB168NOS4TLAA ROD END 1 P0S4TL
059 NB168NOS4TAA ROD END 1 POS4T
X001 NB168SH0308 SOKET HEAD CAP SCREW 6 M3-L8
X002 NB168SH0312 SOKET HEAD CAP SCREW 2 M3-L12
X003 NB168SH0335 SOKET HEAD CAP SCREW 4 M3-L35
X005 NB168SH0412 SOKET HEAD CAP SCREW 3 M4-L12
X006 NB168SH0416 SOKET HEAD CAP SCREW 5 M4-L16
X007 NB168SH0530 SOKET HEAD CAP SCREW 1 M5-L30
X008 NB168SH0510 SOKET HEAD CAP SCREW 1 M5-L10
X010 NB168HEX05 HEXAGON NUT 2 M5
X011 NB168HEX08 HEXAGON NUT 1 M8
X012 NB168HEX04L HEXAGON NUT 2 M4
X013 NB168HEX04 HEXAGON NUT 3 M4
X014 NB168FG0307 FLAT WASHER 4 3-7-H0.5
X015 NB168SW03 SPRING WASHER 2 3-4-H1.0
X016 NB168SW04 SPRING WASHER 1 4-7-H1.0
X016 NB168SW04 SPRING WASHER 1 4-7-H1.0
X017 NB168SH0514 SOKET HEAD CAP SCREW 1 M5-L14
N214
序号 料号 部品名称 数量 规格 备注
001 NB16820090AA BLOCK 1
002 NB16820091AA PUSHER 1
003 NB16820092AA PIN 2
004 NB16820093AA FORK 1
005 NB16820094AA HOOK 1
006 NB168SR15WAA GUIDE 1 SSR15XW2UUC1+160LY
009 NB16820097AB PLATE 1
010 NB168P0618AA PIN 2
011 NB168NP32AA GREASE NIPPLE 2 NP3.2X3.5
012 NB168P0413AA PIN 2
X001 NB168SH0414 SOKET HEAD CAP SCREW 4 M4-L14
X002 NB168SH0408 SOKET HEAD CAP SCREW 4 M4-L8
X003 NB168SH0416 SOKET HEAD CAP SCREW 3 M4-L16
X004 NB168SH0425 SOKET HEAD CAP SCREW 1 M4-L25
X005 NB168SH0514 SOKET HEAD CAP SCREW 2 M5-L14
X006 NB168SH0516 SOKET HEAD CAP SCREW 2 M5-L16
X007 NB168SH0625 SOKET HEAD CAP SCREW 2 M6-L25
X008 NB168HEX04 HEXAGON NUT 1 M4
X009 NB168SW04 SPRING WASHER 8 4-7-H1.0
X010 NB168FG0409 FLAT WASHER 6 4-9-H1.0
X011 NB168SW05 SPRING WASHER 2 5-8-H1.3
X012 NB168FG0510 FLAT WASHER 2 5-10-H2

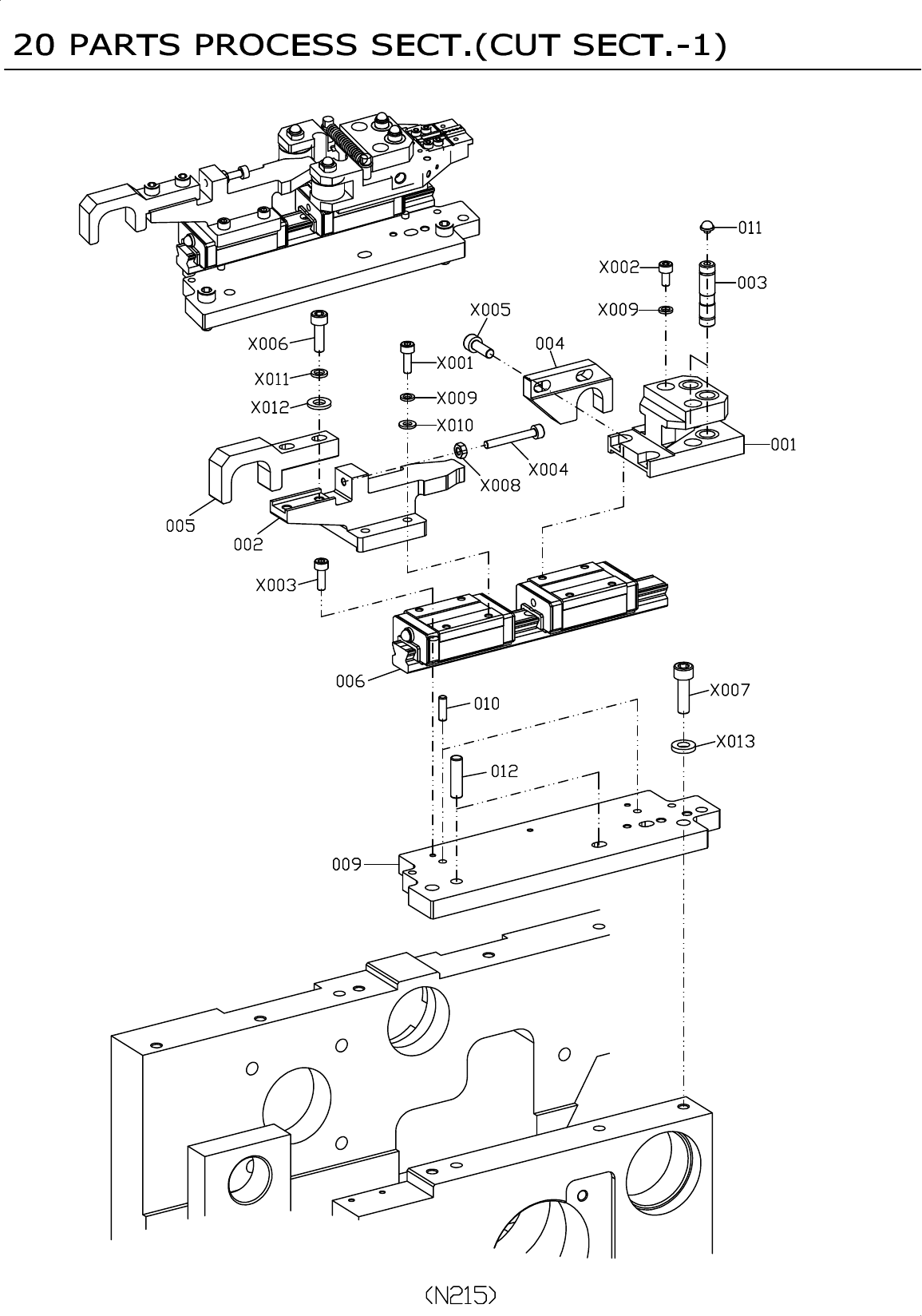

20 PARTS PROCESS SECT.(CUT SECT.-1)
X012 NB168FG0510 FLAT WASHER 2 5-10-H2
X013 NB168FG0617 FLAT WASHER 2 6-17-H3
