序号 料号 部品名称 数量 规格 备注
001 NB16820090AA BLOCK 1
002 NB16820091AA PUSHER 1
003 NB16820092AA PIN 2
004 NB16820093AA FORK 1
005 NB16820094AA HOOK 1
006 NB168SR15WAA GUIDE 1 SSR15XW2UUC1+160LY
009 NB16820097AB PLATE 1
010 NB168P0618AA PIN 2
011 NB168NP32AA GREASE NIPPLE 2 NP3.2X3.5
012 NB168P0413AA PIN 2
X001 NB168SH0414 SOKET HEAD CAP SCREW 4 M4-L14
X002 NB168SH0408 SOKET HEAD CAP SCREW 4 M4-L8
X003 NB168SH0416 SOKET HEAD CAP SCREW 3 M4-L16
X004 NB168SH0425 SOKET HEAD CAP SCREW 1 M4-L25
X005 NB168SH0514 SOKET HEAD CAP SCREW 2 M5-L14
X006 NB168SH0516 SOKET HEAD CAP SCREW 2 M5-L16
X007 NB168SH0625 SOKET HEAD CAP SCREW 2 M6-L25
X008 NB168HEX04 HEXAGON NUT 1 M4
X009 NB168SW04 SPRING WASHER 8 4-7-H1.0
X010 NB168FG0409 FLAT WASHER 6 4-9-H1.0
X011 NB168SW05 SPRING WASHER 2 5-8-H1.3
X012 NB168FG0510 FLAT WASHER 2 5-10-H2
20 PARTS PROCESS SECT.(CUT SECT.-1)
X012 NB168FG0510 FLAT WASHER 2 5-10-H2
X013 NB168FG0617 FLAT WASHER 2 6-17-H3
N216
序号 料号 部品名称 数量 规格 备注
NB168NU2002 CUT SECT NUIT
013 NB16820100AA LEVER 1
014 NB16820101AA PIN 2
015 NB16820066AA SPRING 1
016 NB16820103AA CUTTER 1
017 NB16820104AA CUTTER 1
018 NB16820105AA SPRING 1
019 NB16820106AA SPRING HOOK 2
020 NB168NART6RAA ROLLER FOLLOWER 2 NART6UUVR
021 NB168NP32AA GREASE NIPPLE 2 NP3.2X3.5
022 NB16820134AA CUTTER 1
023 NB16820135AA CUTTER 1
X001 NB168SH0310 SOKET HEAD CAP SCREW 4 M3-L10
X002 NB168SH0418 SOKET HEAD CAP SCREW 2 M4-L18
X003 NB168SS0405 SUNK SCREW 2 M4-L5
X004 NB168HEX04 HEXAGON NUT 2 M4
X005 NB168FG0412 FLAT WASHER 2 4-12-H1.5

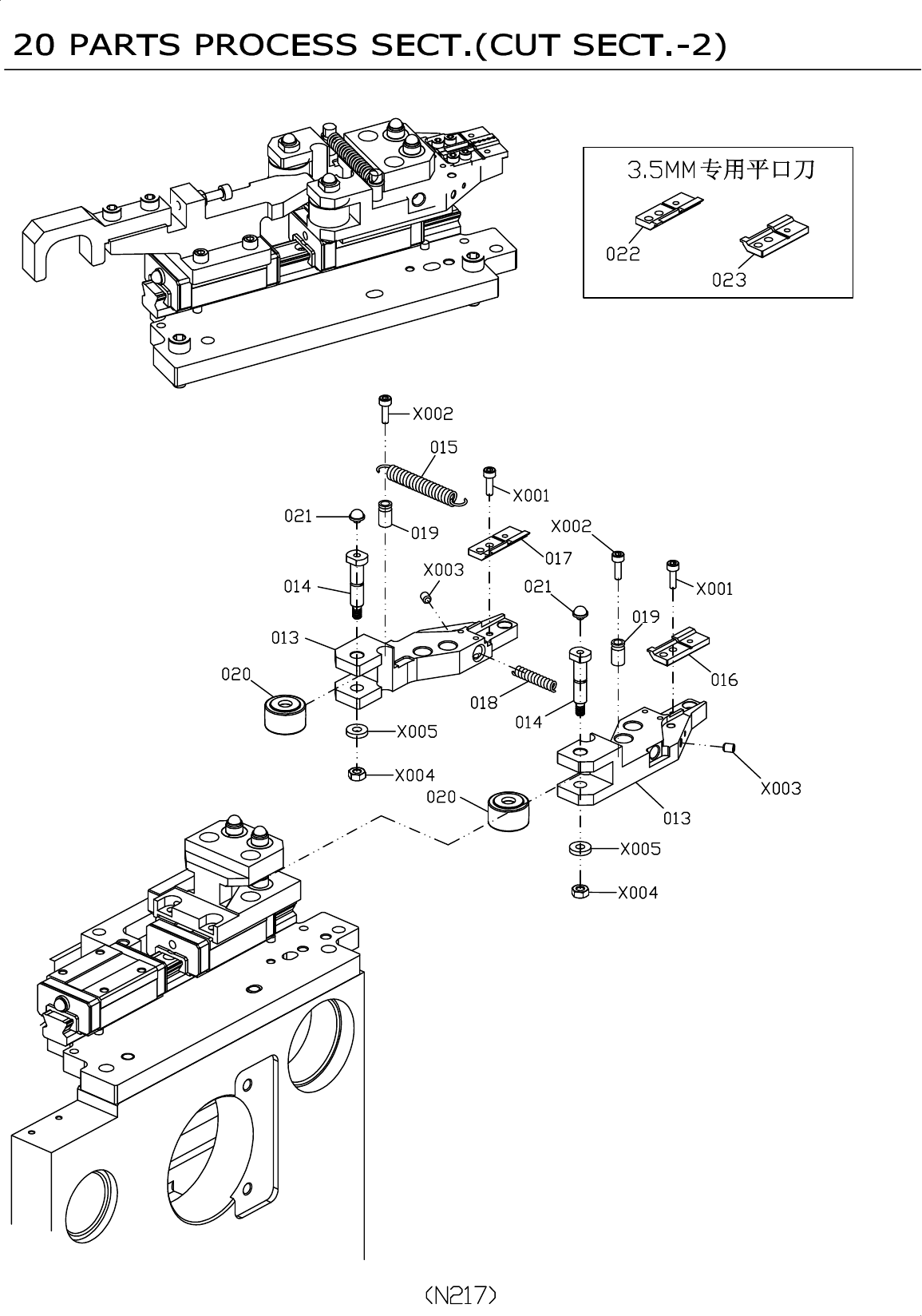

20 PARTS PROCESS SECT.(CUT SECT.-2)
