序号料号部品名称数量规格备注 NB16815050AA TAPE FEEDER UNIT 1 001 NB1681505001AA MAIN FRAME 1 002 NB1681275005AA LEVER 1 003 NB1681501006AA LEVER 1 004 NB1681275025AA SLIDER 1 005 NB168SU001AA SCISSORS UNIT 1 006 NB1681275008AA LE…

序号料号部品名称数量规格备注

NB16815050AA TAPE FEEDER UNIT 1

001 NB1681505001AA MAIN FRAME 1

002 NB1681275005AA LEVER 1

003 NB1681501006AA LEVER 1

004 NB1681275025AA SLIDER 1

005 NB168SU001AA SCISSORS UNIT 1

006 NB1681275008AA LEVER 1

007 NB1681275007AA LEVER 1

008 NB1681275004AA LEVER 1

009 NB1681501005AA LEVER 1

010 NB1681275013AA ROLLER 2

011 NB1681275036AA PIN 1

012 NB1681275016AA PIN 1

013 NB1681275015AA PIN 1

014 NB1681275027AA PIN 1

015 NB1681275011AA PIN 1

016 NB1681275014AA PIN 1

017 NB1681275063AA RIVERING NAIL 1

018 NB1681275010AA PIN 1

019 NB1681275012AA COLLAR 1

020 NB1681275032AA COLLAR 1

021 NB1681275064AA PIN 1

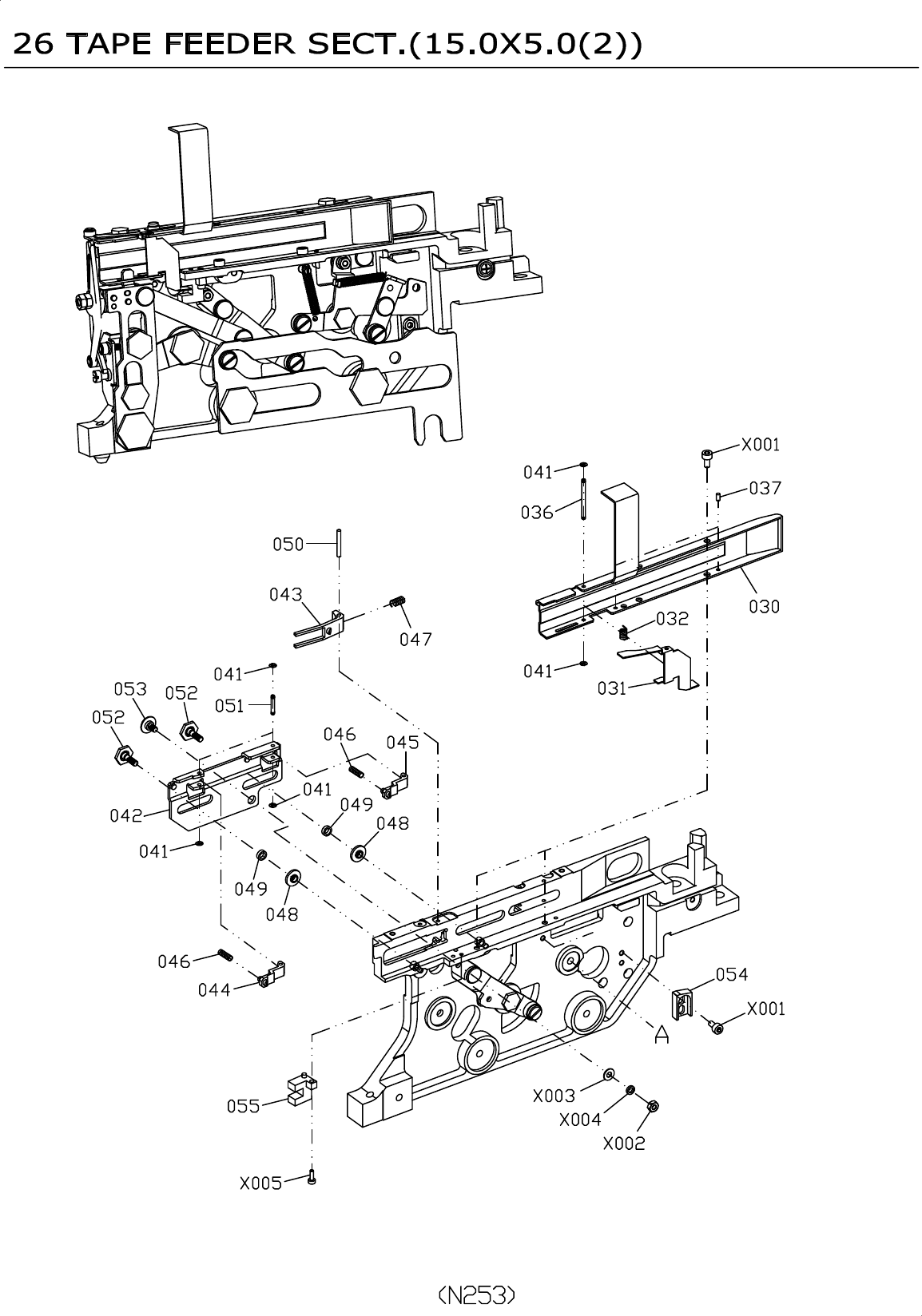

26 TAPE FEEDER SECT.(15.0X5.0(1))

021 NB1681275064AA PIN 1

022 NB1681275026AA PIN 1

023 NB1681275031AA PIN 2

024 NB1681275009AA ROLLER 2

025 NB1681275057AA PIN 1

026 NB1681275065AA PIN 1

027 NB1681275029AA COLLAR 1

028 NB1681275030AA COLLAR 1

029 NB1681275056AA PIN 1

033 NB1681275049AA SPRING 1

034 NB1681275048AA CLAW 1

035 NB1681275047AA PIN 2

038 NB1681275067AA PIN 1

039 NB168683ZZAA BEARING 3 683ZZ

040 NB168106ZZAA BEARING 1 MR106ZZS

X001 NB168HEX03 HEXAGON NUT 4 M3

X002 NB168HEX04 HEXAGON NUT 6 M4

X003 NB168FG0307 FLAT WASHER 2 3-7-H0.5

X004 NB168SW03 SPRING WASHER 1 3-4-H1.0

X005 NB168FG0409 FLAT WASHER 6 4-9-H1.0

X006 NB168SW04 SPRING WASHER 6 4-7-H1.0

X007 NB168SH0308 SOKET HEAD CAP SCREW 2 M3-L8
